OPERATION

BRC-153

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

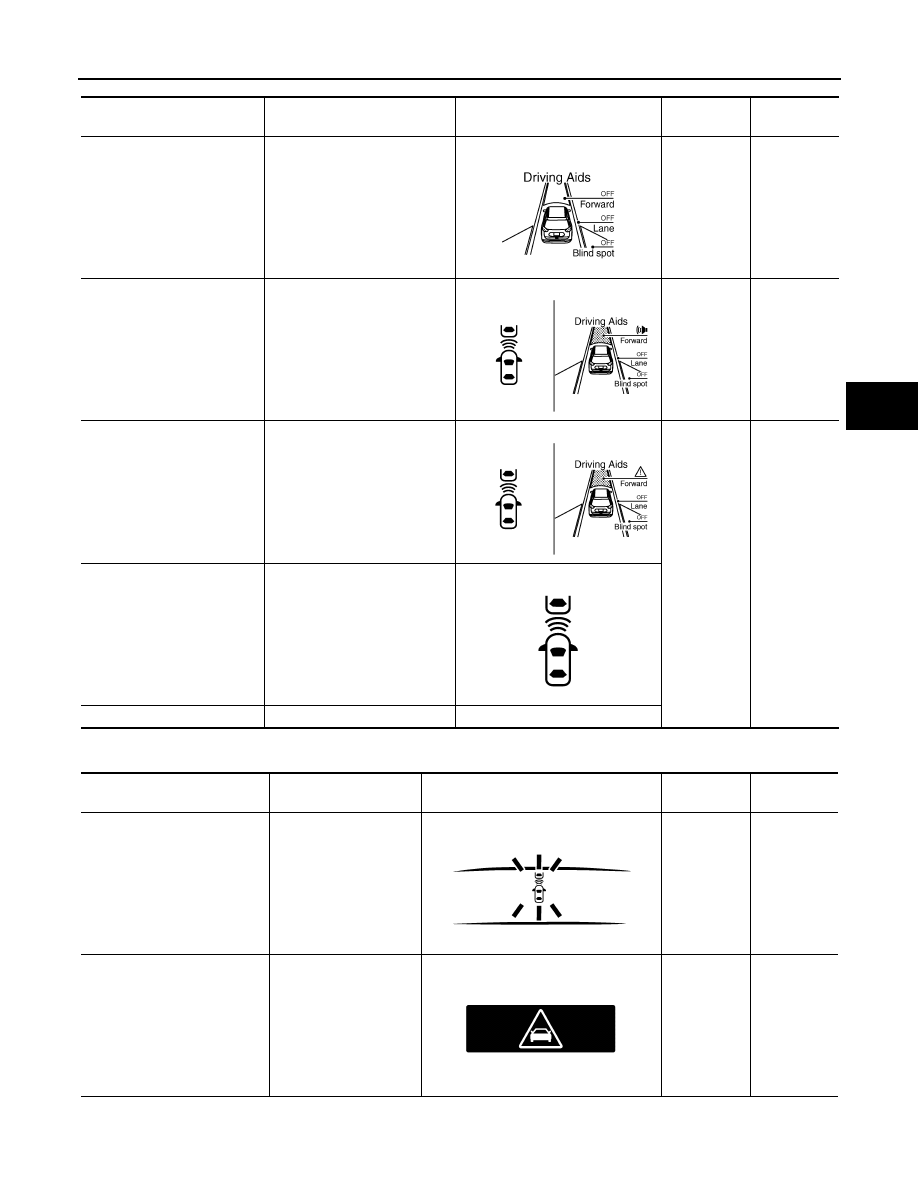

Warning Display

System status

Condition

Display on combination meter

FEB warning

lamp

Buzzer

FEB OFF

—

ON

—

FEB ON

System ON

OFF

—

FEB system malfunction

The FEB system is automatical-
ly canceled.
NOTE:
The system operates if the igni-
tion switch is turned OFF

⇒

ON

after the condition improves

ON

Beep

Malfunction See Owner's Manual

JMOIA0077GB

JMOIA0078GB

JMOIA0079GB

JMOIA0080ZZ

Condition

Action

Display on combination meter

FEB warning

lamp

Buzzer

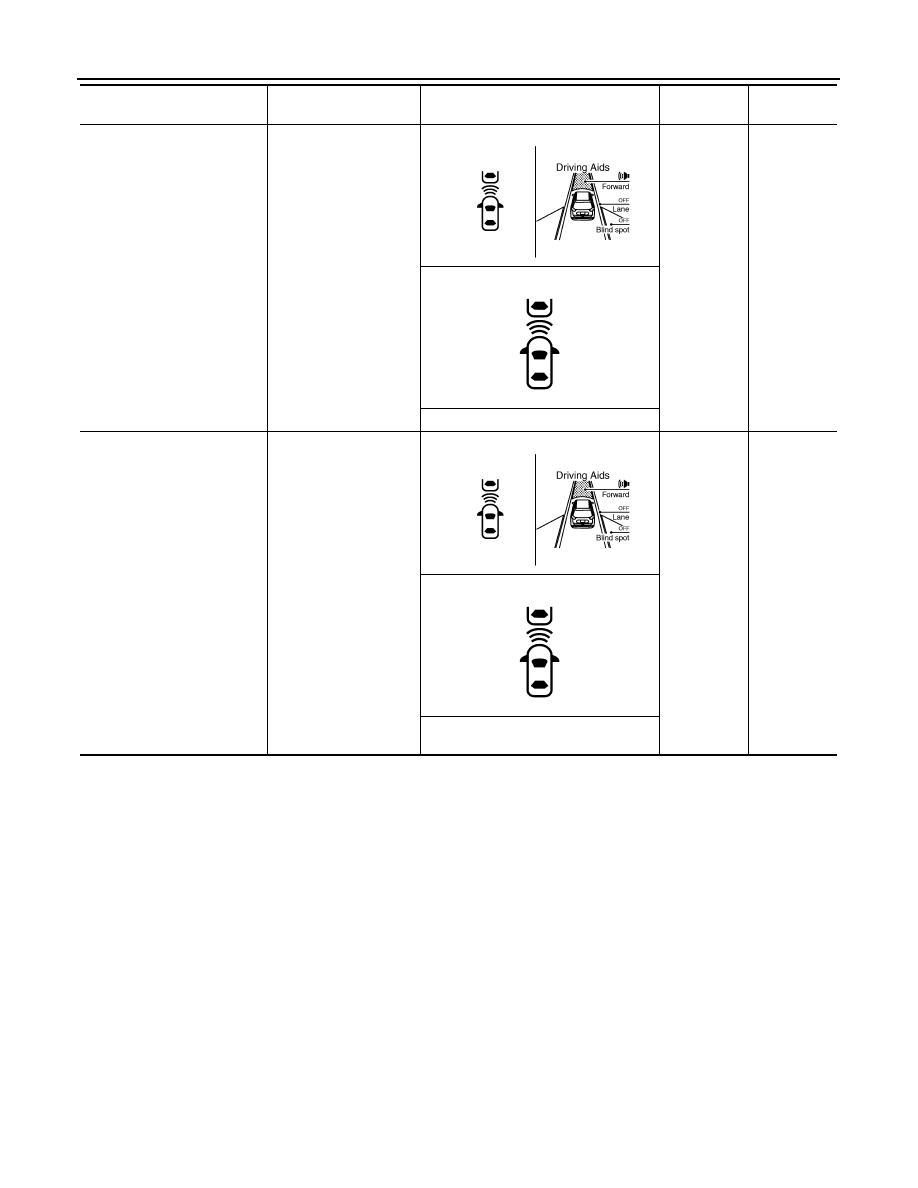

There is a possibility of a colli-
sion with the vehicle ahead

Operates brake (Partial)

OFF

Beep

An obstacle ahead is avoided
due to the system applying
braking.

Operates brake (Emer-
gency)

OFF

Continuous

beeps

JMOIA0081ZZ

JSOIA0957ZZ

BRC-154

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

OPERATION

Dirt around the distance sensor

The FEB system is auto-
matically canceled.
NOTE:
The system operates if
the ignition switch is
turned OFF

⇒

ON after

the condition improves

ON

Beep

Unavailable Front Radar Obstruction

Accelerator pedal high temper-
ature

The FEB system is auto-
matically canceled.
NOTE:
The system operates if
the ignition switch is
turned OFF

⇒

ON after

the condition improves

Beep

Beep

Unavailable High Accelerator Tempera-

ture

Condition

Action

Display on combination meter

FEB warning

lamp

Buzzer

JMOIA0078GB

JMOIA0080ZZ

JMOIA0078GB

JMOIA0080ZZ

HANDLING PRECAUTION

BRC-155

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

HANDLING PRECAUTION

Description

INFOID:0000000010501243

PRECAUTIONS FOR FORWARD EMERGENCY BRAKING

• The forward emergency braking system is a supplemental aid to the driver. It is not a replacement for the

driver

′

s attention to traffic conditions or responsibility to drive safely. It cannot prevent accidents due to care-

lessness or dangerous driving techniques.

• The forward emergency braking system does not function in all driving, traffic, weather and road conditions.
• The automatic braking will cease under the following conditions:
- When the steering wheel is turned as far as necessary to avoid a collision.
- When the accelerator pedal is depressed.
- When there is no longer a vehicle detected ahead.
• If the forward emergency braking system has stopped the vehicle, the vehicle will remain at a standstill for

approximately 2 seconds before the brakes are released.

• The system will not detect the following objects:
- Pedestrians, animals, or obstacles in the roadway
- Oncoming vehicles in the same lane
- Crossing vehicles
• The radar sensor has some performance limitations. For stationary vehicles, the forward emergency braking

system can function at speeds up to approximately 70 km/h (45 MPH).

• The radar sensor may not detect a vehicle ahead in the following conditions:
- Dirt, ice, snow or other material covering the radar sensor.
- Interference by other radar sources.
- Snow or road spray from traveling vehicles.
- If the vehicle ahead is narrow (e.g.motorcycle)
- When driving on a steep downhill slope or roads with sharp curves.
• In some road or traffic conditions, the forward emergency braking system may unexpectedly push the accel-

erator pedal up or apply partial braking. When acceleration is necessary, continue to depress the accelerator
pedal to override the system.

• Braking distances increase on slippery surfaces.
• Excessive noise will interfere with the warning chime sound, and the chime may not be heard.

BRC-156

< ECU DIAGNOSIS INFORMATION >

[FORWARD EMERGENCY BRAKING]

DISTANCE SENSOR

ECU DIAGNOSIS INFORMATION

DISTANCE SENSOR

Reference Value

INFOID:0000000010501526

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor item

Condition

Value/Status

VHCL SPEED SE

While driving

Value of vehicle

speed signal

(wheel speed)

YAW RATE

While driving

Vehicle stopped

0.0

Vehicle turning right

Positive value

Vehicle turning left

Negative value

PWR SUP MONI

Ignition switch ON

Power supply volt-

age value of Dis-

tance sensor

DISTANCE

Drive the vehicle and ac-
tivate the vehicle-to-vehi-
cle distance control mode

When a vehicle ahead is detected

Displays the dis-

tance from the pre-

ceding vehicle

When a vehicle ahead is not detected

0.0

RELATIVE SPD

Drive the vehicle and ac-
tivate the vehicle-to-vehi-
cle distance control mode

When a vehicle ahead is detected

Displays the rela-

tive speed

When a vehicle ahead is not detected

0.0

LASER OFFSET

NOTE:
The item is indicated, but not used

—

LASER HEIGHT

NOTE:
The item is indicated, but not used

—

STEERING ANGLE

Ignition switch ON

When setting the steering wheel in straight-ahead po-
sition

0.0

When turning the steering wheel 90

°

 rightward

+90

When turning the steering wheel 90

°

 leftward

-90

STRG ANGLE
SPEED

Ignition switch ON

At the time of turning the steering wheel

Steering wheel
turning speed is
displayed

L/R ADJUST

Ignition switch ON

At the completion of radar alignment adjustment

Horizontal correc-
tion value is dis-
played

U/D ADJUST

Ignition switch ON

At the completion of radar alignment adjustment

Vertical correction
value is displayed

FCW SYSTEM ON

NOTE:
The item is indicated, but not used

Off

FCW SELECT

NOTE:
The item is indicated, but not used

Off

PFCW SYSTEM ON

NOTE:
The item is indicated, but not used

Off

PFCW SELECT

NOTE:
The item is indicated, but not used

Off

FEB SW

Engine running

FEB system ON

On

FEB system OFF

Off
