BRAKE PEDAL

PERIODIC MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment

INFOID:0000000010305434

INSPECTION

Brake Pedal Height

Check the height (H

1

) between the accelerator pedal stopper (1) and

the brake pedal upper surface.

CAUTION:

Remove the floor trim.

ASCD brake Switch and Stop Lamp Switch

Check the clearance (C) between bracket (1) and ASCD brake
switch/stop lamp switch (2) threaded end.

CAUTION:

The stop lamp must be turned off when the brake pedal is
released.
NOTE:
Pull the brake pedal pad to make the clearance between bracket and ASCD brake switch/stop lamp switch
threaded end.

Brake Pedal Play

Press the brake pedal. Check the brake pedal play (A).

Depressed Brake Pedal Height

Standard

Brake pedal height (H

1

)

: Refer to

BR-90, "Brake

Pedal"

.

JPFIA0119ZZ

Standard

Clearance (C) between
bracket and ASCD brake
switch/stop lamp switch
threaded end

: Refer to

BR-90, "Brake

Pedal"

.

JPFIA0206ZZ

Standard

Pedal play (A)

: Refer to

BR-90, "Brake

Pedal"

.

JPFIA0121ZZ

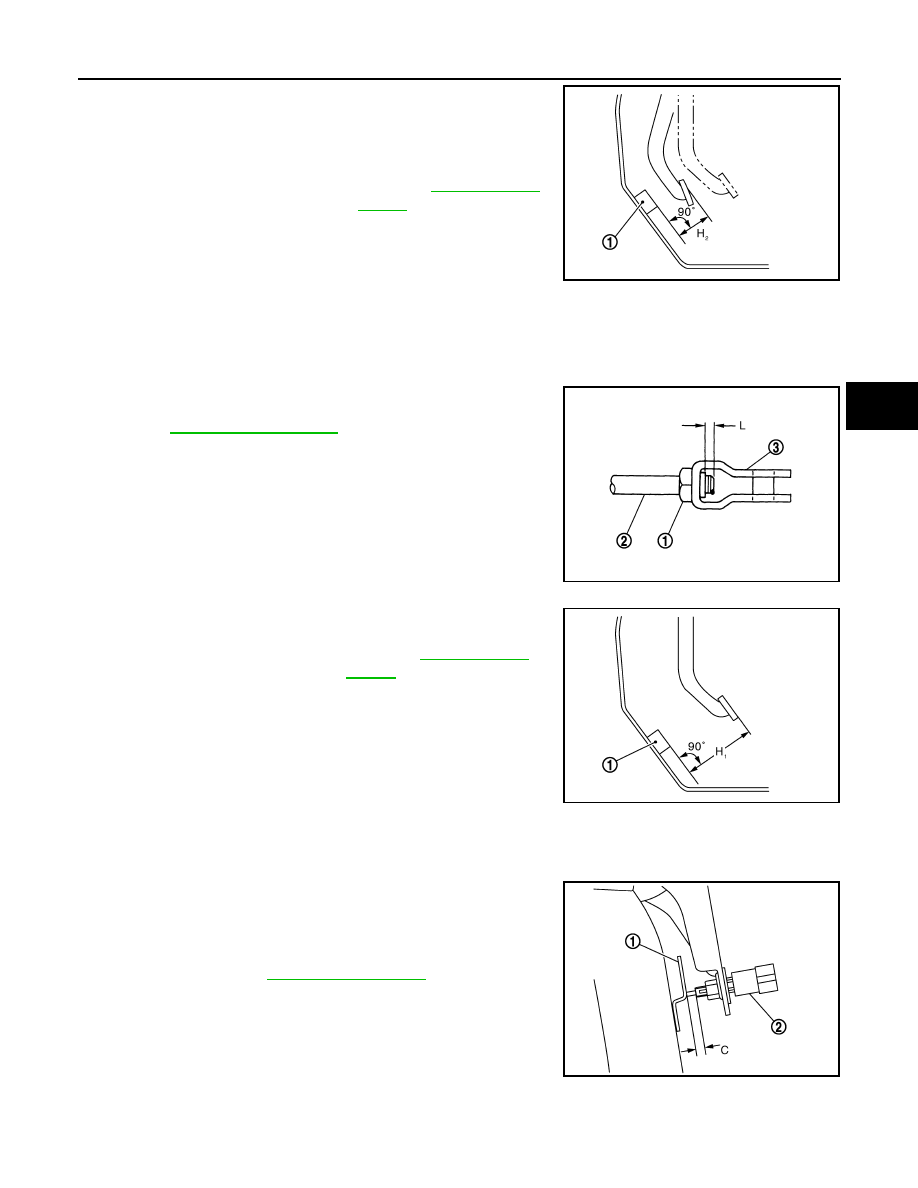

BRAKE PEDAL

BR-53

< PERIODIC MAINTENANCE >

[RHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Check the height between the accelerator pedal stopper (1) and the
brake pedal upper surface (H

2

) when depressing the brake pedal at

490 N (50 kg, 110 lb) while turning engine ON.

CAUTION:

Remove the floor trim.

ADJUSTMENT

Brake Pedal Height

1.

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

2.

Turn the ASCD brake switch and stop lamp switch 45

°

 counterclockwise.

3.

Loosen the input rod lock nut (1). Adjust the brake pedal to the
specification. Tighten the input rod lock nut to the specification.
Refer to

BR-72, "Exploded View"

.

CAUTION:

The threaded end of the input rod (2) must project to the
inner side (L) of the clevis (3).

ASCD brake Switch and Stop Lamp Switch

1.

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

2.

Turn the ASCD brake switch and stop lamp switch 45

°

 counterclockwise.

3.

Press-fit ASCD brake switch/stop lamp switch (2) until ASCD
brake switch/stop lamp switch hits the bracket (1) 45

°

 clockwise.

CAUTION:

• The clearance (C) between the bracket and ASCD brake

switch/stop lamp switch threaded end must be the speci-
fied value. Refer to

BR-90, "Brake Pedal"

.

• The stop lamp must be turned off when the brake pedal is

released.

Brake Pedal Play

1.

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

2.

Turn the ASCD brake switch and stop lamp switch 45

°

 counterclockwise.

Standard

Depressed brake pedal
height (H

2

)

: Refer to

BR-90, "Brake

Pedal"

.

JPFIA0120ZZ

JPFIA0003ZZ

Standard

Brake pedal height (H

1

)

: Refer to

BR-90, "Brake

Pedal"

.

JPFIA0119ZZ

JPFIA0206ZZ

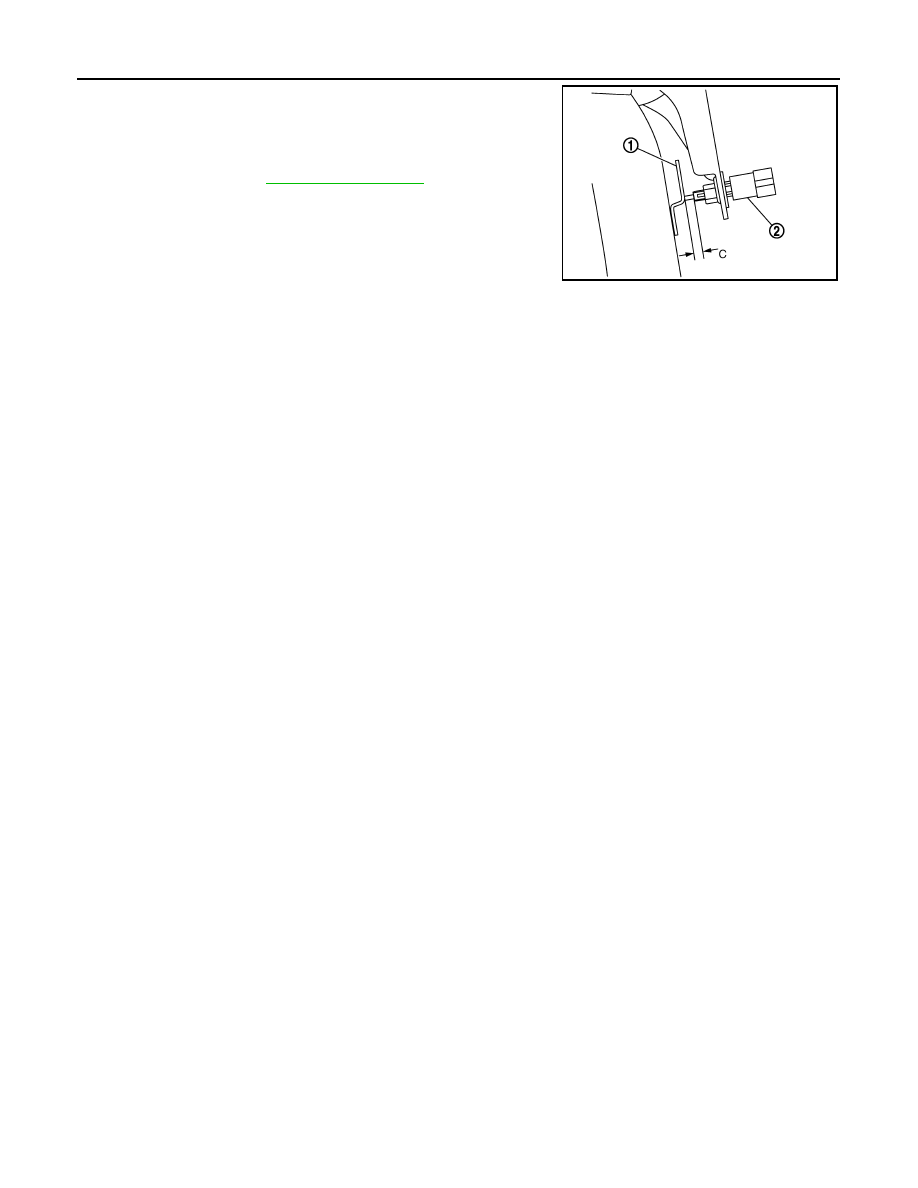

BR-54

< PERIODIC MAINTENANCE >

[RHD]

BRAKE PEDAL

3.

Press-fit ASCD brake switch/stop lamp switch (2) until ASCD
brake switch/stop lamp switch hits the bracket (1) 45

°

 clockwise.

CAUTION:

• The clearance (C) between the bracket and ASCD brake

switch/stop lamp switch threaded end must be the speci-
fied value. Refer to

BR-90, "Brake Pedal"

.

• The stop lamp must be turned off when the brake pedal is

released.

JPFIA0206ZZ

BRAKE FLUID

BR-55

< PERIODIC MAINTENANCE >

[RHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

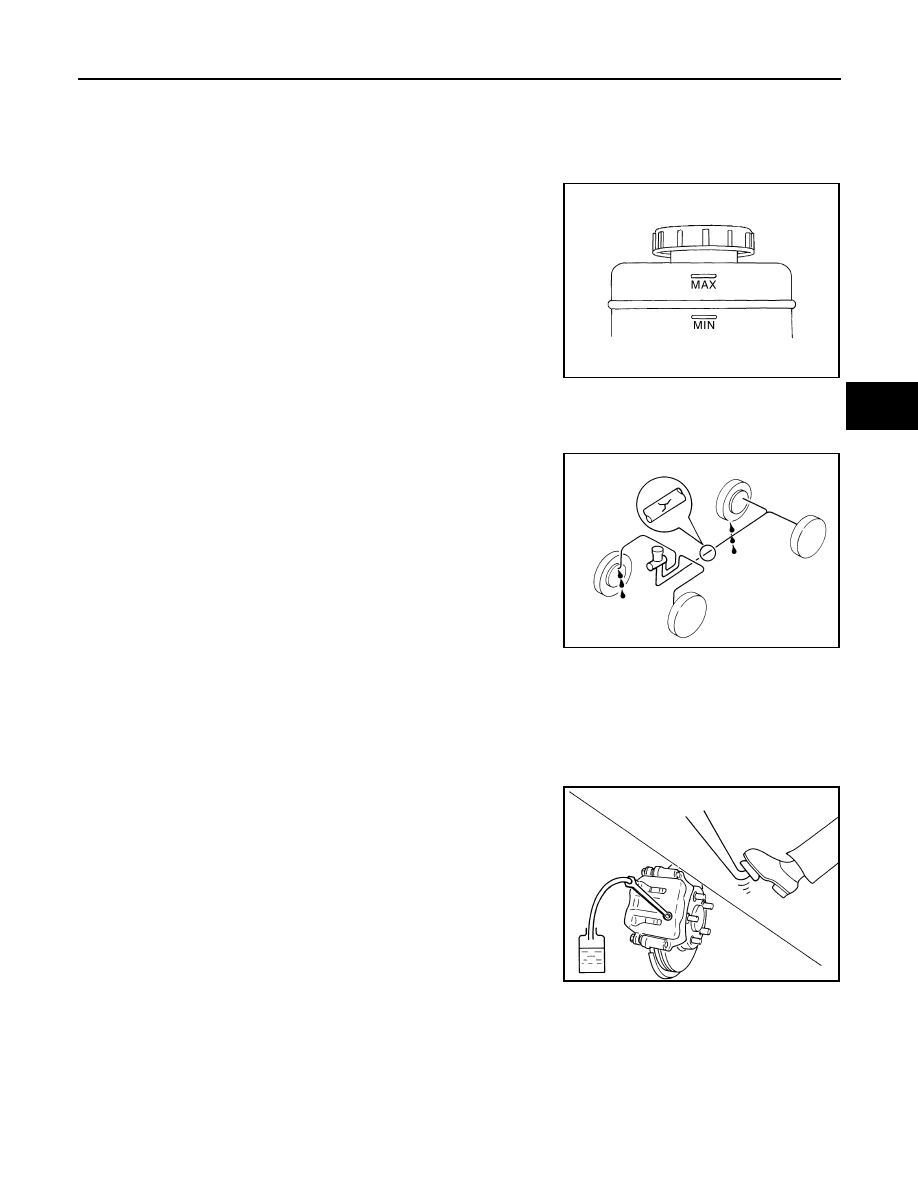

BRAKE FLUID

Inspection

INFOID:0000000010305435

BRAKE FLUID LEVEL

• Check that the fluid level in the reservoir tank is within the specified

range (MAX – MIN lines).

• Visually check for any brake fluid leakage around the reservoir

tank.

• Check the brake system for any leakage if the fluid level is

extremely low (lower than MIN).

• Check the brake system for fluid leakage if the warning lamp

remains illuminated even after the parking brake is released.

BRAKE LINE

1.

Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged
parts.

2.

Check for fluid leakage by fully depressing brake pedal while
engine is running.

CAUTION:

If leakage occurs around joints, retighten or, if necessary,
replace damaged parts.

Draining

INFOID:0000000010305436

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) con-

nector or the battery negative terminal before draining.

1.

Connect a vinyl tube to the bleed valve.

2.

Depress the brake pedal and loosen the bleeder valve to gradu-
ally discharge brake fluid.

Refilling

INFOID:0000000010305437

CAUTION:

Turn the ignition switch OFF and disconnect the ABS actuator and electric unit (control unit) connec-
tor or the battery negative terminal before refilling.

JPFIA0007ZZ

SBR389C

BRA0007D
