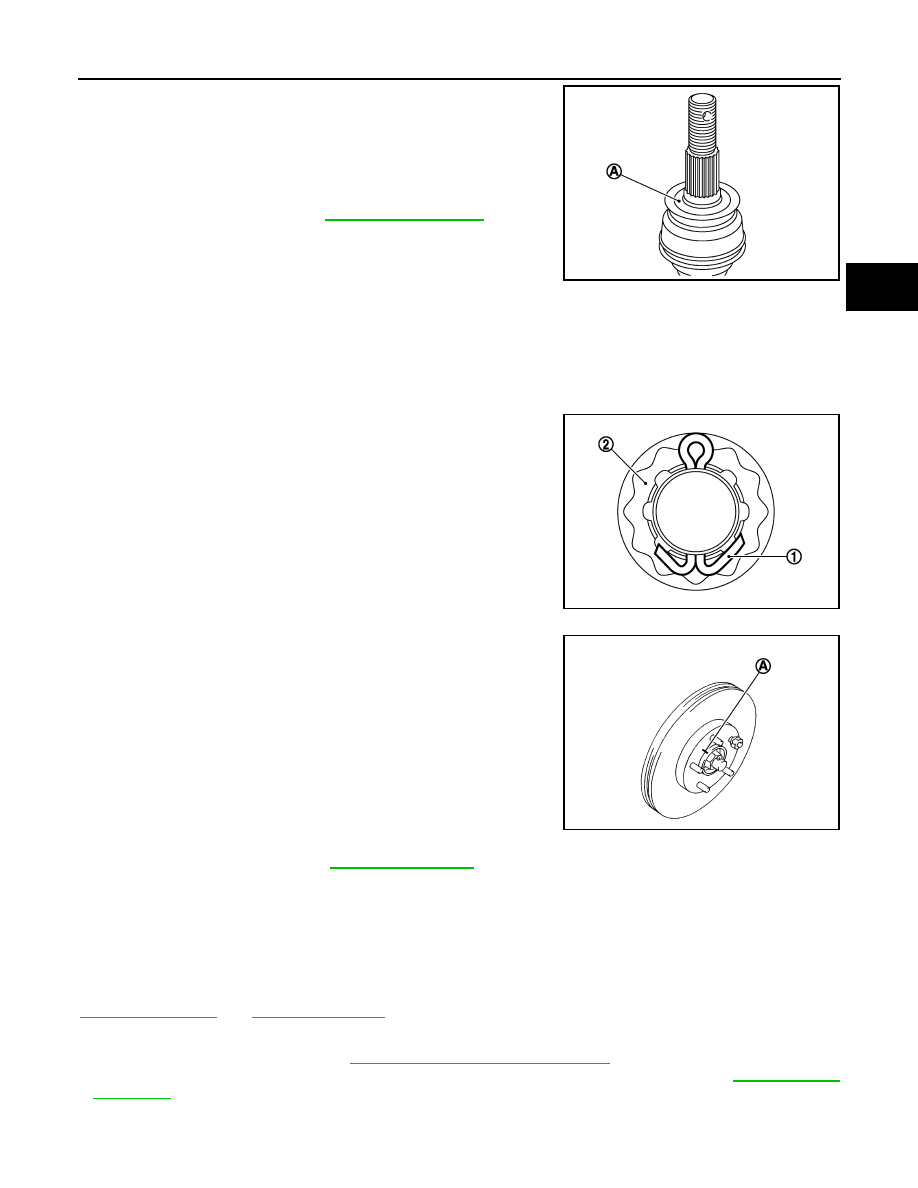

• Clean the mating surfaces of the joint sub-assembly and the wheel

hub and bearing. Apply Molykote M77 lubricant to the surface (A)
of the joint sub-assembly.

CAUTION:

Apply lubricant to cover the entire flat mating surface of the
joint sub-assembly.

NOTE:
Always check with the Parts Department for the latest parts informa-
tion.

• Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub

lock nut. Do not use a power tool.

• Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the

wheel hub lock nut to the specification.

• When installing a the cotter pin (1) and the nut retainer (2),

securely bend the cotter pin to prevent rattles.

• Align the matching marks (A) on the disc brake rotor and on the

wheel hub and bearing.

• Complete the inspection. Refer to

FAX-51, "Inspection"

.

Inspection

INFOID:0000000010297866

INSPECTION AFTER REMOVAL

Check components for deformation, cracks, and other damage. Replace if there are.

Ball Joint Inspection

Check boots of transverse link and steering outer socket ball joint for breakage, axial play, and torque. Refer to

FSU-6, "Inspection"

 and

ST-14, "Inspection"

.

INSPECTION AFTER INSTALLATION

• Check the wheel alignment. Refer to

FSU-7, "Wheel Alignment Inspection"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-66, "Work

Procedure"

.

Amount of lubricant

FAX-73, "Drive Shaft"

JPDIG0122ZZ

JPDIF0295ZZ

JPDIG0066ZZ

FAX-52

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT BOOT

FRONT DRIVE SHAFT BOOT

Exploded View

INFOID:0000000010435905

REMOVAL

LEFT SIDE

RIGHT SIDE (MR20DD)

RIGHT SIDE (R9M)

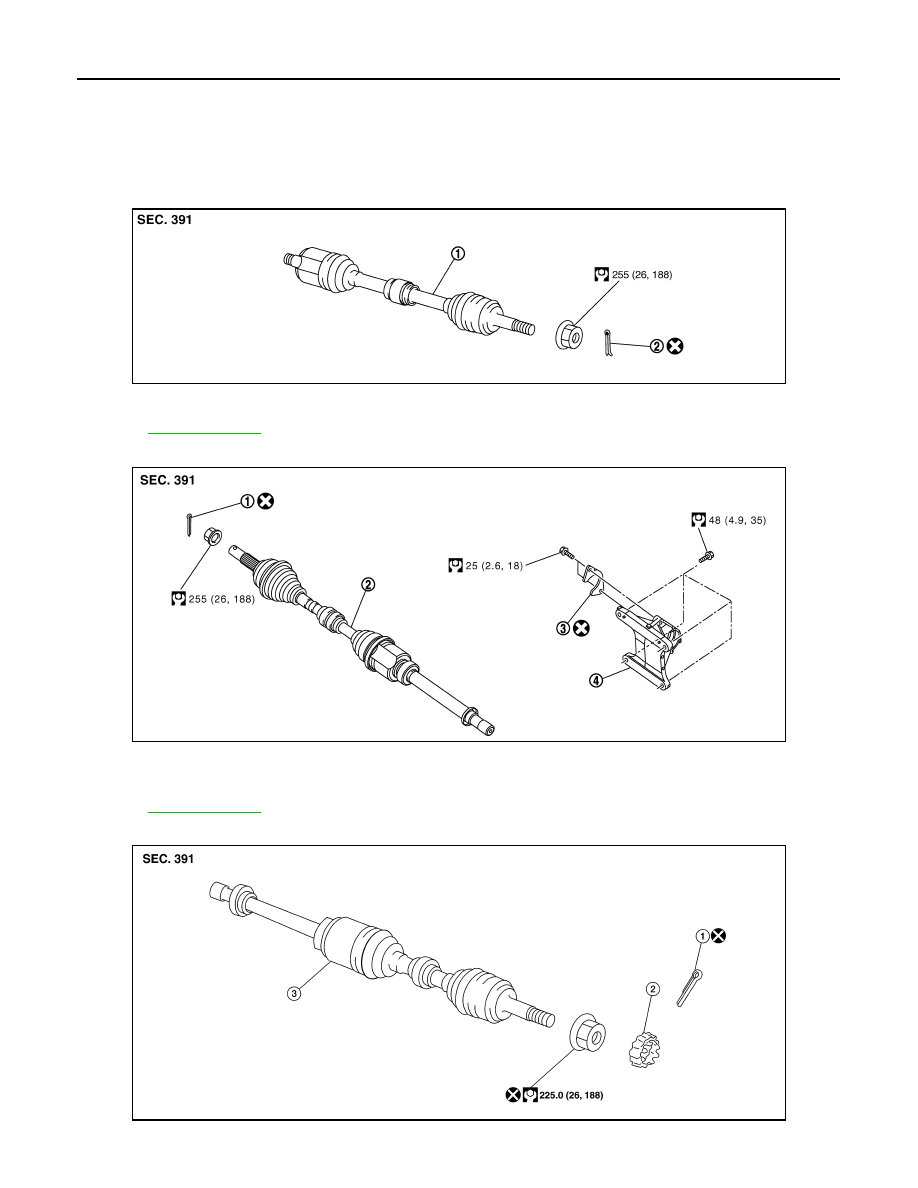

E1DIA0230GB

1.

Drive shaft

2.

Cotter pin

Refer to

GI-4, "Components"

 for symbols in the figure.

E1DIA0232GB

1.

Cotter pin

2.

Drive shaft

3.

Plate

4.

Support bearing bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

AWDIA1158ZZ

FRONT DRIVE SHAFT BOOT

FAX-53

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

DISASSEMBLY

LEFT SIDE

RIGHT SIDE (MR20DD)

1.

Cotter pin

2.

Nut retainer

3.

Drive shaft

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIF0047ZZ

1.

Circular clip

2.

Dust shield

3.

Housing

4.

Snap ring

5.

Spider assembly

6.

stopper ring

7.

Boot band

8.

Boot

9.

Shaft

10. Damper band

11.

Dynamic damper

12. Circular clip

13. Joint sub-assembly

: Wheel side

: Fill NISSAN Genuine grease or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

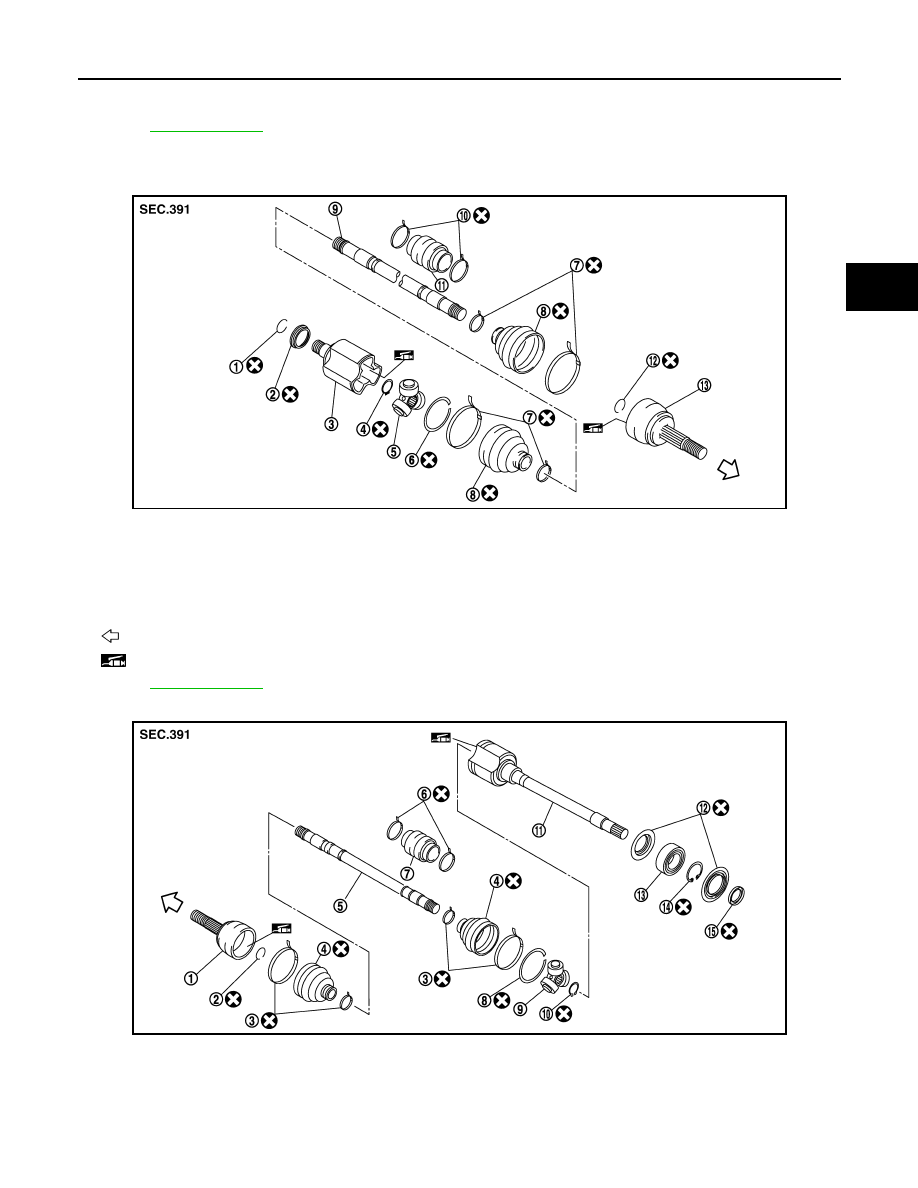

JPDIF0045ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Shaft

6.

Damper band

7.

Dynamic damper

8.

Stopper ring

9.

Spider assembly

10. Snap ring

11.

Housing assembly

12. Dust shield

FAX-54

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT BOOT

RIGHT SIDE (R9M)

WHEEL SIDE

WHEEL SIDE : Removal and Installation

INFOID:0000000010435907

REMOVAL

1.

Remove tires from vehicle.

13. Support bearing

14. Snap ring

15. Dust shield

: Wheel side

: Fill NISSAN Genuine grease or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

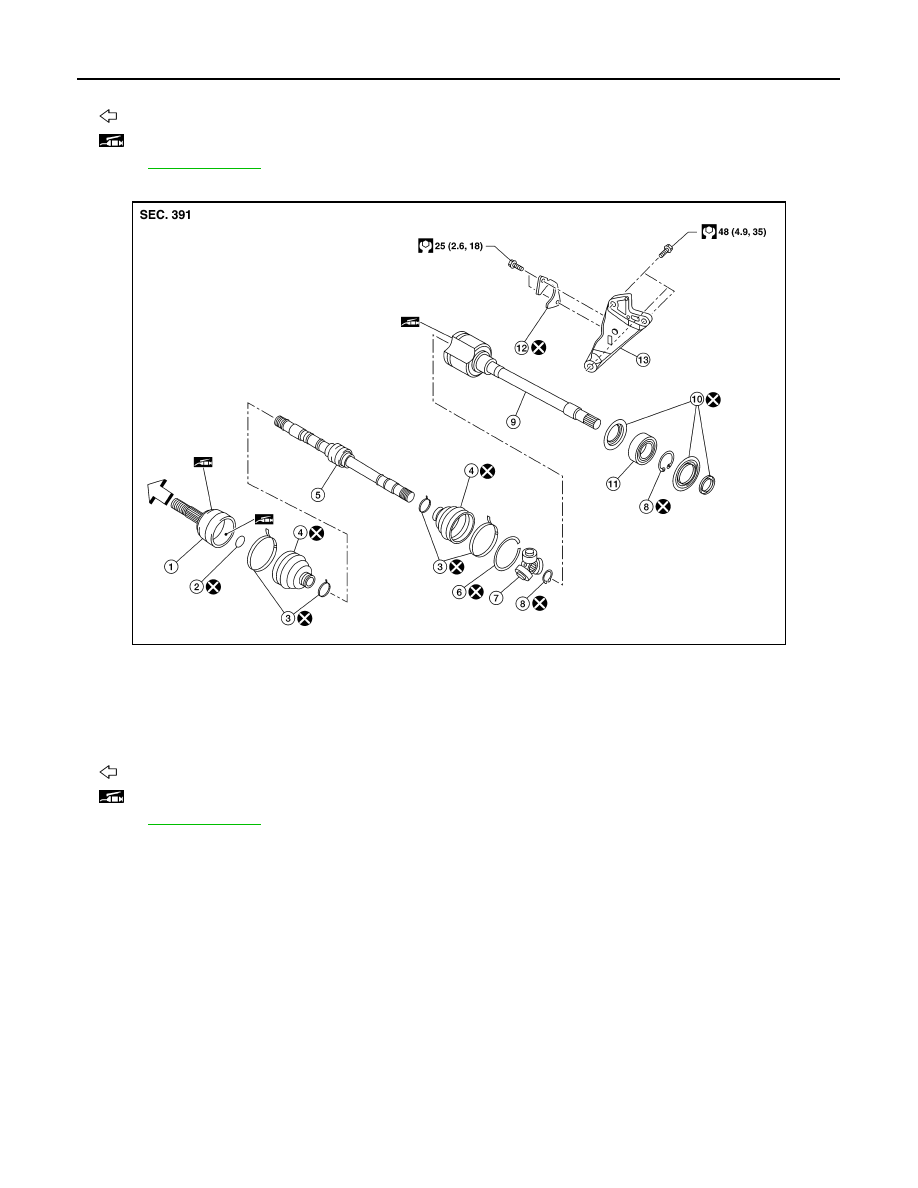

AWDIA1159ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Shaft

6.

Stopper ring

7.

Spider assembly

8.

Snap ring

9.

Housing assembly

10. Dust shield

11.

Support bearing

12. Plate

13. Support bearing bracket

: Wheel side

: Fill NISSAN Genuine grease or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.
