FRONT DRIVE SHAFT

FAX-35

< UNIT DISASSEMBLY AND ASSEMBLY >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

2.

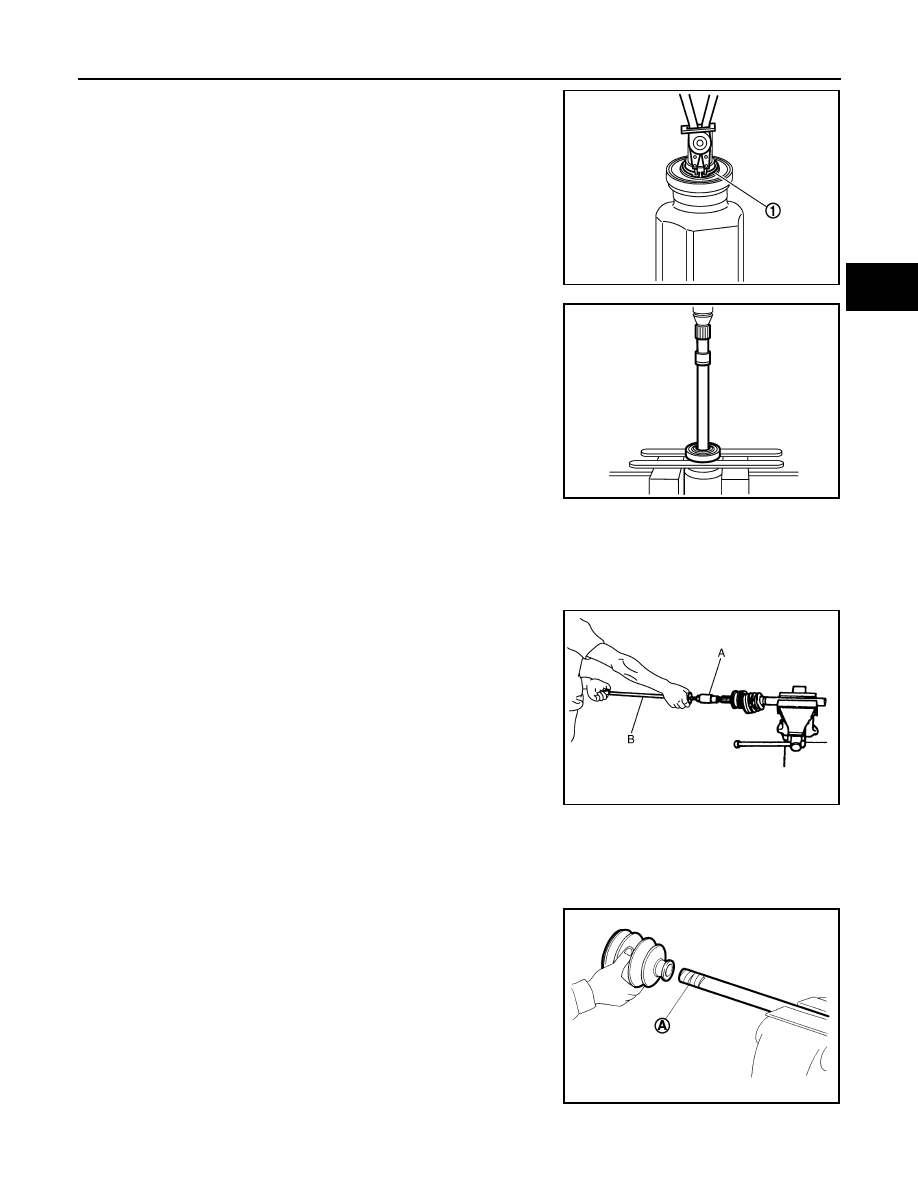

Remove snap ring (1).

3.

Press out support bearing from housing.

4.

Remove dust shield.

Wheel Side

1.

Fix shaft with a vise.

CAUTION:

Protect shaft using aluminum or copper plates when fixing with a vise.

2.

Remove boot bands, and then remove boot from joint sub-assembly.

3.

Screw the drive shaft puller (A) 30 mm (1.18 in) or more into the
thread of joint sub-assembly, and pull joint sub-assembly with a
sliding hammer (B) from shaft.

CAUTION:

• If joint sub-assembly cannot be removed after five or

more unsuccessful attempts, replace shaft and joint sub
assembly as a set.

• Align sliding hammer and drive shaft and remove them by

pulling forcibly.

4.

Remove circular clip from shaft.

5.

Remove boot from shaft.

6.

Clean old grease on joint sub-assembly with paper waste while
rotating ball cage.

ASSEMBLY

Transaxle Assembly Side

1.

Wrap serration on shaft with tape (A) to protect boot from dam-
age. Install new boot and boot bands to shaft.

CAUTION:

Never reuse boot and boot band.

2.

Remove the tape wrapped around the serration on shaft.

JPDIF0106ZZ

YAX004

JPDIF0015ZZ

JPDIF0009ZZ

FAX-36

< UNIT DISASSEMBLY AND ASSEMBLY >

[2WD]

FRONT DRIVE SHAFT

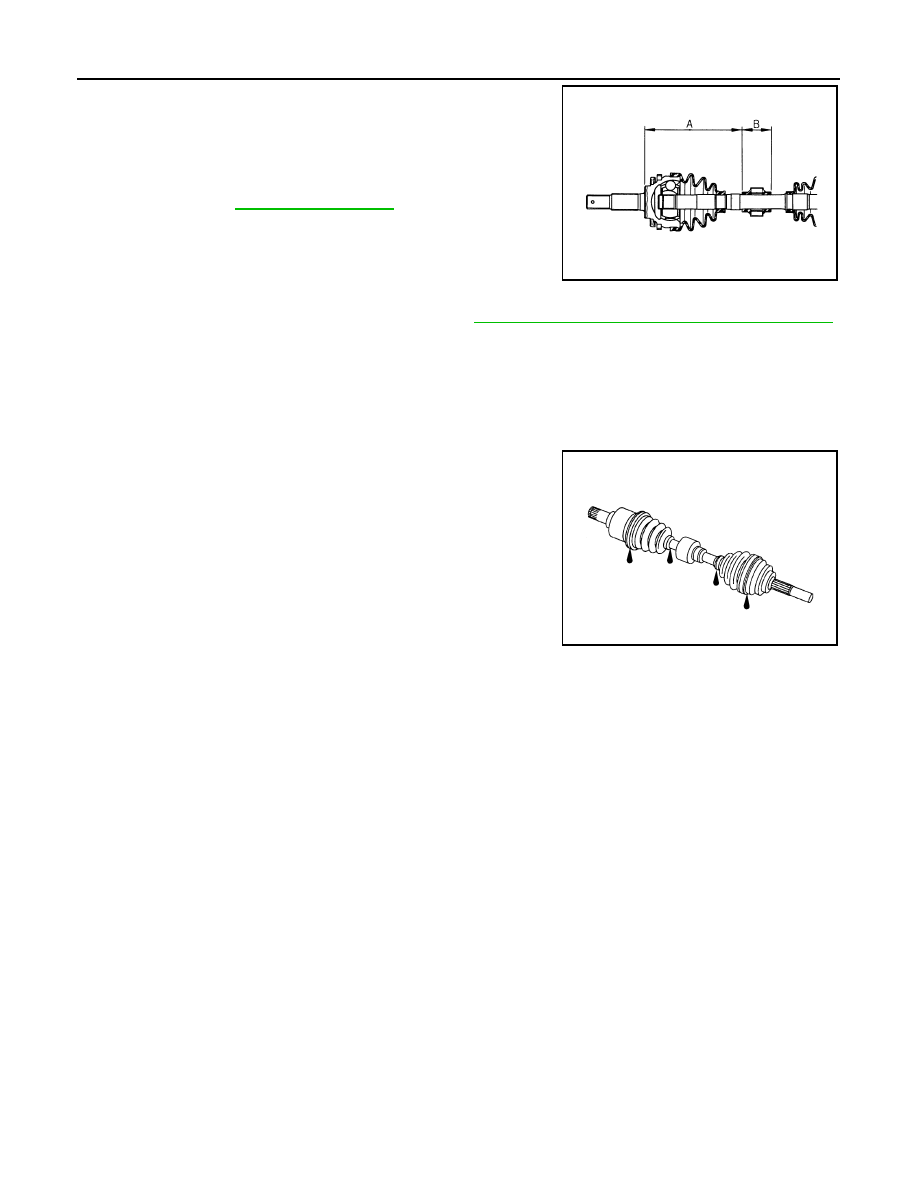

Secure dynamic damper with bands in the following specified posi-
tion when removing.

CAUTION:

Never reuse bands.

Wheel Side

For further details, refer to the installation procedure of “

FAX-18, "WHEEL SIDE : Removal and Installation"

for the drive shaft boot.

Inspection

INFOID:0000000011722645

INSPECTION AFTER REMOVAL

• Move joint up/down, left/right, and in the axial directions. Check for motion that is not smooth and for signifi-

cant looseness.

• Check boot for cracks, damage, and leakage of grease.
• Disassemble drive shaft and exchange malfunctioning part if there

is any non-standard condition.

INSPECTION AFTER DISASSEMBLY

Shaft

Check shaft for runout, cracks, or other damage. Replace if there are.

Dynamic Damper

Check damper for cracks or wear. Replace if necessary.

Joint Sub-Assembly (Wheel Side)

Check the following:
• Joint sub-assembly for rough rotation and excessive axial looseness
• The inside of the joint sub-assembly for entry of foreign material
• Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly
Replace joint sub-assembly if there are any non-standard conditions of components.

Housing and Spider assembly (Transaxle Side)

Replace housing and spider assembly if there is any scratching or wear of housing on roller contact surface or
spider roller contact surface.
NOTE:
Housing and spider assembly are used in a set.

Support Bearing (Right Side)

Make sure wheel bearing rolls freely and is free from noise, cracks, pitting or wear. Replace support bearing if
there are any non-standard conditions.

Support Bearing Bracket (Right Side)

Check for bending, cracks, or damage. Replace support bearing bracket if there are any non-standard condi-
tions.

Standard

Demission :

FAX-37, "Drive Shaft"

.

FAC0156D

SDIA1190J

SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-37

< SERVICE DATA AND SPECIFICATIONS (SDS)

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

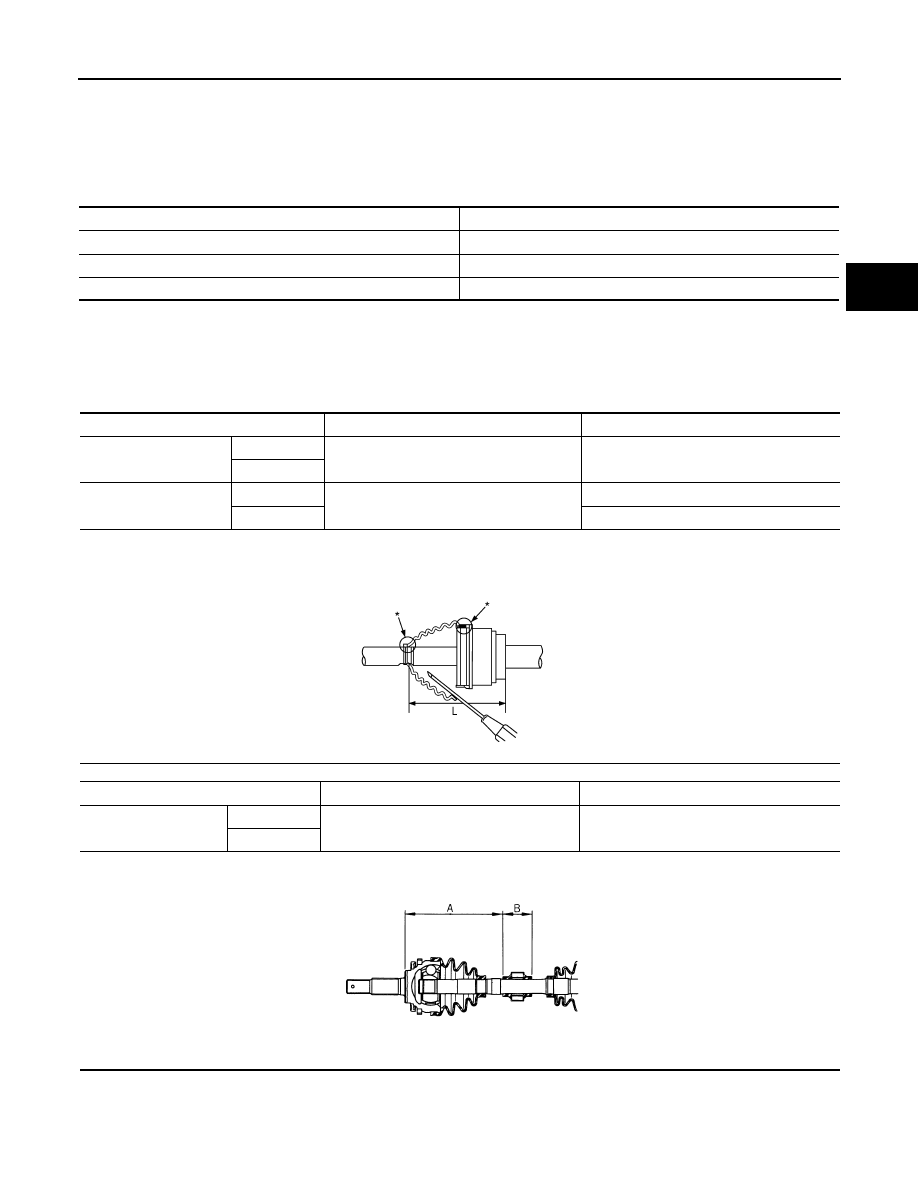

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000010297322

Drive Shaft

INFOID:0000000010436944

HRA2DDT

M/T models

MR20DD

M/T models

Item

Standard

Axial end play

0.0 mm (0.0 in)

Rotating torque

1.9 N.m (0.19 kg-m, 17 in-lb) or less

Spring balance measurement

13.7 N (1.40 kg-f, 3.08 lb-f) or less

Joint

Wheel side

Transaxle assembly side

Grease quantity

Left side

100 – 120 g (3.53 – 4.23 oz)

155 – 175 g (5.47 – 6.17 oz)

Right side

Boots installed length (L)

Left side

131 mm (5.16 in)

180.4 mm (7.10 in)

Right side

172.4 mm (6.79 in)

Dynamic damper

A

B

Dimension

Left side

287 – 291 mm (11.30 – 11.46 in)

70 mm (2.76 in)

Right side

JPDIF0031ZZ

FAC0156D

FAX-38

< SERVICE DATA AND SPECIFICATIONS (SDS)

[2WD]

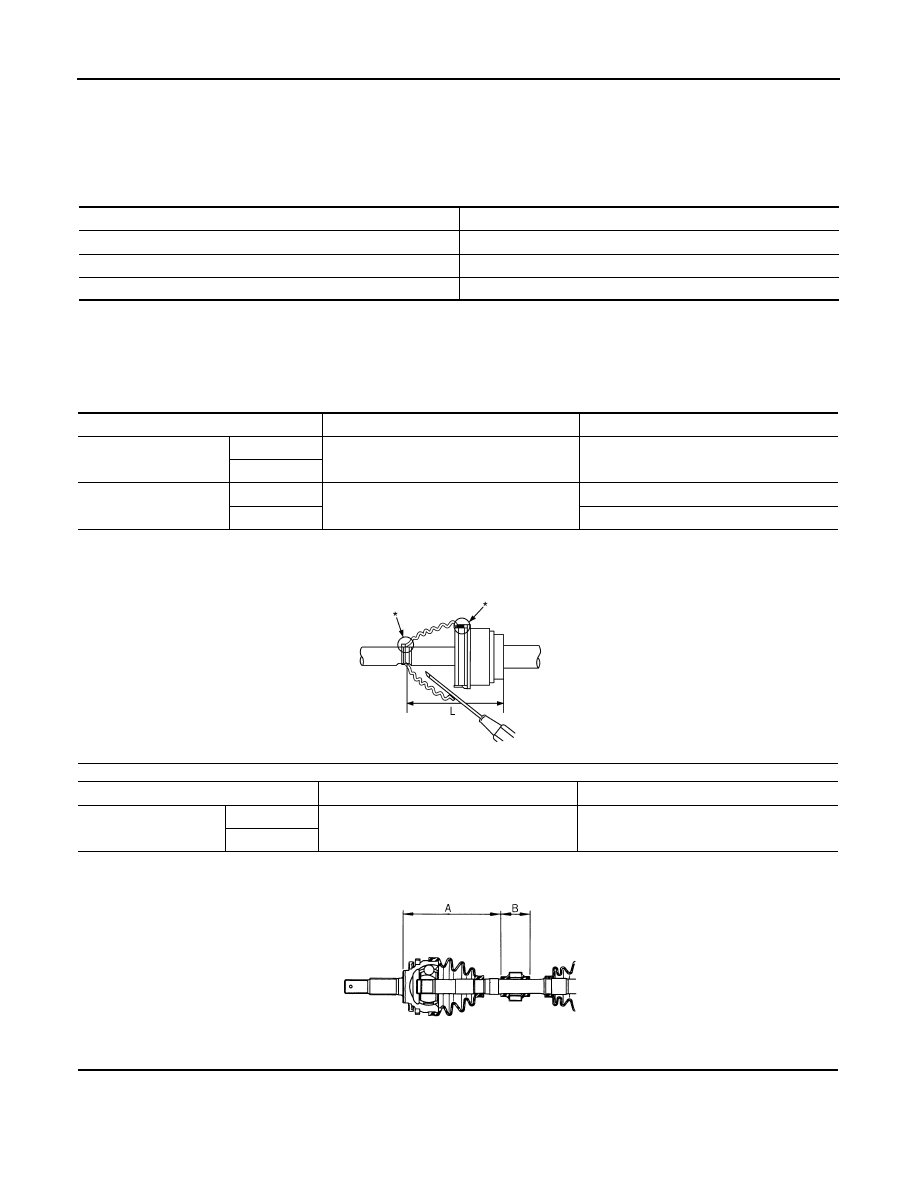

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000010297322

Drive Shaft

INFOID:0000000010436944

HRA2DDT

M/T models

MR20DD

M/T models

Item

Standard

Axial end play

0.0 mm (0.0 in)

Rotating torque

1.9 N.m (0.19 kg-m, 17 in-lb) or less

Spring balance measurement

13.7 N (1.40 kg-f, 3.08 lb-f) or less

Joint

Wheel side

Transaxle assembly side

Grease quantity

Left side

100 – 120 g (3.53 – 4.23 oz)

155 – 175 g (5.47 – 6.17 oz)

Right side

Boots installed length (L)

Left side

131 mm (5.16 in)

180.4 mm (7.10 in)

Right side

172.4 mm (6.79 in)

Dynamic damper

A

B

Dimension

Left side

287 – 291 mm (11.30 – 11.46 in)

70 mm (2.76 in)

Right side

JPDIF0031ZZ

FAC0156D
