DLN-108

< SYSTEM DESCRIPTION >

[TRANSFER: TY30A]

AWD SYSTEM

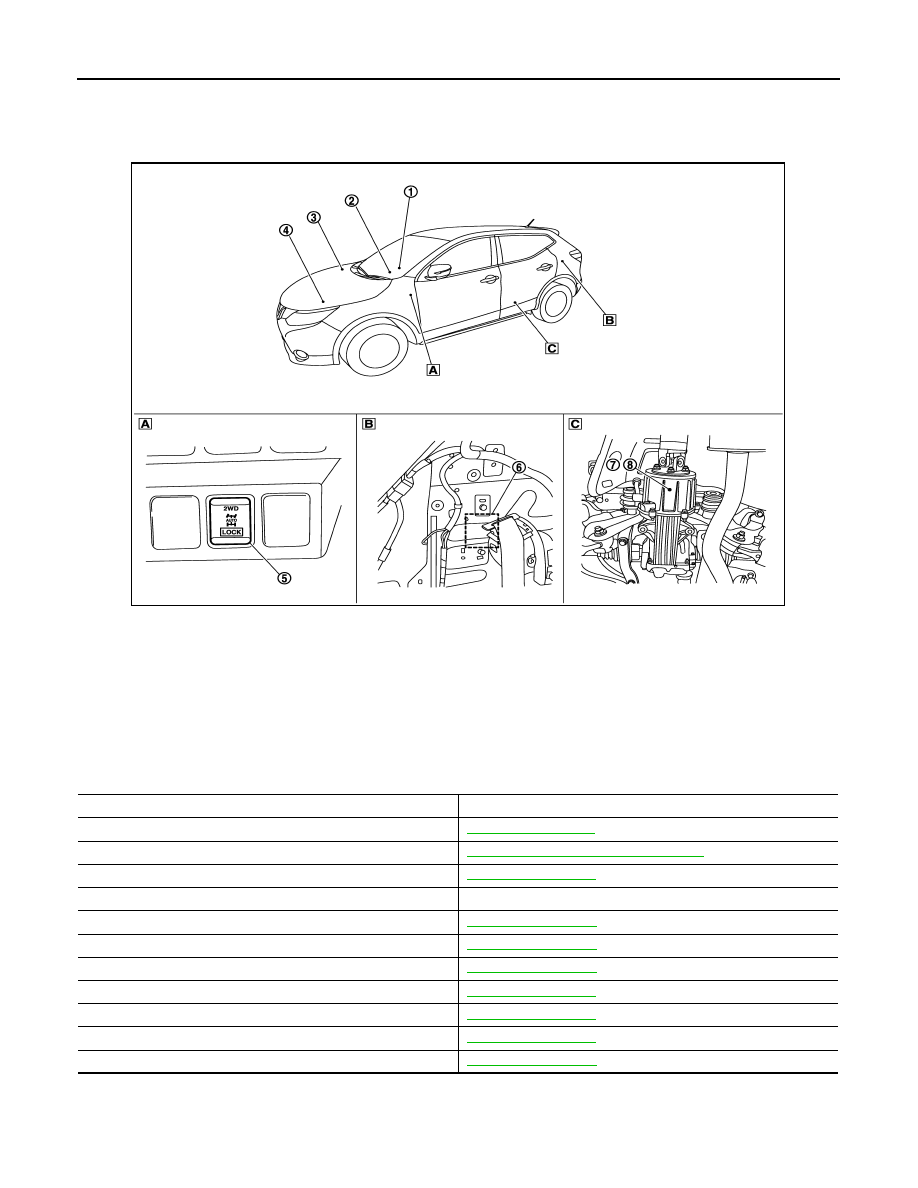

Component Parts Location

INFOID:0000000010288265

Component Description

INFOID:0000000010288266

1.

Combination meter

2.

Steering angle sensor

3.

ABS actuator and electric control unit

4.

ECM

5.

AWD lock switch

6.

AWD control unit

7.

Electric controled coupling

8.

AWD solenoid

A.

Instrument lower panel LH

B.

Rear wheel house outer panel in lug-
gage room of teh left side

C.

Rear final drive assembly

E1DIA0342ZZ

Component parts

Reference/Function

AWD control unit

DLN-111, "Description"

Wheel sensors

BRC-9, "Wheel Sensor and Sensor Rotor"

AWD solenoid

DLN-113, "Description"

Electric controlled coupling

Transmits driving force to rear final drive.

AWD warning lamp

DLN-126, "Description"

AWD indicator lamp

DLN-127, "Description"

LOCK indicator lamp

DLN-128, "Description"

AWD mode switch

DLN-116, "Description"

ABS actuator and electric unit (control unit)

DLN-112, "Description"

ECM

DLN-119, "Description"

Combination meter

DLN-127, "Description"

DIAGNOSIS SYSTEM (AWD CONTROL UNIT)

DLN-109

< SYSTEM DESCRIPTION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DIAGNOSIS SYSTEM (AWD CONTROL UNIT)

CONSULT Function

INFOID:0000000010288267

FUNCTION

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

SELF-DIAG RESULT MODE

Drive at 30 km/h or more for approximately 1 minute before performing the self-diagnosis.

Display Item List

How to Erase Self-Diagnostic Results

Before erasing DTC memory, start the engine and drive at 30 km/h or more for approximately 1 minute. Check
that ABS warning lamp turns OFF.
NOTE:
Make sure that ABS warning lamp turns OFF by driving for a minute at vehicle speed of 30 km/h (19 MPH) or
more after turning ignition switch OFF if AWD warning lamp turns ON with system malfunction of “ABS SYS-
TEM [C1203]”. AWDAWD warning lamp may not turn OFF if it is normal unless ignition switch turns OFF at
once and engine restarts after that.

DATA MONITOR MODE

Display Item List

Diagnostic test mode

Function

ECU part number

AWD control unit part number can be read.

Self-diagnostic results

Self-diagnostic results can be read and erased quickly.

Data monitor

Input/Output data in the AWD control unit can be read.

Active test

Diagnostic Test Mode in which CONSULT drives some actuators apart from the AWD control unit
and also shifts some parameters in a specified range.

DTC

Items

(CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

C1201

CONTROLLER FAILURE

Malfunction has occurred inside AWD control unit.

Internal malfunction of AWD
control unit

C1203

ABS SYSTEM

Malfunction related to wheel sensor has been de-
tected by ABS actuator and electric unit (control
unit).

ABS malfunction
• Vehicle speed signal error
• Stop lamp switch signal

(brake signal) error

C1204

AWD SOLENOID

Malfunction related to AWD solenoid has been de-
tected.

Internal malfunction of elec-
tronic controlled coupling

C1205

AWD ACTUATOR RLY

Malfunction has been detected from AWD actuator
relay integrated with AWD control unit, or malfunc-
tion related to AWD solenoid has been detected.

Internal malfunction of AWD
control unit

C1209

MODE SW

More than two switch inputs are simultaneously
detected due to short circuit of AWD mode switch.

Malfunction of AWD mode
switch or AWD mode switch
circuit.

C1210

ENGINE SIGNAL 1

Malfunction has been detected from ECM.

Malfunction of engine control
system
• Accelerator pedal position

signal error

• Engine speed signal error

U1000

CAN COMM CIRCUIT

When AWD control unit is not transmitting or re-
ceiving CAN communication signal for 2 seconds
or more.

• CAN communication error
• Malfunction of AWD control

unit

U1010

CONTROL UNIT (CAN)

When detecting error during the initial diagnosis of
CAN controller of AWD control unit.

Malfunction of AWD control
unit

DLN-110

< SYSTEM DESCRIPTION >

[TRANSFER: TY30A]

DIAGNOSIS SYSTEM (AWD CONTROL UNIT)

×

: Applicable

: Optional item

ACTIVE TEST MODE

Description

Use this mode to determine and identify the details of a malfunction based on self-diagnostic results or data
monitor. AWD control unit gives drive signal to actuator with receiving command from CONSULT to check
operation of actuator.

Test Item

CAUTION:

Never energize continuously for a long time.

Monitor item (Unit)

Monitor Menu

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

FR RH SENSOR [km/h] or [mph]

×

×

Wheel speed calculated by front wheel sensor RH sig-
nal is displayed.

FR LH SENSOR [km/h] or [mph]

×

×

Wheel speed calculated by front wheel sensor LH sig-
nal is displayed.

RR RH SENSOR [km/h] or [mph]

×

×

Wheel speed calculated by rear wheel sensor RH sig-
nal is displayed.

RR LH SENSOR [km/h] or [mph]

×

×

Wheel speed calculated by rear wheel sensor LH sig-
nal is displayed.

BATTERY VOLT [V]

Power supply voltage for AWD control unit

THRTL POS SEN [%]

Throttle opening status is displayed.

ETS SOLENOID [A]

Monitored value of current at AWD solenoid

STOP LAMP SW [On/Off]

Stop lamp switch signal status via CAN communication
line is displayed.

ENG SPEED SIG [Run/Stop]

Engine status is displayed.

ETS ACTUATOR [On/Off]

Operating condition of AWD actuator relay (integrated
in AWD control unit) is displayed.

AWD WARN LAMP [On/Off]

Control status of AWD warning lamp is displayed.

AWD MODE SW [2WD/AUTO/LOCK]

Mode switch is not equipped, but displayed.

AWD MODE MON [2WD/AUTO/LOCK]

Control status of AWD is displayed.

DIS-TIRE MONI [mm]

Improper size tire installed condition is displayed.

P BRAKE SW [On/Off]

Parking switch signal status via CAN communication
line is displayed.

Test item

Condition

Description

ETS S/V
(Detects AWD solenoid)

• Vehicle stopped
• Engine running
• No DTC detected

Change command current value to AWD solenoid, and then change driving
mode. (Monitor value is normal if it is within approximately

±

10% of command

value.)
• Qu: Increase current value in increments of 0.1 A
• Qd: Decrease current value in increments of 0.1 A
• UP: Increase current value in increments of 0.02 A
• DOWN: Decrease current value in increments of 0.02 A

C1201 AWD CONTROL UNIT

DLN-111

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DTC/CIRCUIT DIAGNOSIS

C1201 AWD CONTROL UNIT

Description

INFOID:0000000010288268

• Controls driving force distribution by signals from each sensor from front wheel driving mode (100:0) to AWD

mode (50:50).

• 2WD mode is available by fail-safe function if malfunction is detected in AWD system.

DTC Logic

INFOID:0000000010288269

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC REPRODUCTION PROCEDURE

With CONSULT

1.

Turn the ignition switch OFF to ON.

2.

Perform AWD control unit self-diagnosis.

Is DTC “C1201” detected?

YES

>> Proceed to diagnosis procedure. Refer to

DLN-111, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010288270

1.

PERFORM SELF-DIAGNOSIS

With CONSULT

1.

Erase AWD control unit self-diagnosis results.

2.

Turn ignition switch OFF, and then wait 10 seconds or more.

3.

Perform AWD control unit self-diagnosis.

Is DTC “C1201” detected?

YES

>> Replace AWD control unit. Refer to

DLN-153, "Exploded View"

.

NO

>> Check AWD control unit pin terminals for damage or loose connection with harness connector. If

any items are damaged, repair or replace damaged parts.

DTC

Items

(CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

C1201

CONTROLLER FAILURE

Malfunction has occurred inside AWD
control unit.

Internal malfunction of AWD control unit
