Nissan Qashqai J11. Manual - part 788





DLN-68

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY21C]

TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

Description

INFOID:0000000010755293

While driving, 4WD warning (Tire Size Incorrect: See Owner’s Manual) is displayed on information display
(combination meter).

Diagnosis Procedure

INFOID:0000000010755294

1.

CHECK TIRE

Check the following.
• Tire pressure
• Wear condition
• Front and rear tire size (There is no difference between front and rear tires.)
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts. And then, drive the vehicle at speed of 20 km/h (12 MPH)

or more for 5 seconds or more. Improper size information is initialized accordingly.

2.

CHECK INPUT SIGNAL OF TIRE DIAMETER

 With CONSULT

1.

Start the engine.

2.

Drive at 20 km/h (12 MPH) or more for approximately 4 minutes continually.

3.

Check “DIS-TIRE MONI” of CONSULT “DATA MONITOR” for “ALL MODE AWD/4WD”.

Does the item on “DATA MONITOR” indicate “0 - 4 mm”?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

TERMINAL INSPECTION

Check 4WD control unit harness connector for disconnection.

Is the inspection result normal?

YES

>> Replace 4WD control unit. Refer to

DLN-72, "Removal and Installation"

.

NO

>> Repair or replace the error-detected parts.

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-69

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000010755295

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If nec-
essary, repair or replace these parts.

Reference

DLN-7

0

, "Ins

pe

c

tio

n"

DLN-78, "Exploded

V

iew"

DLN-78, "Exploded

V

iew"

DLN-8

5

, "Ins

pe

c

tio

n"

DLN-93

, "I

ns

pe

ct

ion

"

DLN-8

5

, "Ins

pe

c

tio

n"

DLN-93

, "I

ns

pe

ct

ion

"

SUSPECTED PARTS
(Possible cause)

T

R

ANSFER OIL (Level

low)

T

R

ANSFER OIL (W

rong)

T

R

ANSFER OIL (Level

too high)

LI

QUI

D

 GASKET

 (Dam

ag

ed

)

O-RING (W

o

rn o

r da

m

age

d)

OIL

 SEA

L (W

o

rn o

r da

m

age

d)

GEAR

 (W

orn

 o

da

ma

ge

d)

B

EARING (W

orn

 or

da

ma

ge

d)

Symptom

Noise

1

2

3

3

3

Transfer oil leakage

3

1

2

2

2

DLN-70

< PERIODIC MAINTENANCE >

[TRANSFER: TY21C]

TRANSFER OIL

PERIODIC MAINTENANCE

TRANSFER OIL

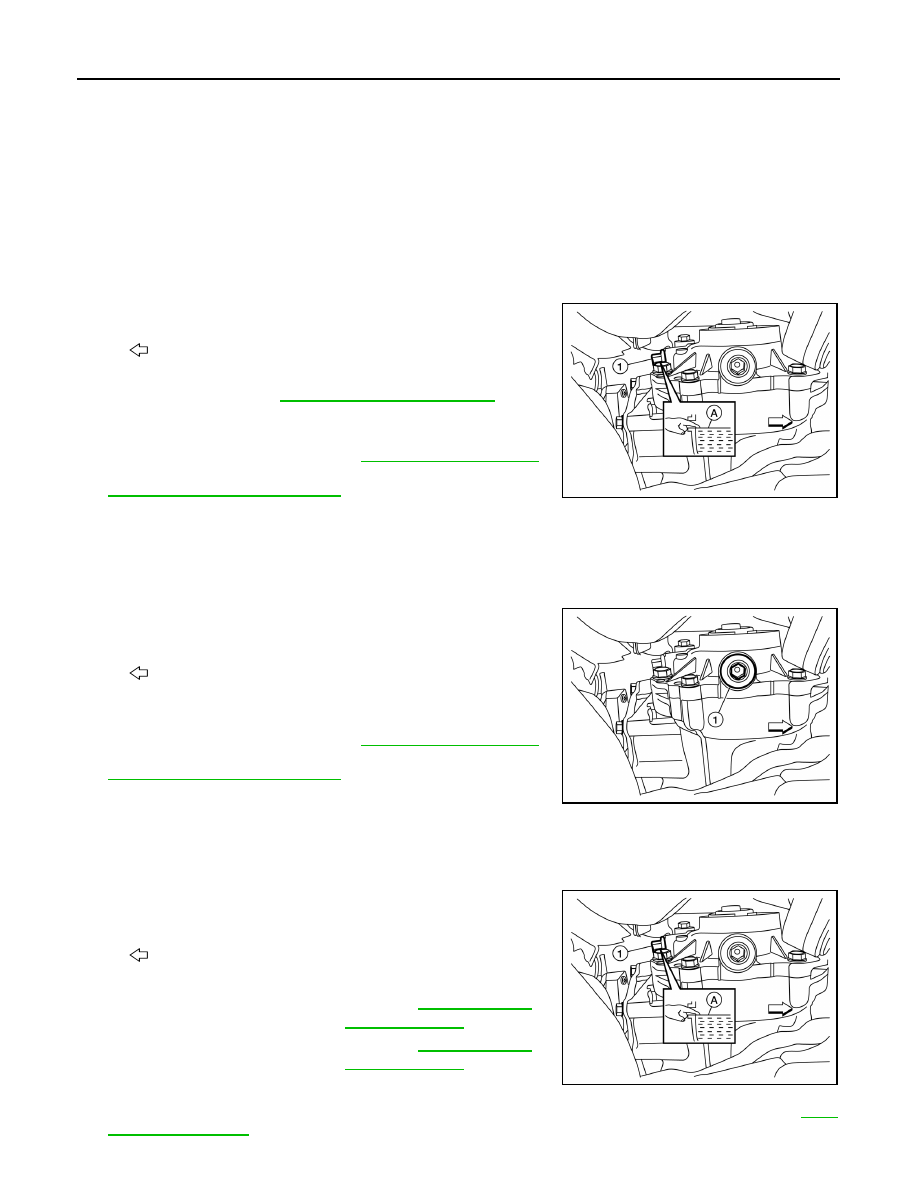

Inspection

INFOID:0000000010590215

OIL LEAKS

Check that oil is not leaking from transfer assembly or around it.

OIL LEVEL

CAUTION:

Do not start engine while checking oil level.

1.

Remove filler plug (1).

2.

Oil level (A) should be level with bottom of filler plug hole. Add
oil if necessary. Refer to

MA-59, "Fluids and Lubricants"

 .

3.

Clean threads of filler plug (1) and transfer case.

4.

Apply sealant to the threads of the filler plug (1) and install it.
Tighten to specified torque. Refer to

DLN-76, "Exploded View"

 .

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-59, "Fluids and Lubricants"

.

Draining

INFOID:0000000010590216

CAUTION:

Do not start engine while checking oil level.

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and drain the transfer
oil.

3.

Clean threads of drain plug (1) and transfer case.

4.

Apply sealant to the threads of the drain plug (1) and install it.
Tighten to specified torque. Refer to

DLN-76, "Exploded View"

.

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-59, "Fluids and Lubricants"

.

Refilling

INFOID:0000000010590217

CAUTION:

Do not start engine while checking oil level.

1.

Remove filler plug (1).

2.

Fill with new oil to the specified level (A) near the filler plug hole.

3.

Clean threads of filler plug (1) and transfer case.

4.

Apply sealant to the threads of the filler plug (1), and install it. Tighten to specified torque. Refer to

DLN-

76, "Exploded View"

.

: Front

ALDIA0383ZZ

: Front

ALDIA0382ZZ

: Front

Oil grade and viscosity

: Refer to

MA-59, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

MA-59, "Fluids

and Lubricants"

.

ALDIA0383ZZ

TRANSFER OIL

DLN-71

< PERIODIC MAINTENANCE >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-59, "Fluids and Lubricants"

.
