DLN-8

< PREPARATION >

[TRANSFER: TY21C]

PREPARATION

PREPARATION

PREPARATION

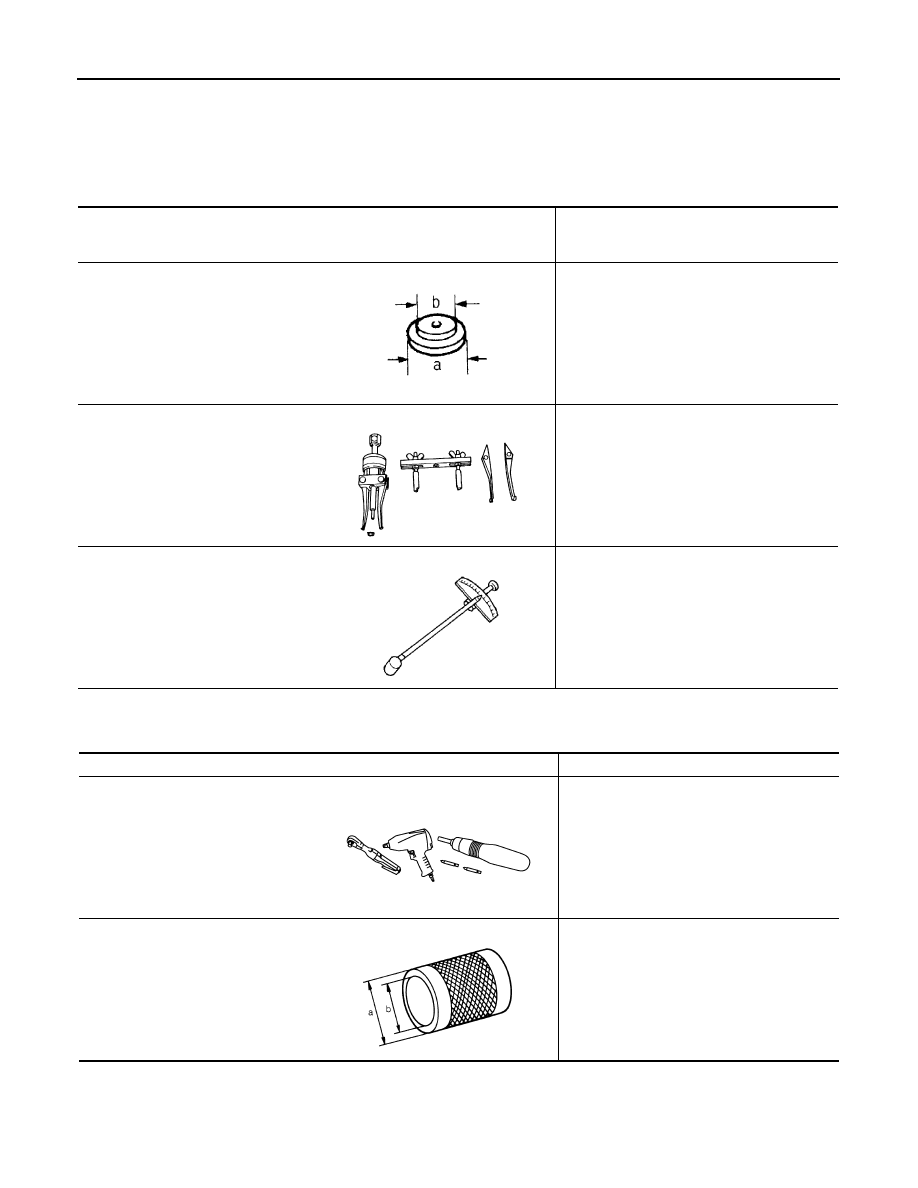

Special Service Tool

INFOID:0000000010590152

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000010590153

Tool number
(TechMate No.)
Tool name

Description

ST33061000
(J-8107-2)
Drift
a: 38 mm (1.50 in) dia.
b: 28.5 mm (1.122 in) dia.

Removing ring gear bearing (left) inner race
(transfer case side)

KV381054S0
(J-34286)
Puller

Removing ring gear shaft oil seal

ST3127S000
(J-25765-A)
Preload gauge

Measuring preload torque

ZZA0810D

ZZA0601D

ZZA0503D

Tool name

Description

Power tool

Loosening nuts, screws and bolts

Drift
a: 52 mm (2.05 in) dia.
b: 44 mm (1.73 in) dia.

Removing gear ring bearing inner race
(adapter case side)

PIIB1407E

ZZA1002D

PREPARATION

DLN-9

< PREPARATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

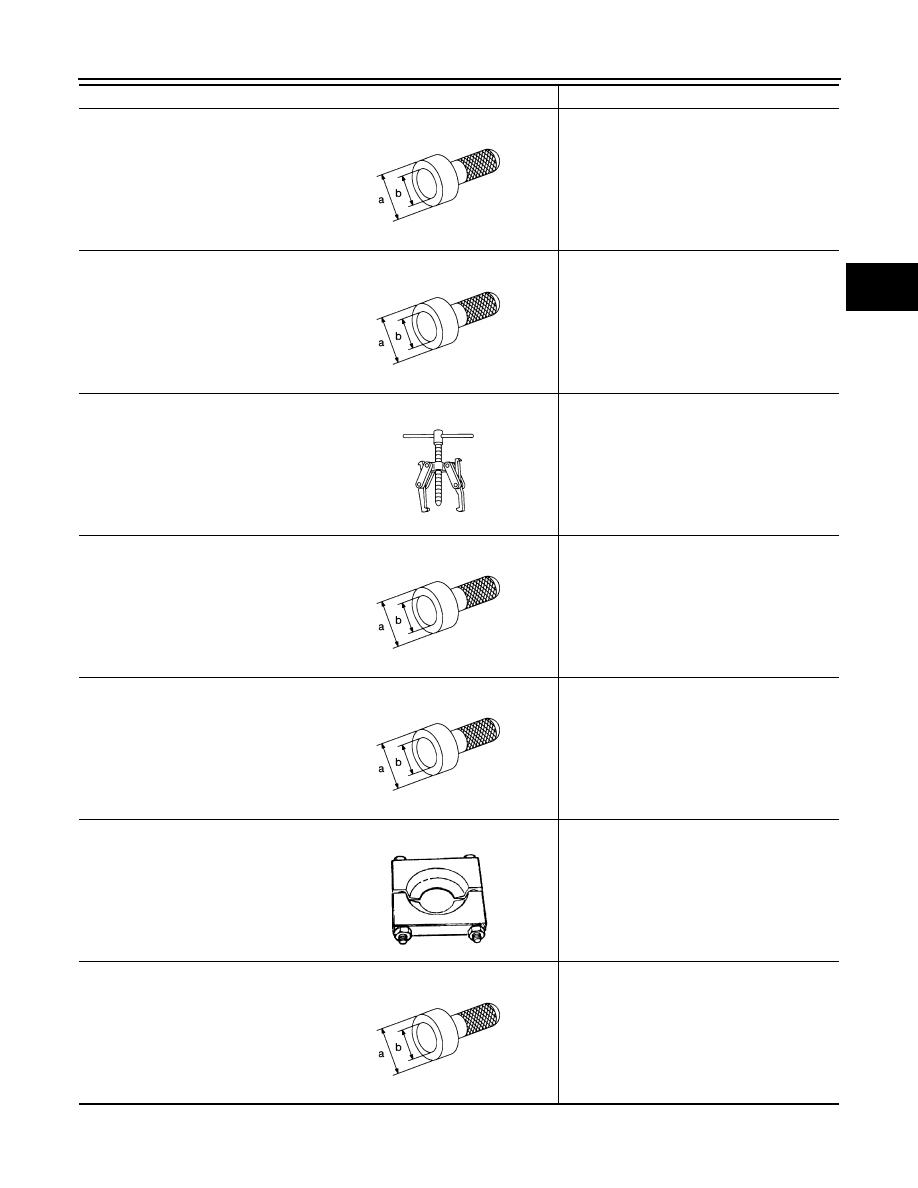

Drift
a: 56.5 mm (2.224 in) dia.
b: 48 mm (1.89 in) dia.

Installing side oil seal (installing transfer case
oil seal)

Drift
a: 44 mm (1.73 in) dia.
b: 33 mm (1.3 in) dia.

Installing ring gear shaft oil seal

Puller

Removing ring gear bearing (left) inner race
(transfer case side)

Drift
a: 70 mm (2.76 in) dia.
b: 60 mm (2.36 in) dia.

Installing oil seal (installing pinion bearing
seal)

Drift
a: 78 mm (3.07 in) dia.
b: 68 mm (2.68 in) dia.

Installing side oil seal (installing transfer cover
oil seal)

Replacer

• Removing drive pinion
• Removing ring gear bearing (left) inner race

(transfer cover side)

Drift
a: 58 mm (2.28 in) dia.
b: 55 mm (2.17 in) dia.

Installing ring gear bearing (left) inner race
(transfer case side)

Tool name

Description

NT115

NT115

NT077

NT115

NT115

ZZA0700D

NT115

DLN-10

< PREPARATION >

[TRANSFER: TY21C]

PREPARATION

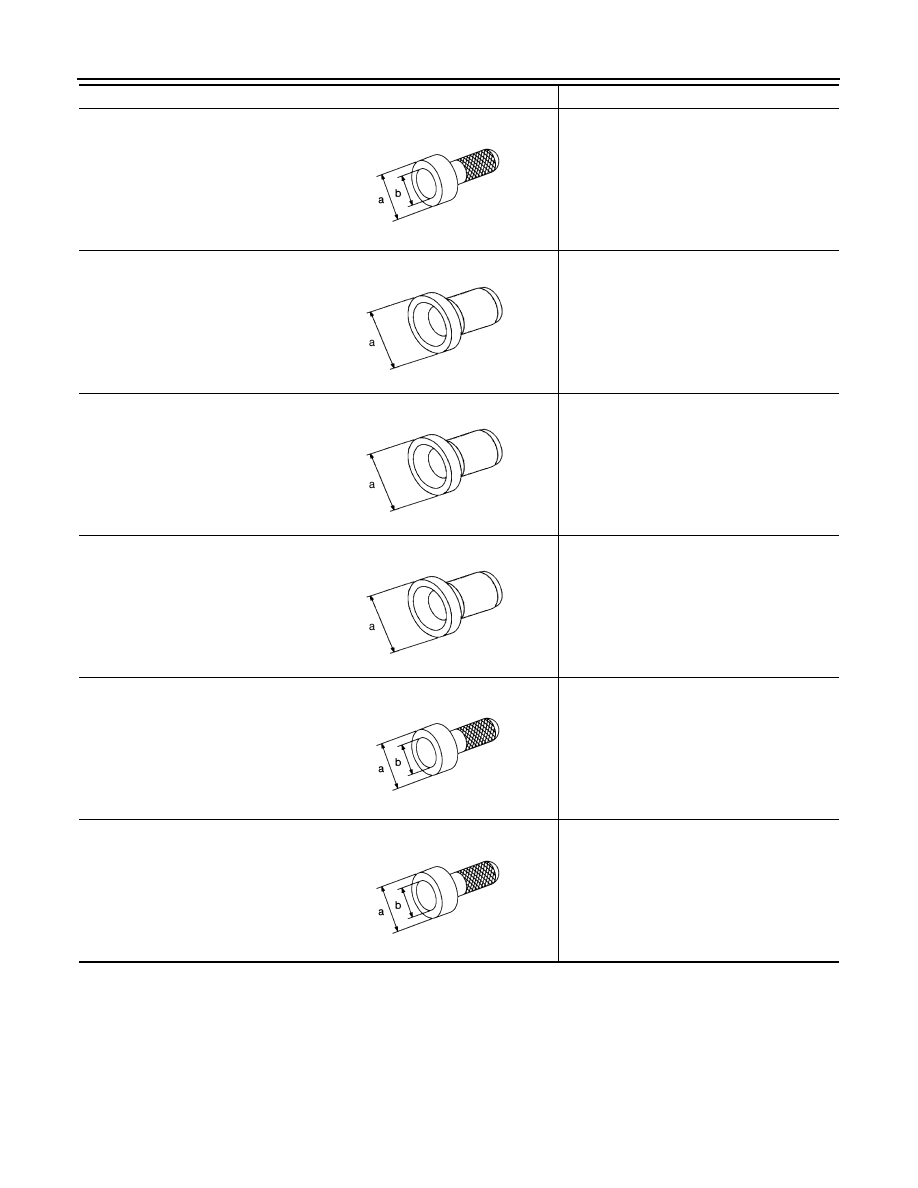

Drift
a: 62 mm (2.44 in) dia.
b: 58 mm (2.28 in) dia.

Installing ring gear bearing (right) inner race
(transfer cover side)

Drift
a: 73.5 mm (2.894 in) dia.

Installing ring gear bearing (left) outer race
(transfer case side)

Drift
a: 87 mm (3.43 in) dia.

Installing ring gear bearing (right) outer race
(transfer cover side)

Drift
a: 20 mm (0.79 in) dia.

Removing drive pinion

Drift
a: 50 mm (1.97 in) dia.
b: 41 mm (1.61 in) dia.

Installing pinion bearing

Drift
a: 40 mm (1.57 in) dia.
b: 25 mm (0.98 in) dia.

Installing companion flange

Tool name

Description

NT115

SCIA5338E

SCIA5338E

SCIA5338E

NT115

NT115

COMPONENT PARTS

DLN-11

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

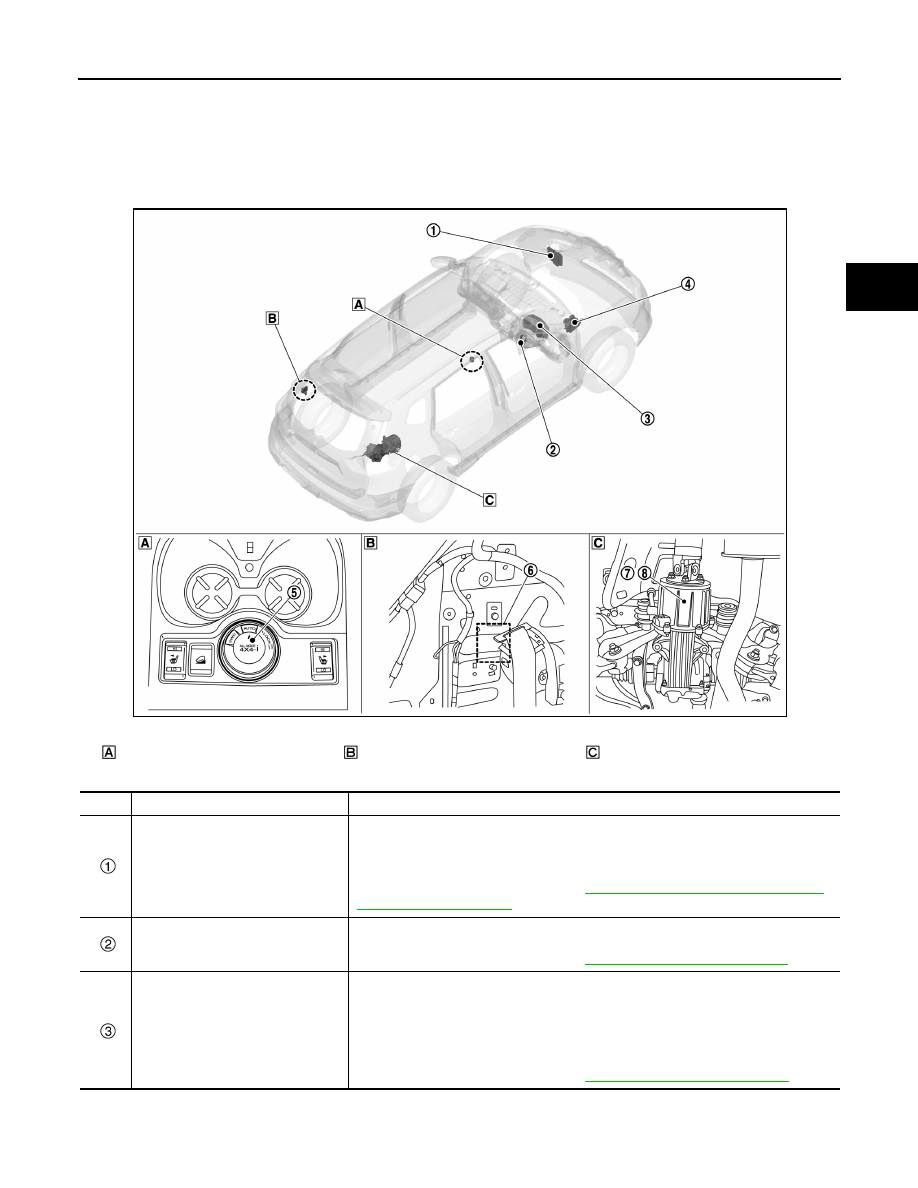

Component Parts Location

INFOID:0000000010755224

Console switch panel

Rear wheel house outer panel in lug-
gage room of left side

Rear final drive

No.

Component

Function

ECM

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Accelerator pedal position signal
• Engine speed signal
• Engine status signal
For detailed installation location, refer to

ECM-14, "ENGINE CONTROL SYSTEM :

Component Parts Location"

 (MR20DD).

Steering angle sensor

Mainly transmits the following signals to 4WD control unit via CAN communication.
• steering angle sensor signal
For detailed installation location, refer to

STC-7, "Component Parts Location"

.

Combination meter

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Parking brake switch signal
Mainly receives the following signals from 4WD control unit via CAN communication.
• 4WD warning lamp signal
• 4WD mode indicator lamp signal
• Torque distribution indicator signal
For detailed installation location, refer to

MWI-6, "Component Parts Location"

.

JSDIA5445ZZ
