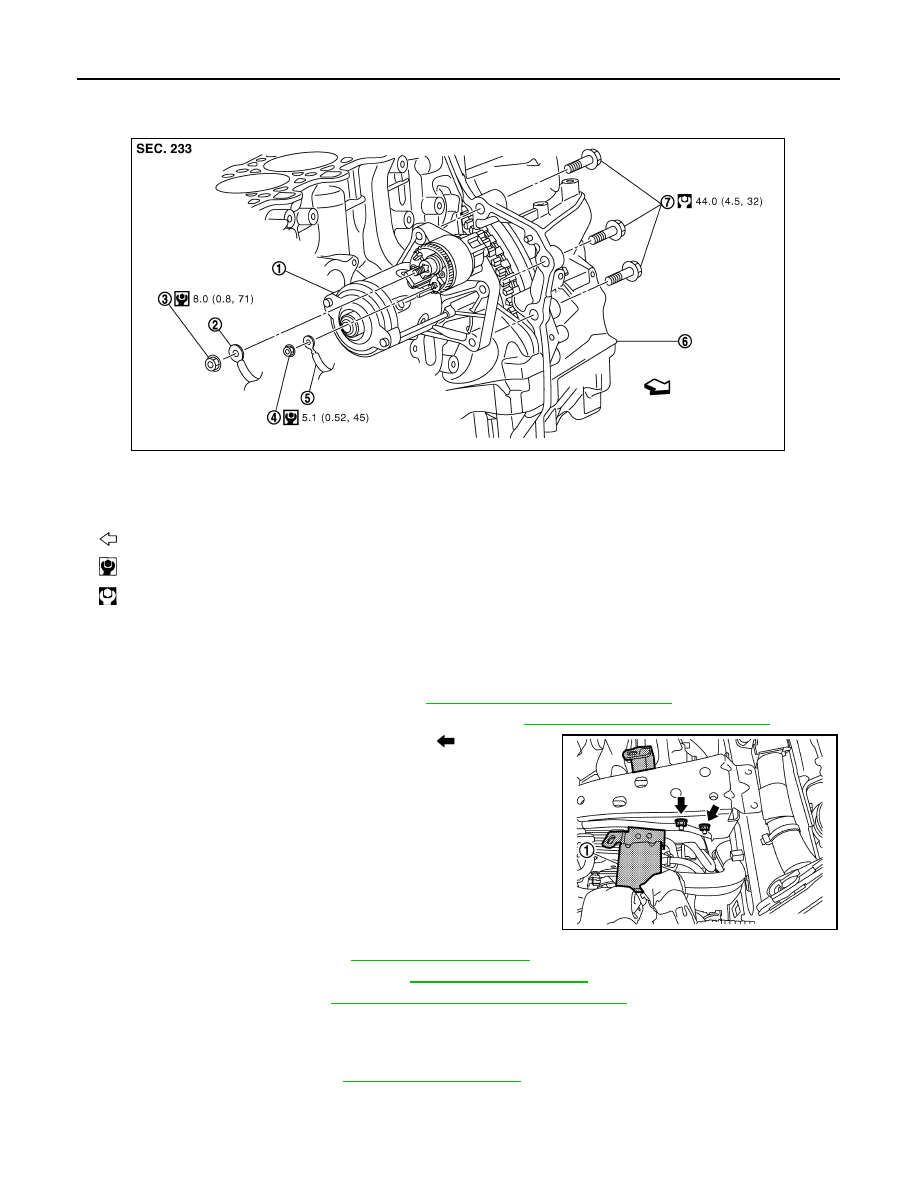

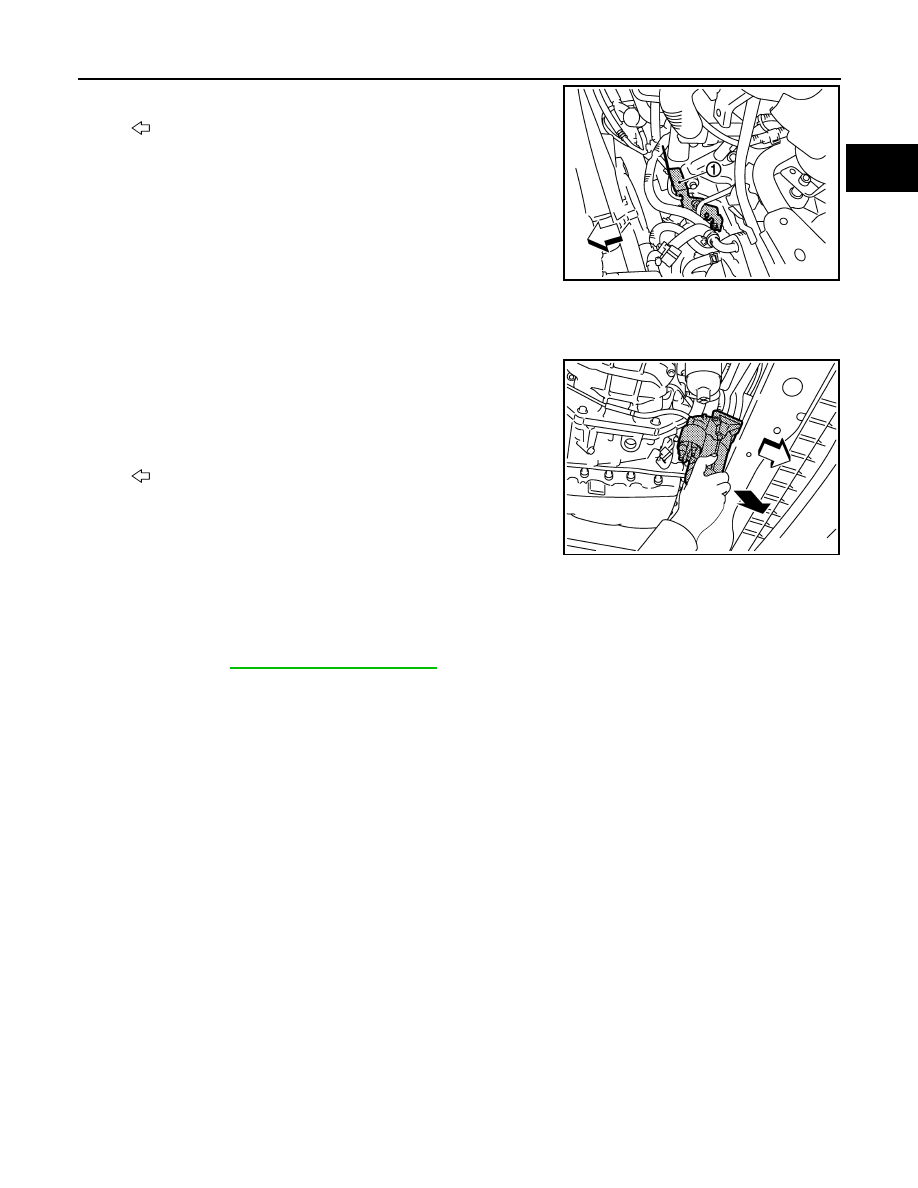

STR-34 < REMOVAL AND INSTALLATION > STARTER MOTOR R9M : Exploded View INFOID:0000000010324196 R9M : Removal and Installation INFOID:0000000010324197 REMOVAL 1. Remove the battery and battery tray. Refer to PG-155, "Removal and Installation" 2. Remove the ECM (TCM) bracket and ECM (TCM). Refer to TM-632, "Removal and Installation" 3. Remove the harness bracket mounting nuts ( ) and remove the harness bracket (1) from the vehicle. 4. Remove the air inlet tube. Refer to 5. Remove the radiator hose (lower). Refer to . 6. Remove the alternator. Refer to CHG-33, "R9M : Removal and Installation" 7. Remove the oil level gauge and oil level gauge guide. CAUTION: Cover the openings to avoid entry of foreign materials. 8. Remove the water hose. Refer to . 1. Starter motor 2. “B” terminal harness 3. “B” terminal nut 4. “S” terminal nut 5. “S” terminal harness 6. Transmission housing 7. Starter motor mounting bolt : Vehicle front : N·m (kg-m, in-lb) : N·m (kg-m, ft-lb) JMBIA4245GB JSDIA5410ZZ |
