EC9-144

< BASIC INSPECTION >

[R9M]

ADDITIONAL SERVICE WHEN REPLACING ECM

ADDITIONAL SERVICE WHEN REPLACING ECM

Description

INFOID:0000000010309016

When replacing ECM, this procedure must be performed.
NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always per-
form the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

Work Procedure

INFOID:0000000010309017

1.

SAVE ECM DATA

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Reconnect all harness connectors disconnected.

3.

Turn ignition switch ON.

4.

Select “SAVE COMPUTER DATA” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

5.

Follow the instruction of CONSULT display.
NOTE:
Necessary data in ECM is copied and saved to CONSULT.

Is operation completed successfully?

YES

>> GO TO 2.

NO

>> GO TO 7.

2.

REPLACE ECM

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Replace ECM. Refer to

EC9-405, "Removal and Installation"

.

>> GO TO 3.

3.

PERFORM PROGRAMMING

Refer to “CONSULT Operation Manual”.

>> GO TO 4.

4.

PERFORM ECM KEY ID REGISTRATION

Refer to “CONSULT Operation Manual NATS-IVIS/NVIS”.

>> GO TO 5.

5.

PERFORM CONFIGURATION REGISTRATION

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Turn ignition switch ON.

3.

Check that the battery voltage is between 11 V and 14 V.

4.

Wait at least 10 seconds.

CAUTION:

During this step, never perform any vehicle operation.

5.

If necessary, perform configuration registration using CONSULT function.

>> GO TO 6.

6.

WRITE ECM DATA

1.

Select “WRITE SAVED DATA” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

2.

Follow the instruction of CONSULT display.
NOTE:
The data saved by “WRITE SAVED DATA” is written to ECM.

Is operation completed successfully?

YES

>> GO TO 12.

NO

>> GO TO 10.

ADDITIONAL SERVICE WHEN REPLACING ECM

EC9-145

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

7.

REPLACE ECM

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Replace ECM. Refer to

EC9-405, "Removal and Installation"

.

>> GO TO 8.

8.

PERFORM PROGRAMMING

Refer to “CONSULT Operation Manual”.

>> GO TO 9.

9.

PERFORM ECM KEY ID REGISTRATION

Refer to “CONSULT Operation Manual NATS-IVIS/NVIS”.

>> GO TO 10.

10.

PERFORM CONFIGURATION REGISTRATION

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Turn ignition switch ON.

3.

Check that the battery voltage is between 11 V and 14 V.

4.

Wait at least 10 seconds.

CAUTION:

During this step, never perform any vehicle operation.

5.

If necessary, perform configuration registration using CONSULT function.

>> GO TO 11.

11.

PERFORM INJECTOR ADJUSTMENT VALUE REGISTRATION

Perform

EC9-147, "Work Procedure"

.

>> GO TO 12.

12.

PERFORM THROTTLE VALVE POSITION LEARNING

Perform

EC9-149, "Work Procedure"

.

>> GO TO 13.

13.

PERFORM EXHAUST THROTTLE VALVE POSITION LEARNING

Perform

EC9-150, "Work Procedure"

.

>> GO TO 14.

14.

PERFORM HIGH PRESSURE EGR VOLUME CONTROL VALVE POSITION LEARNING

Perform

EC9-151, "Work Procedure"

.

>> GO TO 15.

15.

PERFORM LOW PRESSURE EGR VOLUME CONTROL VALVE POSITION LEARNING

Perform

EC9-152, "Work Procedure"

.

>> GO TO 16.

16.

PERFORM INTAKE MANIFOLD RUNNER CONTROL VALVE POSITION LEARNING

Perform

EC9-153, "Work Procedure"

.

EC9-146

< BASIC INSPECTION >

[R9M]

ADDITIONAL SERVICE WHEN REPLACING ECM

>> GO TO 17.

17.

PERFORM SERVICE REGENERATION

Perform

EC9-154, "Work Procedure"

.

>> GO TO 18.

18.

CHANGE ENGINE OIL

Refer to

LU-49, "Draining"

 or

LU-49, "Refilling"

.

>> GO TO 19.

19.

PERFORM ENGINE OIL DATA RESET

Perform

EC9-159, "Work Procedure"

.

>> GO TO 20.

20.

CHECK DTC

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Turn ignition switch ON.

3.

Check DTC. If DTC is displayed, erase it.

>> END

INJECTOR ADJUSTMENT VALUE REGISTRATION

EC9-147

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

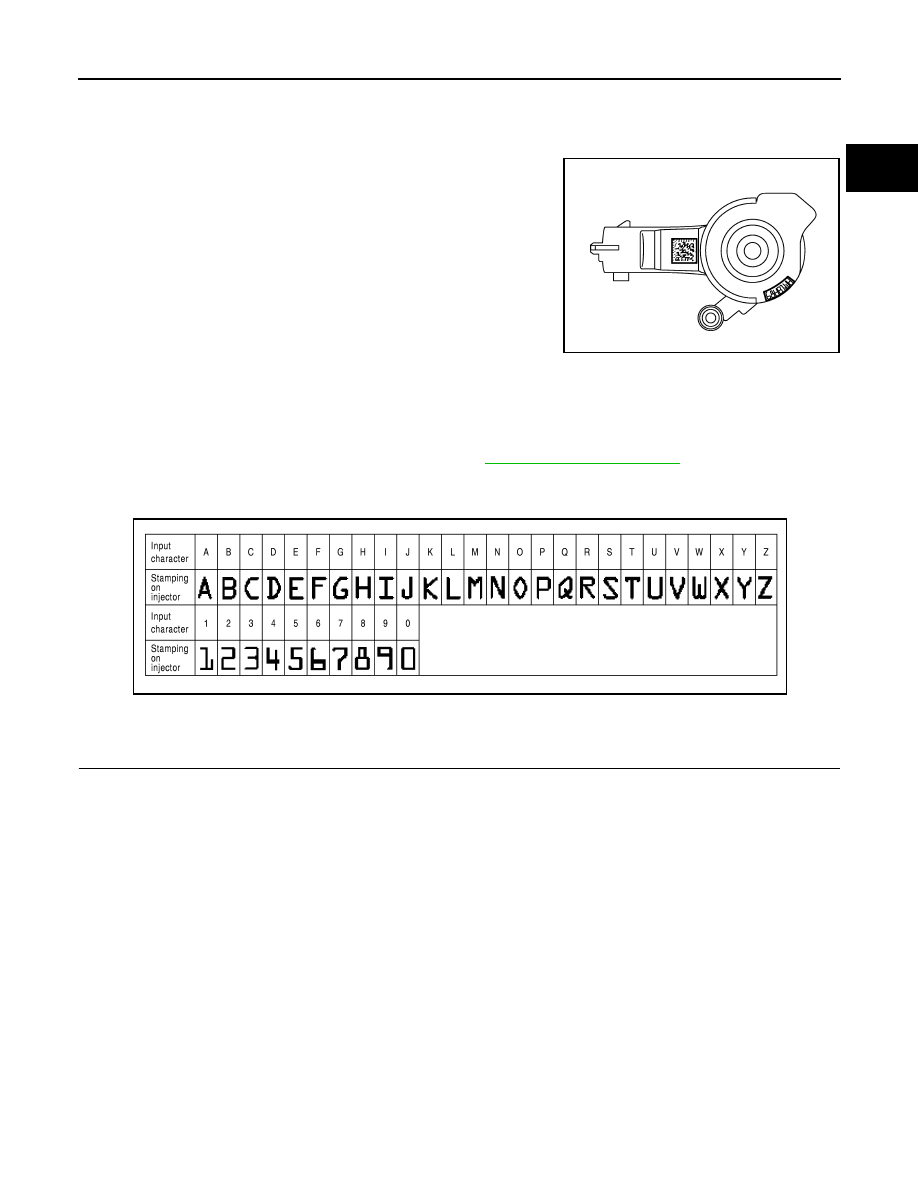

INJECTOR ADJUSTMENT VALUE REGISTRATION

Description

INFOID:0000000010309020

Injector adjustment value indicates manufacturing tolerance and the
value is printed on the top of fuel injector.
The injector adjustment value which is correctly stored in ECM is
needed for precise fuel injection control.
A performance of emission control and a driveability may effect
when there is a mismatch between the following two values.
• The injector adjustment value stored in ECM
• The injector adjustment value of the injector which is installed on

the vehicle

Injector Adjustment Value Registration must be performed after the
following cases.
• Injector(s) are replaced.
- Injector Adjustment Value Registration for the replaced fuel injector must be performed.
• ECM is replaced.
- Injector Adjustment Value Registration for all the fuel injectors must be performed.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

For injector adjustment value, refer to the following table.
NOTE:
“J” and “Q”, “9” and “0 (zero)” are not applied.

Work Procedure

INFOID:0000000010309021

1.

START

NOTE:
• Before performing this procedure, record injector adjustment value printed on a fuel injector.
1.

Turn ignition switch ON (engine stopped).

2.

Select “ENTER INJECTOR CODES” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

3.

Touch “START”.
NOTE:
When touching “START”, CONSULT reads injector adjustment values stored in ECM.

4.

Select the number of the cylinder which needs Injector Adjustment Value Registration.

5.

Input injector adjustment value.
NOTE:
• For injector adjustment value, refer to the following table.

JSBIA0509ZZ

JMBIA2928GB
