SYSTEM

EC9-39

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

STOP/START SYSTEM : System Description (M/T models)

INFOID:0000000010308990

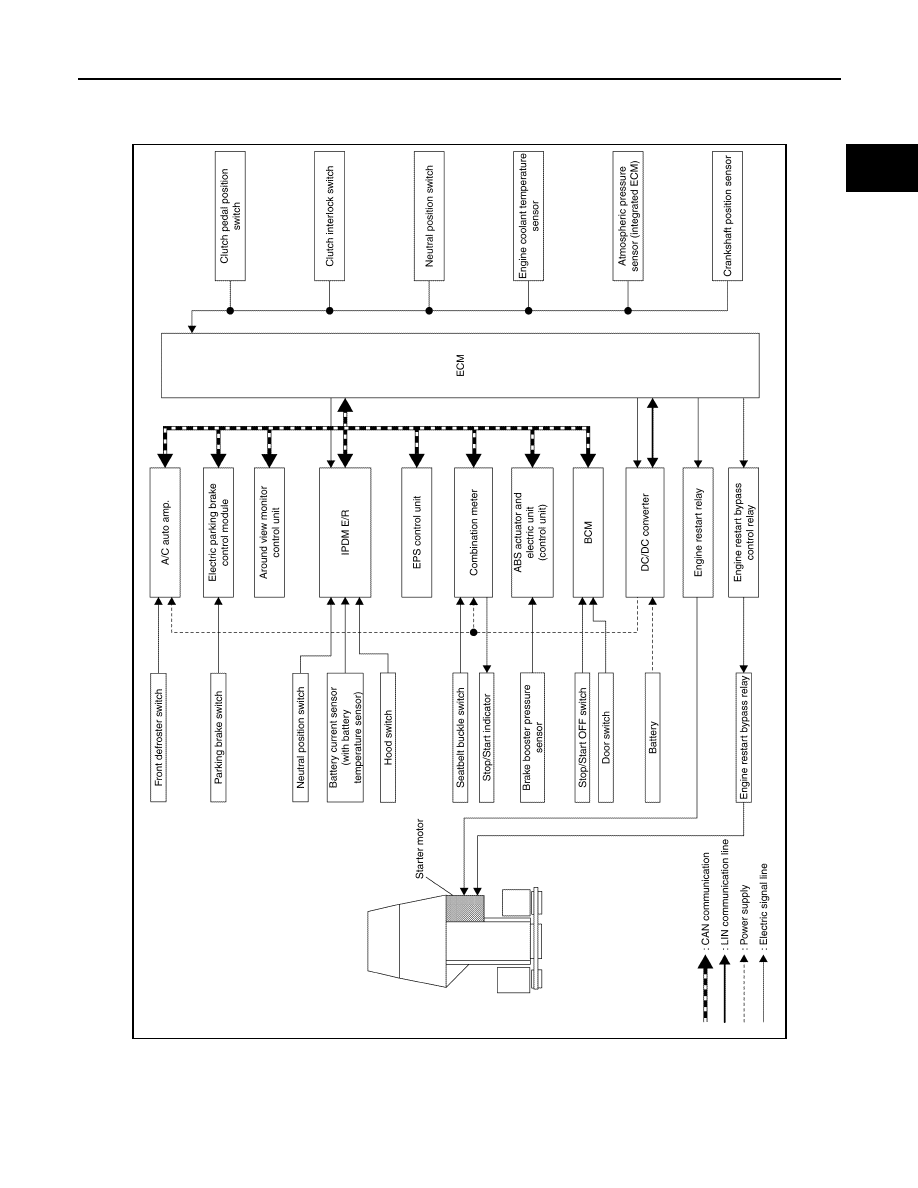

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL CHART

JSBIA5071GB

EC9-40

< SYSTEM DESCRIPTION >

[R9M]

SYSTEM

Input/

Output

Transmits/Receives component

Signal name

Description

Input

Crankshaft position sensor

Crankshaft position sensor signal

Detects an engine speed.

Engine coolant temperature
sensor

Engine coolant temperature sensor signal

Detects an engine coolant tem-
perature.

Clutch pedal position switch

Clutch pedal position switch signal

Detects the clutch pedal is de-
pressed (not released).

Clutch pedal interlock switch

Clutch pedal interlock switch signal

Detects the clutch pedal is de-
pressed (fully depressed).

Neutral position switch

Neutral position switch signal

Detects the neutral position.

Atmospheric pressure sensor
(integrated in ECM)

Atmospheric pressure sensor signal

Detects an atmospheric pres-
sure.

IPDM E/R

CAN communica-
tion

Stop/Start permit signal

Detects the IPDM E/R is ready to
operate the stop/start system.
For details, refer to

CHG-8, "EN-

ERGY MANAGEMENT SYS-
TEM : System Description"

.

Battery current signal

Detects battery current.

Neutral position switch signal

Detects the neutral position.

Hood switch signal

Detects engine hood status.

Battery current sensor malfunc-
tion signal

Detects the battery current sen-
sor is normal.

BCM

CAN communica-
tion

Ignition switch status signal

Detects ignition switch status.

Door switch signal

Detects the status of driver side
door.

Stop/Start OFF switch signal

Detects stop/start OFF switch
status.

ABS actuator and electric unit
(control unit)

CAN communica-
tion

Vehicle speed signal

Detects vehicle speed.

Brake booster pressure sensor
signal

Detects a pressure in brake
booster.

ABS operation signal

Detects ABS operation.

ESP operation signal

Detects ESP operation.

EPS control unit

CAN communica-
tion

EPS torque signal

Detects an operational state of
EPS system.

Stop/Start inhibit signal

Receives the intelligent parking
assist status signal sent from the
around view monitor control unit
through the EPS control unit.

A/C auto amp.

CAN communica-
tion

Stop/Start permit signal

Detects the air conditioning sys-
tem is ready to operate the stop/
start system. For details, refer to

HAC-32, "STOP/START SYS-
TEM : System Description"

.

Combination meter

CAN communica-
tion

Seat belt buckle switch signal

Detects driver is sitting on the
driver seat.

DC/DC converter

LIN communication

Operation status signal

Detects an operational state of
DC/DC converter.

Diagnosis signal

Detects DC/DC converter mal-
function.

SYSTEM

EC9-41

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

SYSTEM DESCRIPTION

The stop/start system enables the engine to automatically stop/restart with a simple operation and reduces
unnecessary idling during stoplight or traffic congestion to improve fuel economy, reduce exhaust gas, and
minimize noise.
ECM detects a vehicle condition, engine condition and driver

′

s operation condition based on signals sent from

each unit and the sensors to comprehensively control the stop/start system.
The operation condition of the stop/start system is indicated by the stop/start indicator lamp on the combina-
tion meter and showing on the information display (dot matrix information display). (Refer to

EC9-24, "Stop/

Start Indicator Lamp"

.) If a malfunction is detected in the stop/start system, the system control is automatically

deactivated and the malfunction is alerted to the driver by blinking the stop/start indicator lamp and showing
the status on the information display (dot matrix information display). When a driver

′

s operation is judged as

dangerous one during the stop/start system operation, the stop/start indicator lamp blinks at a high speed and
the status is shown on the information display (with dot matrix information display). The buzzer mounted on
the combination meter sounds simultaneously to warn the driver of the dangerous operation.
NOTE:
Starting the engine from stop/start system operation is regarded as “Restart”.

Output

Around view monitor control unit

CAN communica-
tion

Stop/Start status signal

Transmits a stop/start status sig-
nal

BCM

CAN communica-
tion

Stop/Start status signal

Transmits a stop/start status sig-
nal

ABS actuator and electric unit
(control unit)

CAN communica-
tion

Stop/Start status signal

Transmits a stop/start status sig-
nal

EPS control unit

CAN communica-
tion

Stop/Start status signal

Transmits a stop/start status sig-
nal

EPS assist request signal

Transmits EPS assist permit/in-
hibit signal.

A/C auto amp.

CAN communica-
tion

Stop/Start status signal

Transmits a stop/start status sig-
nal

Combination meter

CAN communica-
tion

Stop/Start status signal

Transmits a stop/start status sig-
nal

Stop/Start indicator lamp request
signal

Transmits request signal which
turn ON the stop/start indicator
lamp.

DC/DC converter

DC/DC converter operation check signal

Check DC/DC converter opera-
tion status.

Input/

Output

Transmits/Receives component

Signal name

Description

EC9-42

< SYSTEM DESCRIPTION >

[R9M]

SYSTEM

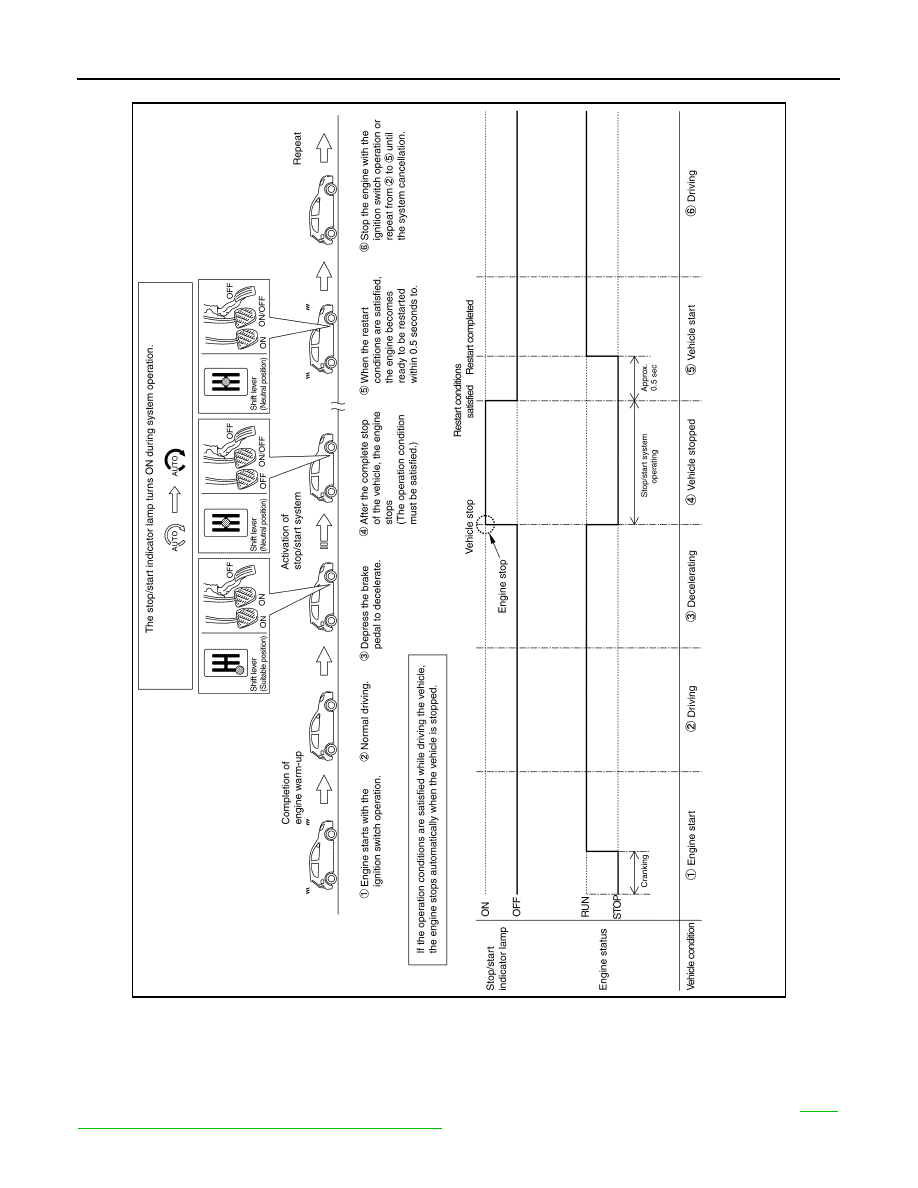

BASIC OPERATION

FUNCTION DESCRIPTION

When the stop/start system readiness conditions are satisfied while the vehicle is moving, the system is ready.
When the stop/start system operation conditions are satisfied while the vehicle is in a stop condition, the
engine is stopped.
During stop/start system operation, stopping time, the amount of fuel saved by the stop/start system and CO

2

saved information are indicated on the combination meter. (With dot matrix information display. Refer to

MWI-

17, "INFORMATION DISPLAY : System Description"

.)

JSBIA3733GB
