Nissan Qashqai J11. Manual - part 466





COMPONENT PARTS

EC9-19

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

High Pressure EGR Volume Control Valve

INFOID:0000000010308935

High pressure EGR Volume Control Valve controls the volume of EGR gas returning from the exhaust mani-
fold to the intake manifold.
The High Pressure EGR Volume Control Valve consists of High Pressure EGR Volume Control Valve Position
Sensor, High Pressure EGR Valve, and DC motor. The High Pressure EGR Volume Control Valve Position
Sensor consists of a permanent magnet and Hall IC, and senses the valve position and feeds the voltage sig-
nals to the ECM. The ECM judges the current opening angle of the valve from this signals, and controls the
DC motor to make the valve opening angle in response to driving conditions.
The valve is controlled by means of double regulation loop.
The first loop, the quicker of the two, is a position loop. It allows the valve to be adjusted to the desired position
by feedback based on the information derived from the sensor position.
The second loop (slower) is a mass air flow loop. The mass air flow set-point is set by reference maps
depending on engine working point, ambient condition corrections (air and coolant liquid temperatures, atmo-
spheric pressure), gear engaged and state of EGR cooler bypass. For a given operating point, the air flow is
obtained by modulating the quantity of exhaust gases passing through the EGR valve and the fresh air flow
passing through the intake flap. When EGR flow is increase, fresh air flow is decrease. The air flow measure-
ment is provided by the mass air flow sensor. The fresh air and EGR flow controller provides the EGR and inlet
throttle position set-points.

Low Pressure EGR Volume Control Valve

INFOID:0000000010308936

Low Pressure EGR Volume Control Valve controls the volume of EGR gas returning from the exhaust tube
(downstream of DPF) to the passage of intake air (upstream of turbocharger).
The Low pressure EGR Volume Control Valve consists of Low pressure EGR Volume Control Valve Position
Sensor, EGR Valve, and DC motor. The EGR Volume Control Valve Position Sensor consists of a permanent
magnet and Hall IC, and senses the valve position and feeds the voltage signals to the ECM. The ECM judges
the current opening angle of the valve from this signals, and controls the DC motor to make the valve opening
angle in response to driving conditions.

Low Pressure EGR Temperature Sensor

INFOID:0000000010308937

Low Pressure EGR Temperature Sensor is installed on the downstream of EGR cooler. The sensor detects
the low pressure EGR gas temperature. The sensor modifies a voltage signal from the ECM. The modified sig-
nal returns to the ECM as the exhaust gas temperature input.

<Reference data>

Electric Throttle Control Actuator

INFOID:0000000010308938

The Electric Throttle Control Actuator consists of position sensor, throttle valve, and DC motor. The position
sensor consists of a permanent magnet and Hall IC, and senses the valve position and feeds the voltage sig-
nals to the ECM. The ECM judges the current opening angle of the valve from this signals, and controls the
DC motor to make the valve opening angle in response to driving conditions.
Throttle valve is fully open when in non-operating status. When EGR is Performed or the engine is stopped,
this valve operates in direction that closes itself.

Intake Manifold Runner Control Valve

INFOID:0000000010308939

Intake Manifold Runner Control Valve is located on the intake manifold. This valve has position sensor. It
senses the valve position and feeds the voltage signals to the ECM.

Exhaust Electric Throttle Control Actuator

INFOID:0000000010308940

Exhaust Electric Throttle Control Actuator is installed to the exhaust tube and activated only during low pres-
sure EGR.

Exhaust gas temperature

°

C (

°

F)

Resistance (Approx.)

k

0 (32)

148.9 – 175.5

20 (68)

57.1 – 65.9

100 (212)

3.167 – 3.433

130 (572)

0.062 – 0.068

EC9-20

< SYSTEM DESCRIPTION >

[R9M]

COMPONENT PARTS

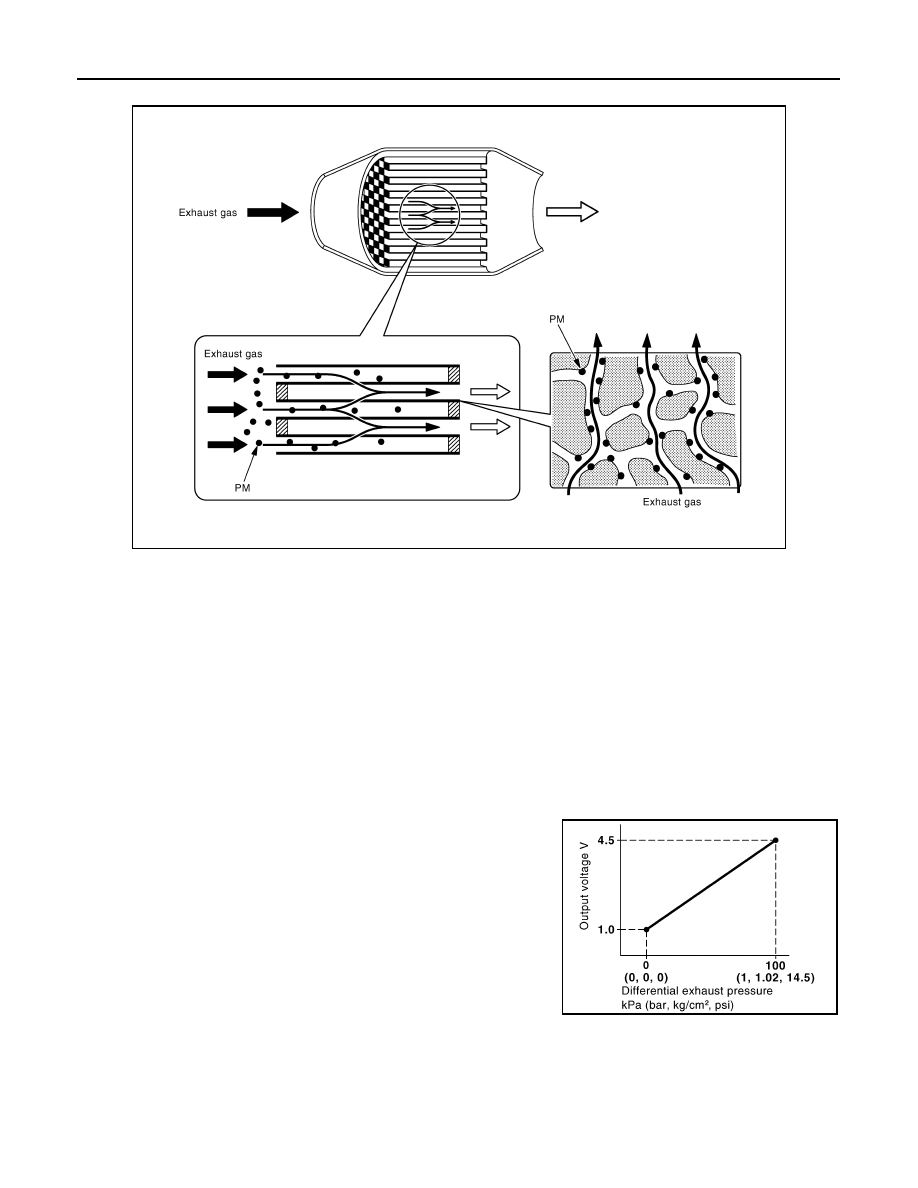

DPF (Diesel Particulate Filter)

INFOID:0000000010308941

DPF (Diesel Particulate Filter) traps PM (Particulate Matter) in exhaust gas. DPF is formed in a honeycomb
form made of ceramic. This structure facilitates to trap particulate matter. When the amount of particulate mat-
ter in the DPF reaches the specified level, the particulate matter needs to be reduced through burning to main-
tain the DPF function. This reducing of particulate matter is called Regeneration and should be performed
periodically. DPF can be effective for a long time through the cycle of trapping particulate matter and regener-
ation.

Exhaust Gas Pressure Sensor

INFOID:0000000010308942

Exhaust gas pressure sensor measures exhaust gas pressure around turbocharger outlet, converts it to volt-
age signal and transmits it to ECM. ECM controls turbocharger boost pressure according to this signal.

DPF Differential Pressure Sensor

INFOID:0000000010308943

DPF (Diesel Particulate Filter) pressure sensor is connected to DPF
with tubes (upstream and downstream). DPF pressure sensor mea-
sures the difference between the exhaust pressure before and after
the DPF. DPF pressure sensor converts the difference pressure into
a voltage signal. ECM receives the signal and estimates the amount
of particulate matter in DPF.

Exhaust Gas Temperature Sensor 1

INFOID:0000000010308944

The exhaust gas temperature (EGT) sensor is built-into the Exhaust Pressure Sensor. The sensor detects the
exhaust gas temperature before turbocharger. The sensor modifies a voltage signal from the ECM. The modi-
fied signal returns to the ECM as the exhaust gas temperature input.

PBIB3160E

PBIB3165E

COMPONENT PARTS

EC9-21

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

<Reference data>

Exhaust Gas Temperature Sensor 2

INFOID:0000000010308945

Upstream DPF Temperature Sensor is installed DPF (Diesel Particulate Filter). The sensor uses a thermistor
which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response
to the temperature rises.

<Reference data>

Glow Control Unit

INFOID:0000000010308946

Glow Control Unit performs PWM (Pulse Width Modulation) communication with ECM. It improves engine
starting function by performing glow control.

Glow Plug

INFOID:0000000010308947

The glow plug is located in the cylinder head, in order to stabilize combustion and keep good cold start perfor-
mance.
The glow plug glows in response to a signal sent from the ECM, allowing current to flow through the glow plug
via the glow control unit.

Glow Indicator Lamp

INFOID:0000000010308948

Glow indicator lamp illuminates when glow system is activated in order to inform it to the driver.

Cooling Fan

INFOID:0000000010503744

Cooling fan operates at each speed when the current flows in the cooling fan motor as follows.
Refer to

EC9-34, "COOLING FAN CONTROL : System Description"

 for cooling fan operation.

Cooling Fan Resistor

INFOID:0000000010308949

Cooling Fan Resister is installed to the power circuit of Cooling Fan Motor and switches cooling fan speed
between LOW and HIGH.
When Cooling Fan Motor is rotated at LOW speeds, power is supplied to the cooling fan via Cooling Fan
Resistor.

Thermoplunger

INFOID:0000000010308950

Thermoplunger Unit is installed to the passage of engine coolant and has four thermoplungers. These ther-
moplungers increase engine coolant temperature by the passage of electric current through the Ther-
moplunger Control Unit.

Thermoplunger Control Unit

INFOID:0000000010308951

Thermoplunger Control Unit passes a current to Thermoplungers according to a signal transmitted from ECM.

Exhaust gas temperature

°

C (

°

F)

Resistance (Approx.)

k

0 (32)

5.671 – 6.118

25 (77)

1.99 – 2.123

100 (212)

0.097 – 0.103

130 (266)

0.087 – 0.091

Exhaust gas temperature

°

C (

°

F)

Resistance (Approx.)

k

0 (32)

159.8 – 309.4

20 (68)

89.3 – 159.8

100 (212)

15.2 – 22.1

300 (572)

1.307 – 1.562

400 (752)

0.606 – 0.697

EC9-22

< SYSTEM DESCRIPTION >

[R9M]

COMPONENT PARTS

Engine Coolant Bypass Valve

INFOID:0000000010308952

Engine Coolant Bypass Valve switches the flow passage of engine coolant. This valve is controlled by Engine
Coolant Bypass Valve Control Solenoid Valve.

Engine Coolant Bypass Valve Control Solenoid Valve

INFOID:0000000010308953

Engine coolant bypass valve control solenoid valve is controlled by ECM. The solenoid valve controls negative
pressure given to diaphragm of engine coolant bypass valve. When engine coolant bypass valve control sole-
noid valve is activated, it opens solenoid valve and gives negative pressure from vacuum pump to diaphragm
of engine coolant bypass valve.

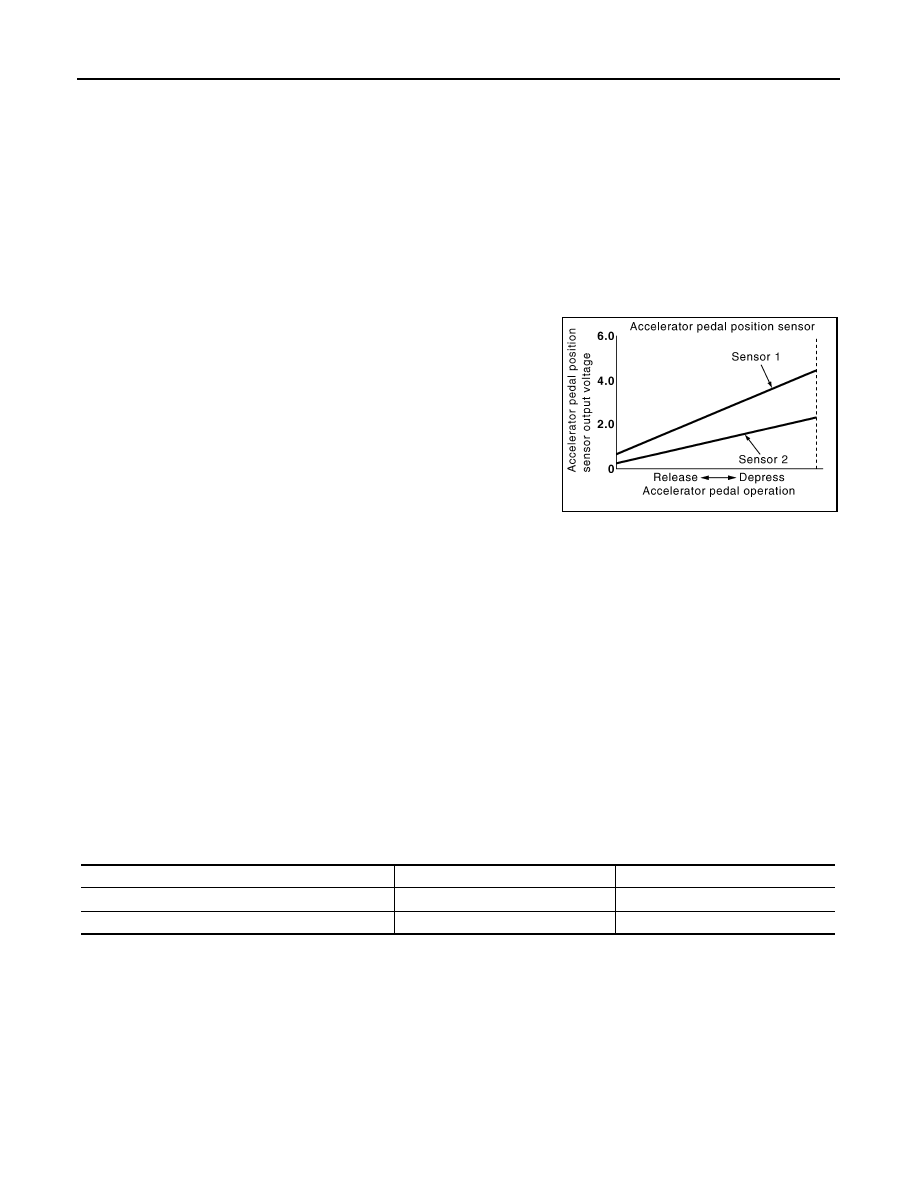

Accelerator Pedal Position Sensor

INFOID:0000000010308954

The accelerator pedal position (APP) sensor is installed on the upper
end of the accelerator pedal assembly. The sensors detect the
accelerator pedal position and sends a signal to the ECM. The ECM
uses the signal to determine the amount of fuel to be injected.

Refrigerant Pressure Sensor

INFOID:0000000010308955

The refrigerant pressure sensor is installed at the liquid tank of the air conditioner system. The sensor is used
to sense a refrigerant pressure.

Stop Lamp Switch

INFOID:0000000010308956

Stop lamp switch signal is sent to ECM via CAN communication line from BCM. This signal is used mainly to
decrease the engine speed when the vehicle is driving.

Brake Pedal Position Switch

INFOID:0000000010589773

Brake pedal position switch is installed to brake pedal bracket.
ECM detects the state of the brake pedal according to the input signal sent from brake pedal position switch.

Clutch Interlock Switch & Clutch Pedal Position Switch

INFOID:0000000010501522

Clutch interlock switch and clutch pedal position switch are installed to clutch pedal bracket.
ECM detects the state of the clutch pedal by those two types of input signal (ON/OFF).

ASCD Steering Switch

INFOID:0000000010308958

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.

PBIB1741E

Clutch pedal

Clutch interlock switch

Clutch pedal position switch

Released

OFF

ON

Depressed

ON

OFF
