Description ............................................................

319

DTC Logic  .............................................................

319

Diagnosis Procedure .............................................

319

P1525 ASCD SYSTEM .....................................

320

DTC Logic  .............................................................

320

Diagnosis Procedure .............................................

320

P1544 EGT SENSOR 2  ....................................

321

DTC Logic  .............................................................

321

Diagnosis Procedure .............................................

321

Component Inspection (DPF Upstream Tempera-
ture Sensor)  ..........................................................

323

P1546 EXHAUST GAS TEMPERATURE  ........

324

DTC Logic  .............................................................

324

Diagnosis Procedure .............................................

324

P1589 NEUTRAL SWITCH  ..............................

325

DTC Logic  .............................................................

325

Component Function Check ..................................

325

2WD .........................................................................

325

2WD : Diagnosis Procedure  ..................................

326

4WD .........................................................................

327

4WD : Diagnosis Procedure  ..................................

327

P158A CLUTCH SWITCH  ................................

329

DTC Logic  .............................................................

329

Component Function Check ..................................

329

Diagnosis Procedure .............................................

329

Component Inspection (Clutch Pedal Position
Switch) ..................................................................

330

P160C ECM  ......................................................

331

DTC Logic  .............................................................

331

Diagnosis Procedure .............................................

331

P160D ECM  ......................................................

333

DTC Logic  .............................................................

333

Diagnosis Procedure .............................................

333

P1620 ECM .......................................................

334

DTC Logic  .............................................................

334

Diagnosis Procedure .............................................

334

P1641 THERMOPLUNGER CONTROL UNIT ..

336

DTC Logic  .............................................................

336

Diagnosis Procedure .............................................

336

Component Inspection  ..........................................

338

P1642 THERMOPLUNGER CONTROL UNIT ..

339

DTC Logic  .............................................................

339

Diagnosis Procedure .............................................

339

Component Inspection  ..........................................

341

P1643 THERMOPLUNGER CONTROL UNIT ..

342

DTC Logic  .............................................................

342

Diagnosis Procedure .............................................

342

Component Inspection  ..........................................

344

P1650 STARTER MOTOR RELAY 2 ..............

345

DTC Logic ..............................................................

345

Diagnosis Procedure  .............................................

345

Component Inspection ...........................................

347

P1655 ENGINE RESTART BYPASS RELAY .

348

DTC Logic ..............................................................

348

Diagnosis Procedure  .............................................

348

Component Inspection (Engine Restart Bypass
Control Relay) ........................................................

350

Component Inspection (Engine Restart Bypass
Relay) ....................................................................

350

P1656 ENGINE RESTART BYPASS RELAY .

352

DTC Logic ..............................................................

352

Diagnosis Procedure  .............................................

352

Component Inspection (Engine Restart Bypass
Control Relay) ........................................................

354

Component Inspection (Engine Restart Bypass
Relay) ....................................................................

354

P1675 ENGINE COOLANT TEMPERATURE .

356

DTC Logic ..............................................................

356

Component Function Check  ..................................

356

Diagnosis Procedure  .............................................

357

P2002 DIESEL PARTICULATE FILTER  ........

359

DTC Logic ..............................................................

359

Diagnosis Procedure  .............................................

359

Component Inspection ...........................................

359

P2080 EGT SENSOR 1 ...................................

361

DTC Logic ..............................................................

361

Diagnosis Procedure  .............................................

361

P2100 THROTTLE CONTROL MOTOR RE-
LAY ..................................................................

362

DTC Logic ..............................................................

362

Diagnosis Procedure  .............................................

362

Component Inspection ...........................................

363

P2119 ELECTRIC THROTTLE CONTROL
FUNCTION ......................................................

364

DTC Logic ..............................................................

364

Diagnosis Procedure  .............................................

364

P2120 APP SENSOR ......................................

365

DTC Logic ..............................................................

365

Diagnosis Procedure  .............................................

365

Component Inspection (Accelerator Pedal Posi-
tion Sensor)  ...........................................................

366

P2226 BARO SENSOR ...................................

367

DTC Logic ..............................................................

367

Diagnosis Procedure  .............................................

367

P2243 A/F SENSOR  .......................................

368

DTC Logic ..............................................................

368

Diagnosis Procedure  .............................................

368

P2244 A/F SENSOR  .......................................

370

EC9-8

DTC Logic ..............................................................

370

Diagnosis Procedure  .............................................

370

P2263 TC SYSTEM  .........................................

372

DTC Logic ..............................................................

372

Diagnosis Procedure  .............................................

372

P2264 WATER IN FUEL SENSOR ..................

374

DTC Logic ..............................................................

374

Diagnosis Procedure  .............................................

374

P2452 DIESEL PARTICULATE FILTER
PRESSURE SENSOR  .....................................

376

DTC Logic ..............................................................

376

Diagnosis Procedure  .............................................

376

P2504 CHARGING SYSTEM VOLTAGE  ........

378

DTC Logic ..............................................................

378

Diagnosis Procedure  .............................................

378

P253F ENGINE OIL DETERIORATED ............

379

DTC Logic ..............................................................

379

Diagnosis Procedure  .............................................

379

P2626 A/F SENSOR  ........................................

380

DTC Logic ..............................................................

380

Diagnosis Procedure  .............................................

380

P2681 ENGINE COOLANT BYPASS VALVE .

382

DTC Logic ..............................................................

382

Diagnosis Procedure  .............................................

382

Component Inspection ...........................................

383

P2A06 A/F SENSOR  .......................................

385

DTC Logic ..............................................................

385

Diagnosis Procedure  .............................................

385

LOW PRESSURE FUEL PUMP  ......................

387

Component Function Check  ..................................

387

Diagnosis Procedure  .............................................

387

Component Inspection (Low Pressure Fuel Pump)

..

388

BRAKE SWITCH  .............................................

389

Component Function Check  ..................................

389

Diagnosis Procedure  .............................................

389

Component Inspection (Stop Lamp Switch)  ..........

390

Component Inspection (Brake Pedal Position
Switch) ...................................................................

390

HOOD SWITCH  ...............................................

392

Component Function Check  ..................................

392

Diagnosis Procedure  .............................................

392

Component Inspection ...........................................

393

STOP/START OFF SWITCH  ............................

394

Component Function Check  .................................

394

Diagnosis Procedure .............................................

394

Component Inspection  ..........................................

395

SYMPTOM DIAGNOSIS  ...........................

397

ENGINE CONTROL SYSTEM SYMPTOMS  ....

397

Symptom Table .....................................................

397

STOP/START SYSTEM ....................................

400

Diagnosis Procedure .............................................

400

STOP/START SYSTEM NOT ACTIVATED  .....

401

Diagnosis Procedure .............................................

401

PERIODIC MAINTENANCE  ......................

403

IDLE SPEED .....................................................

403

Inspection ..............................................................

403

REMOVAL AND INSTALLATION .............

404

VACUUM LINES ...............................................

404

Vacuum Layout  .....................................................

404

ECM ..................................................................

405

Exploded View  ......................................................

405

Removal and Installation .......................................

405

GLOW CONTROL UNIT  ...................................

406

Exploded View  ......................................................

406

Removal and Installation .......................................

406

THERMOPLUNGER CONTROL UNIT  .............

407

Exploded View  ......................................................

407

Removal and Installation .......................................

407

DC/DC CONVERTER  .......................................

408

Exploded View  ......................................................

408

Removal and Installation .......................................

408

ENGINE RESTART BYPASS RELAY  .............

409

Exploded View  ......................................................

409

Removal and Installation .......................................

409

FUEL PUMP CONTROL MODULE (FPCM)  ....

410

Exploded View  ......................................................

410

Removal and Installation .......................................

410

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

411

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

411

Idle Speed .............................................................

411

PRECAUTIONS

EC9-9

< PRECAUTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010308911

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

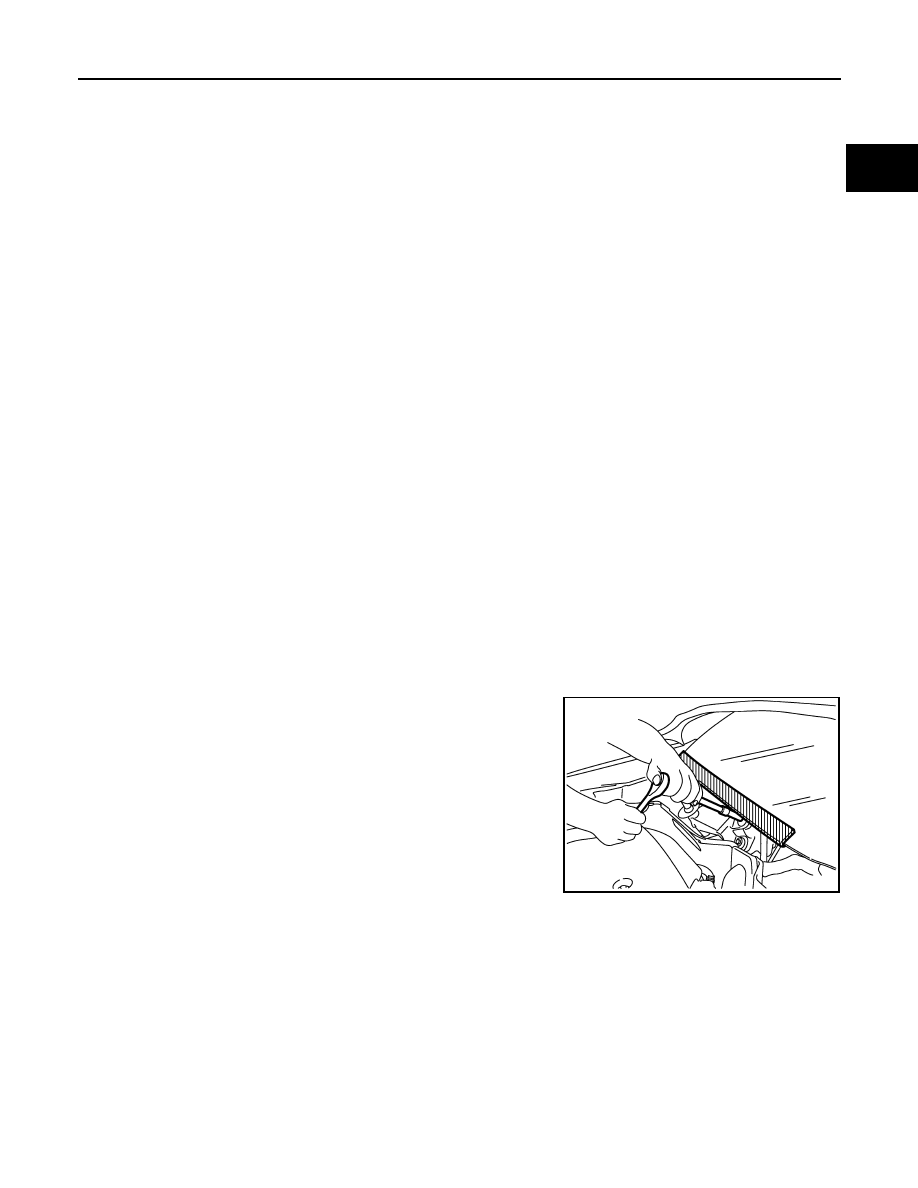

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010308912

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000010505549

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

PIIB3706J

EC9-10

< PRECAUTION >

[R9M]

PRECAUTIONS

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Stop/Start System Service

INFOID:0000000010308914

CAUTION:

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes
