Nissan Qashqai J11. Manual - part 460

ECK-400

< REMOVAL AND INSTALLATION >

[K9K]

THERMOPLUNGER CONTROL UNIT

THERMOPLUNGER CONTROL UNIT

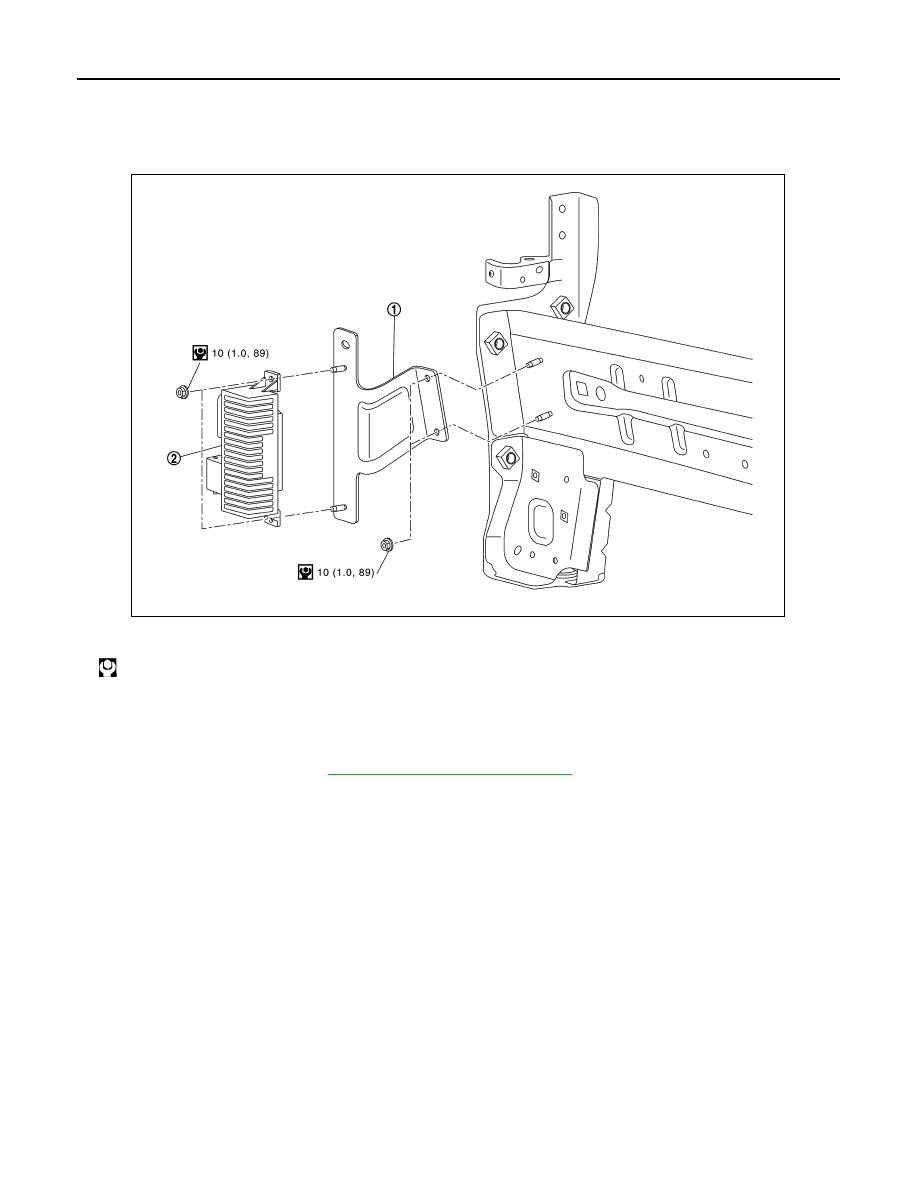

Exploded View

INFOID:0000000010501146

Removal and Installation

INFOID:0000000010501147

REMOVAL

1.

Remove front bumper. Refer to

EXT-19, "Removal and Installation"

.

2.

Disconnect thermoplunger control unit harness connector.

3.

Remove thermoplunger control unit from bracket.

INSTALLATION

Install in the reverse order of removal.

1.

Bracket

2.

Thermoplunger control unit

: N·m (kg-m, ft-lb)

JSBIA5217GB

DC/DC CONVERTER

ECK-401

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

DC/DC CONVERTER

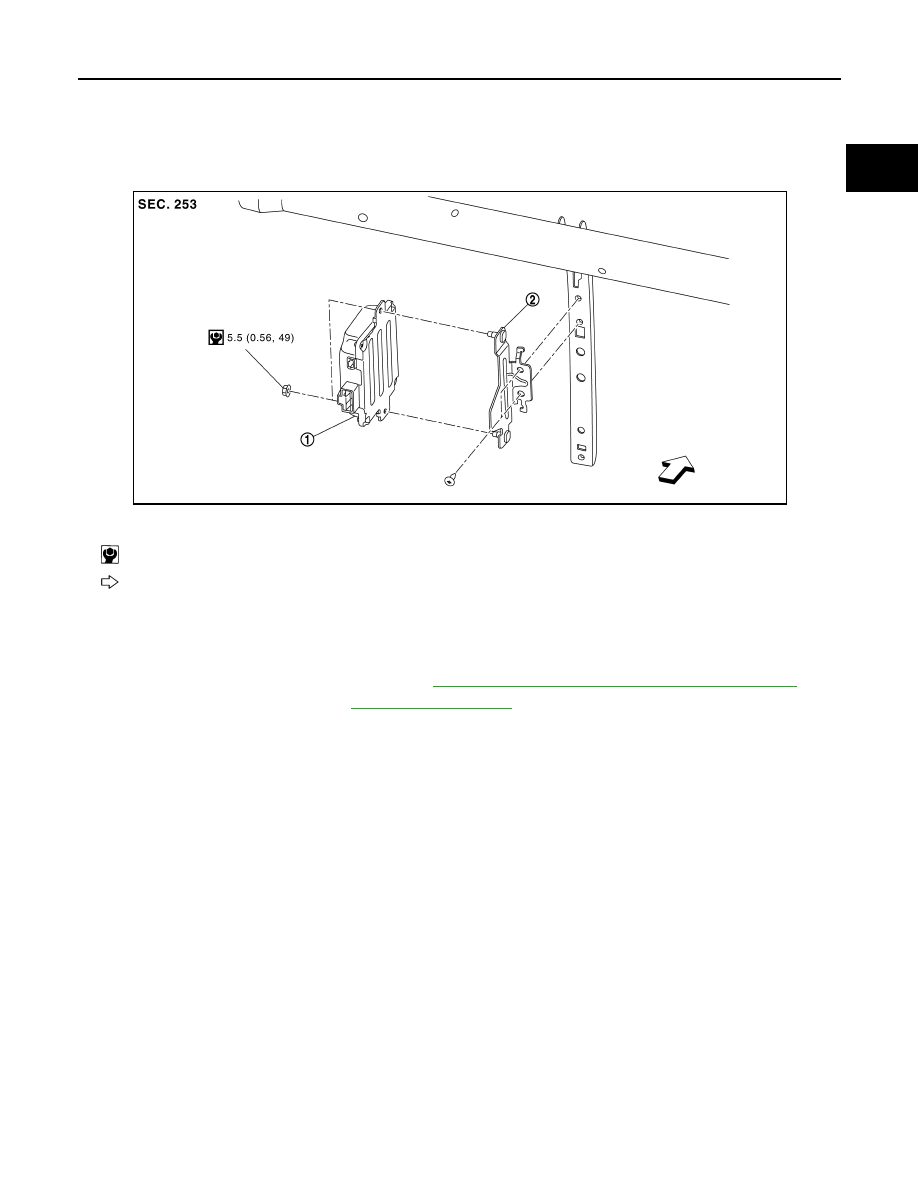

Exploded View

INFOID:0000000010501148

NOTE:
The below figure shows LHD models. RHD models are the mirror image.

Removal and Installation

INFOID:0000000010501149

REMOVAL

1.

Disconnect battery negative terminal. Refer to

ECK-9, "Precautions for Removing Battery Terminal"

.

2.

Remove glove box cover. Refer to

IP-12, "Exploded View"

.

3.

Disconnect DC/DC converter harness connectors.

4.

Remove DC/DC converter bracket mounting screws.

5.

Remove bracket with DC/DC converter.

6.

Remove DC/DC converter mounting nuts.

7.

Remove DC/DC converter.

INSTALLATION

Install in the reverse order of removal.

1.

DC/DC converter

2.

Bracket

: N·m (kg-m, in-lb)

: Vehicle front

JSBIA4865GB

ECK-402

< REMOVAL AND INSTALLATION >

[K9K]

ENGINE RESTART BYPASS RELAY

ENGINE RESTART BYPASS RELAY

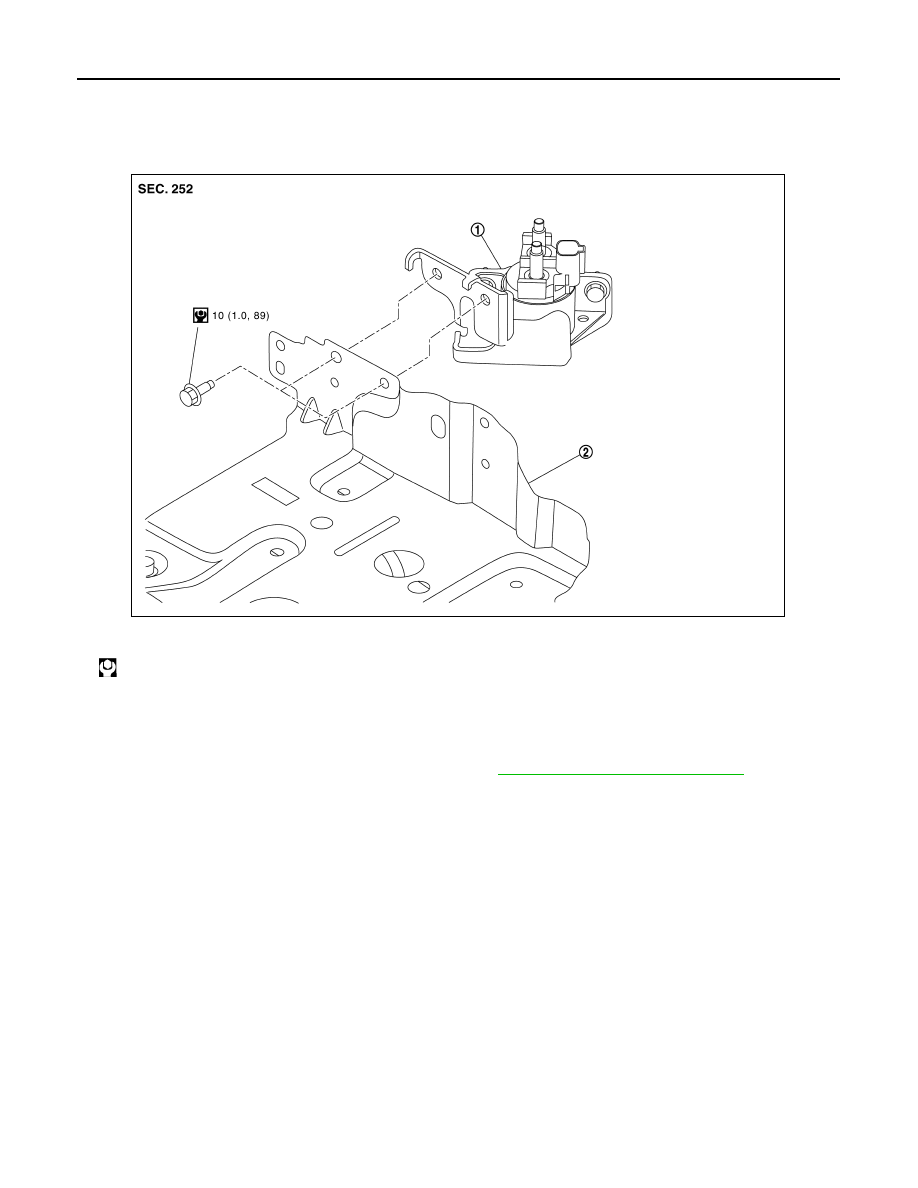

Exploded View

INFOID:0000000010501150

Removal and Installation

INFOID:0000000010501151

REMOVAL

1.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

2.

Disconnect engine restart bypass relay harness connectors.

3.

Remove bracket with engine restart bypass relay.

INSTALLATION

Install in the reverse order of removal.

1.

Engine restart bypass relay

2.

Battery mounting bracket

: N·m (kg-m, ft-lb)

JSBIA5193GB

FUEL PUMP CONTROL MODULE (FPCM)

ECK-403

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

FUEL PUMP CONTROL MODULE (FPCM)

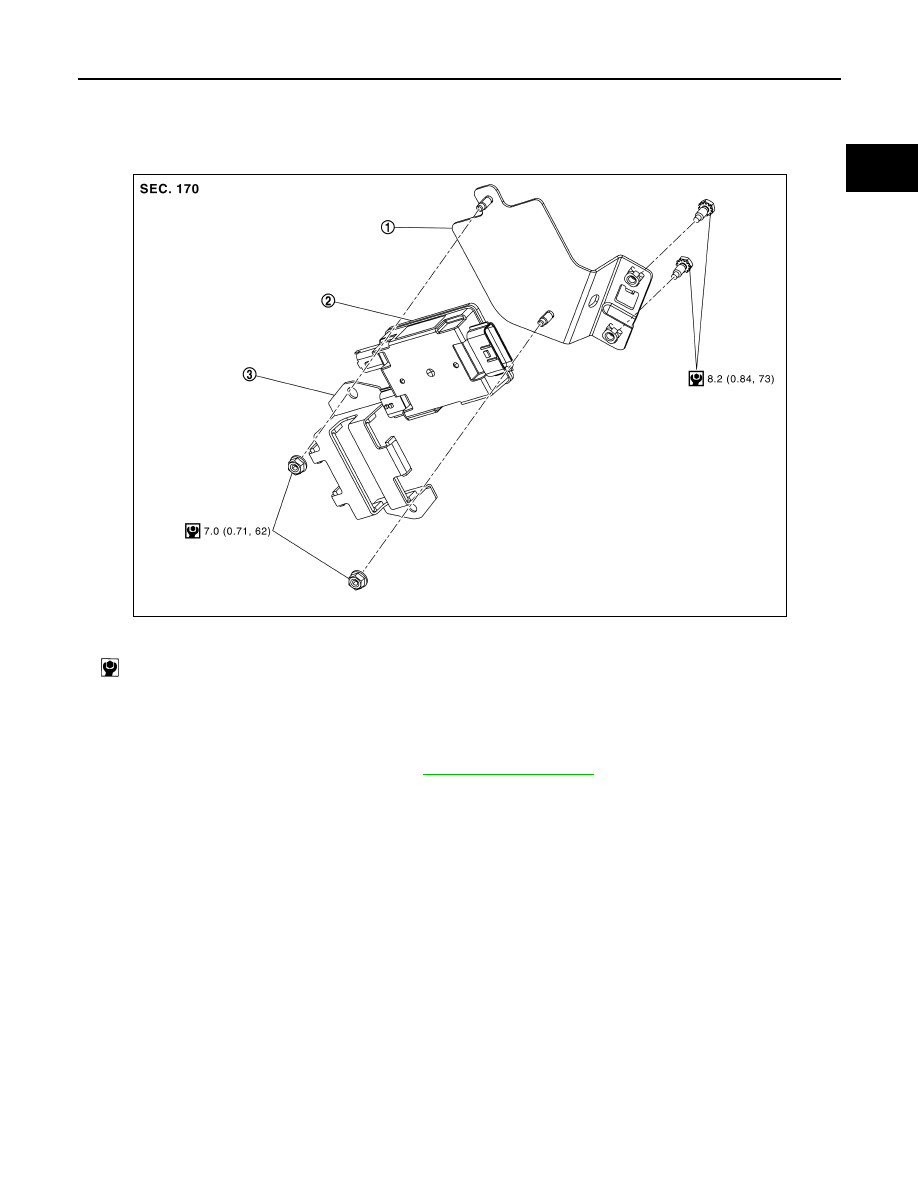

Exploded View

INFOID:0000000010501152

Removal and Installation

INFOID:0000000010501153

REMOVAL

1.

Remove luggage side finisher (RH). Refer to

INT-28, "Exploded View"

.

2.

Remove bracket with fuel pump control module (FPCM).

3.

Disconnect fuel pump control module (FPCM) harness connectors.

4.

Remove cover and fuel pump control module (FPCM) from bracket.

INSTALLATION

Install in the reverse order of removal.

1.

Bracket

2.

Fuel pump control module (FPCM)

3.

Cover

: N·m (kg-m, in-lb)

JSBIA4867GB
