ADDITIONAL SERVICE WHEN REPLACING ECM

>> GO TO 8.

8.

PERFORM ECM KEY ID REGISTRATION

Refer to “CONSULT Operation Manual NATS-IVIS/NVIS”.

>> GO TO 9.

9.

PERFORM VIN REGISTRATION

Perform

ECK-148, "Work Procedure"

.

>> GO TO 10.

10.

PERFORM INJECTOR ADJUSTMENT VALUE REGISTRATION

Perform

ECK-134, "Work Procedure"

.

>> GO TO 11.

11.

PERFORM FUEL PUMP CONTROL MODULE (FPCM) ACTIVATION

With CONSULT

1.

Turn ignition switch ON.

2.

Perform “FUEL PUMP PROGRAMMING” of “WORK SUPPORT” in “ENGINE”.

>> GO TO 12.

12.

PERFORM THROTTLE VALVE POSITION LEARNING

Perform

ECK-136, "Work Procedure"

.

>> GO TO 13.

13.

PERFORM EXHAUST THROTTLE VALVE POSITION LEARNING

Perform

ECK-137, "Work Procedure"

.

>> GO TO 14.

14.

PERFORM HIGH PRESSURE EGR VOLUME CONTROL VALVE POSITION LEARNING

Perform

ECK-138, "Work Procedure"

.

>> GO TO 15.

15.

PERFORM LOW PRESSURE EGR VOLUME CONTROL VALVE POSITION LEARNING

Perform

ECK-139, "Work Procedure"

.

>> GO TO 16.

16.

PERFORM SERVICE REGENERATION

Perform

ECK-149, "Work Procedure"

.

>> GO TO 17.

17.

CHANGE ENGINE OIL

Refer to

LU-36, "Draining"

 or

LU-36, "Refilling"

.

>> GO TO 18.

18.

PERFORM ENGINE OIL DATA RESET

Perform

ECK-147, "Work Procedure"

.

ADDITIONAL SERVICE WHEN REPLACING ECM

ECK-133

< BASIC INSPECTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

>> GO TO 19.

19.

CHECK DTC

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Turn ignition switch ON.

3.

Check DTC. If DTC is displayed, erase it.

>> END

ECK-134

< BASIC INSPECTION >

[K9K]

INJECTOR ADJUSTMENT VALUE REGISTRATION

INJECTOR ADJUSTMENT VALUE REGISTRATION

Description

INFOID:0000000010477831

Injector adjustment value

 indicates manufacturing tolerance and

the value is printed on the top of fuel injector.
The injector adjustment value which is correctly stored in ECM is
needed for precise fuel injection control.
A performance of emission control and a driveability may effect
when there is a mismatch between the following two values.
• The injector adjustment value stored in ECM
• The injector adjustment value of the injector which is installed on

the vehicle

Injector Adjustment Value Registration must be performed after the
following cases.
• Injector(s) are replaced.
- Injector Adjustment Value Registration for the replaced fuel injector must be performed.
• ECM is replaced.
- Injector Adjustment Value Registration for all the fuel injectors must be performed.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

ECK-131, "Work Procedure"

.

For injector adjustment value, refer to the following table.
NOTE:
“I”, “O”, “Q” and “V” are not applied.

Work Procedure

INFOID:0000000010477832

1.

START

NOTE:
• Before performing this procedure, record injector adjustment value printed on a fuel injector.
1.

Turn ignition switch ON (engine stopped).

2.

Select “ENTER INJECTOR CODES” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

3.

Touch “START”.
NOTE:
When touching “START”, CONSULT reads injector adjustment values stored in ECM.

4.

Select the number of the cylinder which needs Injector Adjustment Value Registration.

5.

Input injector adjustment value.
NOTE:

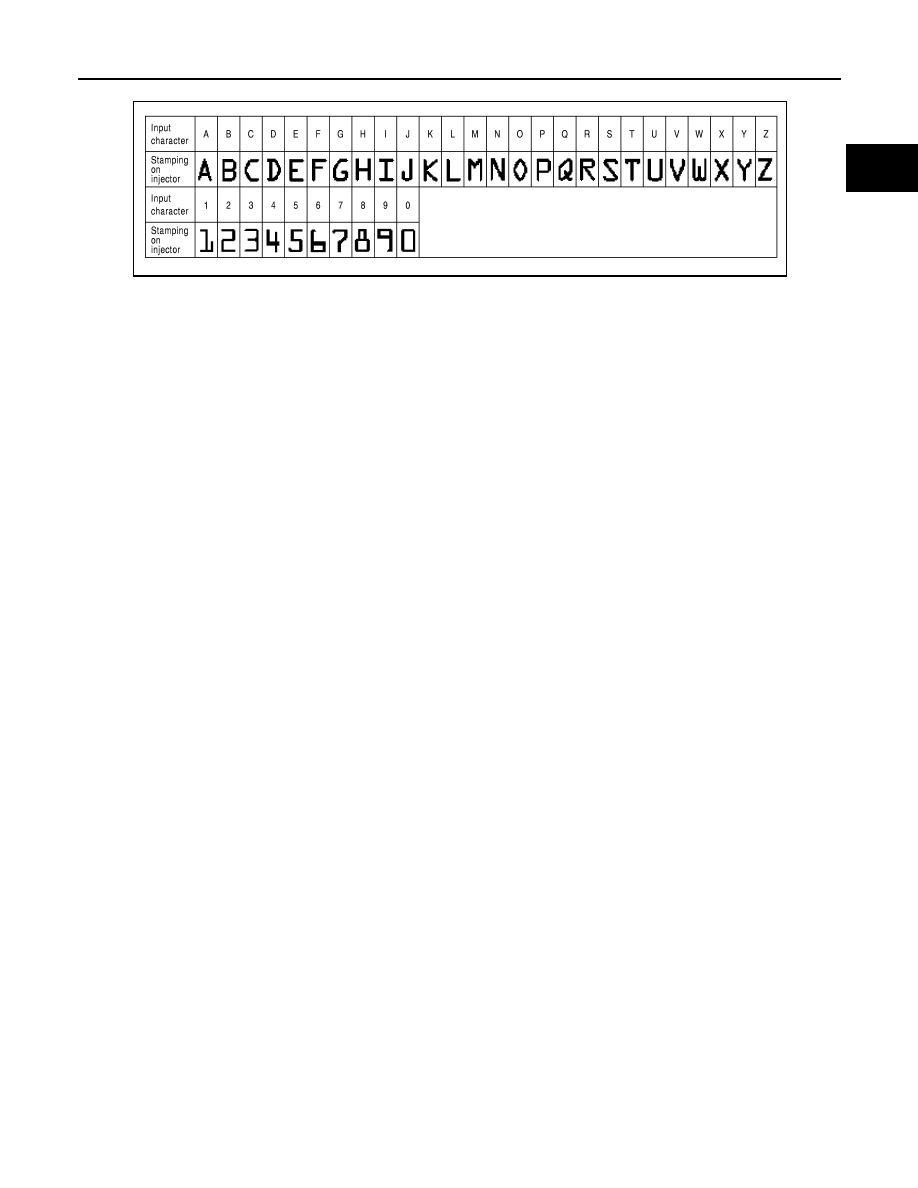

• For injector adjustment value, refer to the following table.

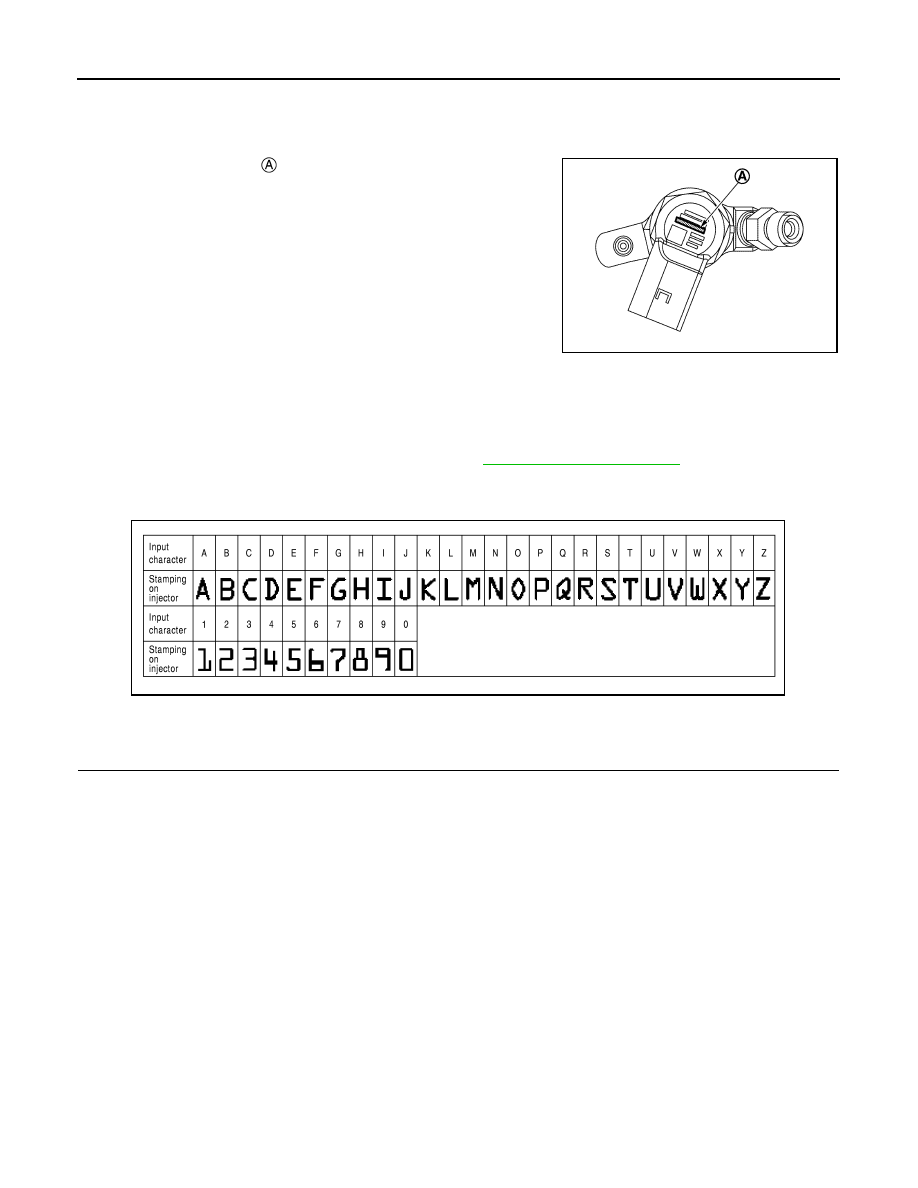

JSBIA5031ZZ
