Nissan Qashqai J11. Manual - part 386

ECK-104

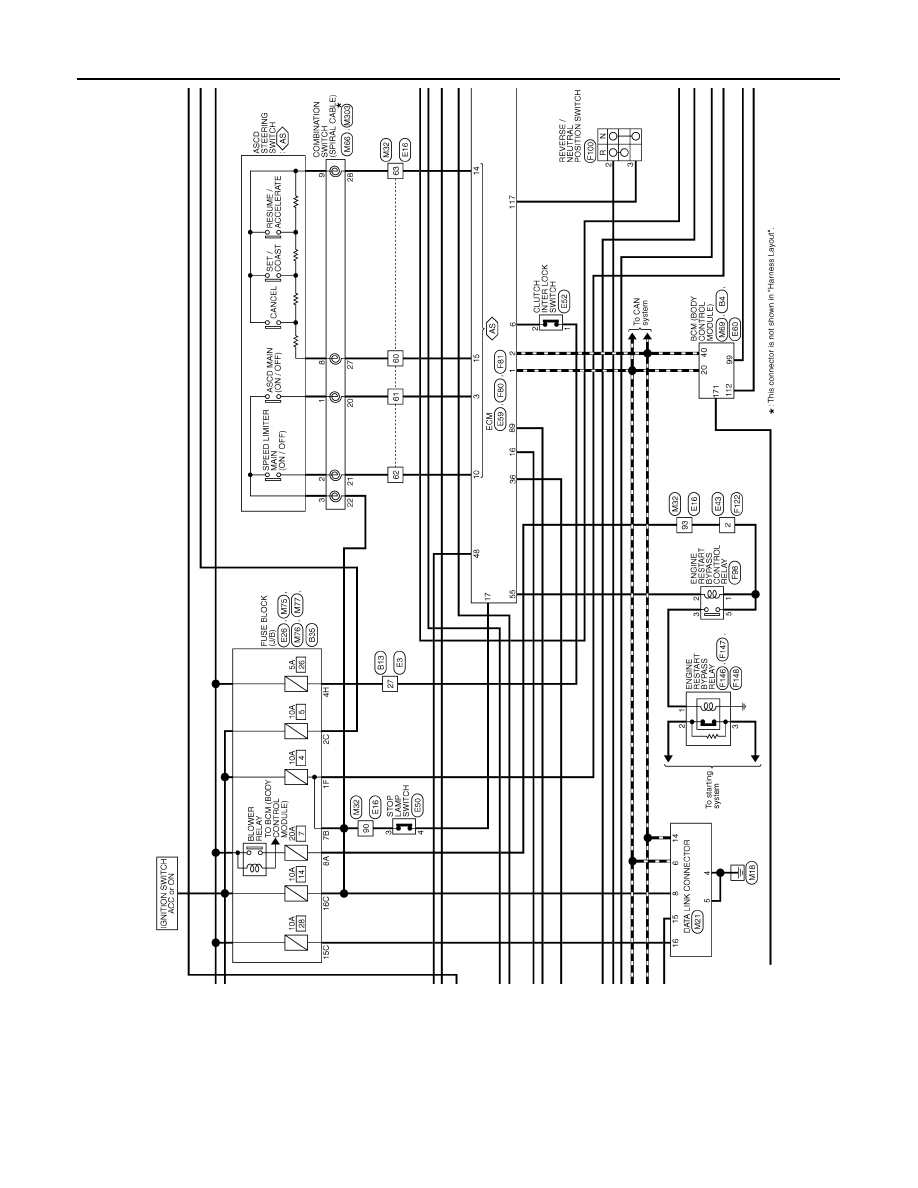

< WIRING DIAGRAM >

[K9K]

ENGINE CONTROL SYSTEM

JRBWC6850GB

ENGINE CONTROL SYSTEM

ECK-105

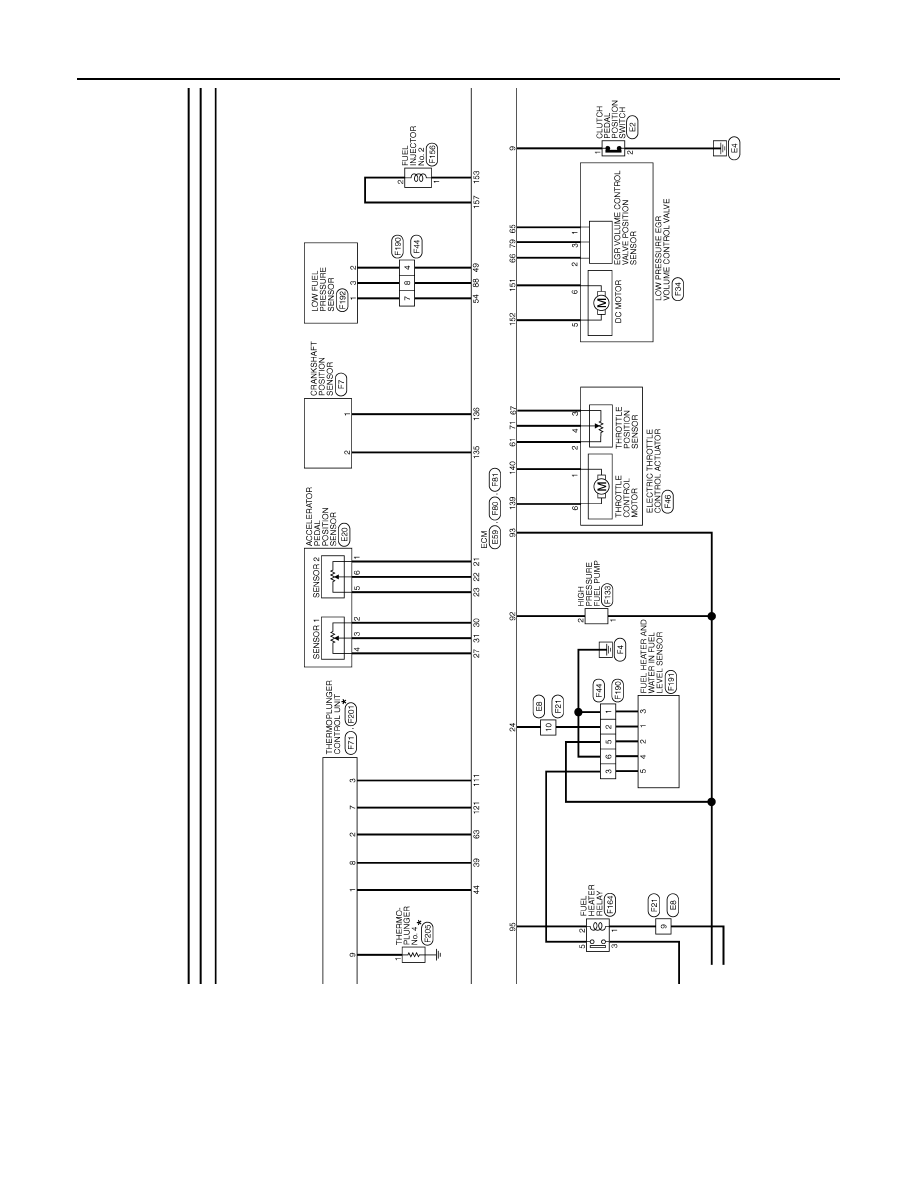

< WIRING DIAGRAM >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

JRBWC5942GB

ECK-106

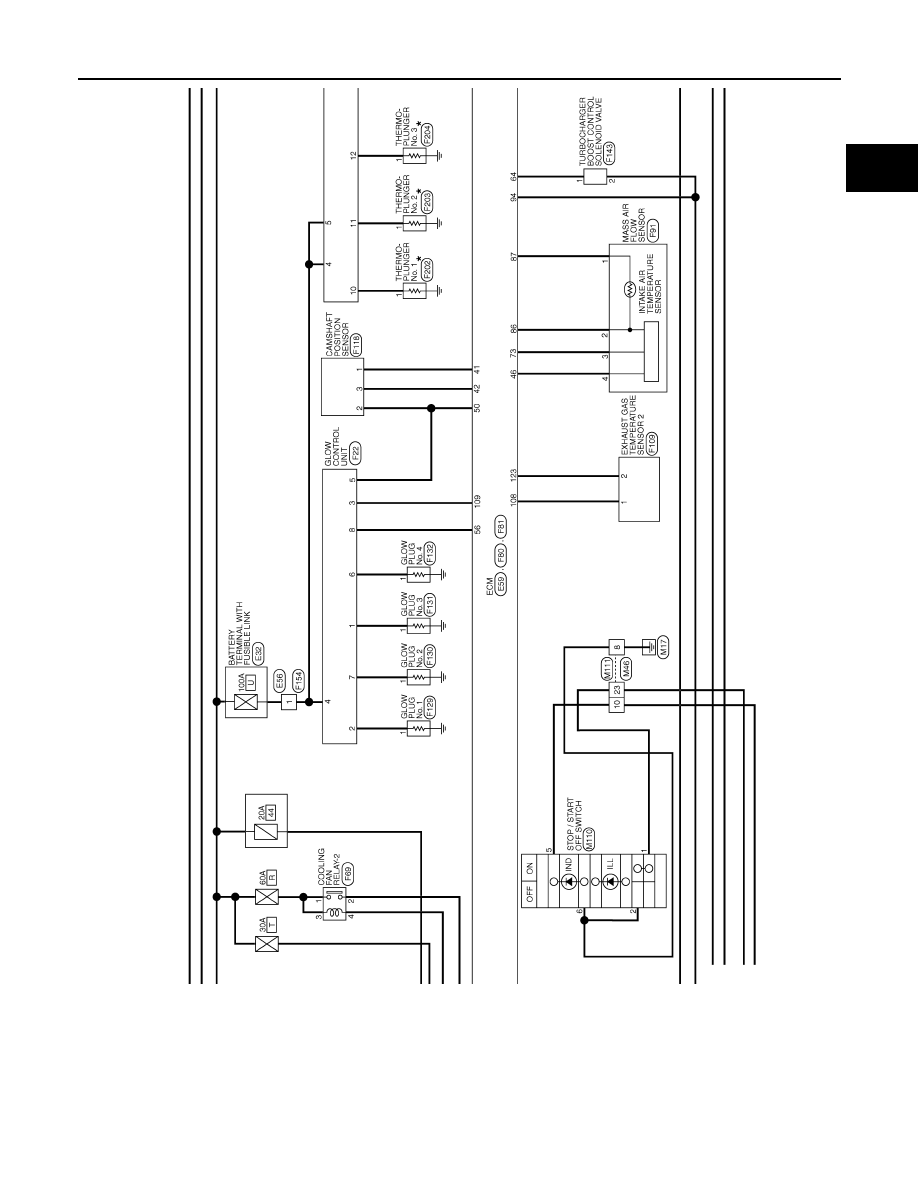

< WIRING DIAGRAM >

[K9K]

ENGINE CONTROL SYSTEM

JRBWC6851GB

ENGINE CONTROL SYSTEM

ECK-107

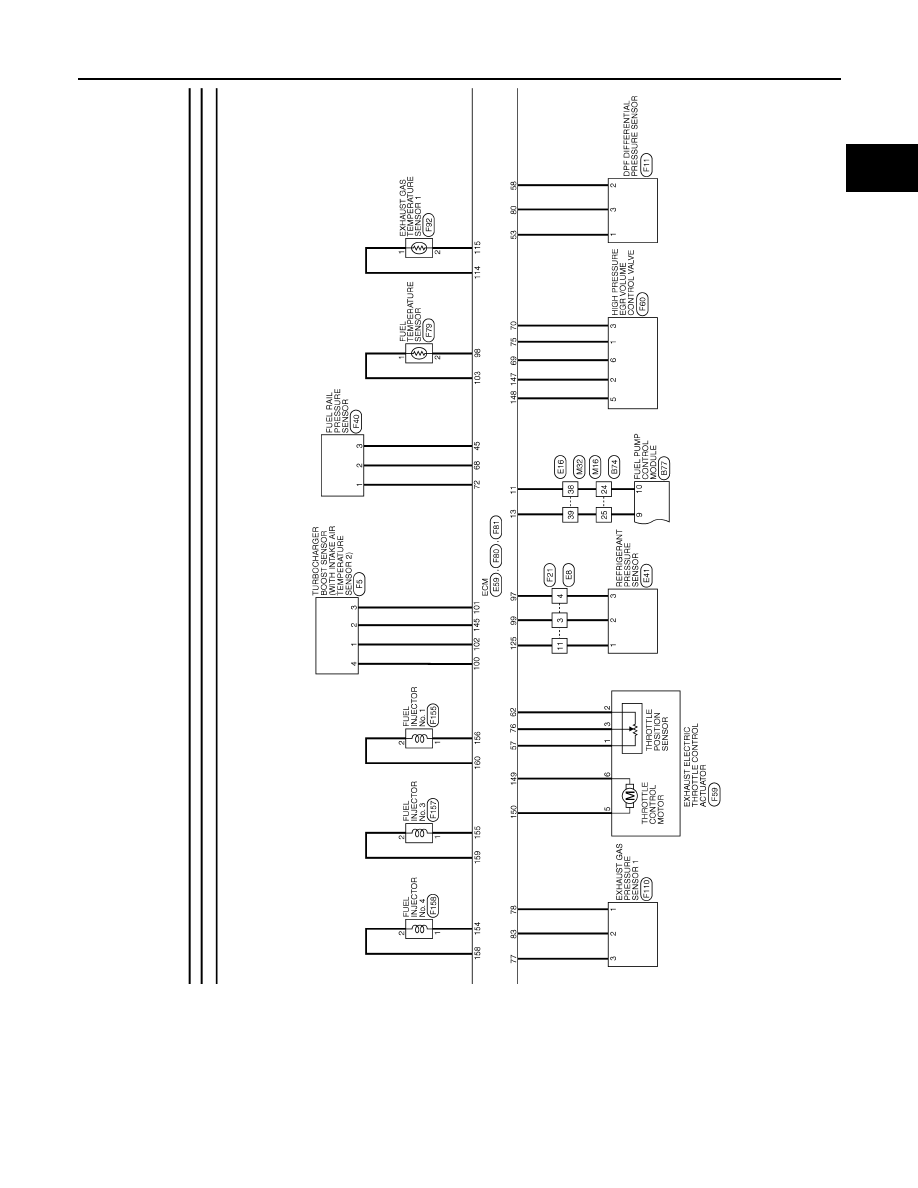

< WIRING DIAGRAM >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

JRBWC5944GB
