ECK-88
< ECU DIAGNOSIS INFORMATION >
[K9K]
ECM
Fail-safe
INFOID:0000000010289669

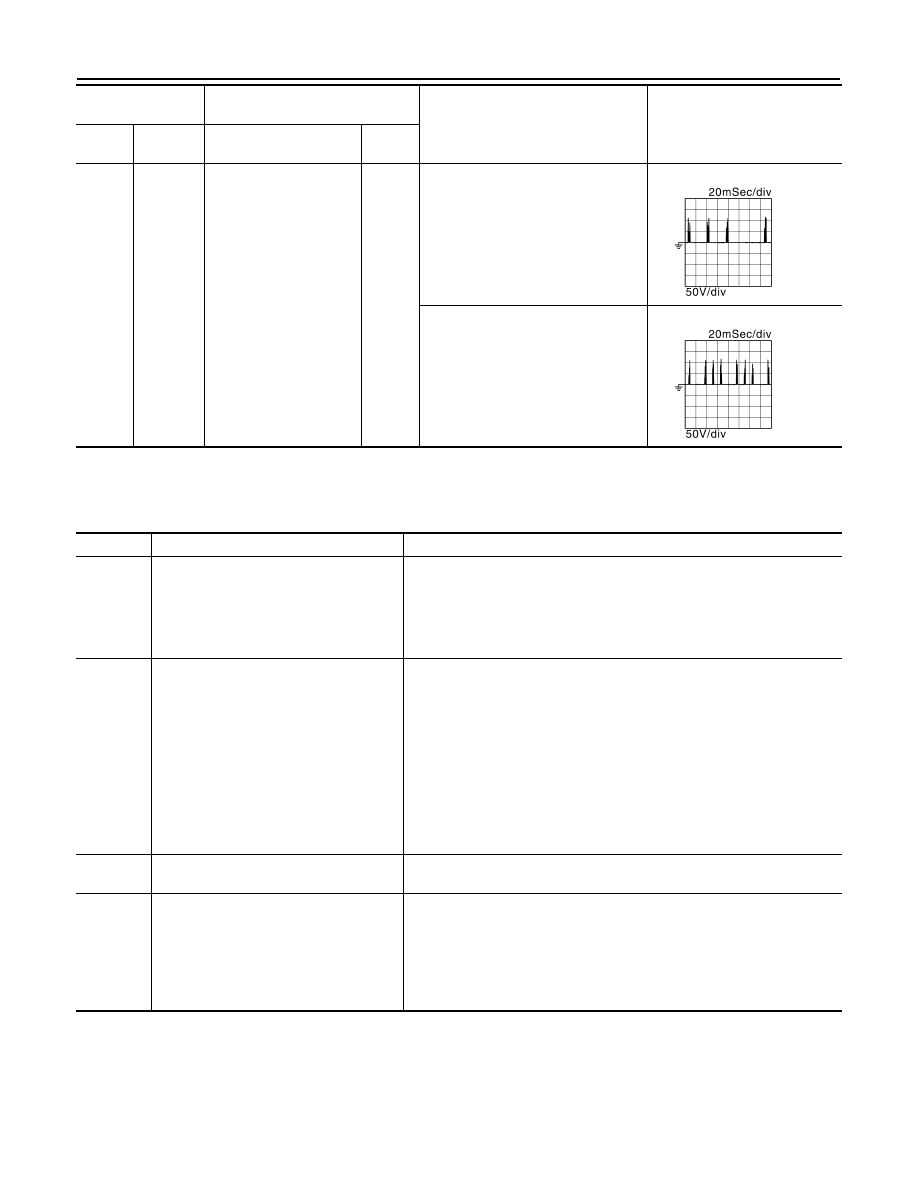

ENGINE CONTROL SYSTEM
157
(P)
29
(B)
Fuel injector No. 2 (LO)
Output
[Engine is running]
• Warm-up condition
• Idle speed
NOTE:
The pulse cycle changes depending
on rpm at idle
158
(L)
Fuel injector No. 4 (LO)
159
(G)
Fuel injector No. 3 (LO)
[Engine is running]
• Engine speed is 2,000 rpm
160
(L)
Fuel injector No. 1 (LO)
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
+
−
Signal name
Input/
Output
JSBIA4809ZZ
JSBIA4810ZZ
DTC No.
Detected items
Engine operating condition in fail-safe mode
P0001
High pressure fuel pump circuit
• Not of limitation of calibration performance
• Prohibit stop/start system
• Regeneration forbidden
• ASCD/Speed limiter deactivation
• Freeshift inhibited
• Not of limitation of calibrated performance
P0002
P0087
Fuel rail pressure
• Prohibit stop/start system
• Rail pressure limitation
• Freeshift inhibited
• ASCD/Speed limiter deactivation
• Regeneration forbidden
• EGR valve closed, throttle opened
• Not limitation of calibrated performance
• ZFC correction inhibited
• Strong vehicle speed limitation (30km/h)
• Torque limitation
• Overpressure on rail on 5 time
• Inhibition of regulation mode of fuel pressure regulator
P0016
Camshaft position- Crankshaft position
correlation
• Prohibit stop/start system
• Prohibit intake valve timing control system
P0045
Turbo solenoid valve control circuit
• Torque limitation
• EGR valve is closed position
• Throttle control motor is opened
• Boost regulation cut off
• Regeneration forbidden
• Freeshift inhibited
• ASCD/Speed limiter deactivation
