COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000010289582

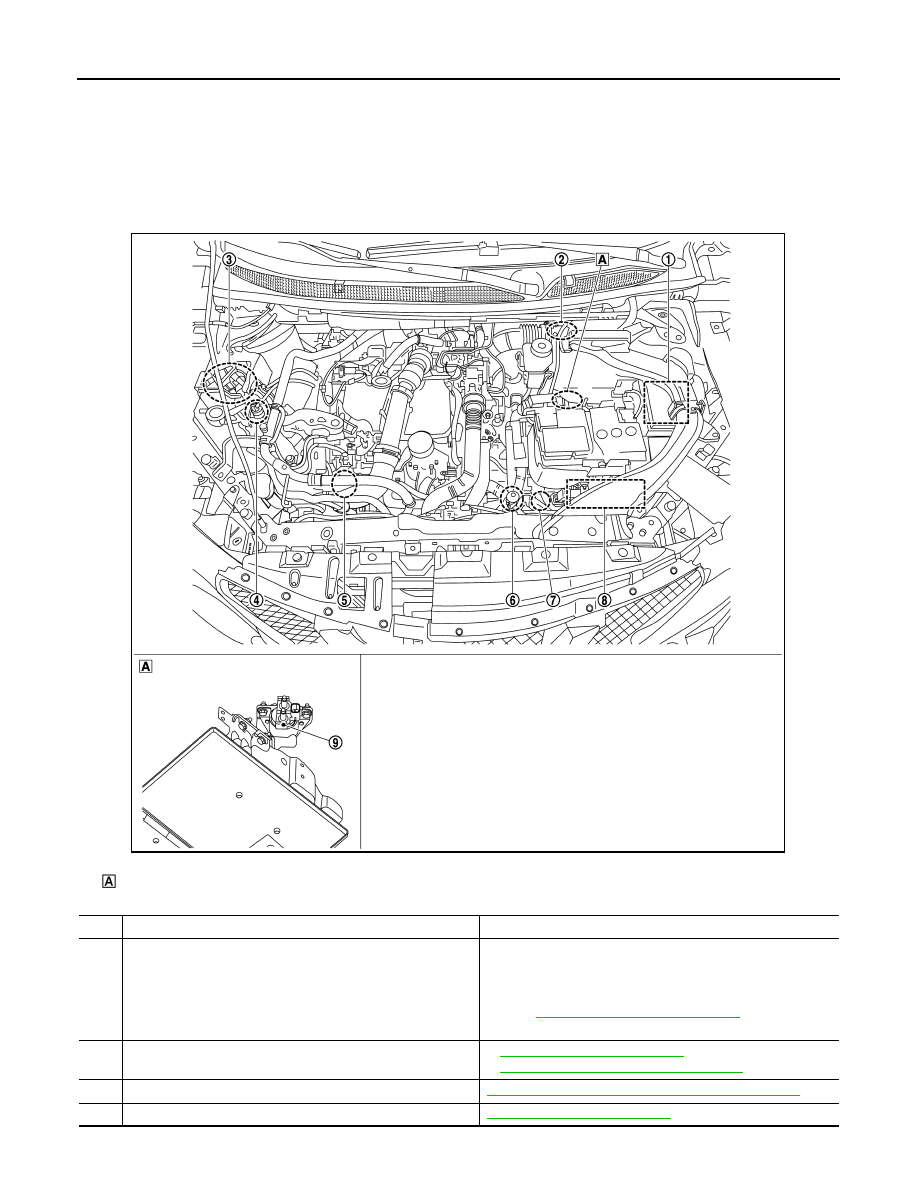

ENGINE ROOM COMPARTMENT

Battery mounting bracket assembly

JSBIA4845ZZ

No.

Component parts

Function

1

IPDM  E/R

IPDM E/R activates the internal control circuit to perform the
relay ON-OFF control according to the input signals from vari-
ous sensors and the request signals received from control
units via CAN communication.
Refer to

PCS-5, "Component Parts Location"

 for detailed in-

stallation location.

2

Mass air flow (MAF) sensor (with intake air temperature sen-
sor 1)

•

ECK-16, "Mass Air Flow Sensor"

•

ECK-16, "Intake Air Temperature Sensor 1"

3

Fuel heater and water in fuel level sensor

ECK-23, "Fuel Heater With Water In Fuel Level Sensor"

4

Fuel pressure sensor

ECK-18, "Fuel Pressure Sensor"

COMPONENT PARTS

ECK-13

< SYSTEM DESCRIPTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

ENGINE COMPARTMENT

5

Alternator

CHG-6, "Alternator"

6

Hood switch

ECK-23, "Hood Switch"

7

Reverse / neutral position switch

It detects that the transmission is in reverse and neutral.

8

ECM

ECK-16, "ECM"

9

Engine restart bypass relay

ECK-22, "Engine Restart Bypass Relay"

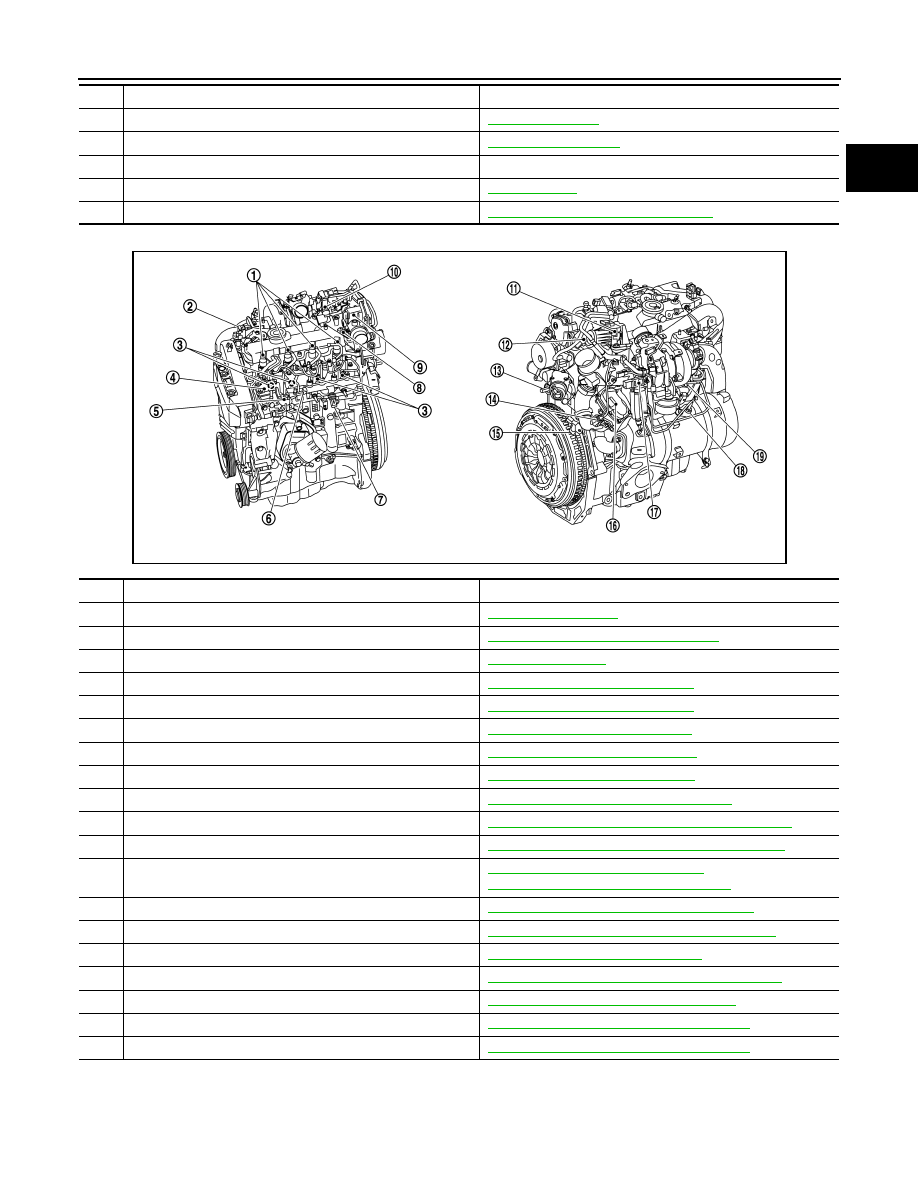

No.

Component parts

Function

JSBIA4977ZZ

No.

Component parts

Function

1

Fuel injector

ECK-17, "Fuel Injector"

2

Exhaust gas pressure sensor

ECK-20, "Exhaust Gas Pressure Sensor"

3

Glow plug

ECK-20, "Glow Plug"

4

High pressure fuel pump

ECK-17, "High Pressure Fuel Pump"

5

Fuel flow actuator

ECK-17, "High Pressure Fuel Pump"

6

Fuel temperature sensor

ECK-18, "Fuel Temperature Sensor"

7

Fuel rail pressure (FRP) sensor

ECK-18, "Fuel Rail Pressure Sensor"

8

Camshaft position (CMP) sensor

ECK-16, "Camshaft Position Sensor"

9

Electric throttle control actuator

ECK-19, "Electric Throttle Control Actuator"

10

Turbocharger boost control solenoid valve

ECK-18, "Turbocharger Boost Control Solenoid Valve"

11

High pressure EGR volume control valve

ECK-18, "High Pressure EGR Volume Control Valve"

12

Turbocharger boost sensor [with intake air temperature (IAT)
sensor 2]

ECK-17, "Turbocharger Boost Sensor"
ECK-17, "Intake Air Temperature Sensor 2"

13

Engine coolant temperature sensor

ECK-17, "Engine Coolant Temperature Sensor"

14

Low pressure EGR temperature sensor

ECK-19, "Low Pressure EGR Temperature Sensor"

15

Crankshaft position sensor

ECK-16, "Crankshaft Position Sensor"

16

Low pressure EGR volume control valve

ECK-18, "Low Pressure EGR Volume Control Valve"

17

DPF (diesel particulate filter) differential pressure sensor

ECK-20, "DPF Differential Pressure Sensor"

18

Exhaust gas temperature (EGT) sensor 2

ECK-20, "Exhaust Gas Temperature Sensor 2"

19

Exhaust gas temperature (EGT) sensor 1

ECK-20, "Exhaust Gas Temperature Sensor 1"

ECK-14

< SYSTEM DESCRIPTION >

[K9K]

COMPONENT PARTS

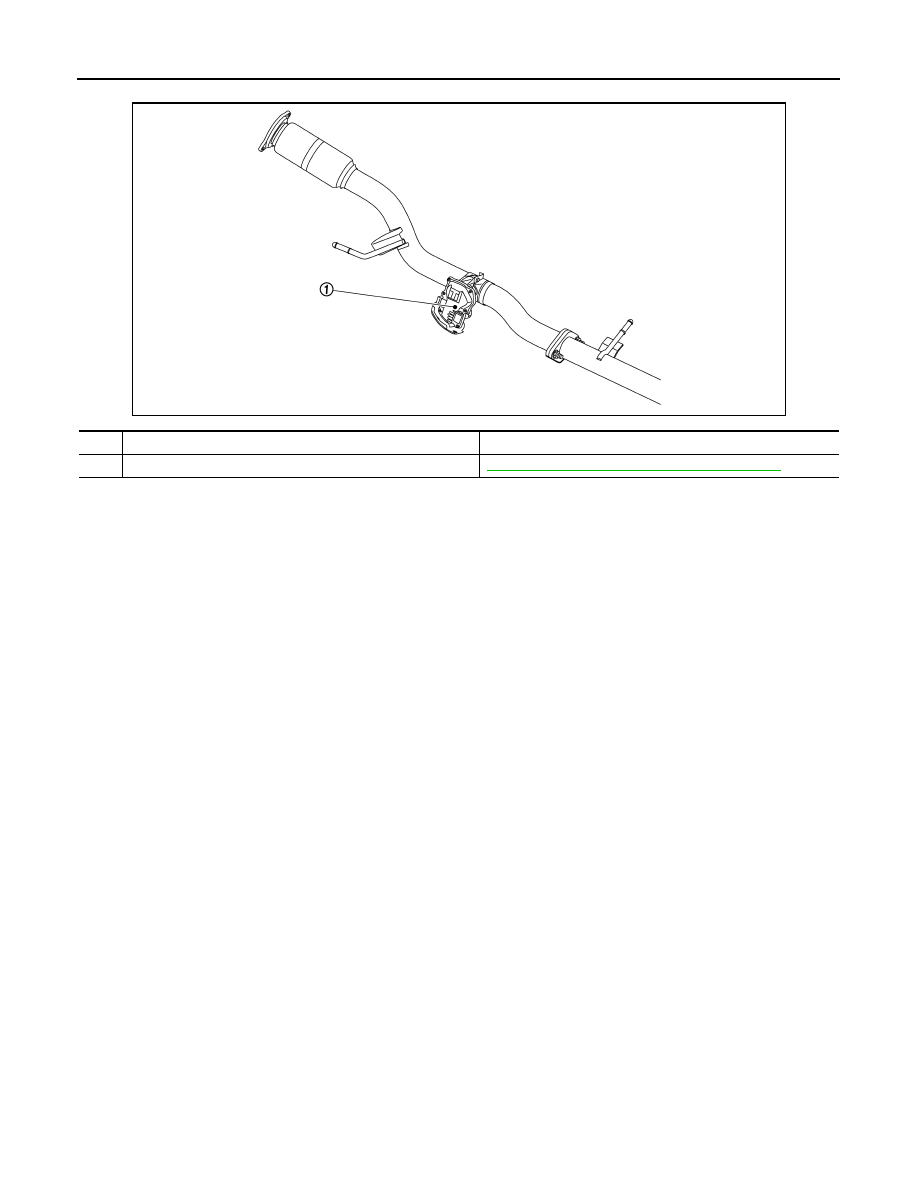

EXHAUST COMPARTMENT

BODY COMPARTMENT

JSBIA4847ZZ

No.

Component parts

Function

1

Exhaust electric throttle control actuator

ECK-19, "Exhaust Electric Throttle Control Actuator"

COMPONENT PARTS

ECK-15

< SYSTEM DESCRIPTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

JSBIA4848ZZ

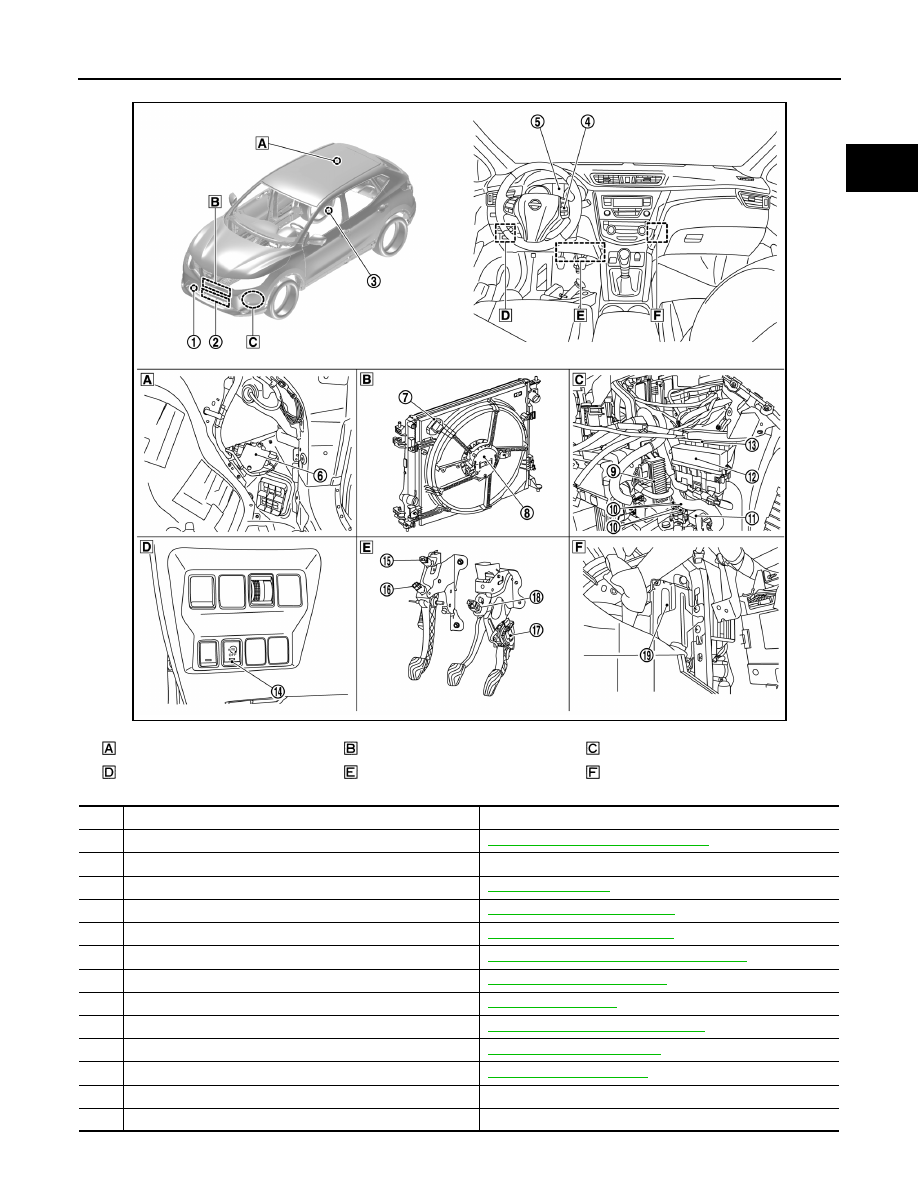

Behind luggage side finisher RH

Radiator assembly

Behind front fender protector LH

Instrument lower panel

Periphery of pedals

Behind of glove upper box assembly

No.

Component parts

Function

1

Refrigerant pressure sensor

ECK-21, "Refrigerant Pressure Sensor"

2

Active grille shutter

3

Fuel  pump

ECK-18, "Fuel Pump"

4

ASCD steering switch

ECK-22, "ASCD Steering Switch"

5

Combination meter

MWI-7, "Component Description"

6

Fuel pump control module (FPCM)

ECK-17, "FPCM (Fuel Pump Control Module)"

7

Cooling fan resistor

ECK-21, "Cooling Fan Resistor"

8

Cooling fan

ECK-21, "Cooling Fan"

9

Thermoplunger control unit

ECK-21, "Thermoplunger Control Unit"

10

Thermoplunger

ECK-21, "Thermoplunger Unit"

11

Glow control unit

ECK-20, "Glow Control Unit"

12

Relay box

—

13

Fuse block (J/B)

—
