P0037, P0038 HO2S2 HEATER

ECM-169

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE HEATED OXYGEN SENSOR 2

Replace malfunctioning heated oxygen sensor 2. Refer to

EX-11, "Exploded View"

.

CAUTION:

• Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7

in) onto a hard surface such as a concrete floor; use a new one.

• Before installing new oxygen sensor, clean exhaust system threads.

>> INSPECTION END

1

2

Not exist

3

4

4

1

2

3

HO2S2

Resistance

+

−

Terminal

ECM-170

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0075 IVT CONTROL SOLENOID VALVE

P0075 IVT CONTROL SOLENOID VALVE

DTC Description

INFOID:0000000010702897

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (Intake valve timing control solenoid valve circuit is open or shorted.)
• Intake valve timing control solenoid valve

FAIL-SAFE

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

ECM-170, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-41, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010702898

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT-1

1.

Turn ignition switch OFF.

2.

Disconnect intake valve timing (IVT) control solenoid valve harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between IVT control solenoid valve harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT-2

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0075

INT/V TIM V/CIR-B1
(Intake valve control solenoid circuit bank 1)

An improper voltage is sent to the ECM through intake valve timing control
solenoid valve.

Engine operating condition in fail-safe mode

Fail safe mode

Vehicle behavior

Device fix mode

• This mode fixes the IVT control solenoid valve and the EVT control solenoid valve in the refer-

ence position.

• The intake manifold runner control valve motor is turned OFF (intake manifold runner control

valve opens).

+

Ground

Voltage

IVT control solenoid valve

Connector

Terminal

F94

1

Ground

Battery voltage

P0075 IVT CONTROL SOLENOID VALVE

ECM-171

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R harness connector.

3.

Check the continuity between IVT control solenoid valve harness connector and IPDM E/R harness con-
nector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning part.

3.

CHECK IVT CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between IVT control solenoid valve harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning part.

4.

CHECK IVT CONTROL SOLENOID VALVE

Refer to

ECM-158, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning IVT control solenoid valve. Refer to

EM-183, "Exploded View"

.

Component Inspection

INFOID:0000000010702899

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-1

1.

Turn ignition switch OFF.

2.

Disconnect intake valve timing control solenoid valve harness connector.

3.

Check resistance between intake valve timing control solenoid valve terminals as per the following.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace malfunctioning intake valve timing control solenoid valve. Refer to

EM-183, "Exploded

View"

.

+

−

Continuity

IVT control solenoid valve

IPDM E/R

Connector

Terminal

Connector

Terminal

F94

1

F90

96

Existed

+

−

Continuity

IVT control solenoid valve

ECM

Connector

Terminal

Connector

Terminal

F94

2

F16

94

Existed

IVT control solenoid valve

Resistance

+

−

Terminal

1

2

6.7 - 7.7

Ω

 [at 20

°

C

(68

°

F)]

1

Ground

Not exist

2

ECM-172

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0075 IVT CONTROL SOLENOID VALVE

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-2

1.

Remove intake valve timing control solenoid valve.

2.

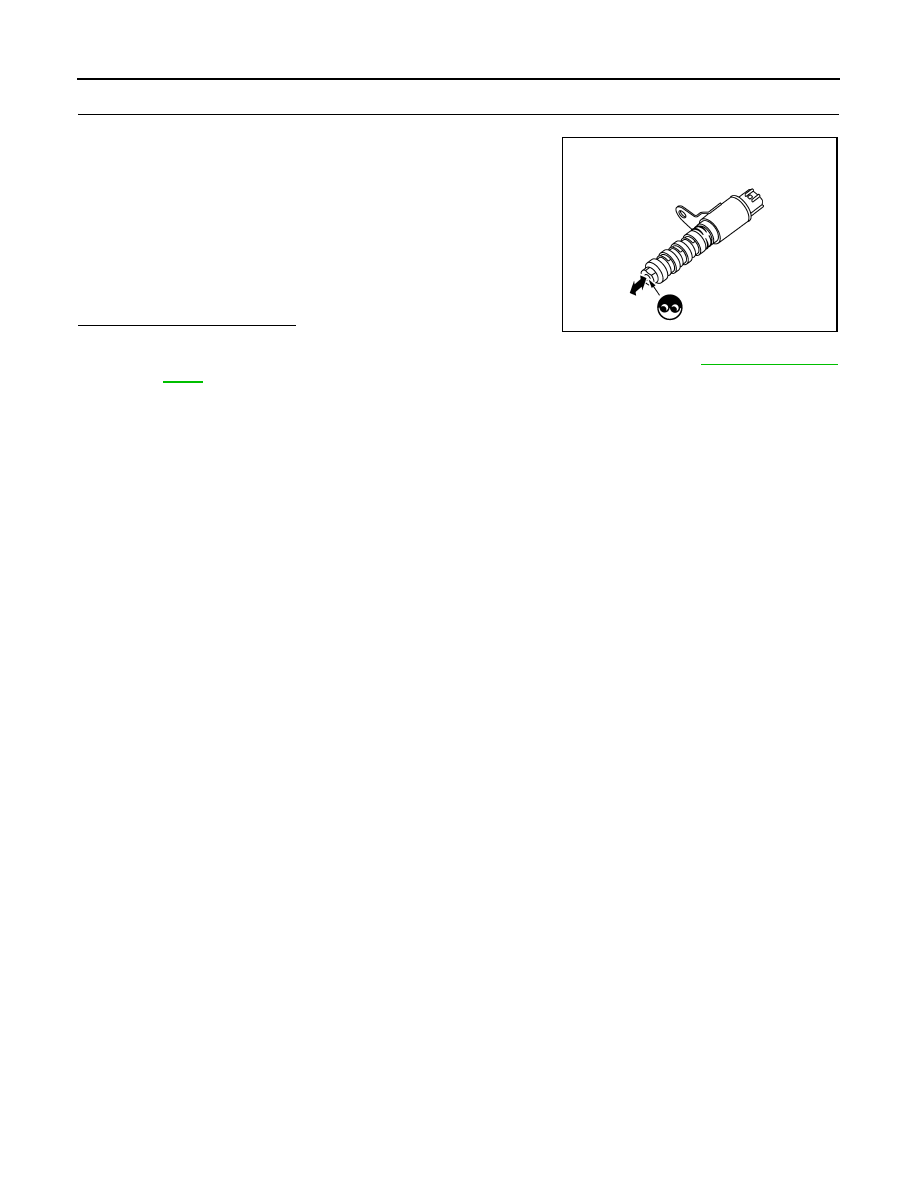

Provide battery voltage between intake valve timing control sole-
noid valve terminals 1 and 2, and then interrupt it. Check that the
plunger moves as shown in the figure.

CAUTION:

Never apply battery voltage continuously for 5 seconds or
more. Doing so may result in damage to the coil in intake
valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control solenoid
valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning intake valve timing control solenoid valve. Refer to

EM-183, "Exploded

View"

.

JMBIA0097ZZ
