P0011 IVT CONTROL

ECM-157

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

4.

Stop vehicle with engine running and let engine idle for 10 seconds.

5.

Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.

Is 1st trip DTC detected?

YES

>> Proceed to

ECM-157, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

1.

Maintain the following conditions for at least 20 consecutive seconds.

CAUTION:

Always drive at a safe speed.

2.

Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.

Is 1st trip DTC detected?

YES

>> Proceed to

ECM-157, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-41, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010702886

1.

CHECK DTC PRIORITY

If DTC P0011 is displayed with DTC P0075, first perform the trouble diagnosis for DTC P0075.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

ECM-170, "DTC Description"

.

NO

>> GO TO 2.

2.

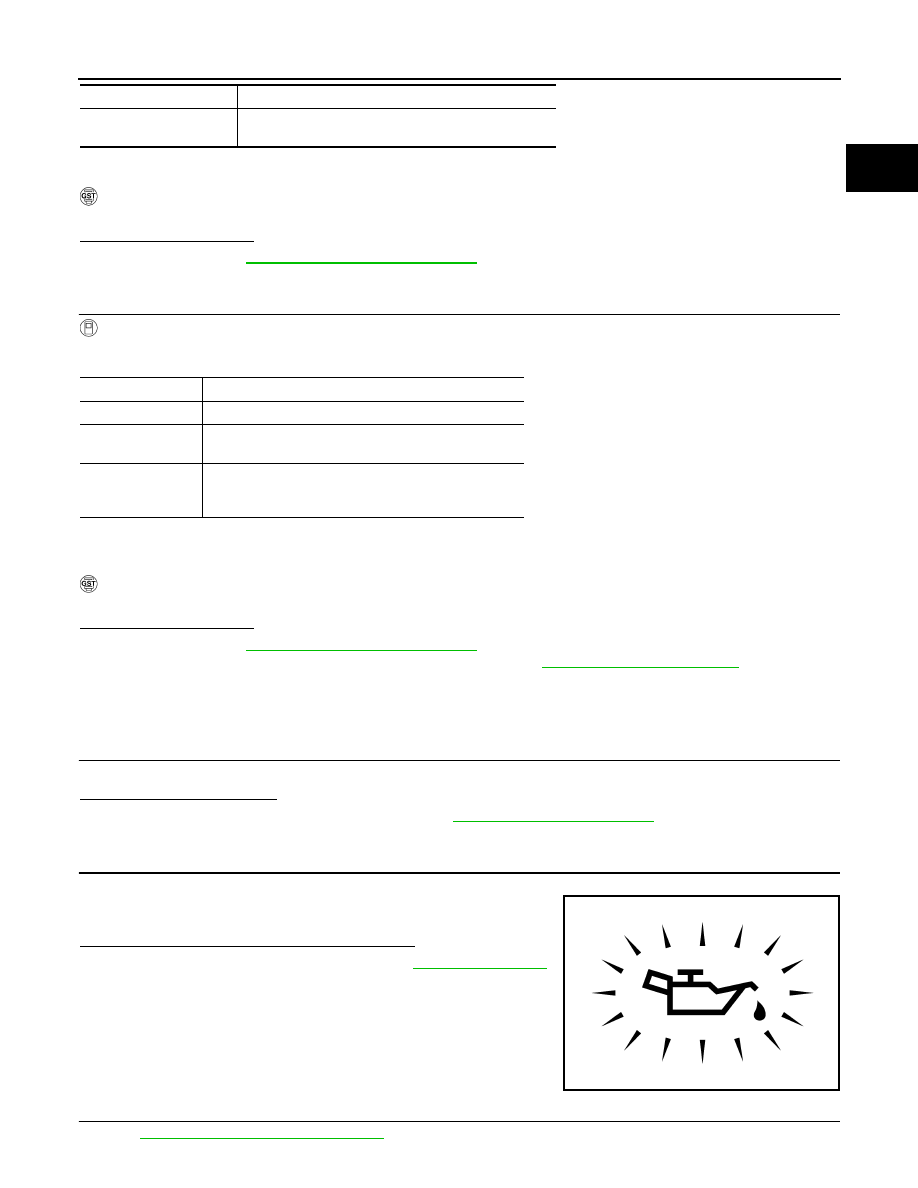

CHECK ENGINE OIL PRESSURE WARNING LAMP

1.

Start engine.

2.

Check engine oil pressure warning lamp and confirm it is not illu-
minated.

Is engine oil pressure warning lamp illuminated?

YES

>> Check the engine oil level. Refer to

LU-22, "Inspection"

.

NO

>> GO TO 3.

3.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Refer to

ECM-158, "Component Inspection"

.

COOLAN TEMP/S

More than 60

°

C (140

°

F)

Selector lever

P or N position (CVT)
Neutral position (M/T)

ENG SPEED

1,200 - 3,175 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 60

°

C (140

°

F)

Selector lever

D position (CVT)
1st or 2nd position (M/T)

Driving location

Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

PBIA8559J

ECM-158

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0011 IVT CONTROL

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-183, "Exploded View"

.

4.

CHECK CRANKSHAFT POSITION SENSOR

Refer to

ECM-261, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace crankshaft position sensor. Refer to

EM-222, "Exploded View"

.

5.

CHECK CAMSHAFT POSITION SENSOR

Refer to

ECM-266, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace camshaft position sensor. Refer to

EM-196, "Exploded View"

.

6.

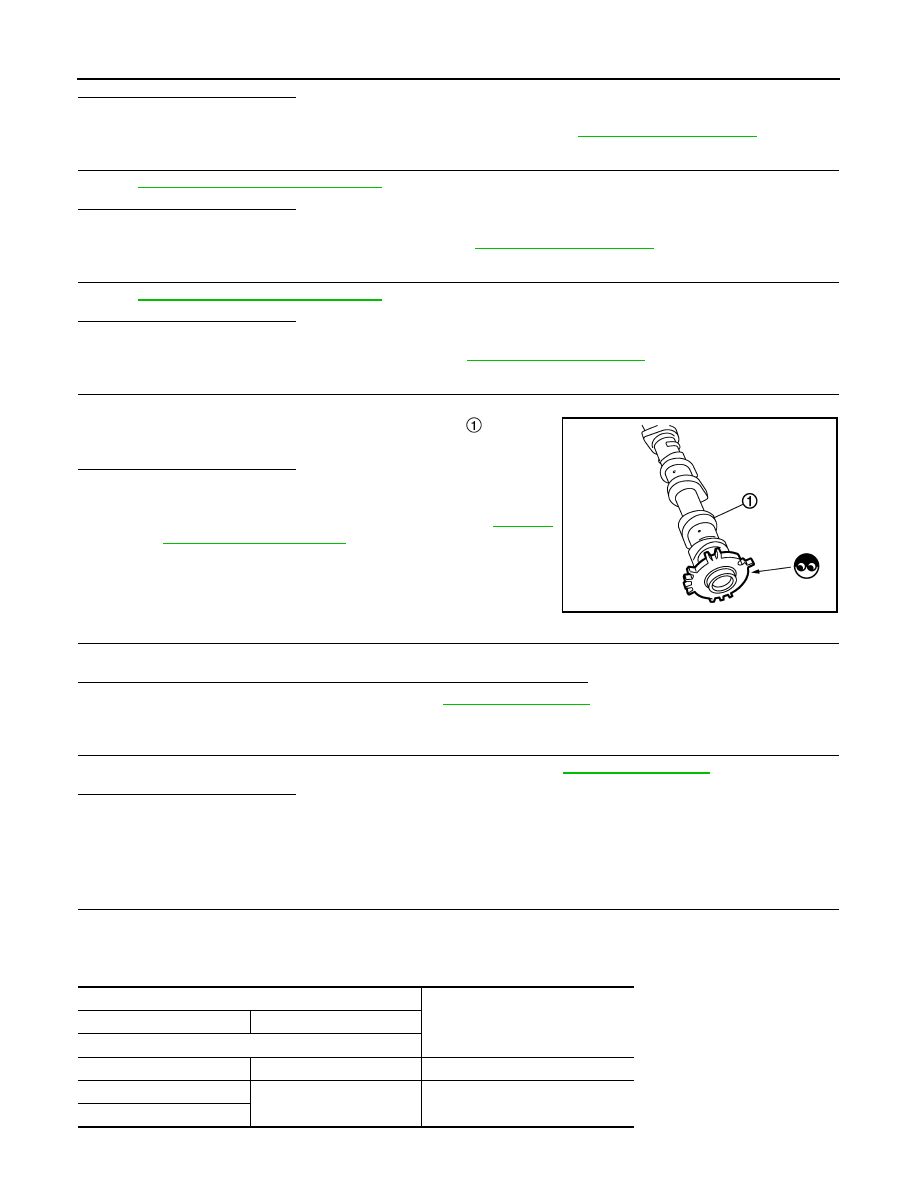

CHECK CAMSHAFT (INTAKE)

Check the following.
• Accumulation of debris to the signal plate of camshaft

 rear end

• Chipping signal plate of camshaft rear end

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft. Refer to

EM-197,

"Removal and Installation"

.

7.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misalignment.

Are there any service records that may cause timing chain misalignment?

YES

>> Check timing chain installation. Refer to

EM-194, "Inspection"

.

NO

>> GO TO 8.

8.

CHECK LUBRICATION CIRCUIT

Perform “Inspection of Camshaft Sprocket (INT) Oil Groove”. Refer to

EM-200, "Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Clean lubrication line.

Component Inspection

INFOID:0000000010702887

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-1

1.

Turn ignition switch OFF.

2.

Disconnect intake valve timing control solenoid valve harness connector.

3.

Check resistance between intake valve timing control solenoid valve terminals as per the following.

PBIA9557J

Intake valve timing control solenoid valve

Resistance

+

−

Terminals

1

2

6.7 - 7.7

Ω

 [at 20

°

C (68

°

F)]

1

Ground

Not exist

2

P0011 IVT CONTROL

ECM-159

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace malfunctioning intake valve timing control solenoid valve. Refer to

EM-183, "Exploded

View"

.

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-2

1.

Remove intake valve timing control solenoid valve.

2.

Provide battery voltage between intake valve timing control sole-
noid valve terminals 1 and 2, and then interrupt it. Check that the
plunger moves as shown in the figure.

CAUTION:

Never apply battery voltage continuously for 5 seconds or
more. Doing so may result in damage to the coil in intake
valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control solenoid
valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning intake valve timing control solenoid valve. Refer to

EM-183, "Exploded

View"

.

JMBIA0097ZZ

ECM-160

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0014 EVT CONTROL

P0014 EVT CONTROL

DTC Description

INFOID:0000000010702888

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Crankshaft position sensor
• Exhaust valve timing control position sensor
• Exhaust valve timing control solenoid valve
• Accumulation of debris to the signal plate of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for exhaust valve timing control

FAIL-SAFE

DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P0014 is displayed with DTC P0078, first perform the trouble diagnosis for DTC P0078.

Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

ECM-173, "DTC Description"

.

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK

NOTE:
• Use component function check to check the overall function of Exhaust valve timing control. During this

check, a 1st trip DTC might not be confirmed.

• If the cause is a temporal jamming of debris, it may be back to normal during the following procedure.
1.

Check service records for any recent repairs that may cause timing chain misalignment. If there are,
check timing chain installation first.

2.

Start engine and warm it up to normal operating temperature.

3.

Set the oscilloscope probe between ECM and ground.

4.

Record the wave pattern of the crankshaft position sensor signal and the exhaust valve timing control
position sensor signal at idling.

5.

Record the wave pattern of the crankshaft position sensor signal and the exhaust valve timing control
position sensor signal when the accelerator pedal is depressed quickly.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0014

EXH/V TIM CONT-B1
“B” Camshaft position - timing over-ad-
vanced or system performance bank 1)

There is a gap between angle of target and phase-control angle degree.

Engine operating condition in fail-safe mode

Fail safe mode

Vehicle behavior

Device fix mode

• This mode fixes the IVT control solenoid valve and the EVT control solenoid valve in the refer-

ence position.

• The intake manifold runner control valve motor is turned OFF (intake manifold runner control

valve opens).

ECM

Signal names

Connector

+

–

Terminal

F15

48

44

Crankshaft position sensor

46

42

Exhaust valve timing control position sensor
