Perform throttle valve closed position learning. Refer to

ECM-128, "Work Procedure"

.

>> GO TO 6.

6.

PERFORM IDLE AIR VOLUME LEARNING

Perform idle air volume learning. Refer to

ECM-129, "Work Procedure"

.

Is Idle Air Volume Learning carried out successfully?

YES

>> GO TO 7.

NO

>> Follow the instruction of IDLE AIR VOLUME LEARNING. Then GO TO 4.

7.

CHECK TARGET IDLE SPEED AGAIN

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed.
For procedure, refer to

ECM-412, "Inspection"

.

For specification, refer to

ECM-417, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the Following.
• Check camshaft position sensor and circuit. Refer to

ECM-263, "DTC Description"

.

• Check exhaust valve timing control position sensor and circuit. Refer to

ECM-267, "DTC Description"

.

• Check crankshaft position sensor and circuit. Refer to

ECM-259, "DTC Description"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace. Then GO TO 4.

9.

CHECK ECM FUNCTION

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this
is a rare case.)

>> GO TO 4.

10.

CHECK IGNITION TIMING

1.

Run engine at idle.

2.

Check ignition timing with a timing light.

For procedure, refer to

ECM-413, "Inspection"

.

For specification, refer to

ECM-417, "Ignition Timing"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> GO TO 11.

11.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1.

Stop the engine.

2.

Perform accelerator pedal released position learning. Refer to

ECM-127, "Work Procedure"

.

>> GO TO 12.

12.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform throttle valve closed position learning. Refer to

ECM-128, "Work Procedure"

.

: Timing indicator

JMBIA0315ZZ

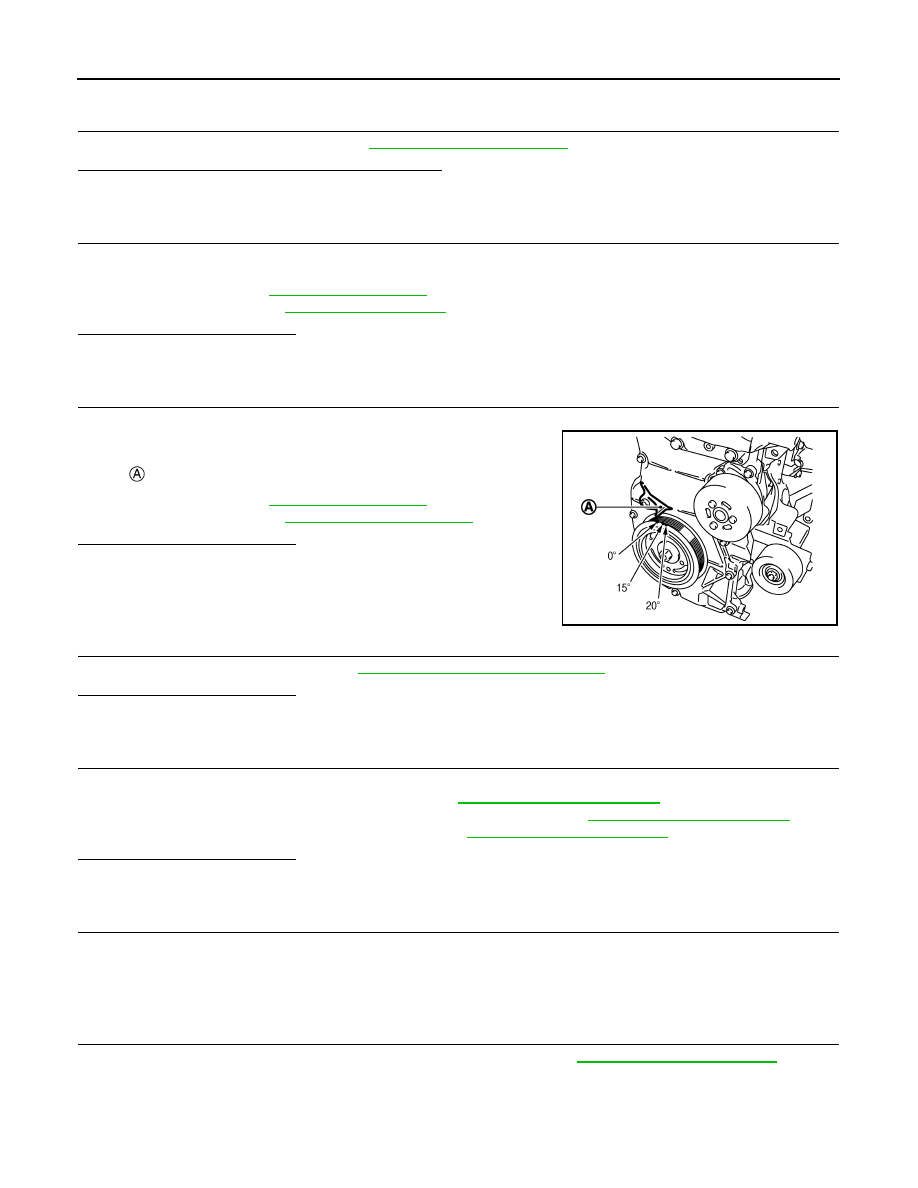

ECM-134

< BASIC INSPECTION >

[MR20DD]

BASIC INSPECTION

>> GO TO 13.

13.

PERFORM IDLE AIR VOLUME LEARNING

Perform idle air volume learning. Refer to

ECM-129, "Work Procedure"

.

Is Idle Air Volume Learning carried out successfully?

YES

>> GO TO 14.

NO

>> Follow the instruction of IDLE AIR VOLUME LEARNING. Then GO TO 4.

14.

CHECK TARGET IDLE SPEED AGAIN

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed.
For procedure, refer to

ECM-412, "Inspection"

.

For specification, refer to

ECM-417, "Idle Speed"

.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> GO TO 17.

15.

CHECK IGNITION TIMING AGAIN

1.

Run engine at idle.

2.

Check ignition timing with a timing light.

For procedure, refer to

ECM-413, "Inspection"

.

For specification, refer to

ECM-417, "Ignition Timing"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> GO TO 16.

16.

CHECK TIMING CHAIN INSTALLATION

Check timing chain installation. Refer to

EM-184, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 17.

NO

>> Repair the timing chain installation. Then GO TO 4.

17.

DETECT MALFUNCTIONING PART

Check the Following.
• Check camshaft position sensor and circuit. Refer to

ECM-263, "DTC Description"

.

• Check exhaust valve timing control position sensor and circuit. Refer to

ECM-267, "DTC Description"

.

• Check crankshaft position sensor and circuit. Refer to

ECM-259, "DTC Description"

.

Is the inspection result normal?

YES

>> GO TO 18.

NO

>> Repair or replace. Then GO TO 4.

18.

CHECK ECM FUNCTION

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this
is a rare case.)

>> GO TO 4.

19.

INSPECTION END

If ECM is replaced during this BASIC INSPECTION procedure, perform

ECM-124, "Work Procedure"

.

>> INSPECTION END

: Timing indicator

JMBIA0315ZZ

FUEL PRESSURE CHECK

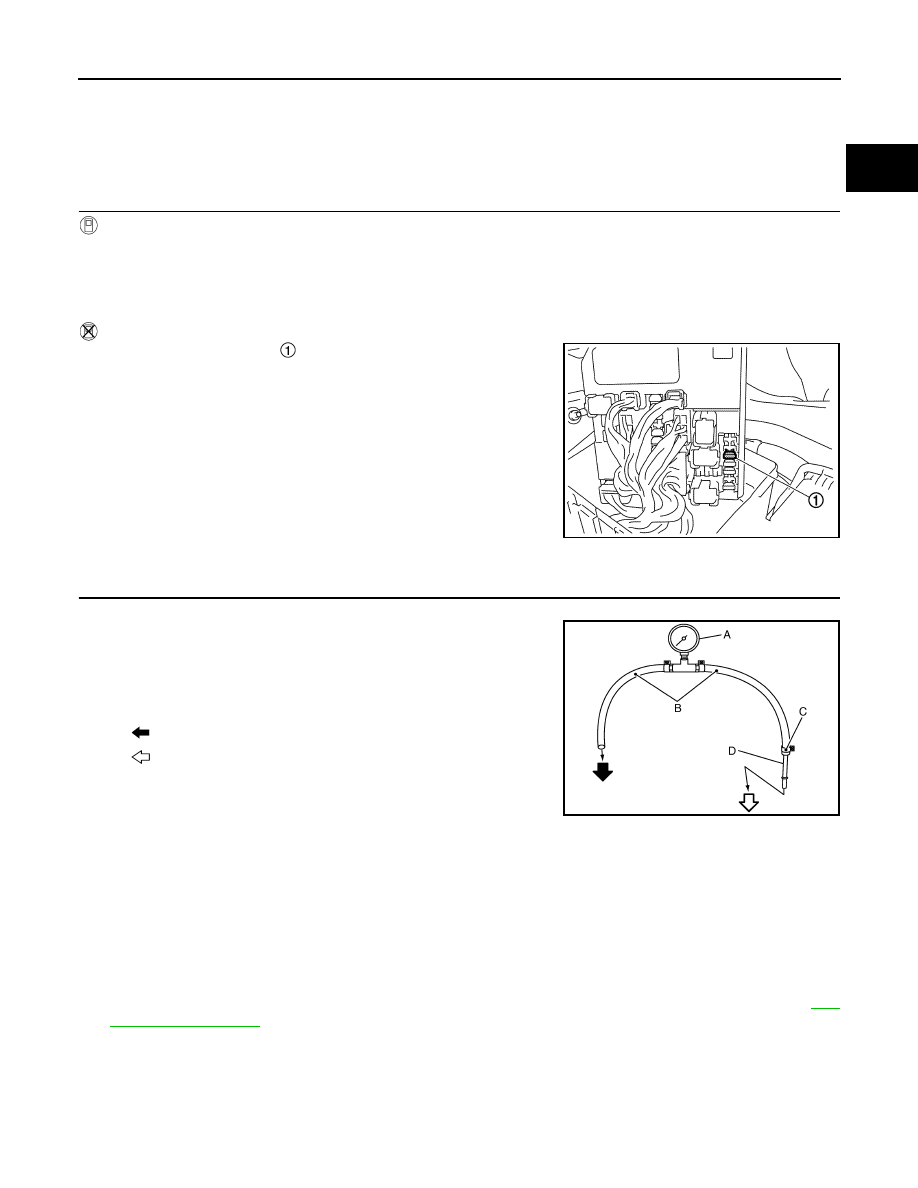

ECM-135

< BASIC INSPECTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

FUEL PRESSURE CHECK

Work Procedure

INFOID:0000000010702870

FUEL PRESSURE RELEASE

1.

FUEL PRESSURE RELEASE

With CONSULT

1.

Turn ignition switch ON.

2.

Perform “ENGINE” in “WORK SUPPORT” mode with CONSULT.

3.

Start the engine.

4.

After engine stalls, crank it two or three times to release all fuel pressure.

5.

Turn ignition switch OFF.

Without CONSULT

1.

Remove fuel pump fuse

 located in IPDM E/R.

2.

Start the engine.

3.

After engine stalls, crank it two or three times to release all fuel
pressure.

4.

Turn ignition switch OFF.

5.

Reinstall fuel pump fuse after servicing fuel system.

>> INSPECTION END

FUEL PRESSURE CHECK

1.

FUEL PRESSURE CHECK

1.

Release fuel pressure.

2.

Connect fuel hose for fuel pressure check (B) to fuel pressure
gauge (A) (SST: ST19590000). Then, connect fuel hose for fuel
pressure check to fuel tube adapter (D) (SST: KV10120000) with
hose clamp (C).

CAUTION:

• Use suitable fuel hose for fuel pressure check (genuine

NISSAN fuel hose)

• To avoid unnecessary force or tension to hose, use moderately long fuel hose for fuel pressure

check.

• Wipe off oil or dirt from hose insertion part using cloth moistened with gasoline.
• Apply proper amount of gasoline on the hose insertion part.
• Use NISSAN genuine hose clamp (part number: 16439 N4710 or 16439 N4710)
• Install hose clamp to the hose end position within 1- 2 mm (0.04 - 0.08 in) and tighten hose clamp

to the specified torque.

3.

Disconnect quick connector and disconnect fuel feed hose from high pressure fuel pump. Refer to

EM-

164, "Exploded View"

.

CAUTION:

• Make sure to release fuel pressure before removal of fuel line.
• Do the following procedure in the place where ventilation is good without the combustible.
NOTE:
• Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pres-

sure cannot be completely released because this models do not have fuel return system.

JSBIA0597ZZ

: To high pressure fuel pump

: To quick connector

Tightening torque: 1 - 1.5 N·m (0.1 - 0.15 kg

−

m)

PBIB2982E

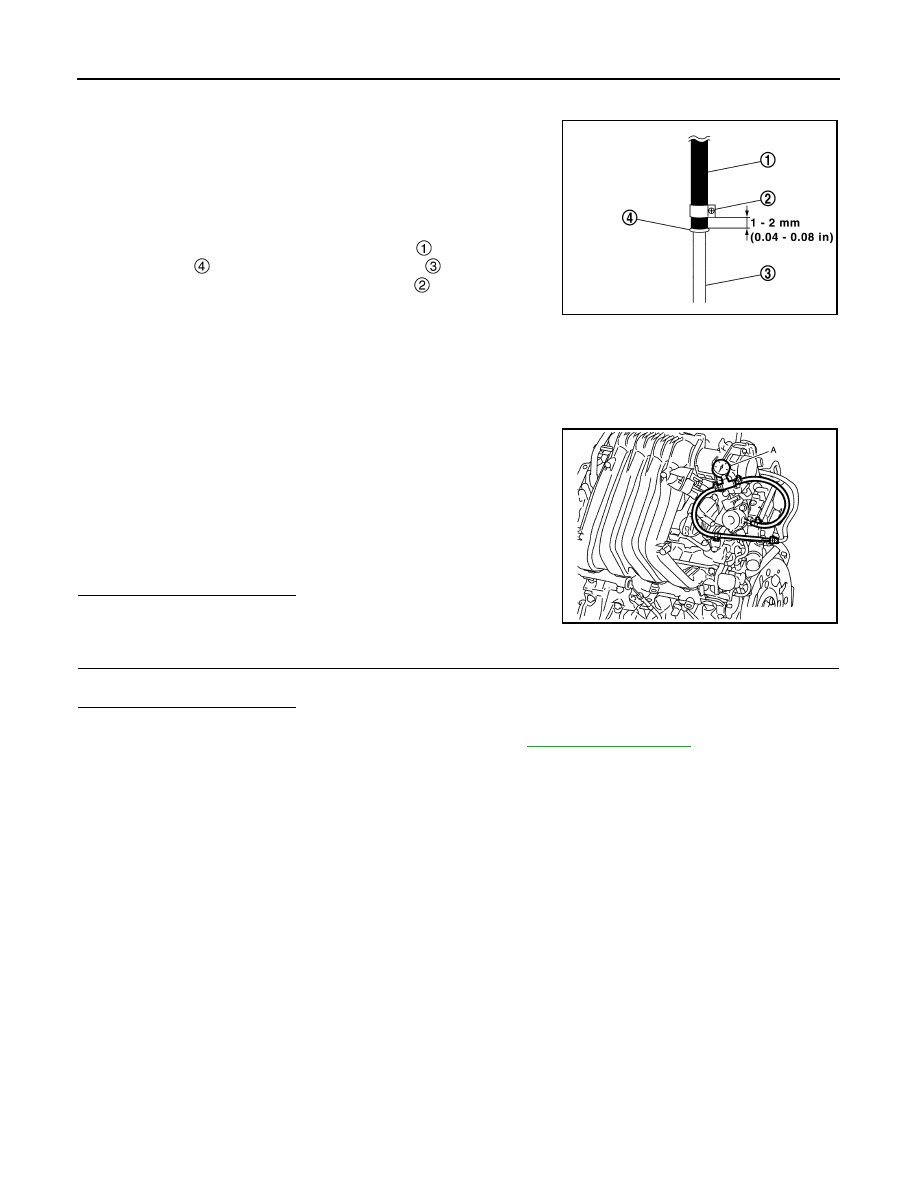

ECM-136

< BASIC INSPECTION >

[MR20DD]

FUEL PRESSURE CHECK

• Use fuel tube adapter (SST: KV10120000) and fuel pressure gauge (SST: ST19590000) to check fuel

pressure.

4.

Install fuel hose for fuel pressure check to high pressure fuel
pump with hose clamp.

CAUTION:

• Wipe off oil or dirt from hose insertion part using cloth

moistened with gasoline.

• Apply proper amount of gasoline on the hose insertion

part.

• Insert fuel hose for fuel pressure check

 until it touches-

the spool

 on high pressure fuel pump

.

• Use NISSAN genuine hose clamp

 (part number:

16439 N4710 or 16439 40U00).

• Install hose clamp to the hose end position within 1- 2 mm

(0.04 - 0.08 in) and tighten hose clamp to the specified torque.

• After connecting fuel hose for fuel pressure check, pull the hose with a force of approximately

100 N (approximately 10 kg, 22 lb) to confirm fuel sub tube does not come off.

5.

Install fuel pressure check adapter to quick connector of fuel
feed hose.

6.

Turn ignition switch ON and check for fuel leakage.

7.

Start engine and check for fuel leakage.

8.

Read the indication of fuel pressure gauge (A).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK FUEL HOSE

Check fuel hose for clogging.
Is the inspection result normal?

YES

>> Repair or replace the malfunctioning part.

NO

>> Replace fuel filter and fuel pump assembly. Refer to

FL-18, "Exploded View"

.

Tightening torque: 1 - 1.5 N·m (0.1 - 0.15 kg

−

m)

At idling

: Approximately 500 kPa (5.0 bar,

5.1 kg/cm

2

, 73psi)

JPBIA4923GB

JSBIA1305ZZ
