Nissan Qashqai J11. Manual - part 267





SYSTEM

ECM-45

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

The camshaft position sensor mounted at the rear of the cylinder head detects a cam position, by using the-
groove on the plate located at the rear of the exhaust camshaft.

Feedback Control

The camshaft position sensor feeds back an actual cam position signal to ECM. Based on the signal, ECM
controls the exhaust valve timing control solenoid valve to satisfy the optimum target valve opening/closing
timing according to a driving condition.

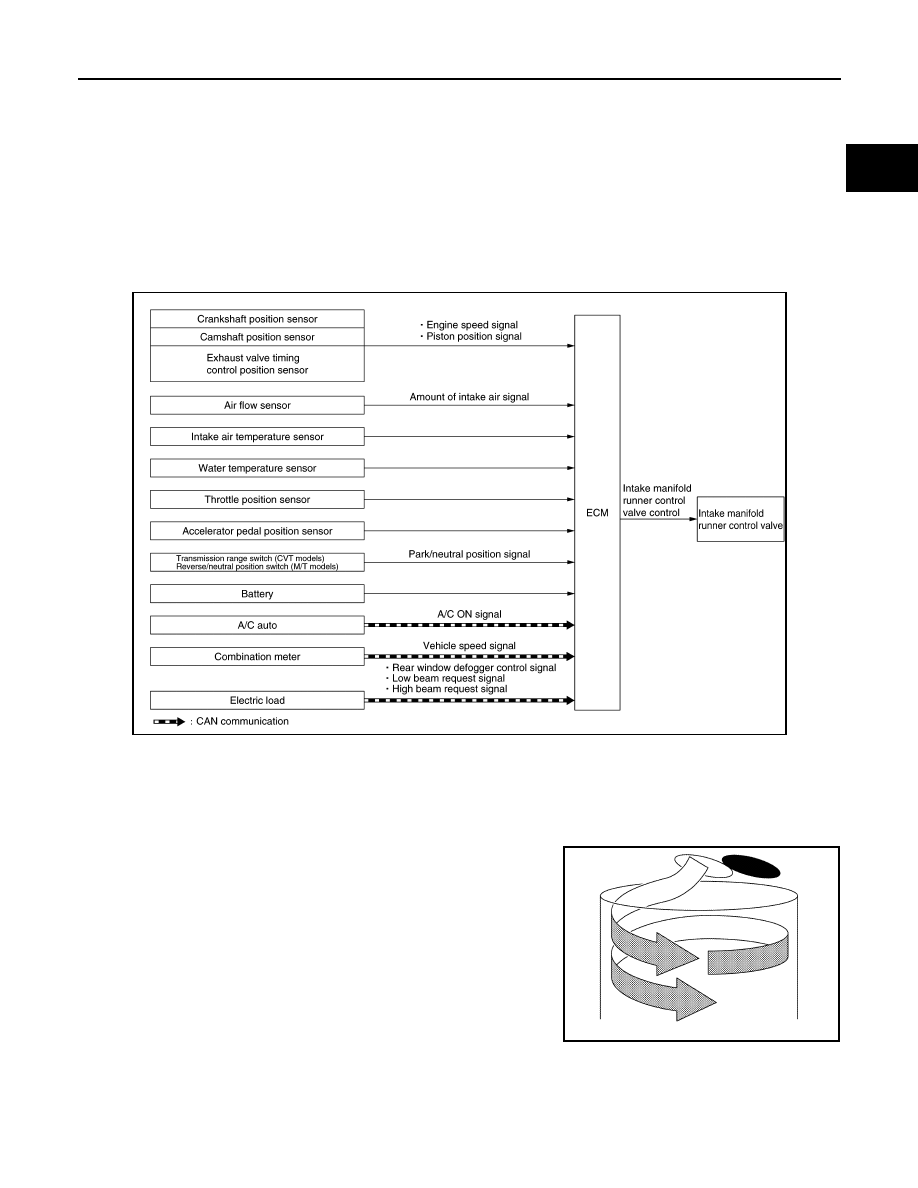

INTAKE MANIFOLD RUNNER CONTROL

INTAKE MANIFOLD RUNNER CONTROL : System Description

INFOID:0000000010702825

System Diagram

SYSTEM DESCRIPTION

The intake manifold runner control valve installed at intake manifold generates swirl flow (revolving flow) in
combustion chamber, and by that effect air-fuel mixture is homogenized so that stabilizes combustion. The
intake manifold runner control valve is driven by DC motor and controlled by ECM.

IDLING, LOW SPEED·SMALL LOAD RANGE

With intake manifold runner control valve closed the flowing field of
swirl flow (revolving flow) is generated by increased flow speed of
gas and improves combustion so that enables stable combustion.

MIDDLE·HIGH SPEED RANGE

JSBIA5013GB

JSBIA1215JP

ECM-46

< SYSTEM DESCRIPTION >

[MR20DD]

SYSTEM

• With intake manifold runner control valve opened the flowing field

mainly consist of tumble (vertical revolving flow) by atomizer, port
shape and shallow piston head is generated.

• Which makes more swirl remained at the latter half of compression

process so that improves combustion and enables stable combus-
tion.

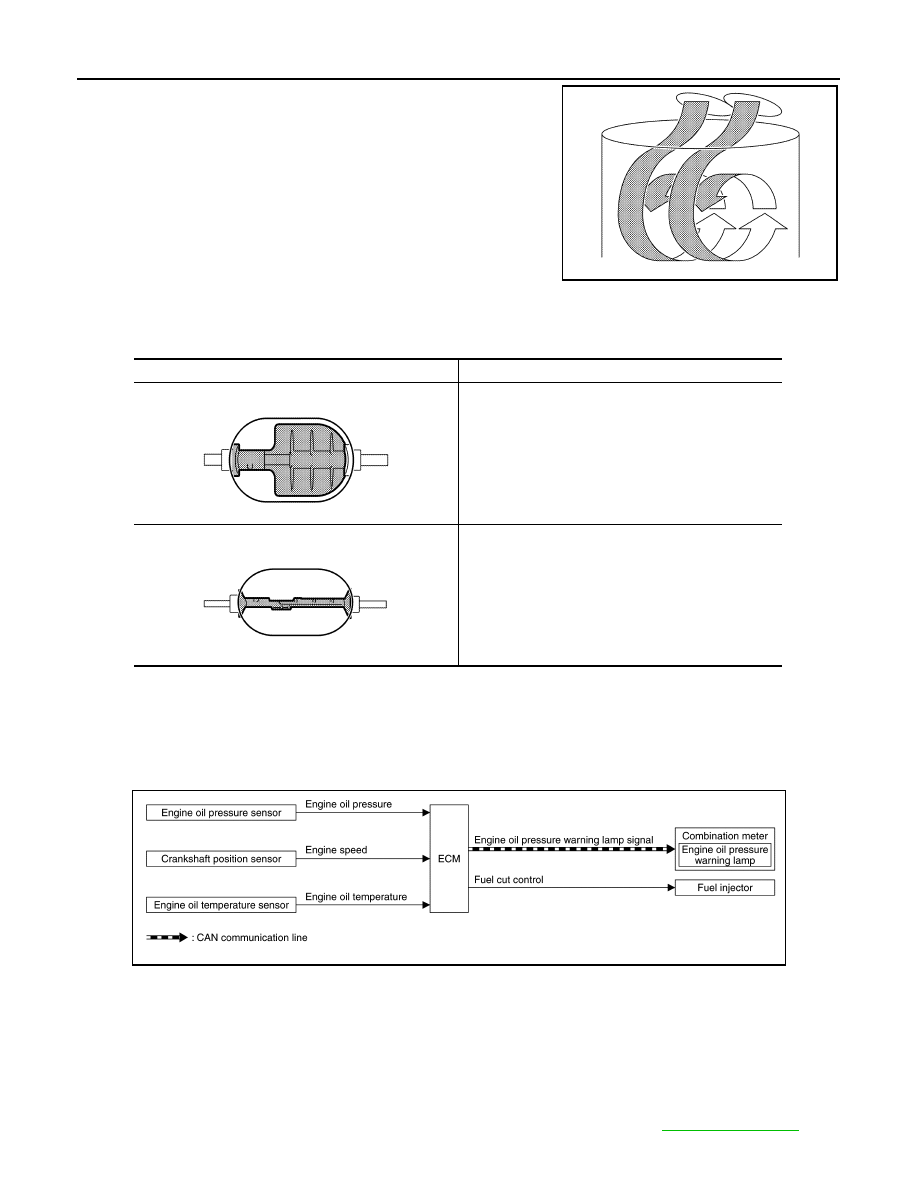

OPERATION OF INTAKE MANIFOLD RUNNER CONTROL VALVE

When the engine is idling or running at slow speed the vales are closed and swirl flow is generated. By closing
valves the flowing speed of gas is increased and it stabilizes combustion also improves fuel efficiency.

ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE

ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System De-
scription

INFOID:0000000010702826

System Diagram

SYSTEM DESCRIPTION

• The engine protection control at low engine oil pressure warns the driver of a decrease in engine oil pres-

sure by the engine oil pressure warning lamp before the engine becomes damaged.

• When detecting a decrease in engine oil pressure at an engine speed less than 1,000 rpm, ECM transmits

an engine oil pressure warning lamp signal to the combination meter.The combination meter turns ON the
engine oil pressure warning lamp, according to the signal.

• When detecting a decrease in engine oil pressure at an engine speed 1,000 rpm or more, ECM transmits an

engine oil pressure warning lamp signal to the combination meter. When detecting a decrease in engine oil
pressure, ECM cuts fuel if the engine speed exceeds the specified value. Refer to

ECM-87, "Fail-safe"

.

JSBIA1214JP

Valve position

operating condition

Valve closed

Idling, low ·small load range

Valve opened

Other than above

JSBIA1212JP

JSBIA1213JP

JSBIA4201GB

SYSTEM

ECM-47

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

*: When detecting a normal engine oil pressure, ECM turns OFF the engine oil pressure warning lamp.

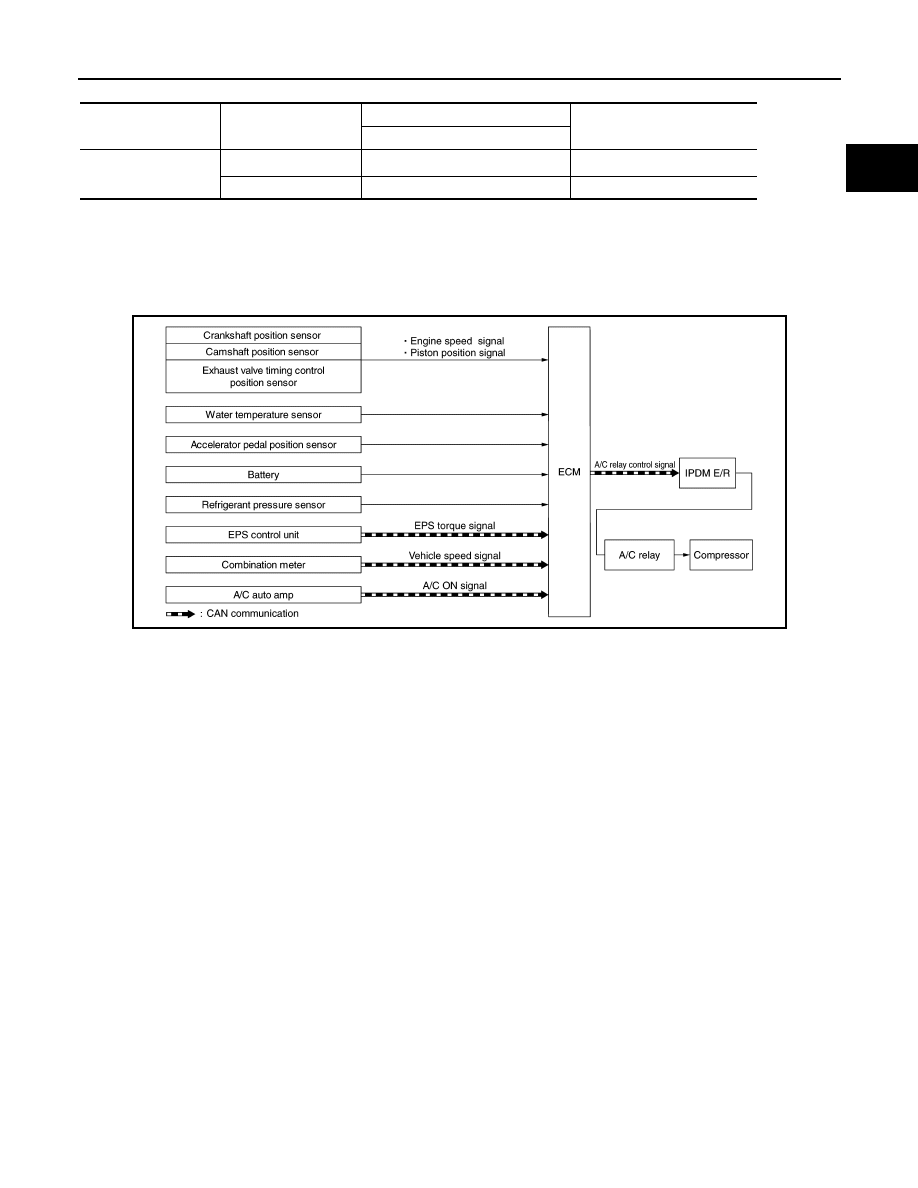

AIR CONDITIONING CUT CONTROL

AIR CONDITIONING CUT CONTROL : System Description

INFOID:0000000010702827

System Diagram

SYSTEM DESCRIPTION

This system improves engine operation when the air conditioner is used.
Under the following conditions, the air compressor is turned off.
• When the accelerator pedal is fully depressed (selector lever is in R position).
• When cranking the engine.
• At high engine speeds.
• When the engine coolant temperature becomes excessively high.
• When operating power steering during low engine speed or low vehicle speed.
• When engine speed is excessively low.
• When refrigerant pressure is excessively low or high.

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Decrease in engine oil

pressure

Engine speed

Combination meter

Fuel cut

Engine oil pressure warning lamp

Detection

Less than 1,000 rpm

ON

*

NO

1,000 rpm or more

ON

YES

JSBIA5011GB

ECM-48

< SYSTEM DESCRIPTION >

[MR20DD]

SYSTEM

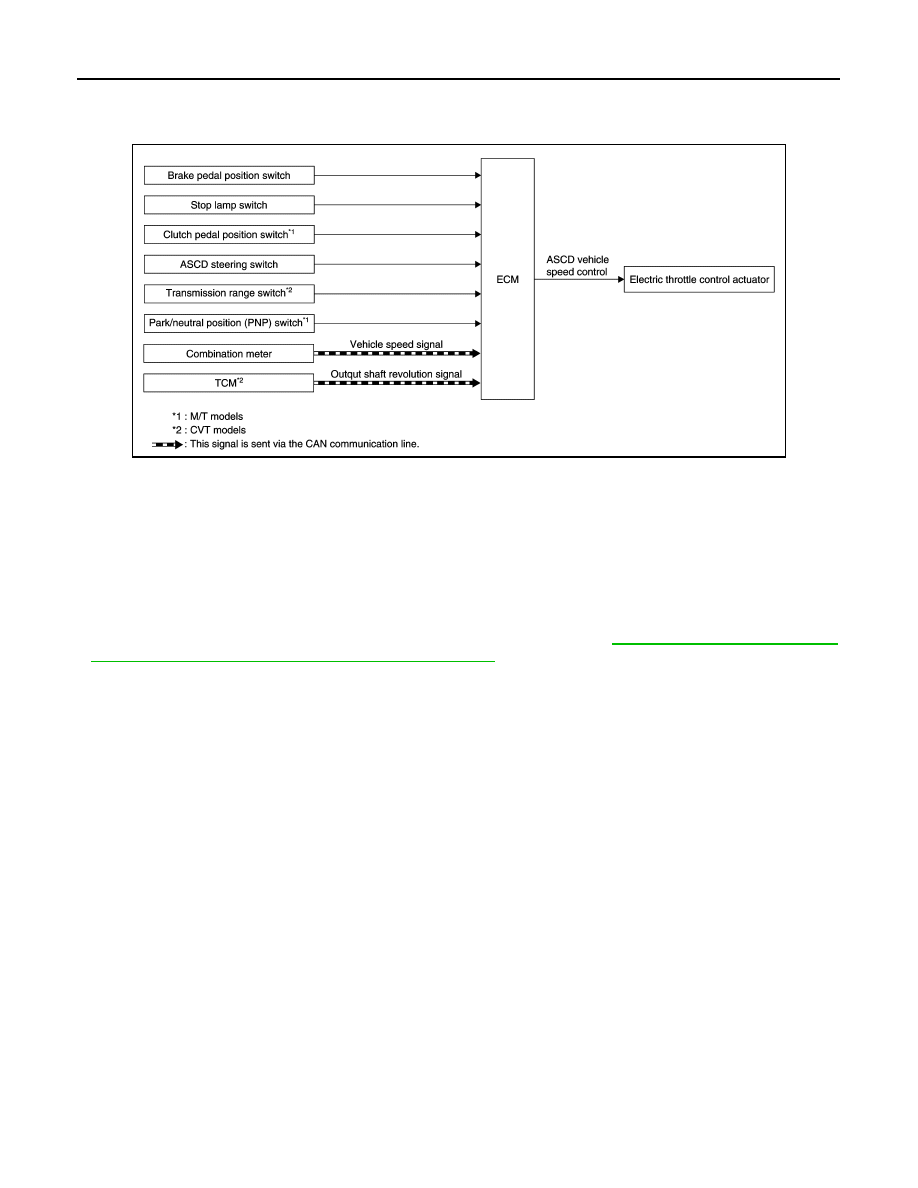

AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description

INFOID:0000000010702828

System Diagram

BASIC ASCD SYSTEM

CAUTION:

Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
• Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed

without depressing accelerator pedal by driver

s setting of vehicle speed

*

.

*: Driver can set the vehicle speed between approximately 40 km/h (25 MPH) and 186 km/h (115 MPH) (for
Europe M/T models) or 177 km/h (109 MPH) (for Europe CVT models) or 144 km/h (89 MPH) (except for
Europe).

• ECM transmits a ASCD operation status signal to the combination meter and operation status of ASCD is

indicated on the information display in the combination meter. Refer to

ECM-54, "AUTOMATIC SPEED

CONTROL DEVICE (ASCD) : Switch Name and Function"

.

• If any malfunction occurs in ASCD system, it automatically deactivates control.

SET OPERATION

Press MAIN switch. (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 186 km/h (115
MPH) (for Europe M/T models) or 177 km/h (109 MPH) (for Europe CVT models) or 144 km/h (89 MPH)
(except for Europe), press SET/

 switch. (Then SET indicator in combination meter illuminates.)

ACCELERATE OPERATION

If the RES/+ switch is pressed during cruise control driving, increase the vehicle speed until the switch is
released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.

CANCEL OPERATION

• When any of following conditions exist, cruise operation will be canceled.
- MAIN switch is pressed (Set speed will be cleared)
- CANCEL switch is pressed
- More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)
- Clutch pedal is depressed or gear position is changed to neutral position. (M/T models)
- Brake pedal is depressed
- Selector lever is in N, P or R range (CVT models)
- Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed
- VDC system is operated
- Actual vehicle speed decreased to approximately 30 km/h (18 MPH) or less
• When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform

the driver by blinking ASCD indicator.

- Engine coolant temperature is excessively higher than the normal operating temperature, ASCD indicator

may blink slowly.

JPBIA4713GB
