Nissan Qashqai J11. Manual - part 244





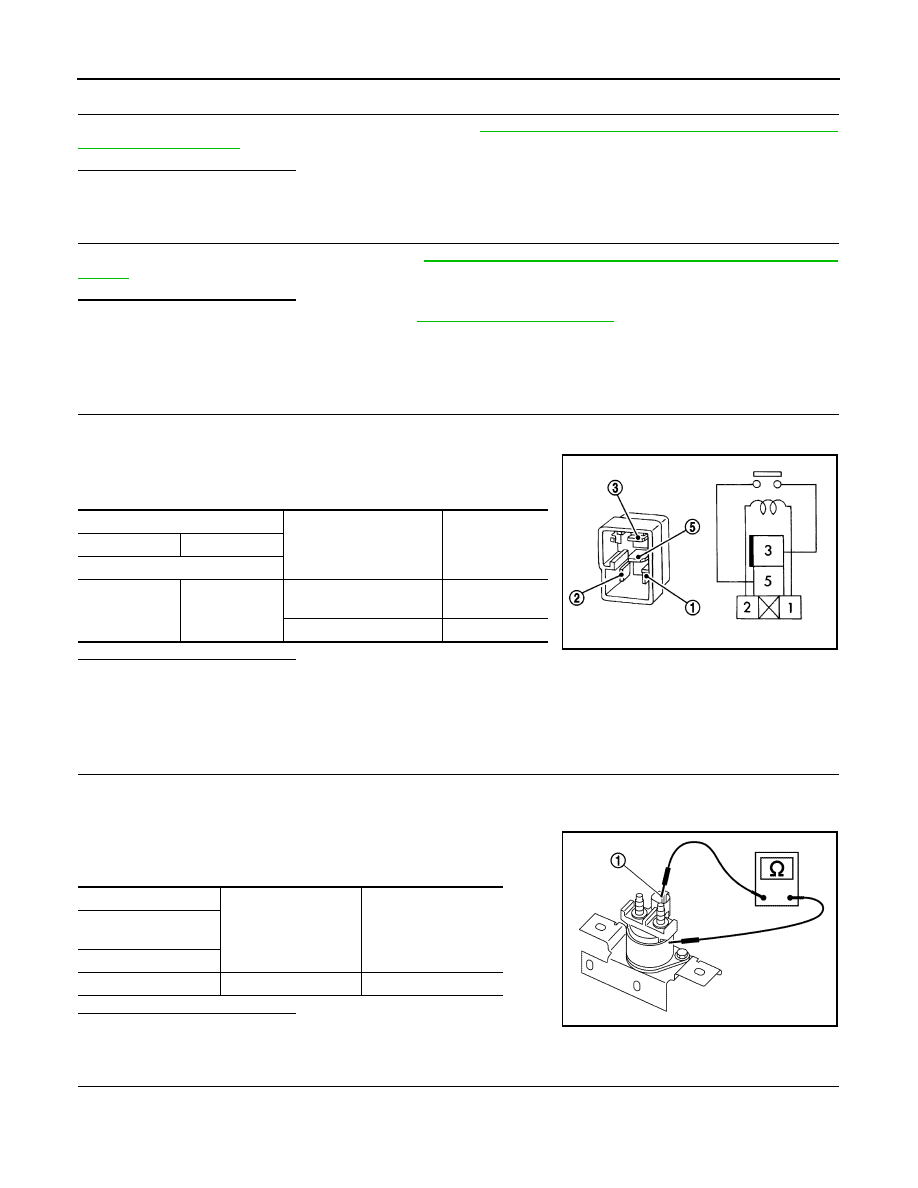

ECH-274

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

P1655 ENGINE RESTART BYPASS RELAY

5.

CHECK ENGINE RESTART BYPASS CONTROL RELAY

Check the engine restart bypass control relay. Refer to

ECH-274, "Component Inspection (Engine Restart

Bypass Control Relay)"

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace error-detected parts.

6.

CHECK ENGINE RESTART BYPASS RELAY

Check the engine restart bypass relay. Refer to

ECH-274, "Component Inspection (Engine Restart Bypass

Relay)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace error-detected parts.

Component Inspection (Engine Restart Bypass Control Relay)

INFOID:0000000010500734

1.

CHECK ENGINE RESTART BYPASS CONTROL RELAY

1.

Turn ignition switch OFF.

2.

Remove engine restart bypass control relay.

3.

Check continuity between engine restart bypass control relay
terminals as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine restart bypass control relay.

Component Inspection (Engine Restart Bypass Relay)

INFOID:0000000010500735

1.

CHECK ENGINE RESTART BYPASS RELAY-1

1.

Turn ignition switch OFF.

2.

Disconnect battery cable from negative terminal.

3.

Remove engine restart bypass relay.

4.

Check the continuity between engine restart bypass relay termi-
nal and engine restart bypass relay body.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace engine restart bypass relay.

2.

CHECK ENGINE RESTART BYPASS RELAY-2

Engine restart bypass control relay

Condition

Continuity

+

Terminal

3

5

12 V direct current supply
between terminals 1 and 2

Existed

No current supply

Not existed

JSBIA0671ZZ

+

Continuity

Engine restart bypass

relay

Terminal

1

Body

Existed

JSBIA1735ZZ

P1655 ENGINE RESTART BYPASS RELAY

ECH-275

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

Check the resistance between engine restart bypass relay terminals
as per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine restart bypass relay.

Engine restart bypass relay

Condition

Resistance

(Approx.)

+

Terminal

2

3

12 V direct current sup-
ply between terminal 1
and body

10 m

No current supply

JSBIA1736ZZ

ECH-276

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

P1656 ENGINE RESTART BYPASS RELAY

P1656 ENGINE RESTART BYPASS RELAY

DTC Logic

INFOID:0000000010796391

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If the other DTC Confirmation Procedure is performed right before this procedure, the ignition switch must be
turned OFF and wait for 10 seconds or more to start this procedure.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1.

Start the engine and warm it up to normal operating temperature.

2.

Press start/stop OFF switch and check that the switch indicator is ON.

3.

Select “AUTO STOP START” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

4.

Touch “START” and operate stop/start system. (engine stop.)

5.

Touch “CANCEL” and restart the engine.

6.

Repeat Step 3 and Step 4 twice.

Without CONSULT

1.

Activate the stop/start system. Stop the engine. Restart the engine. Refer to

ECH-33, "STOP/START

SYSTEM : System Description"

.

2.

Repeat Step 1 four times.

CAUTION:

Always drive vehicle at a safe speed.

Is DTC detected?

YES

>> Proceed to

ECH-276, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010500737

1.

CHECK FUSE

1.

Turn ignition switch OFF.

2.

Check that there is no blowout in the following fuse.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the fuse after repairing the applicable circuit.

DTC

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P1656

ENGINE RESTART BY-
PASS RELAY
(Engine restart bypass relay
remains closed)
• 1.DEF: INVALID

SOURCE COMPUTER
MULTIPLEX SIGNALS

• 2.DEF: INVALID

SOURCE COMPUTER
MULTIPLEX SIGNALS

• 3.DEF: IMPLAUSIBLE

SIGNAL

At an engine restart by stop/start system,
the voltage right after the starter motor ac-
tivation is less than Approx. 8 V.

• Harness and connectors

(Engine restart bypass relay circuit is open
or shorted.)
(Engine restart bypass control relay circuit
is open or shorted.)

• Engine restart bypass relay
• Engine restart bypass control relay

Location

Fuse No.

Capacity

Fuse block (J/B)

7

20A

P1656 ENGINE RESTART BYPASS RELAY

ECH-277

< DTC/CIRCUIT DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

2.

CHECK ENGINE RESTART BYPASS CONTROL RELAY POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Remove engine restart bypass control relay.

3.

Turn ignition switch ON.

4.

Check the voltage between engine restart bypass control relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Perform the trouble diagnosis for power supply circuit.

3.

CHECK ENGINE RESTART BYPASS CONTROL RELAY CIRCUIT-1

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between engine restart bypass control relay harness connector and ECM harness
connector.

4.

Also check harness for short to ground and to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK ENGINE RESTART BYPASS CONTROL RELAY CIRCUIT-2

1.

Disconnect engine restart bypass relay harness connector.

2.

Check the continuity between engine restart bypass control relay harness connector and engine restart
bypass relay harness connector.

3.

Also check harness for short to ground and to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK ENGINE RESTART BYPASS CONTROL RELAY

Check the engine restart bypass control relay. Refer to

ECH-274, "Component Inspection (Engine Restart

Bypass Control Relay)"

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace error-detected parts.

+

Voltage

Engine restart bypass control relay

Connector

Terminal

F98

1

Ground

Battery voltage

5

+

Continuity

Engine restart bypass con-

trol relay

ECM

Connector

Terminal

Connector

Terminal

F98

2

F17

83

Existed

+

Continuity

Engine restart bypass con-

trol relay

Engine restart bypass relay

Connector

Terminal

Connector

Terminal

E98

3

F146

1

Existed
