CHASSIS MAINTENANCE

MA-159

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

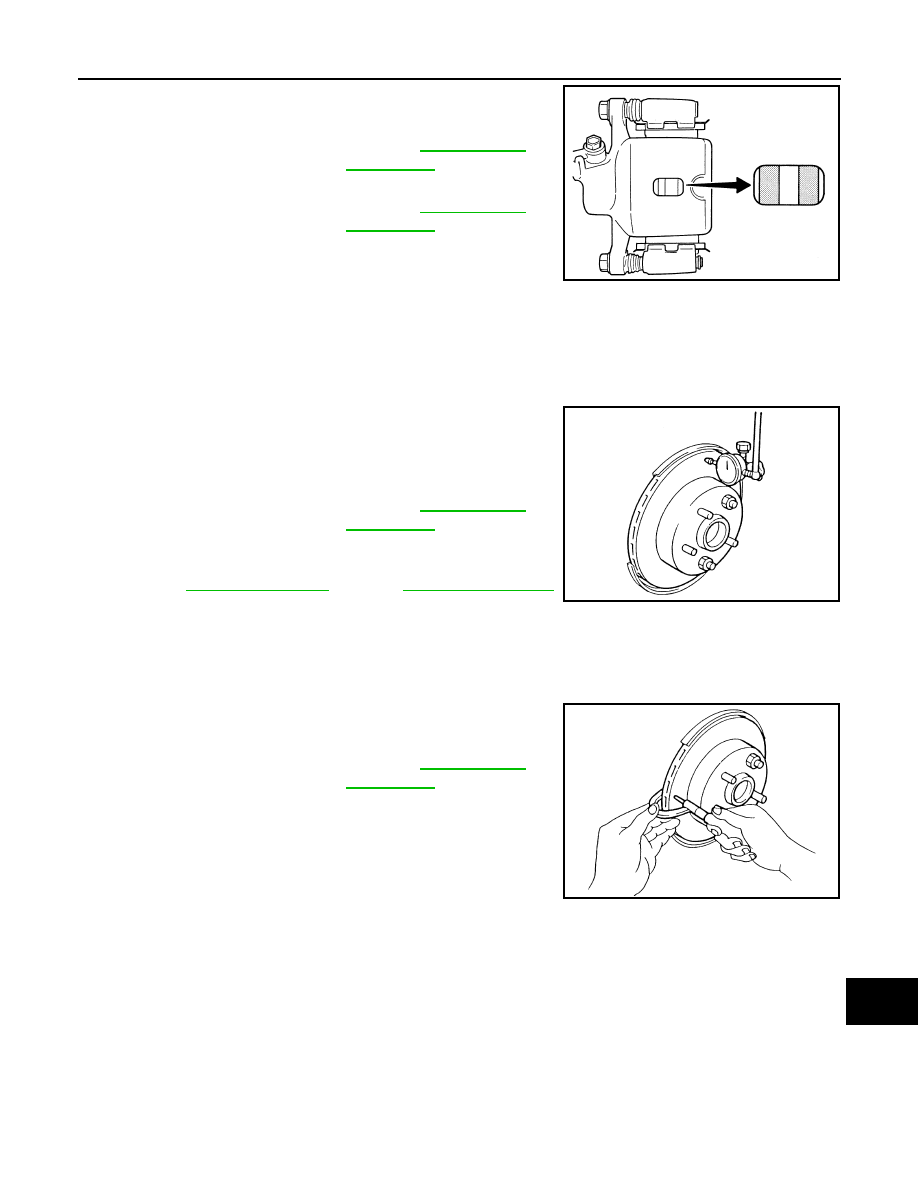

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

FRONT DISC BRAKE (LHD) : Inspection

INFOID:0000000011497396

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside the disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

FAX-8, "Inspection"

 (2WD),

FAX-47, "Inspection"

(4WD).

3.

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

4.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

REAR DISC BRAKE (LHD)

REAR DISC BRAKE (LHD) : Inspection

INFOID:0000000011497397

PAD WEAR

Standard thickness

: Refer to

MA-158, "FRONT

DISC BRAKE (LHD) : In-
spection"

.

Wear limit thickness

: Refer to

MA-158, "FRONT

DISC BRAKE (LHD) : In-
spection"

.

BRA0010D

Runout limit

: Refer to

MA-159, "FRONT

DISC BRAKE (LHD) : In-
spection"

.

SBR019B

Wear limit thickness

: Refer to

MA-159, "FRONT

DISC BRAKE (LHD) : In-
spection"

.

SBR020B

MA-160

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

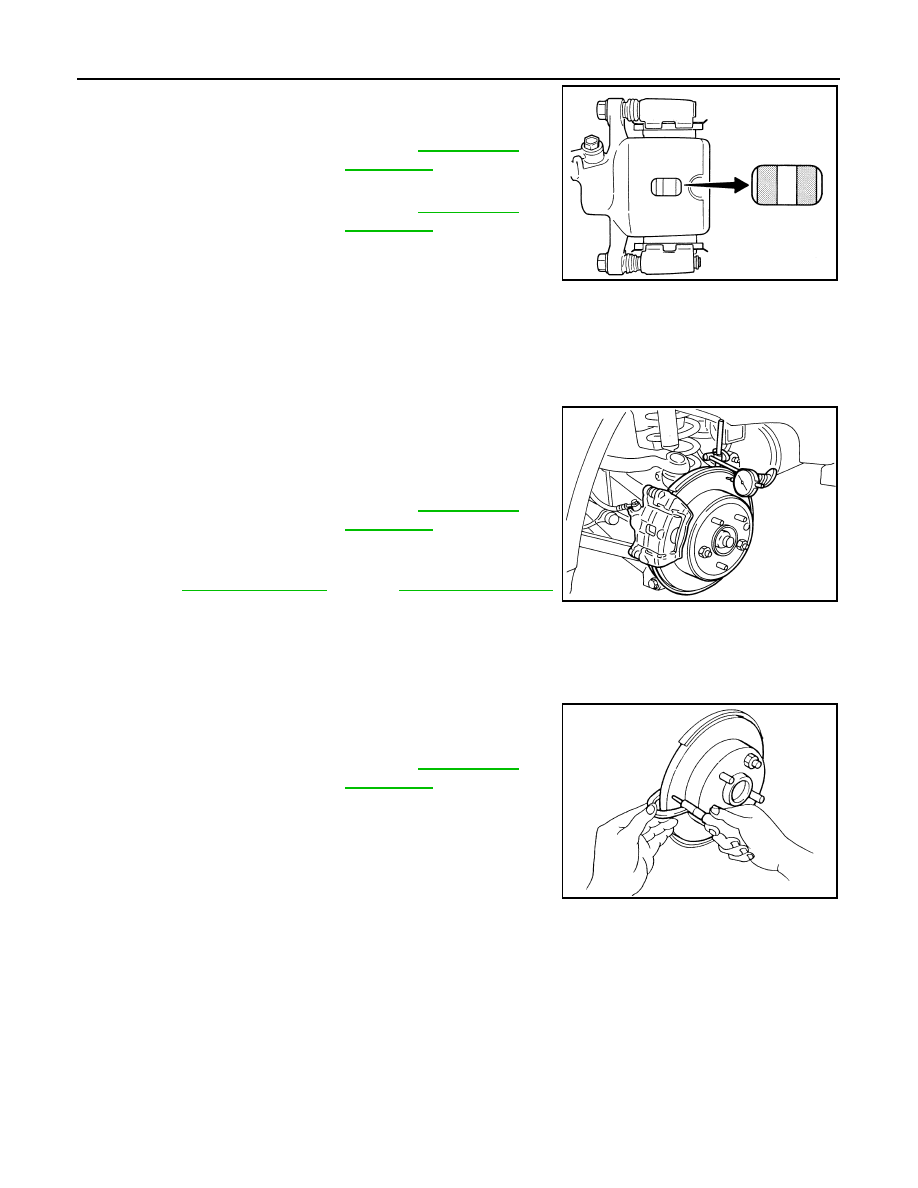

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

REAR DISC BRAKE (LHD) : Inspection

INFOID:0000000011497398

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

RAX-3, "Inspection"

 (2WD),

RAX-10, "Inspection"

(4WD).

3.

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

4.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

FRONT DISC BRAKE (RHD)

FRONT DISC BRAKE (RHD) : Inspection

INFOID:0000000011497399

PAD WEAR

Standard thickness

: Refer to

BR-47, "Rear

Disc Brake"

.

Wear limit thickness

: Refer to

BR-47, "Rear

Disc Brake"

.

BRA0010D

Runout limit

: Refer to

BR-47, "Rear

Disc Brake"

.

BRA0697D

Wear limit thickness

: Refer to

BR-47, "Rear

Disc Brake"

.

SFIA2284E

CHASSIS MAINTENANCE

MA-161

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

FRONT DISC BRAKE (RHD) : Inspection

INFOID:0000000011497403

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside the disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

FAX-8, "Inspection"

 (2WD),

FAX-47, "Inspection"

(4WD).

3.

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

4.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

REAR DISC BRAKE (RHD)

REAR DISC BRAKE (RHD) : Inspection

INFOID:0000000011497406

PAD WEAR

Standard thickness

: Refer to

BR-90, "Front

Disc Brake"

.

Wear limit thickness

: Refer to

BR-90, "Front

Disc Brake"

.

BRA0010D

Runout limit

: Refer to

BR-90, "Front

Disc Brake"

.

SBR019B

Wear limit thickness

: Refer to

BR-90, "Front

Disc Brake"

.

SBR020B

MA-162

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

REAR DISC BRAKE (RHD) : Inspection

INFOID:0000000011497407

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

RAX-3, "Inspection"

 (2WD),

RAX-10, "Inspection"

(4WD).

3.

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

4.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000010355434

STEERING GEAR

Standard thickness

: Refer to

BR-90, "Rear

Disc Brake"

.

Wear limit thickness

: Refer to

BR-90, "Rear

Disc Brake"

.

BRA0010D

Runout limit

: Refer to

BR-90, "Rear

Disc Brake"

.

BRA0697D

Wear limit thickness

: Refer to

BR-90, "Rear

Disc Brake"

.

SFIA2284E
