ENGINE MAINTENANCE (MR16DDT)

MA-91

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Refer to

GI-4, "Components"

 for symbol marks in the figure.

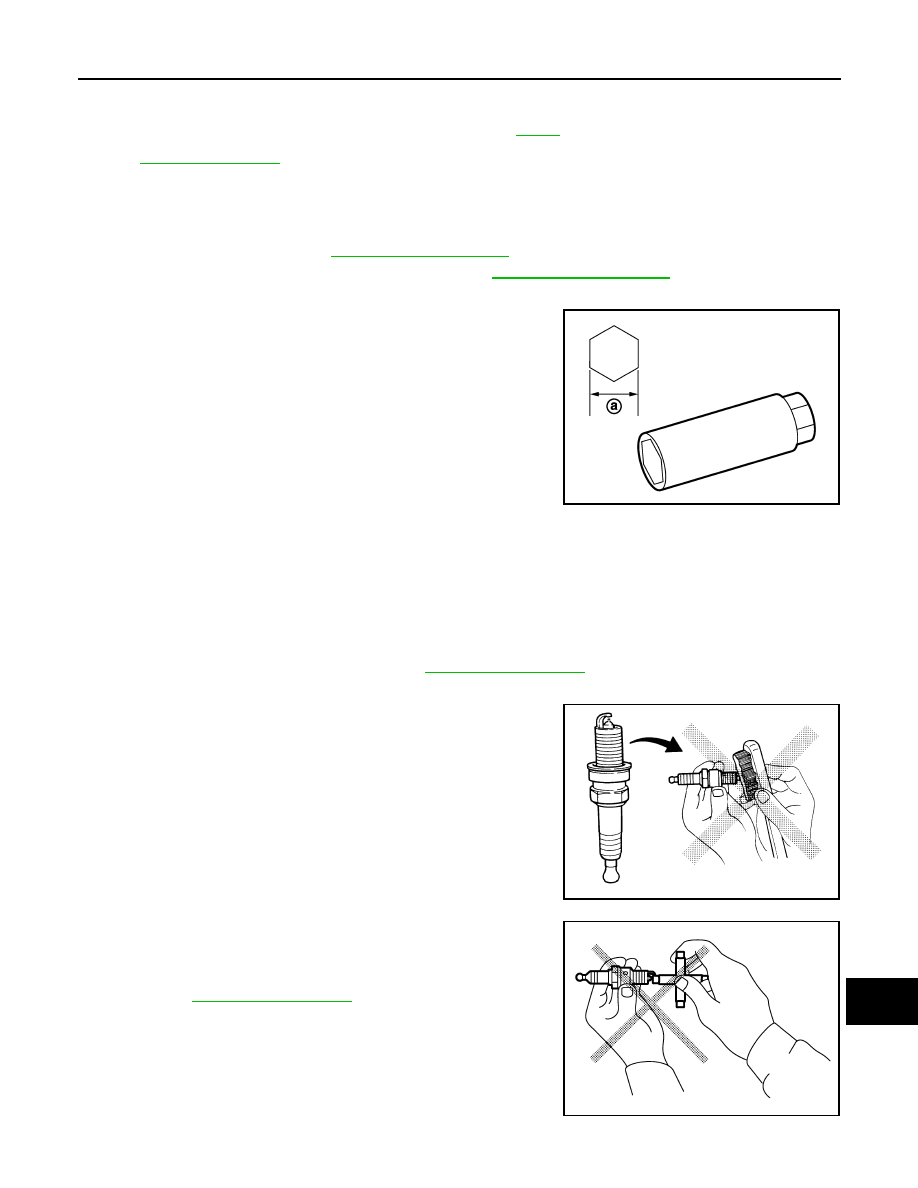

SPARK PLUG : Removal and Installation

INFOID:0000000011732676

REMOVAL

1.

Remove engine cover. Refer to

EM-148, "Exploded View"

.

2.

Remove air inlet tube 1 and hose 1 assembly. Refer to

EM-155, "Exploded View"

.

3.

Remove ignition coil.

4.

Remove spark plug with a spark plug wrench (commercial ser-
vice tool).

CAUTION:

Never drop or shock spark plug.

INSTALLATION

Install in the reverse order of removal.

SPARK PLUG : Inspection

INFOID:0000000011732677

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

• Never drop or shock spark plug.
• Never use a wire brush for cleaning.
• If plug tip is covered with carbon, spark plug cleaner may be

used.

• Spark plug gap adjustment is not required between replace-

ment intervals.

• Measure spark plug gap. when it exceeds the limit, replace

spark plug even if it is with in the specified replacement mile-
age. Refer to

EM-259, "Spark Plug"

.

EVAP VAPOR LINES

10. Oil filler cap

11. Spark plug

12. Ignition coil

A.

To intake manifold

B.

Comply with the assembly procedure
when tightening. Refer to

EM-185

C.

To air duct

a

: 14 mm (0.55 in)

JPBIA0030ZZ

Spark plug (Standard type)

: Refer to

EM-259, "Spark Plug"

.

Cleaner air pressure

: Less than 588 kPa (6 kg/cm

2

,

85 psi)

Cleaning time

: Less than 20 seconds

SMA773C

JPBIA0031ZZ

MA-92

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (MR16DDT)

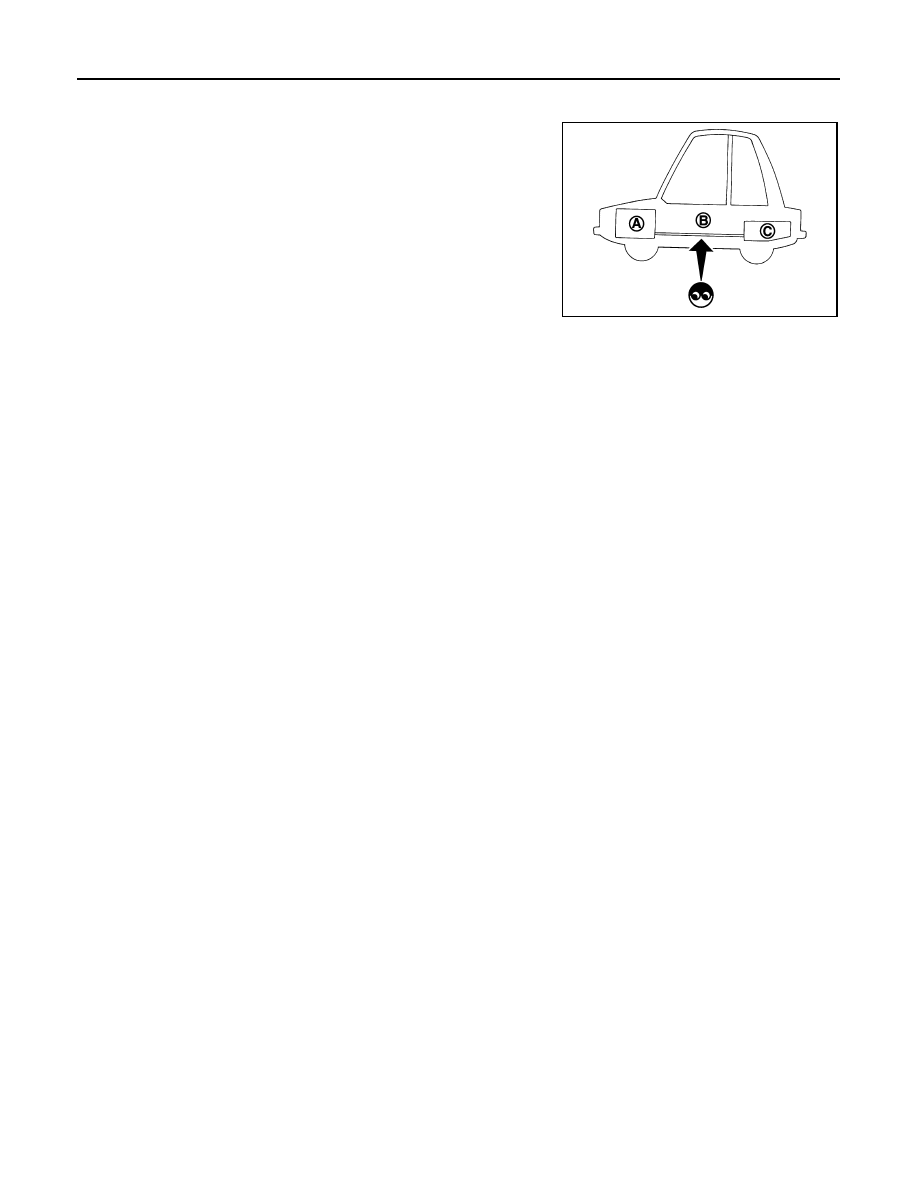

EVAP VAPOR LINES : Inspection

INFOID:0000000011732689

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.

A

: Engine

B

: Fuel line

C

:  Fuel  tank

JPBIA0129ZZ

ENGINE MAINTENANCE (MR20DD)

MA-93

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

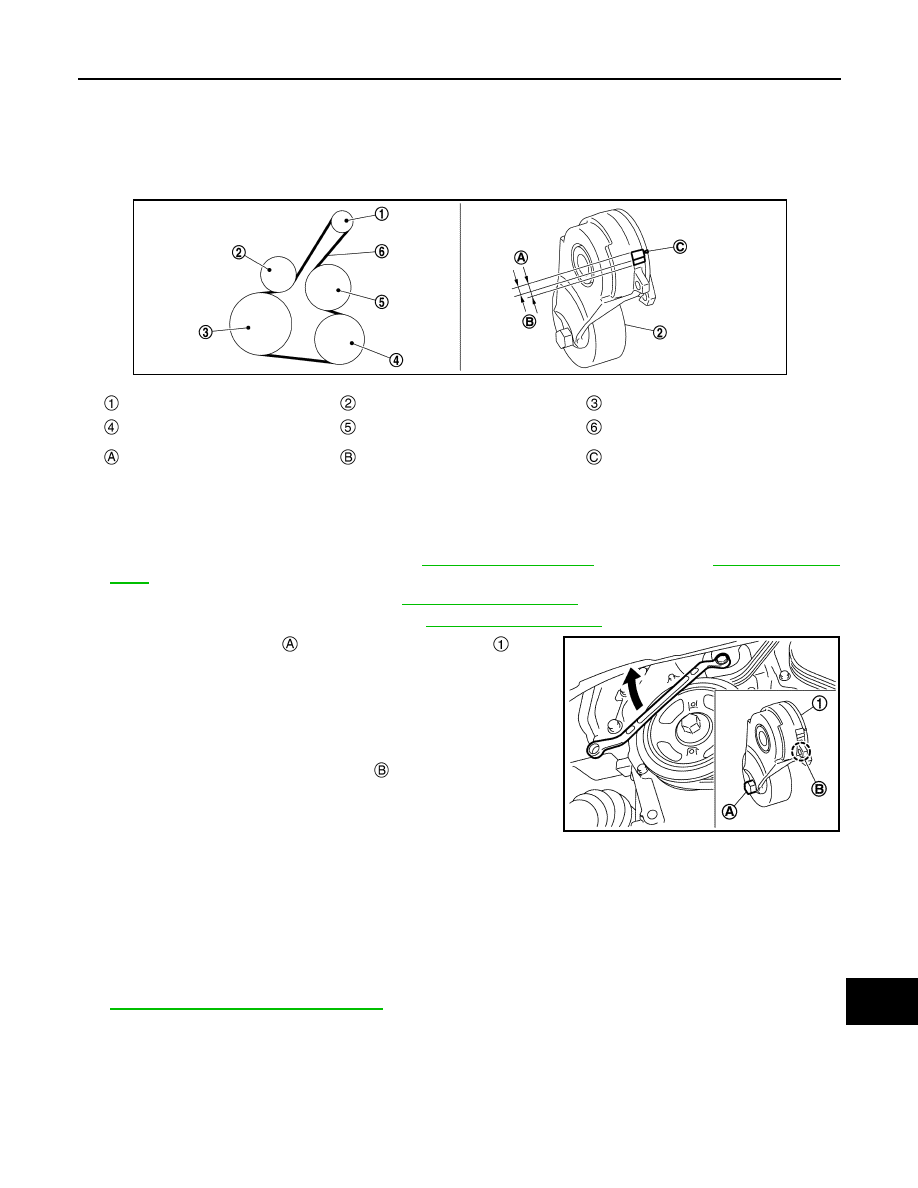

ENGINE MAINTENANCE (MR20DD)

DRIVE BELT

DRIVE BELT : Exploded View

INFOID:0000000011497298

DRIVE BELT : Removal and Installation

INFOID:0000000011497299

REMOVAL

1.

Remove front wheel and tire (RH). Refer to

WT-63, "Exploded View"

 (with TPMS) or

WT-76, "Exploded

View"

 (without TPMS).

2.

Remove front fillet molding (RH). Refer to

EXT-38, "Exploded View"

.

3.

Remove front fender protector (RH). Refer to

EXT-32, "Exploded View"

.

4.

Hold the hexagonal part

 of drive belt auto-tensioner

 with a

wrench securely. Then move the wrench handle in the direction
of arrow (loosening direction of tensioner).

CAUTION:

Avoid placing hand in a location where pinching may occur
if the holding tool accidentally comes off.

5.

Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole

 of the retaining boss to

drive belt auto-tensioner.
• Keep drive belt auto-tensioner pulley arm locked after drive

belt is removed.

INSTALLATION

CAUTION:

• Confirm drive belt is completely set to pulleys.
• Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each pulley

groove.

1.

Release drive belt auto-tensioner, and apply tension to drive belt.

2.

Turn crankshaft pulley clockwise several times to equalize tension between each pulley.

3.

Confirm tension of drive belt at indicator (notch on fixed side) is within the possible use range. Refer to

MA-93, "DRIVE BELT : Exploded View"

.

Alternator

Drive belt auto-tensioner

Crankshaft pulley

A/C compressor

Water pump

Drive belt

Possible use range

Range when new drive belt is in-
stalled

Indicator

JPBIA4302ZZ

JPBIA4351ZZ

MA-94

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (MR20DD)

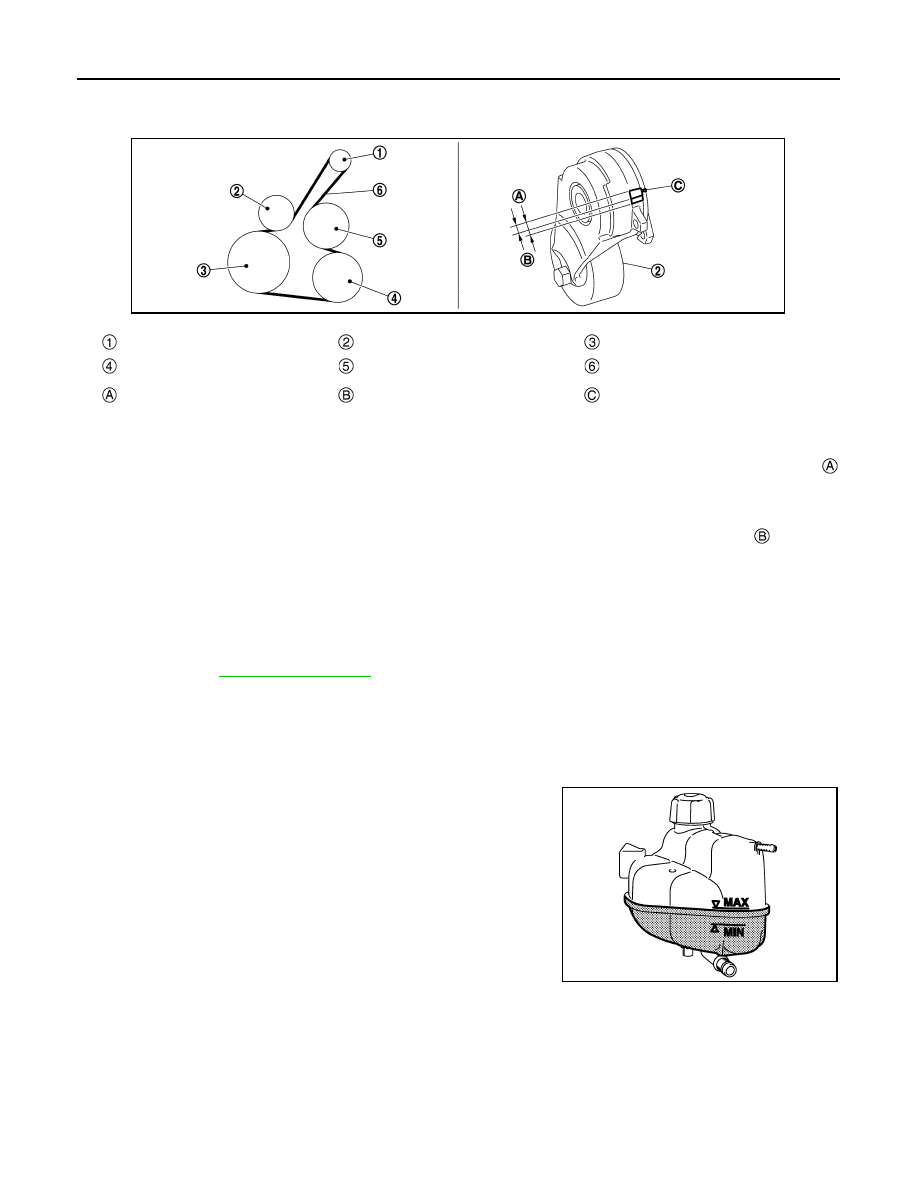

DRIVE BELT : Inspection

INFOID:0000000011497300

WARNING:

Perform this step when engine is stopped.
• Check that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use range

in the figure.
NOTE:
• Check the drive belt auto-tensioner indication when the engine is cold.
• When new drive belt is installed, the indicator (notch on fixed side) should be within the range

 in the fig-

ure.

• Visually check entire drive belts for wear, damage or cracks.
• If the indicator (notch on fixed side) is out of the possible use range or belts is damaged, replace belts.

DRIVE BELT : Adjustment

INFOID:0000000011497301

ENGINE COOLANT

ENGINE COOLANT : Inspection

INFOID:0000000011497313

LEVEL

• Check if the reservoir tank engine coolant level is within the “MIN”

to “MAX” when the engine is cool.

• Adjust the engine coolant level as necessary.
• Check that the reservoir tank cap is tightened.

WARNING:

Never remove reservoir tank cap when engine is hot. Serious
burns could occur from high-pressure engine coolant escaping
from reservoir tank.

LEAKAGE

Alternator

Drive belt auto-tensioner

Crankshaft pulley

A/C compressor

Water pump

Drive belt

Possible use range

Range when new drive belt is in-
stalled

Indicator

JPBIA4302ZZ

Refer to

:

EM-395, "Drive Belt"

.

E1BIA1145ZZ
