3.

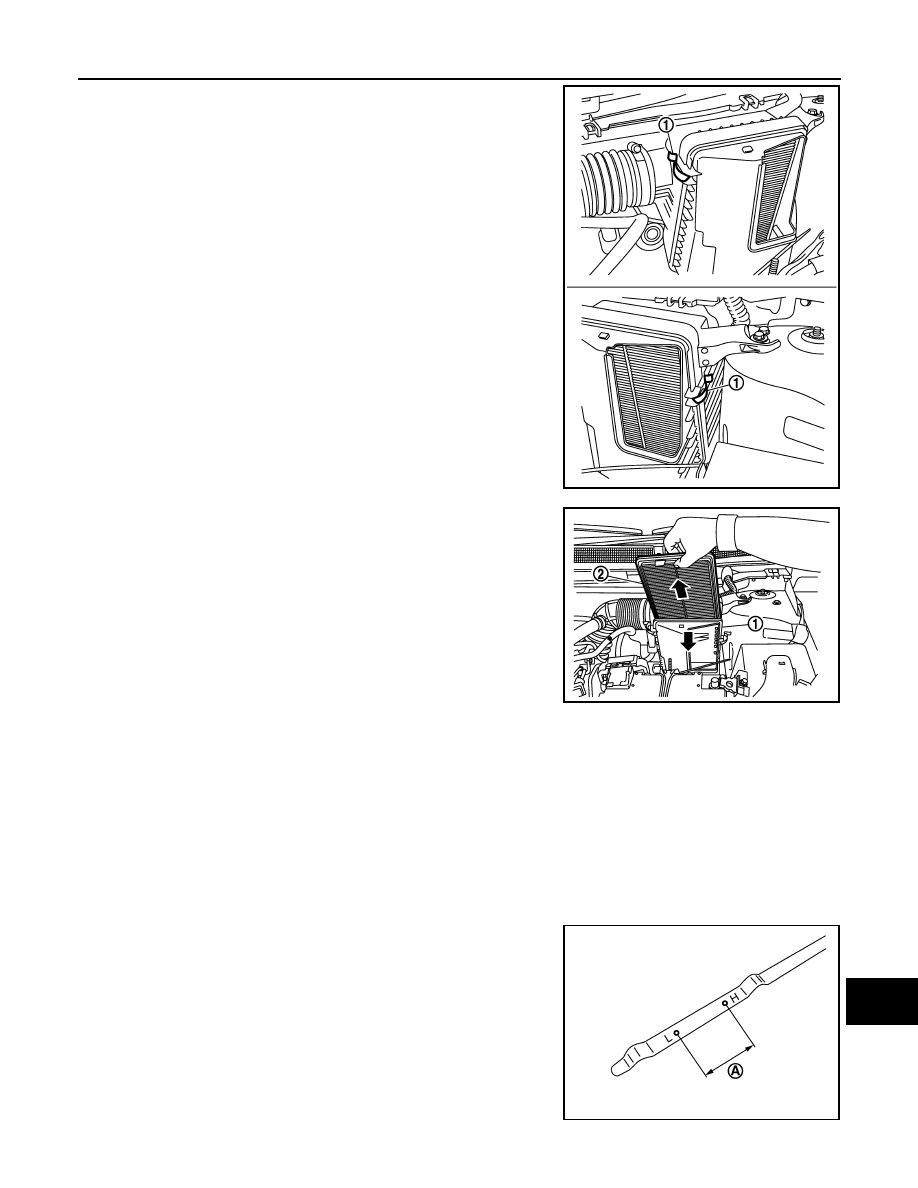

Unhook clips (1) on the air cleaner filter holder.

4.

Separate air cleaner filter holder (1) from air cleaner filter unit
and remove air cleaner filter (2).

INSTALLATION

Install in the reverse order of removal.

ENGINE OIL

ENGINE OIL : Inspection

INFOID:0000000011497289

ENGINE OIL LEVEL

NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 10 minutes before checking.

1.

Pull out oil level gauge and wipe it clean.

2.

Insert oil level gauge and check that the engine oil level is within
the range (A) shown in the figure.

3.

If it is out of range, adjust it.

E1BIA1004ZZ

E1BIA1005ZZ

PBIC3309J

MA-76

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (HRA2DDT)

ENGINE OIL APPEARANCE

• Check engine oil for white turbidity or heavy contamination.
• If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.

Repair or replace damaged parts.

ENGINE OIL LEAKAGE

Check for engine oil leakage around the following area.
• Oil pan (upper and lower)
• Oil pan drain plug
• Oil pressure switch
• Oil filter
• Intake valve timing control solenoid valve
• Front cover
• Mating surface between cylinder head and camshaft bracket
• Mating surface between cylinder block and cylinder head
• Mating surface between cylinder head and rocker cover
• Crankshaft oil seals (front and rear)

OIL PRESSURE CHECK

WARNING:

• Be careful not to get burned, as engine oil may be hot.
• When checking engine oil pressure, shift position should be “Parking position”, and apply parking

brake securely.

1.

Check engine oil level. Refer to

MA-75, "ENGINE OIL : Inspection"

.

2.

Disconnect harness connector at oil pressure switch and remove oil pressure switch using a deep socket
(commercial service tool).

CAUTION:

Never drop or shock oil pressure switch.

3.

Install oil pressure gauge [SST: KV113E0020 (Mot. 836-05)].

4.

Start engine and warm it up to normal operating temperature.

5.

Check oil pressure with engine running under no-load.
NOTE:
When engine oil temperature is low, engine oil pressure becomes high.

If difference is extreme, check oil passage and oil pump for oil leakage.

6.

After the inspections, install oil pressure switch as follows:

a.

Remove old liquid gasket adhering to oil pressure switch and engine.

b.

Apply liquid gasket and tighten oil pressure switch to specification.
Use Genuine Liquid Gasket or equivalent.

c.

Check engine oil level. Refer to

MA-75, "ENGINE OIL : Inspection"

.

d.

After warming up engine, check that there is no leakage of engine oil with running engine.

ENGINE OIL : Draining

INFOID:0000000011497290

WARNING:

• Be careful not to get burned, as engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

1.

Warm up the engine, and check for engine oil leakage from engine components. Refer to

MA-75,

"ENGINE OIL : Inspection"

.

2.

Stop the engine and wait for 10 minutes.

Engine oil pressure

: Refer to

LU-15, "Engine Oil Pressure"

.

Tightening torque

: 15 N.m (1.5 Kg-m; 11 ft-lb).

ENGINE MAINTENANCE (HRA2DDT)

MA-77

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

3.

Loosen oil filler cap.

4.

Remove drain plug and then drain engine oil. Refer to

EM-91, "Exploded View"

.

ENGINE OIL : Refilling

INFOID:0000000011497291

1.

Install drain plug with new drain plug washer. Refer to

EM-47, "Exploded View"

.

CAUTION:

Be sure to clean drain plug and install with new drain plug washer.

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-64, "Fluids and Lubricants"

.

CAUTION:

• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in the engine.

3.

Warm up engine and check area around drain plug and oil filter for engine oil leakage.

4.

Stop engine and wait for 10 minutes.

5.

Check the engine oil level. Refer to

MA-75, "ENGINE OIL : Inspection"

.

OIL FILTER

OIL FILTER : Removal and Installation

INFOID:0000000011497292

REMOVAL

1.

Remove engine under cover.

2.

Remove oil filter cover and oil filter. Refer to

EM-91, "Exploded View"

CAUTION:

• Use genuine NISSAN oil filter or equivalent.
• Be careful not to get burned when engine and engine oil may be hot.
• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Completely wipe off any engine oil that adheres to engine and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply new engine oil to the new oil filter cover O-ring. Refer to

EM-91, "Exploded View"

.

3.

Screw oil filter cover manually until it touches the installation surface, then tighten to specification.

OIL FILTER : Inspection

INFOID:0000000011497293

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

MA-75, "ENGINE OIL : Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

MA-75, "ENGINE OIL : Inspection"

.

SPARK PLUG

Tightening torque

: Refer to

EM-47, "Exploded View"

.

Engine oil capacity

: Refer to

LU-15, "Periodical Maintenance Specification"

.

Oil filter cover:

: 25.0 N·m (2.6 kg-m, 18 ft-lb)

MA-78

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (HRA2DDT)

SPARK PLUG : Removal and Installation

INFOID:0000000011497269

REMOVAL

1.

Remove ignition coil. Refer to

EM-50, "Exploded View"

.

2.

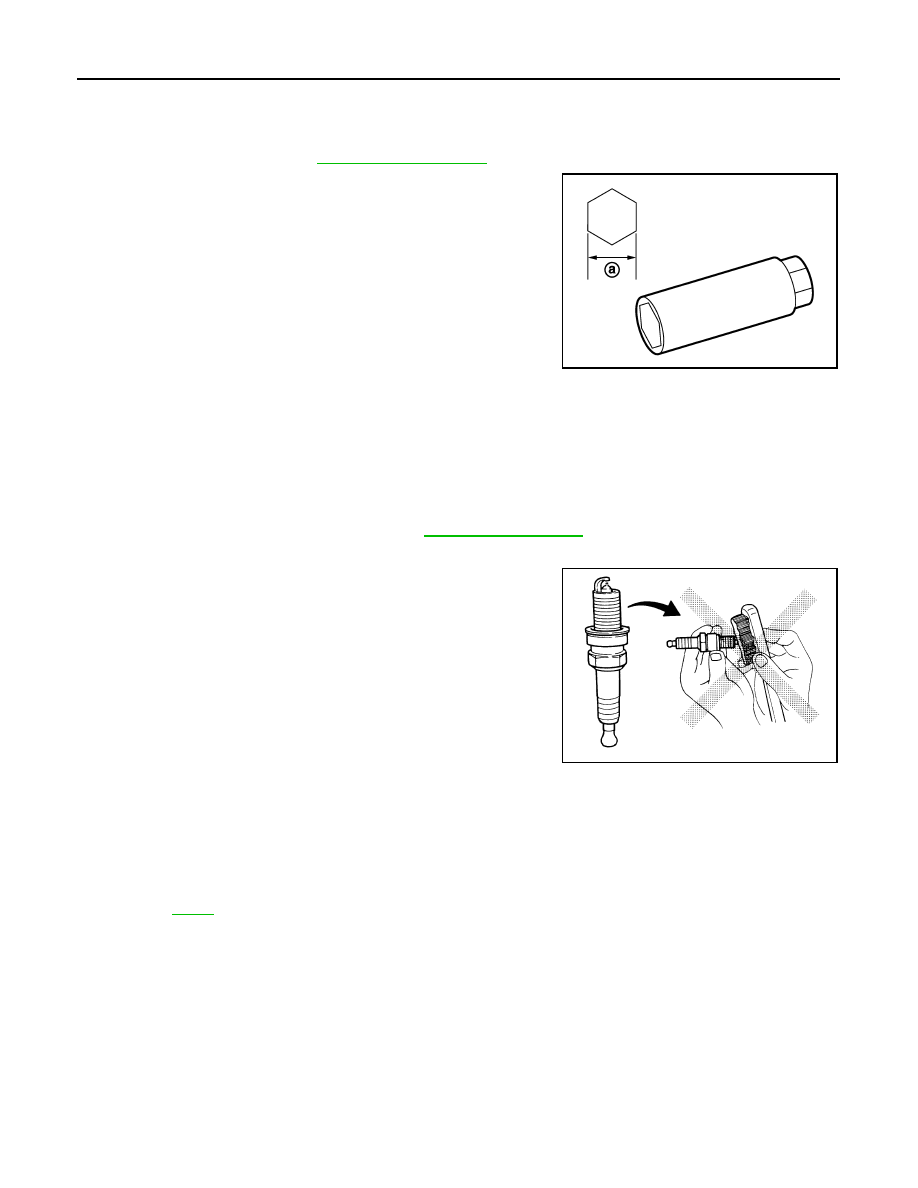

Remove spark plug with a spark plug wrench (commercial ser-
vice tool).

CAUTION:

Never drop or shock spark plug.

INSTALLATION

Install in the reverse order of removal.

SPARK PLUG : Inspection

INFOID:0000000011497270

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

• Never drop or shock spark plug.
• Never use a wire brush for cleaning.
• If plug tip is covered with carbon, spark plug cleaner may be

used.

EVAP VAPOR LINES

EVAP VAPOR LINES : Inspection

INFOID:0000000010355878

1.

Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.

2.

Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc.
Refer to

FL-13

.

a

: 14 mm (0.55 in)

JPBIA0030ZZ

Spark plug (Standard type)

: Refer to

EM-116, "Spark Plug"

.

Cleaner air pressure

: Less than 588 kPa (6 kg/cm

2

,

85 psi)

Cleaning time

: Less than 20 seconds

SMA773C
