Nissan Qashqai J11. Manual - part 2235

DAS-354

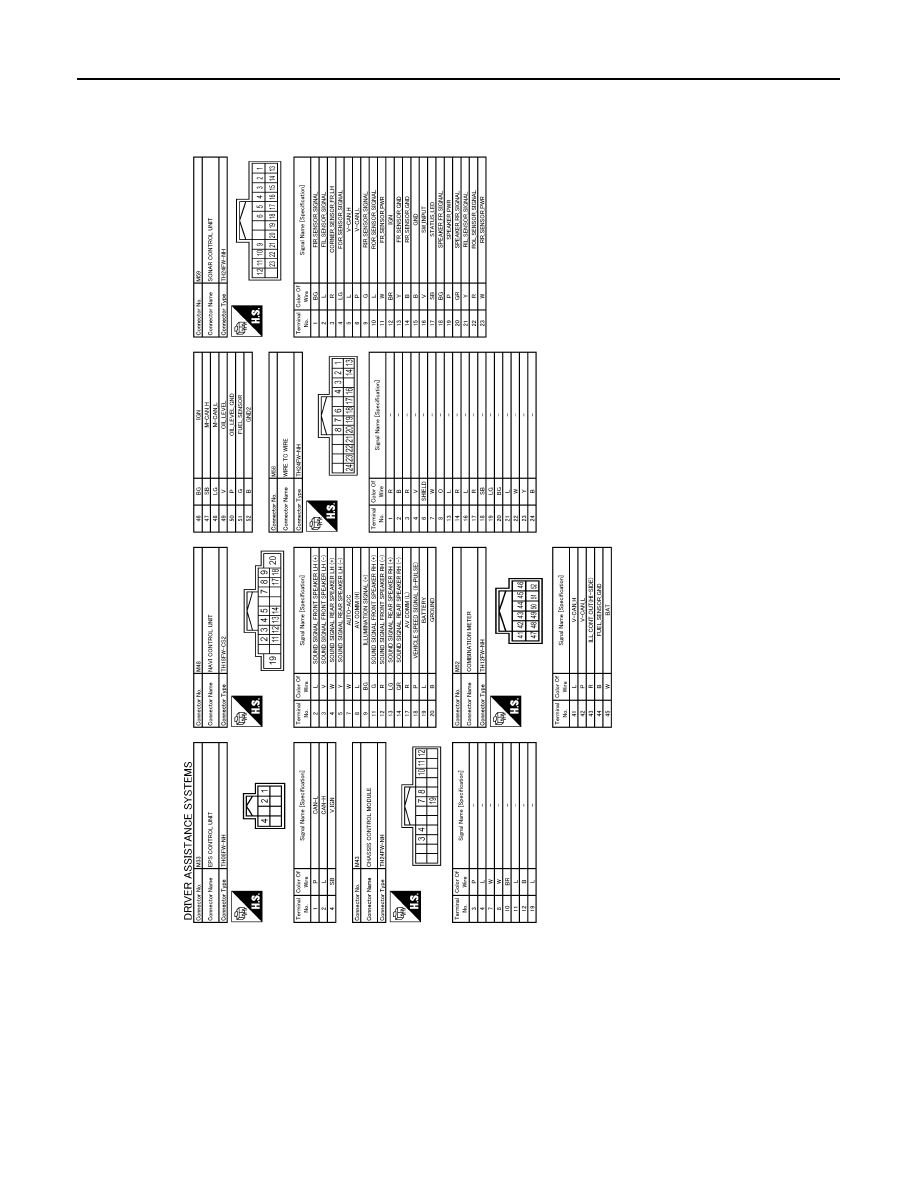

< WIRING DIAGRAM >

[PARK ASSIST]

DRIVER ASSISTANCE SYSTEMS

JROWC2207GB

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-355

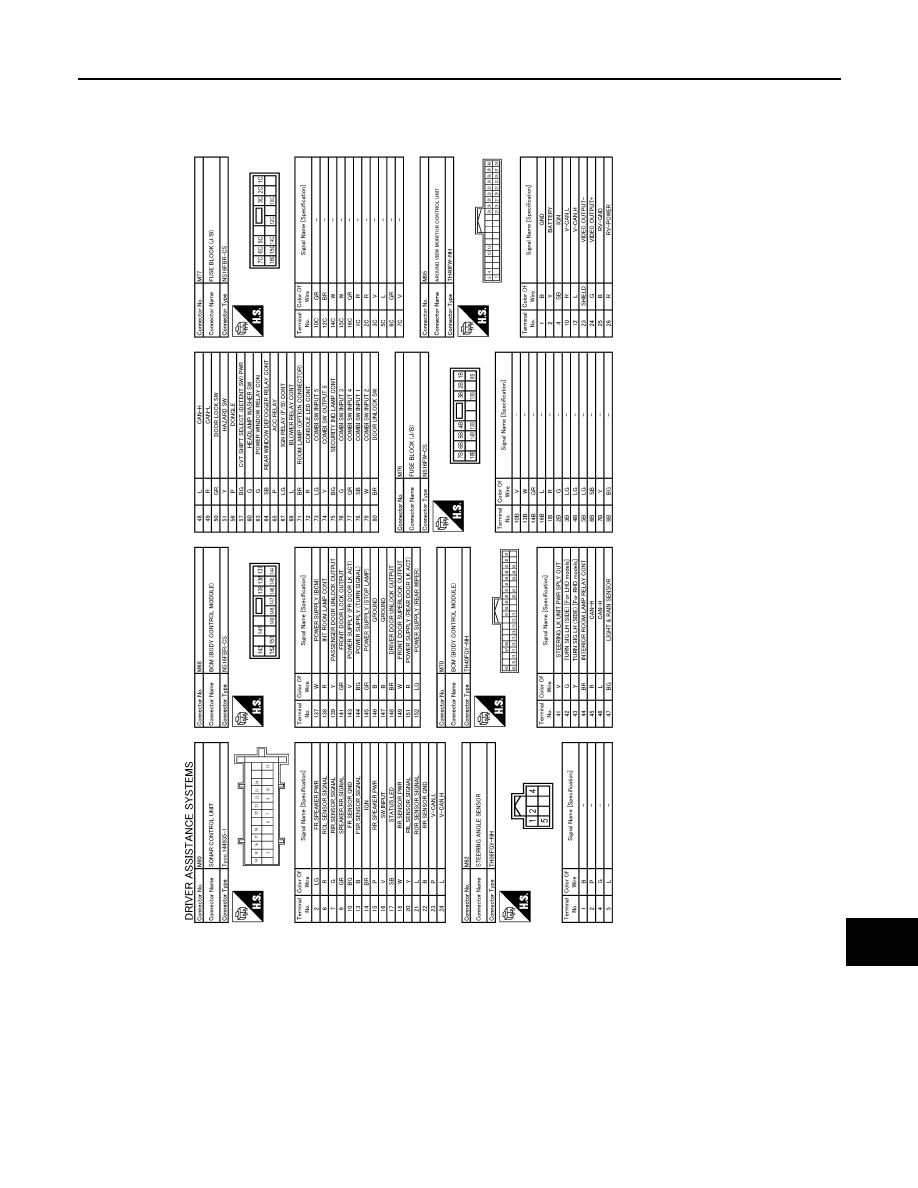

< WIRING DIAGRAM >

[PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2208GB

DAS-356

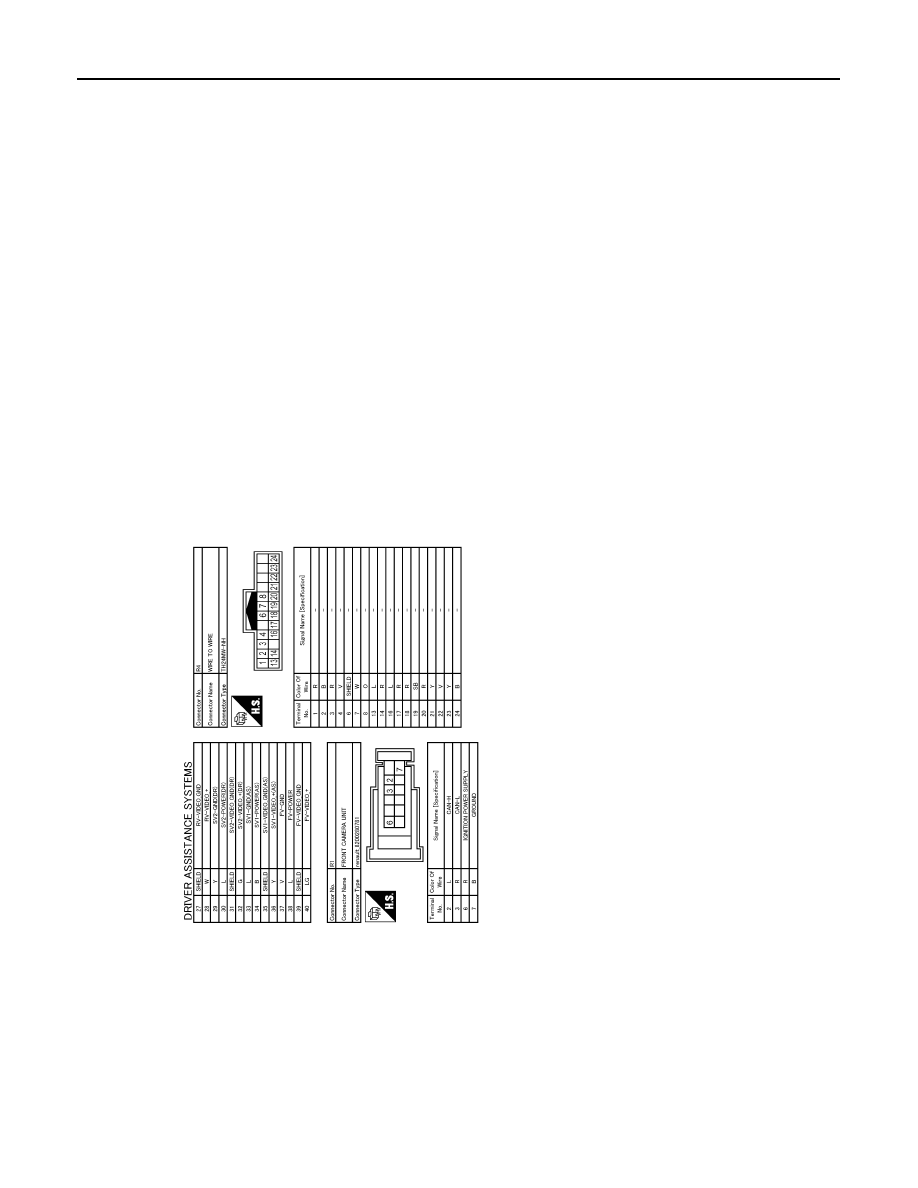

< WIRING DIAGRAM >

[PARK ASSIST]

DRIVER ASSISTANCE SYSTEMS

JROWC2209GB

DAS

DIAGNOSIS AND REPAIR WORK FLOW

DAS-357

< BASIC INSPECTION >

[PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010479690

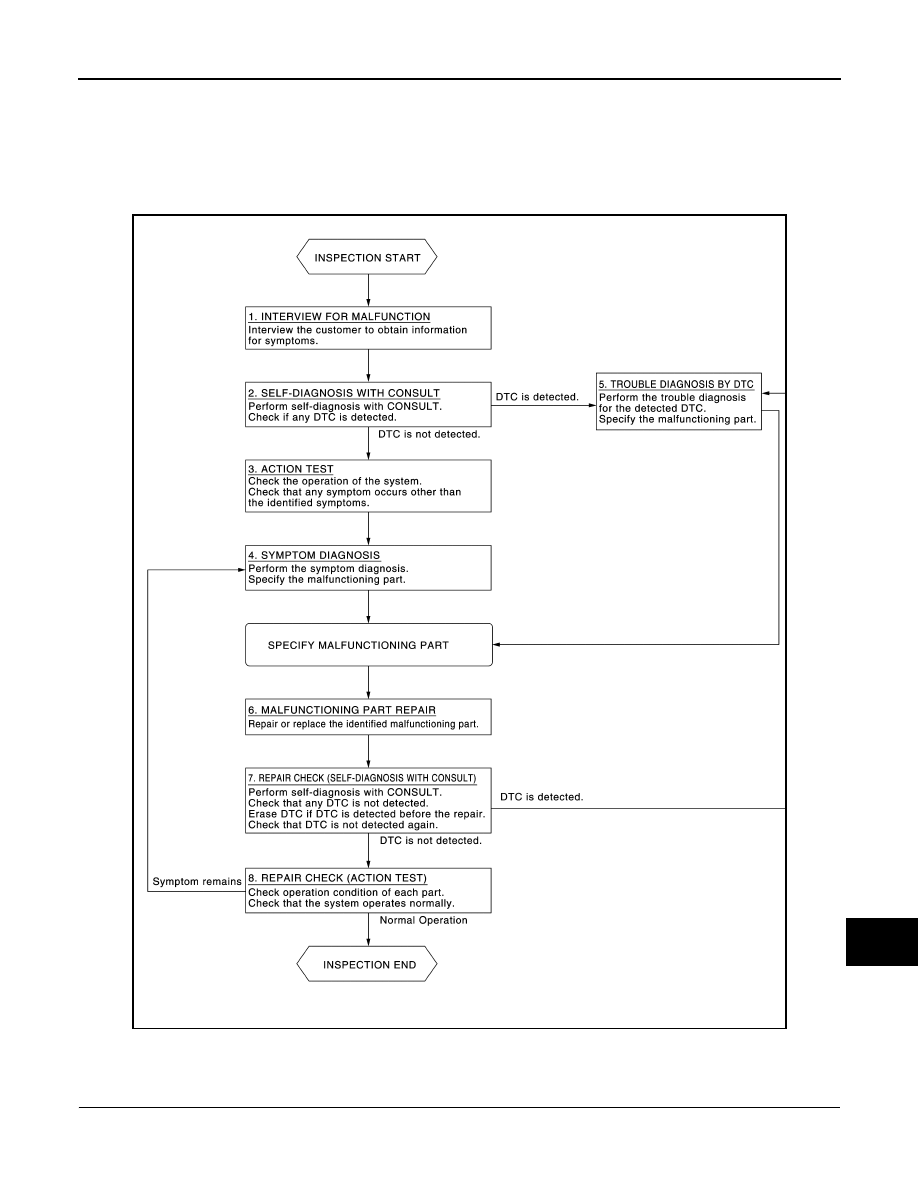

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer
about the concerns carefully and understand the symptoms fully.

JSOIA0485GB
