REAR DOOR SPEAKER

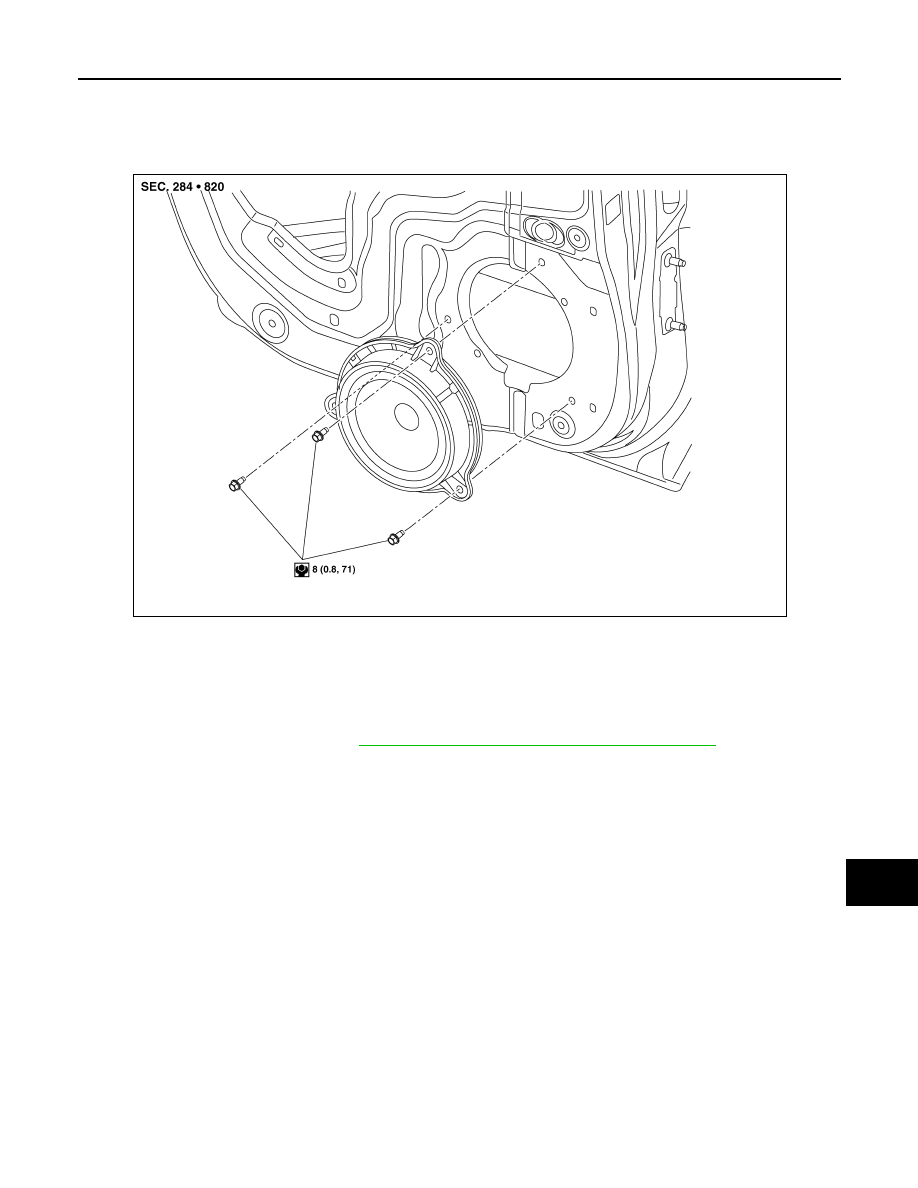

Exploded View

INFOID:0000000010502052

Removal and Installation

INFOID:0000000010502053

REMOVAL

1.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker bolts, then pull out rear door speaker.

3.

Disconnect the harness connector from the rear door speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear door speaker

ALNIA1581ZZ

AV-58

< REMOVAL AND INSTALLATION >

[AUDIO SYSTEM]

USB INTERFACE AND AUX IN JACK

USB INTERFACE AND AUX IN JACK

Removal and Installation

INFOID:0000000010502054

REMOVAL

1.

Remove center console. Refer to

IP-18, "Exploded View"

.

2.

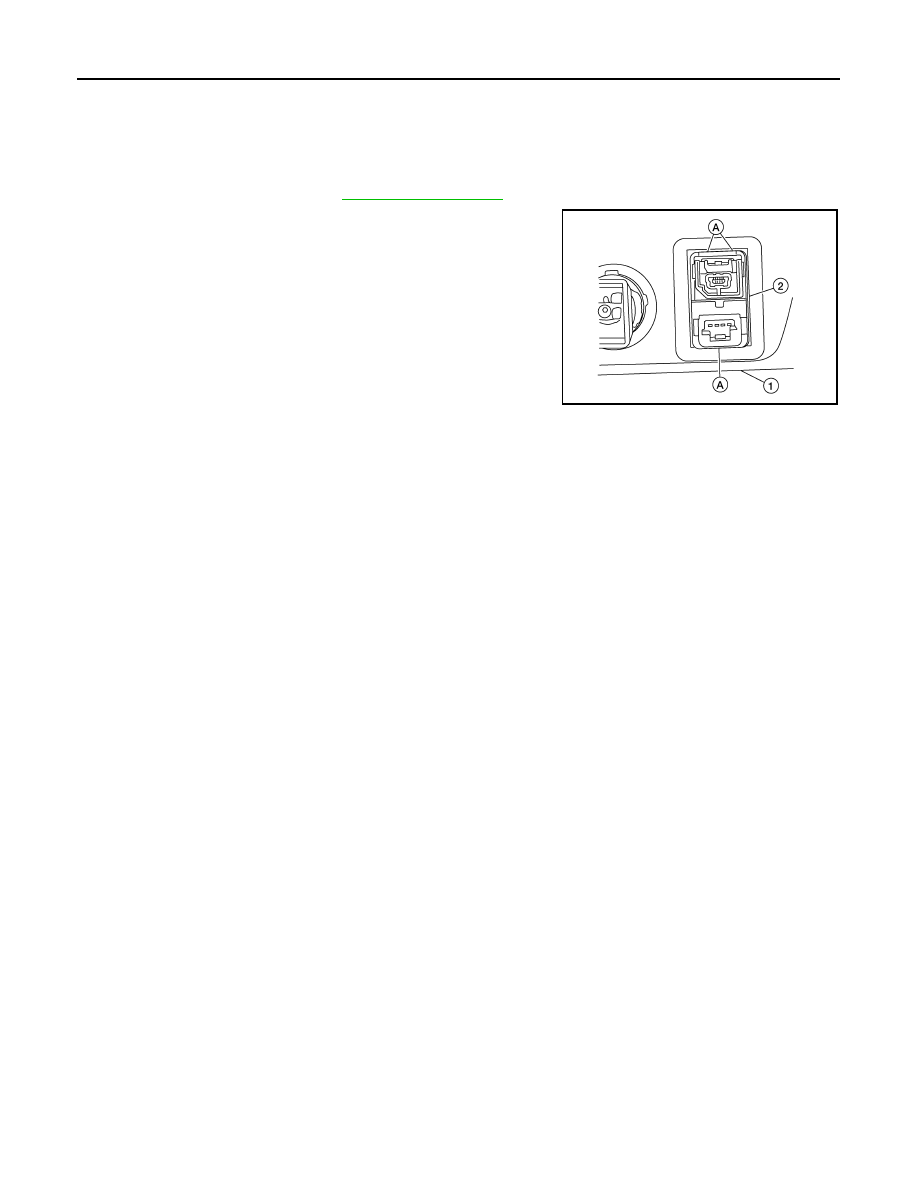

Release the pawls (A) on the back of USB interface and AUX in
jack (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1582ZZ

AV

MICROPHONE

AV-59

< REMOVAL AND INSTALLATION >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000010502055

REMOVAL

1.

Remove the map lamp assembly. Refer to

INT-24, "Exploded View"

.

2.

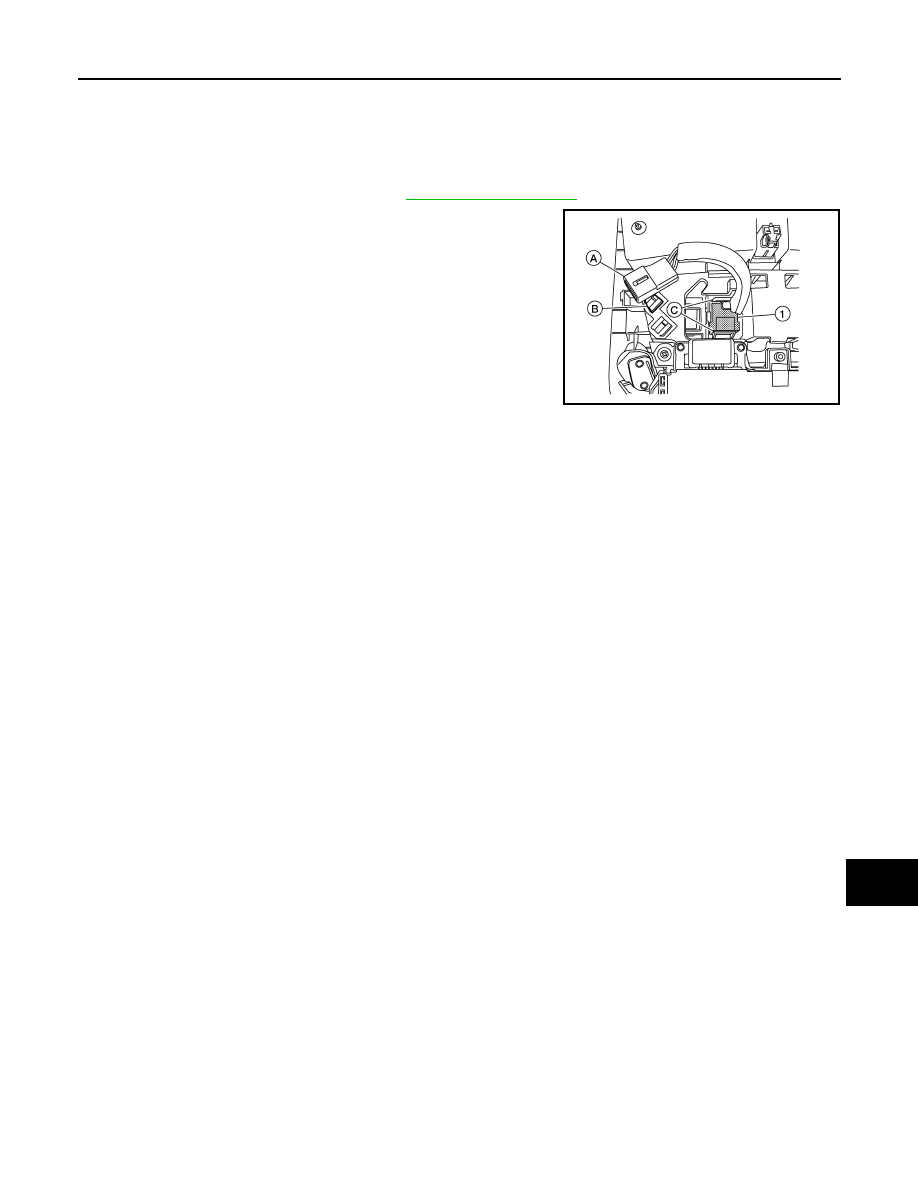

Release harness connector (A) by sliding rearward to remove
from the pawl (B).

3.

Release pawls (C) and remove the microphone (1) from the
front room/map lamp assembly.
NOTE:
The following figures show the image of the inspection proce-
dure. (Existing parts are not the same shape as the parts in the
figure.)

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1583ZZ

AV-60

< REMOVAL AND INSTALLATION >

[AUDIO SYSTEM]

AUDIO ANTENNA

AUDIO ANTENNA

Removal and Installation

INFOID:0000000010502057

REMOVAL

1.

Remove the luggage side upper finisher (RH). Refer to

INT-28, "Exploded View"

.

2.

Partially lower headlining (rear). Refer to

INT-24, "Exploded View"

.

3.

Disconnect harness connectors from antenna feeder.

4.

Remove nut from audio antenna and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the audio antenna nut is not properly tightened, lower sensitivity of the antenna may be experi-
enced. If the nut is over tightened, this will deform the roof panel.

Audio antenna nut

: 6.5 N·m (0.66 kg-m, 58 in-lb)
