Nissan Qashqai J11. Manual - part 2086

AV

AUDIO SYSTEM

AV-33

< WIRING DIAGRAM >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD1431GB

AV-34

< WIRING DIAGRAM >

[AUDIO SYSTEM]

AUDIO SYSTEM

JRNWD1432GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-35

< BASIC INSPECTION >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010502033

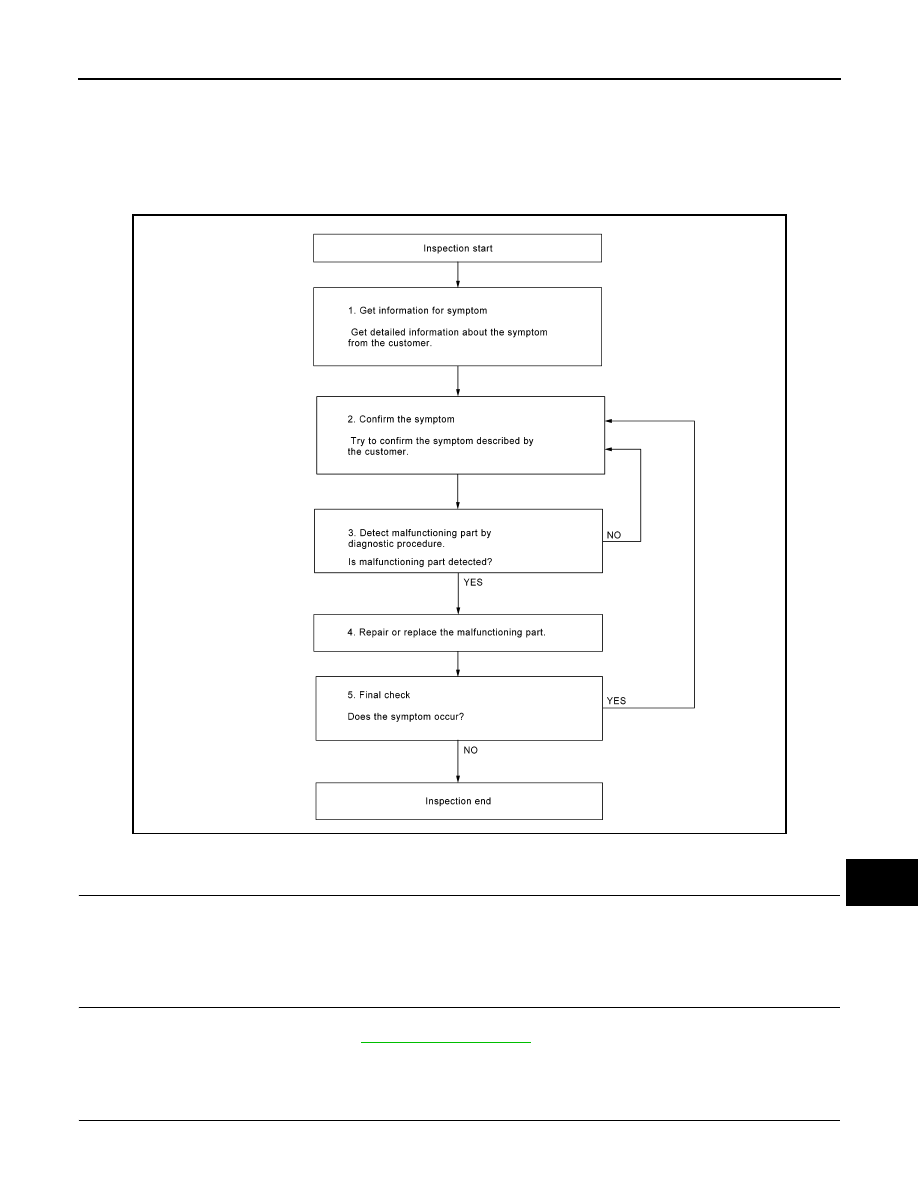

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the
incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition
when the symptom is detected. Refer to

AV-48, "Symptom Table"

.

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

AWNIA2404GB

AV-36

< BASIC INSPECTION >

[AUDIO SYSTEM]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4.

NO

>> GO TO 2.

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5.

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.

Was the repair confirmed?

YES

>> Inspection End.

NO

>> GO TO 2.
