PREPARATION

PREPARATION

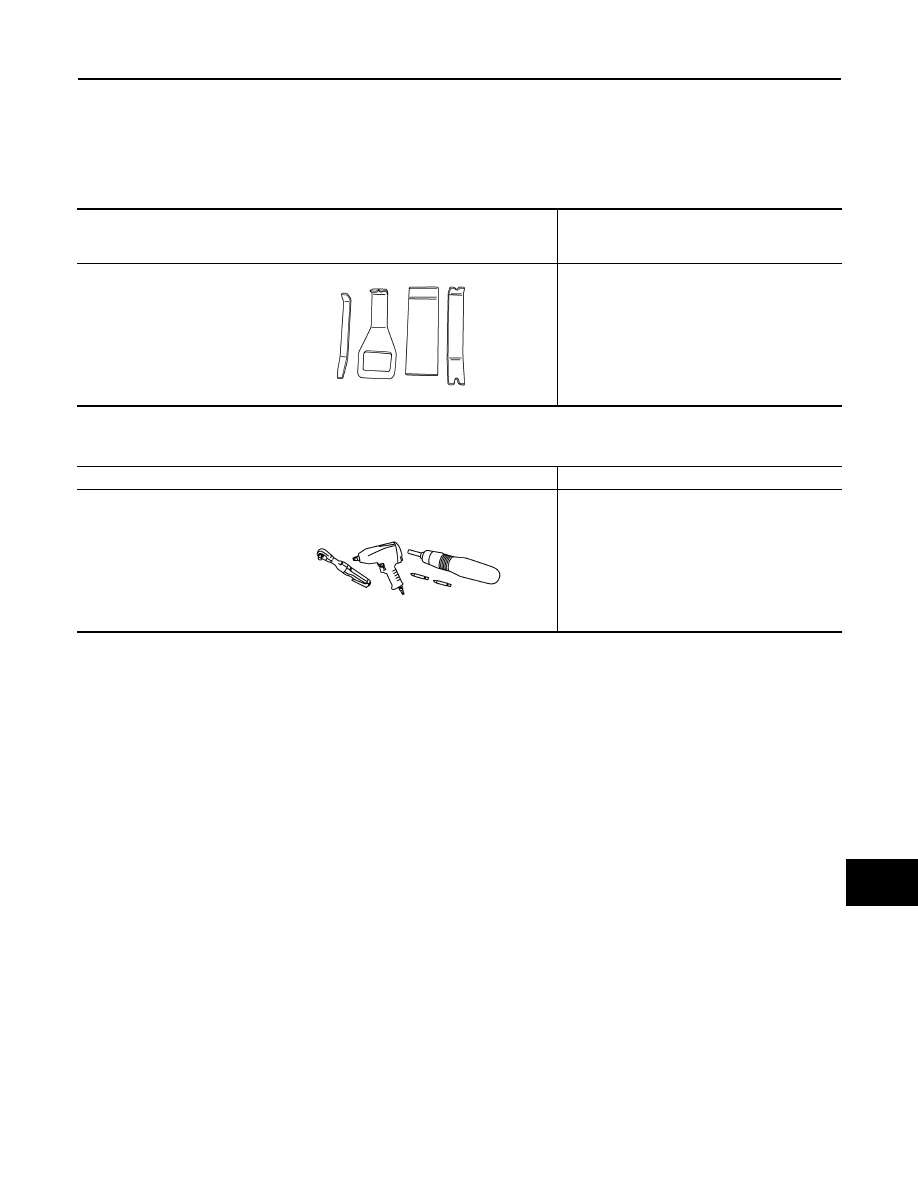

Special Service Tool

INFOID:0000000010502017

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000010502018

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV-10

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

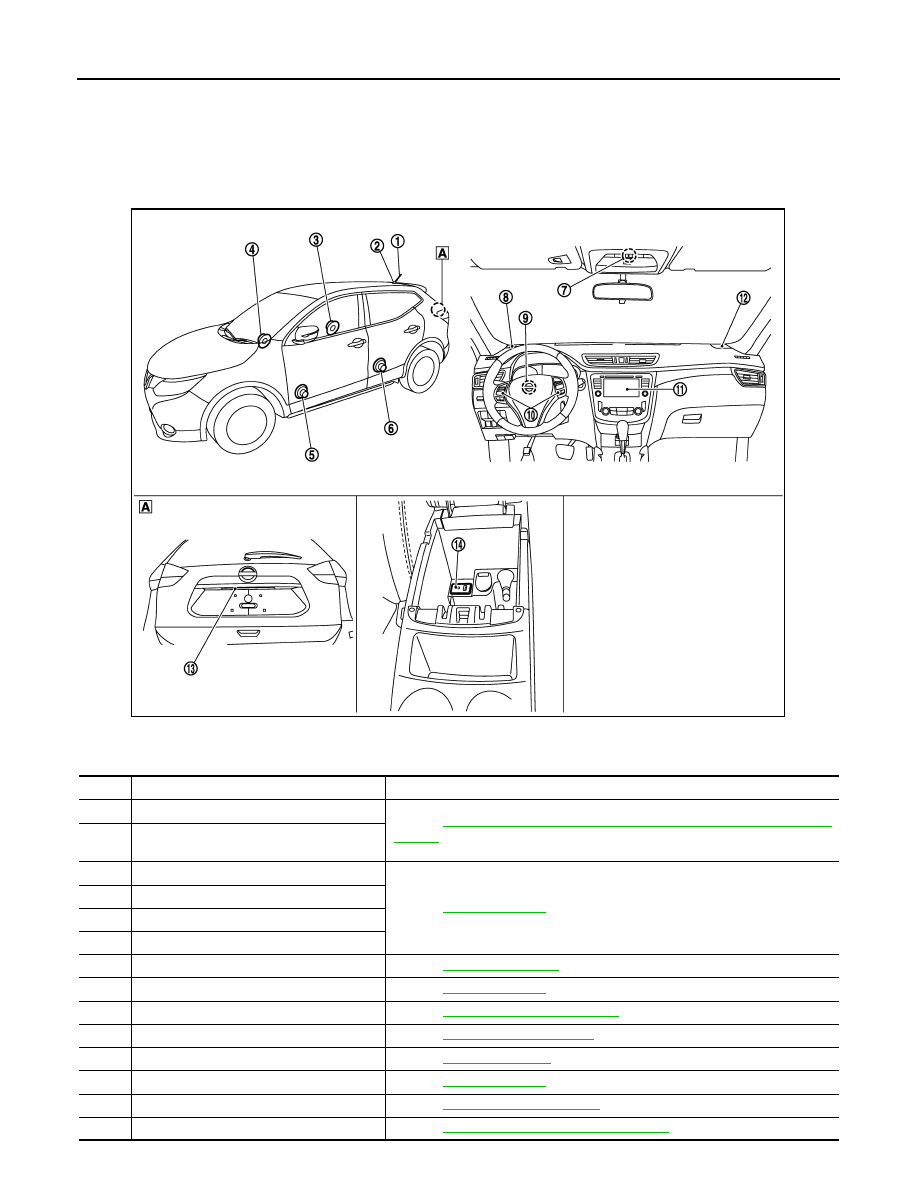

Component Parts Location

INFOID:0000000010502019

A. Center of back door

E1NIA0075ZZ

No.

Component

Function

1.

Rod antenna

Refer to

AV-68, "Rod Antenna, Antenna Amp., Satellite Antenna and Antenna

Feeder"

.

2.

Antenna base (antenna amp. and satellite
antenna)

3.

Rear door speaker RH

Refer to

AV-66, "Speakers"

.

4.

Front door speaker RH

5.

Front door speaker LH

6.

Rear door speaker LH

7.

Microphone

Refer to

AV-67, "Microphone"

.

8.

Front tweeter LH

Refer to

AV-66, "Speakers"

.

9.

Steering angle sensor

Refer to

AV-68, "Steering Angle Sensor"

.

10.

Steering switches

Refer to

AV-67, "Steering Switches"

.

11.

Audio unit

Refer to

AV-66, "Audio Unit"

.

12.

Front tweeter RH

Refer to

AV-66, "Speakers"

.

13.

Rear view camera (if equipped)

Refer to

AV-67, "Rear View Camera"

.

14.

USB interface and AUX in jack

Refer to

AV-67, "USB Interface and AUX in Jack"

.

AV

COMPONENT PARTS

AV-11

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Audio Unit

INFOID:0000000010502020

Description

• AM/FM electronic tuner radio, CD drive.
• The display can show audio status.
• Music files stored in iPod

®*

/USB memory can be played using the separate USB connector.

• Music files stored in an external audio device can be played using the separate AUX in jack.

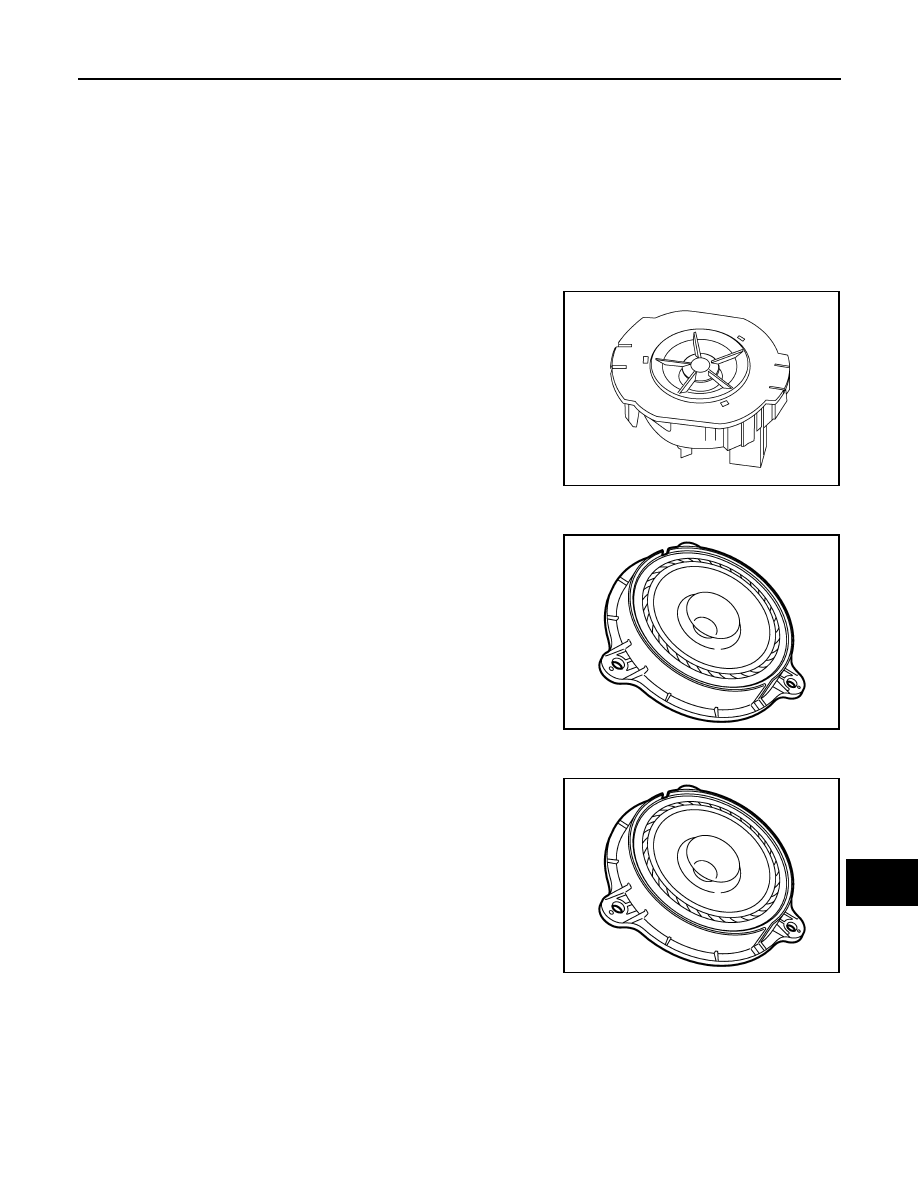

Speakers

INFOID:0000000010502021

FRONT TWEETER

• 2.5 cm (1 in) tweeters are installed in the top front corners of the

instrument panel.

• Sound signals are input from the audio unit to output high range

sounds.

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.
• Sound signals are input from the audio unit to output high, mid and

low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.
• Sound signals are input from the audio unit to output high, mid and

low range sounds.

USB Interface and AUX in Jack

INFOID:0000000010502022

• USB Interface and AUX in jack is installed in the console.
• iPod

®

 and USB memory can be connected to the audio unit through the USB interface.

• An external audio device can be connected to the audio unit through the AUX in jack.

ALNIA1593ZZ

JPNIA1454ZZ

JPNIA1454ZZ

AV-12

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

COMPONENT PARTS

Steering Switches

INFOID:0000000010502023

• Steering switches are installed in the steering wheel.
• Operations for audio and hands-free phone are possible.
• Switches are connected to the combination meter.
• Combination meter is connected to the audio unit via AV communi-

cation.

Microphone

INFOID:0000000010502024

• The microphone is installed in the roof in the map lamp assembly.
• Power is supplied from the audio unit.

Steering Angle Sensor

INFOID:0000000010502026

• Steering sensor is installed to the spiral cable.
• Steering angle sends the steering signal necessary for predictive

course line via CAN communication.

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

INFOID:0000000010502027

RADIO ANTENNA AND SATELLITE ANTENNA

AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna
amp. and satellite antenna are built into the antenna base.

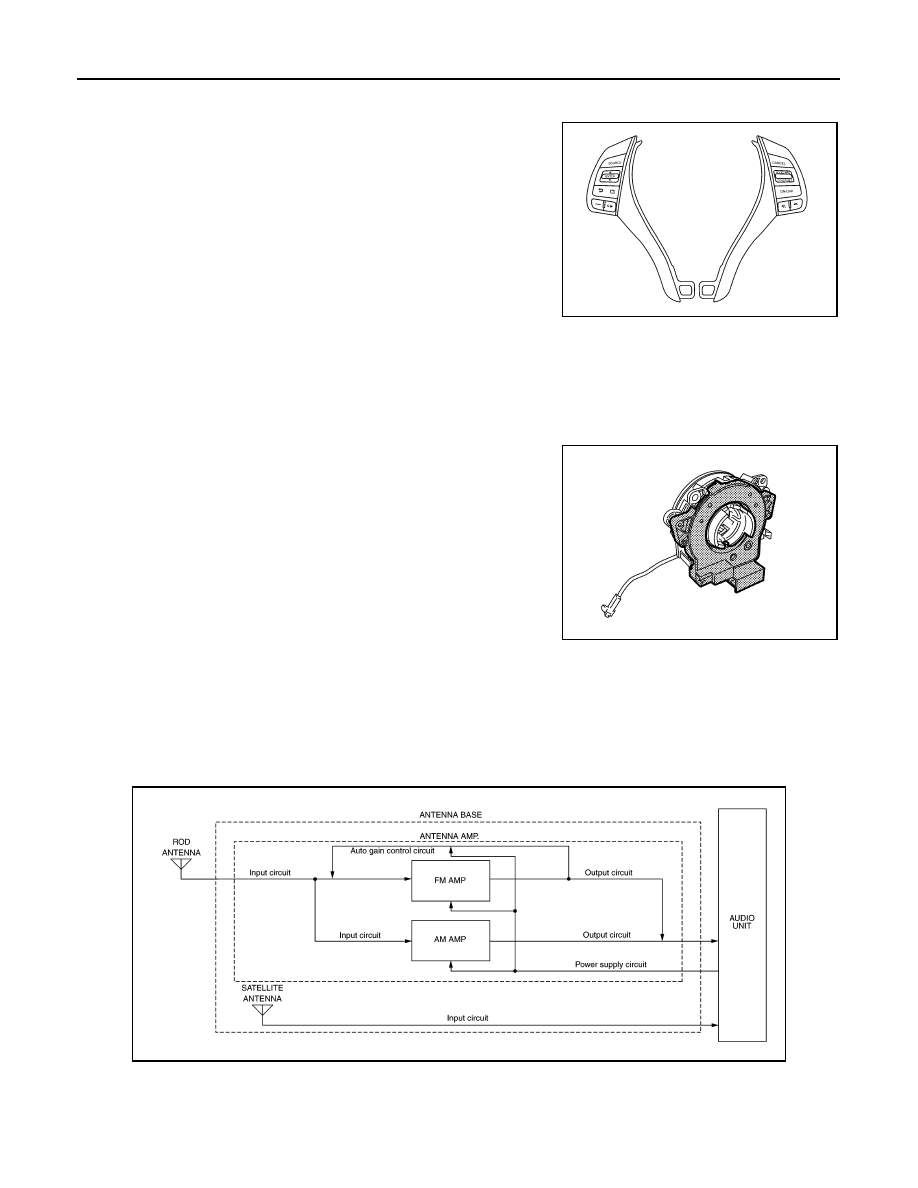

ANTENNA FEEDER LAYOUT

ALNIA1594ZZ

JSNIA1571ZZ

AWNIA3133GB
