Nissan Qashqai J11. Manual - part 2057





SN-22

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

SONAR SYSTEM

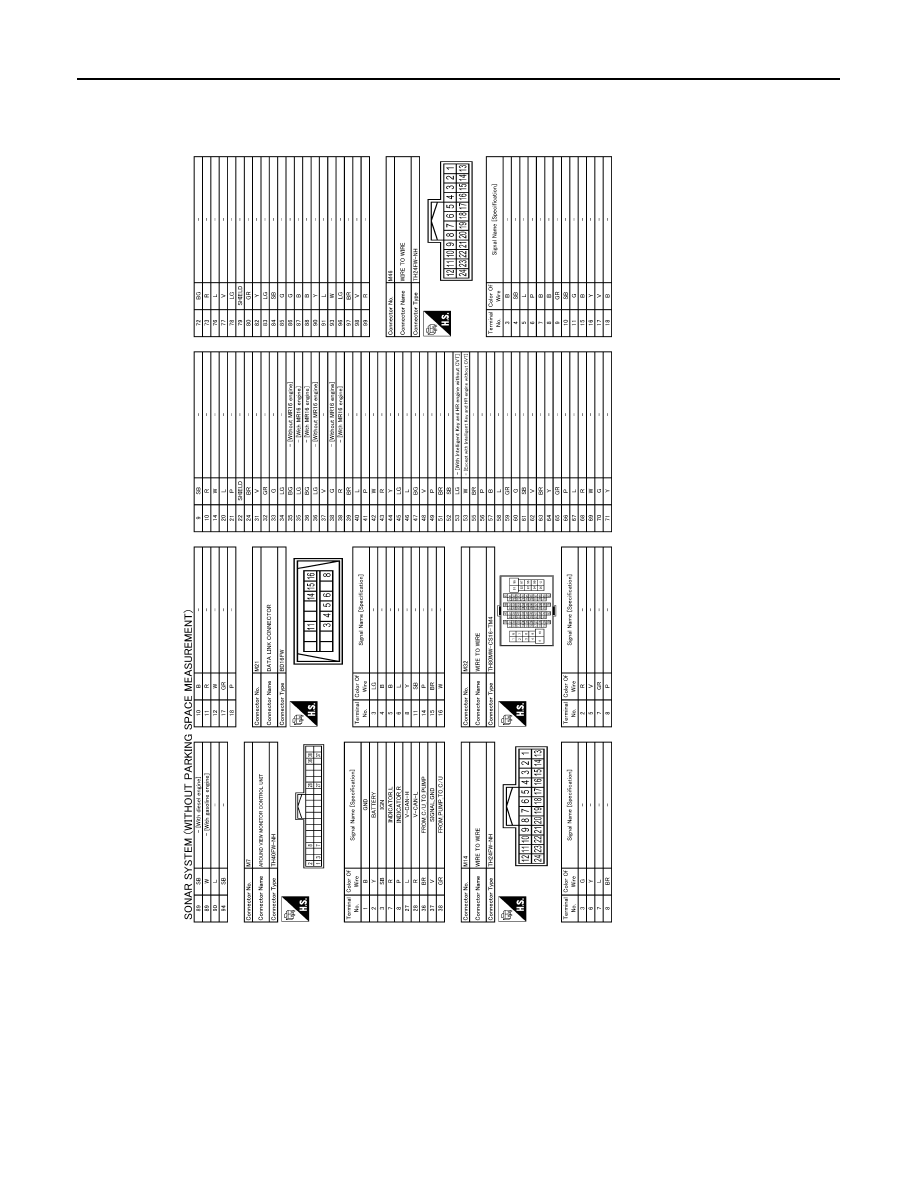

JRNWE0843GB

SN

SONAR SYSTEM

SN-23

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

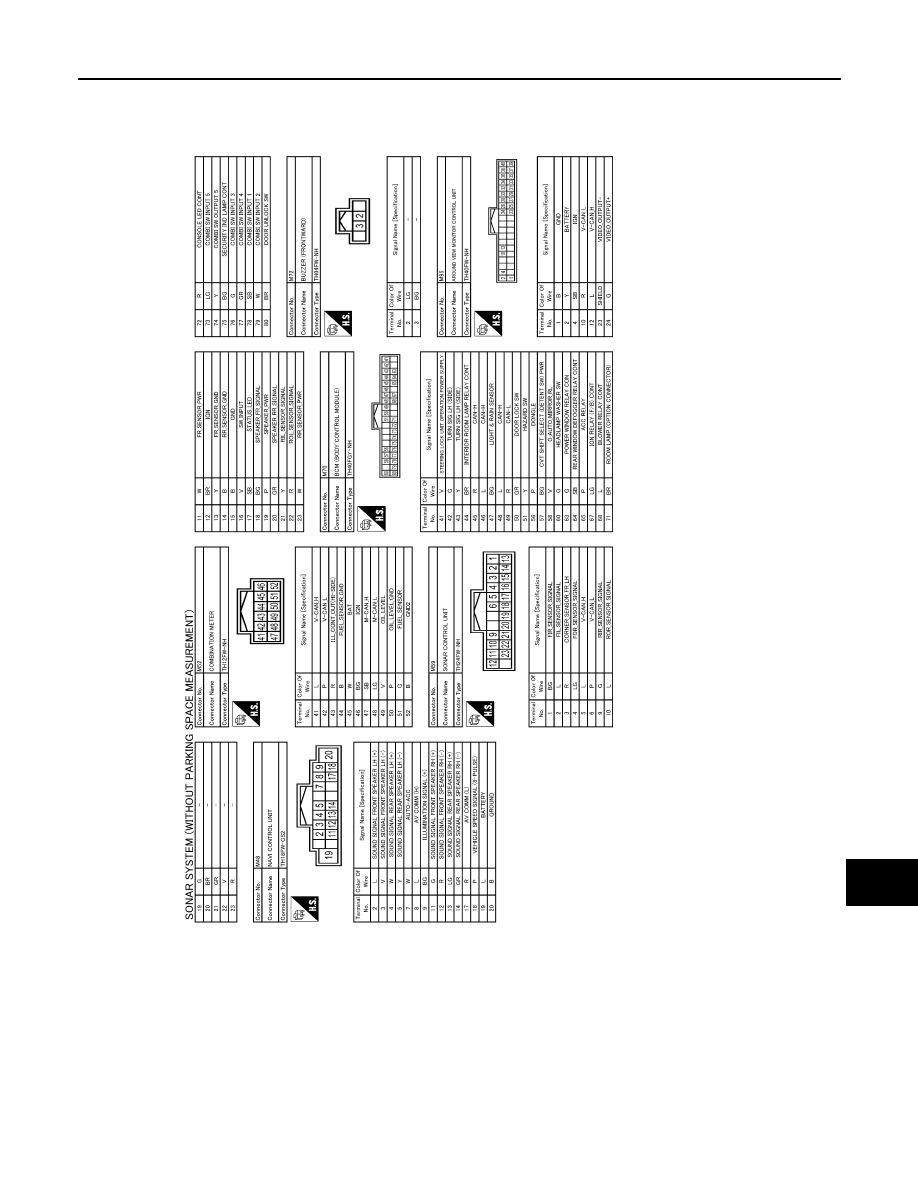

JRNWE0844GB

SN-24

< WIRING DIAGRAM >

[WITHOUT PARKING SPACE MEASUREMENT]

SONAR SYSTEM

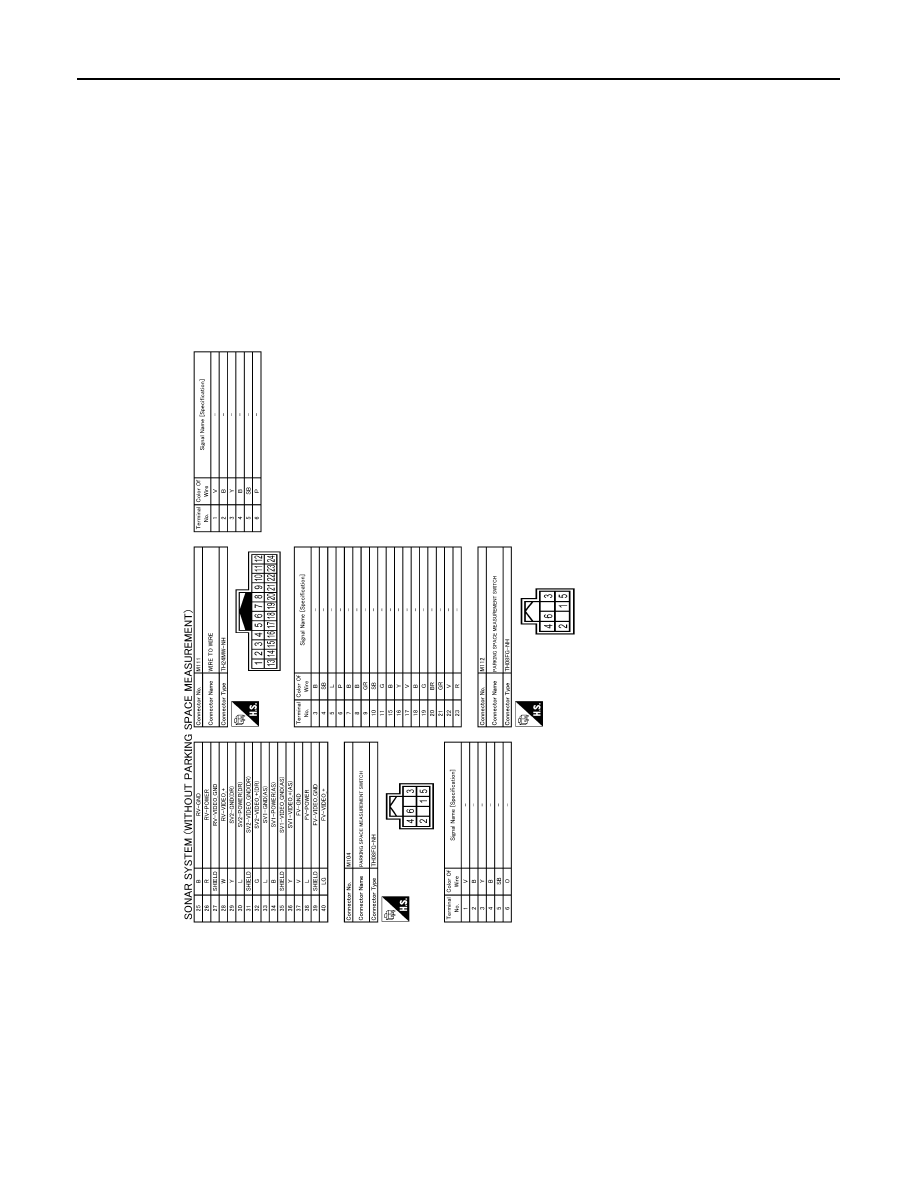

JRNWE0845GB

SN

DIAGNOSIS AND REPAIR WORKFLOW

SN-25

< BASIC INSPECTION >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010435921

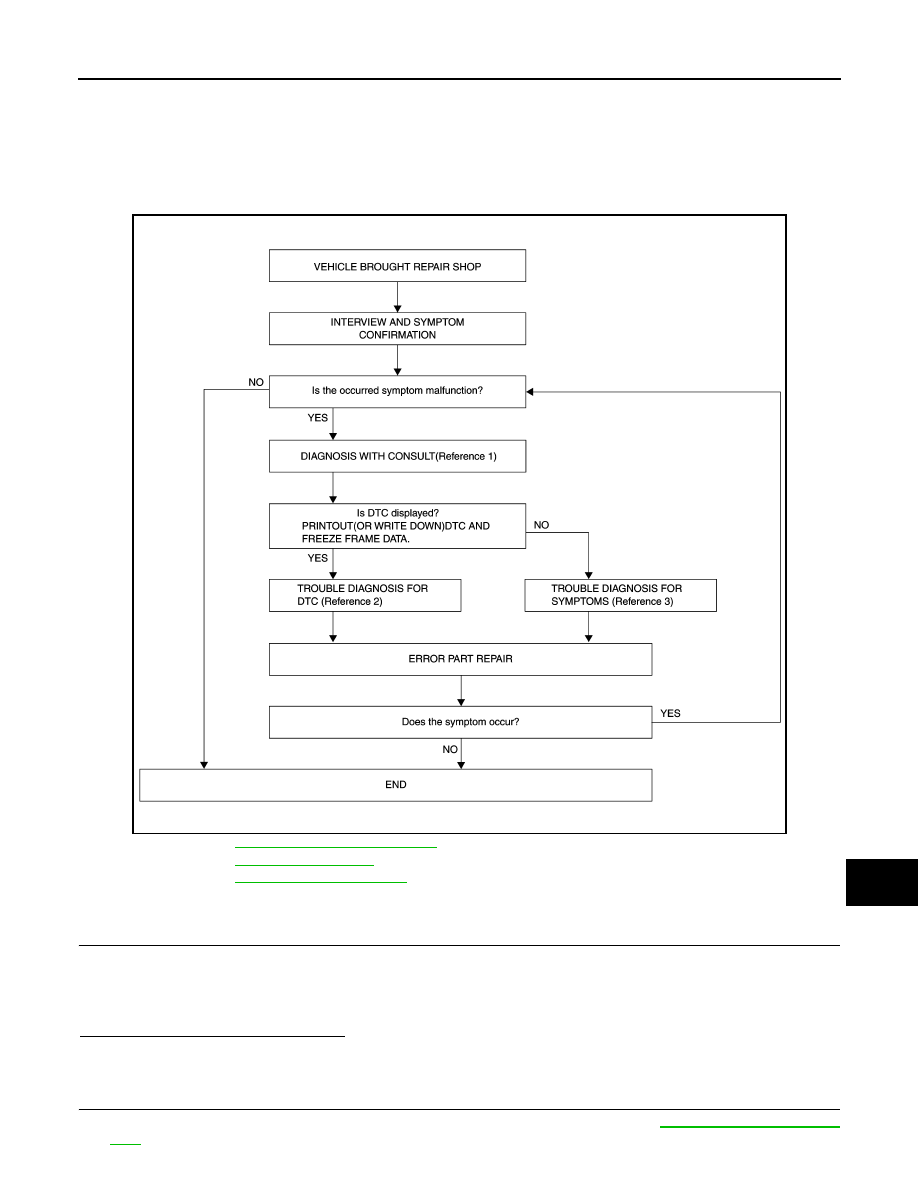

OVERALL SEQUENCE

Reference 1: Refer to

SN-10, "CONSULT Function"

.

Reference 2: Refer to

SN-14, "DTC Index"

.

Reference 3: Refer to

SN-47, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> Inspection End.

2.

DIAGNOSIS WITH CONSULT

1.

Connect CONSULT and perform Self Diagnostic Result for SONAR. Refer to

SN-10, "CONSULT Func-

tion"

.

JSNIA4482GB
