Nissan Qashqai J11. Manual - part 2045
WCS-28
< ECU DIAGNOSIS INFORMATION >
COMBINATION METER
Fail-safe
INFOID:0000000010503092
The combination meter activates the fail-safe control if the CAN communication lines between each unit are
malfunctioning.
49
(V)
50
(P)

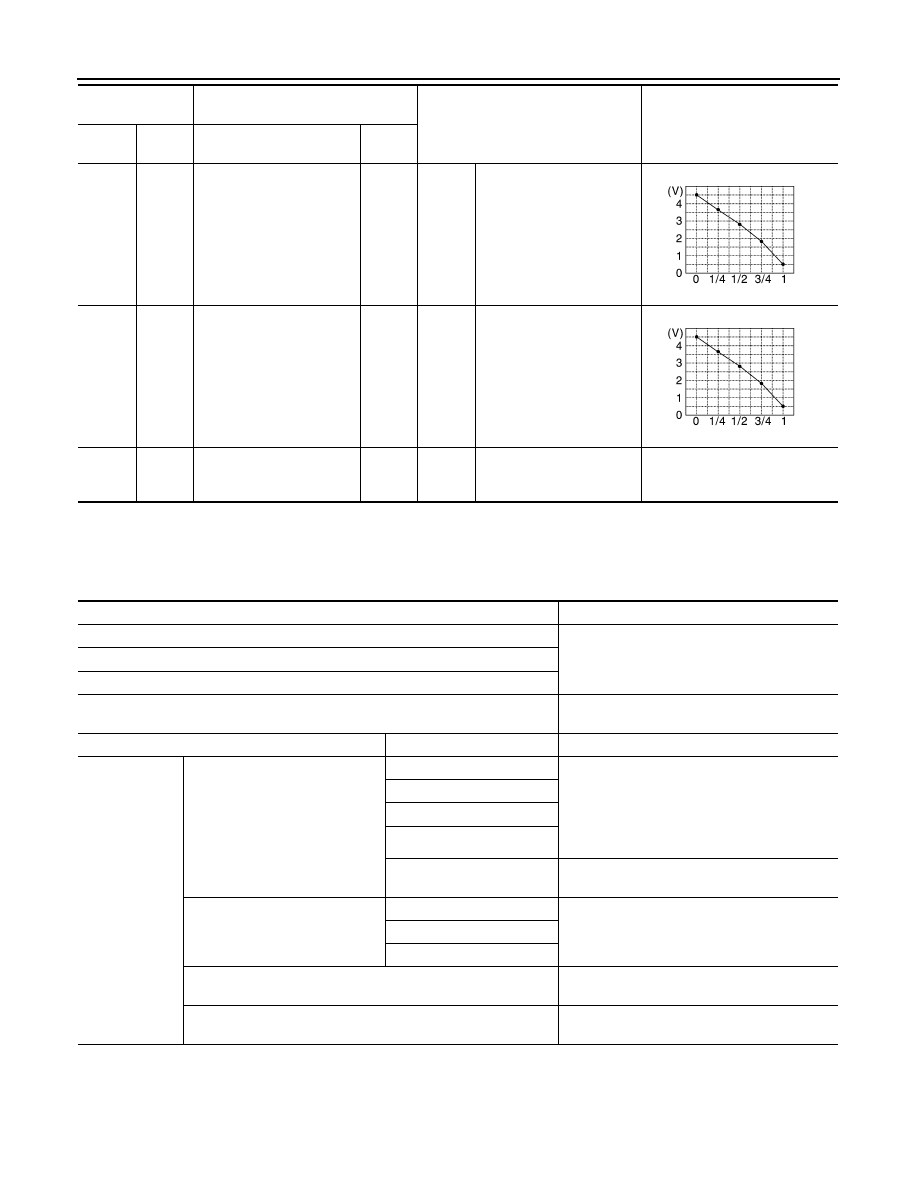

Oil level sensor signal
Input
Ignition
switch
ON
—
51
(G)
44
(B)
Fuel level sensor signal
Input
Ignition
switch
ON
—
52
(B)
Ground
Ground 2
—
Ignition
switch
ON
—
0 V
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
+
–
Signal name
Input/
Output
JSNIA3463ZZ
JSNIA3463ZZ
Function
Specifications
Speedometer
Reset to zero by suspending communication.
Tachometer
Engine coolant temperature gauge
Meter illumination control
When suspending communication, changes to
nighttime mode.

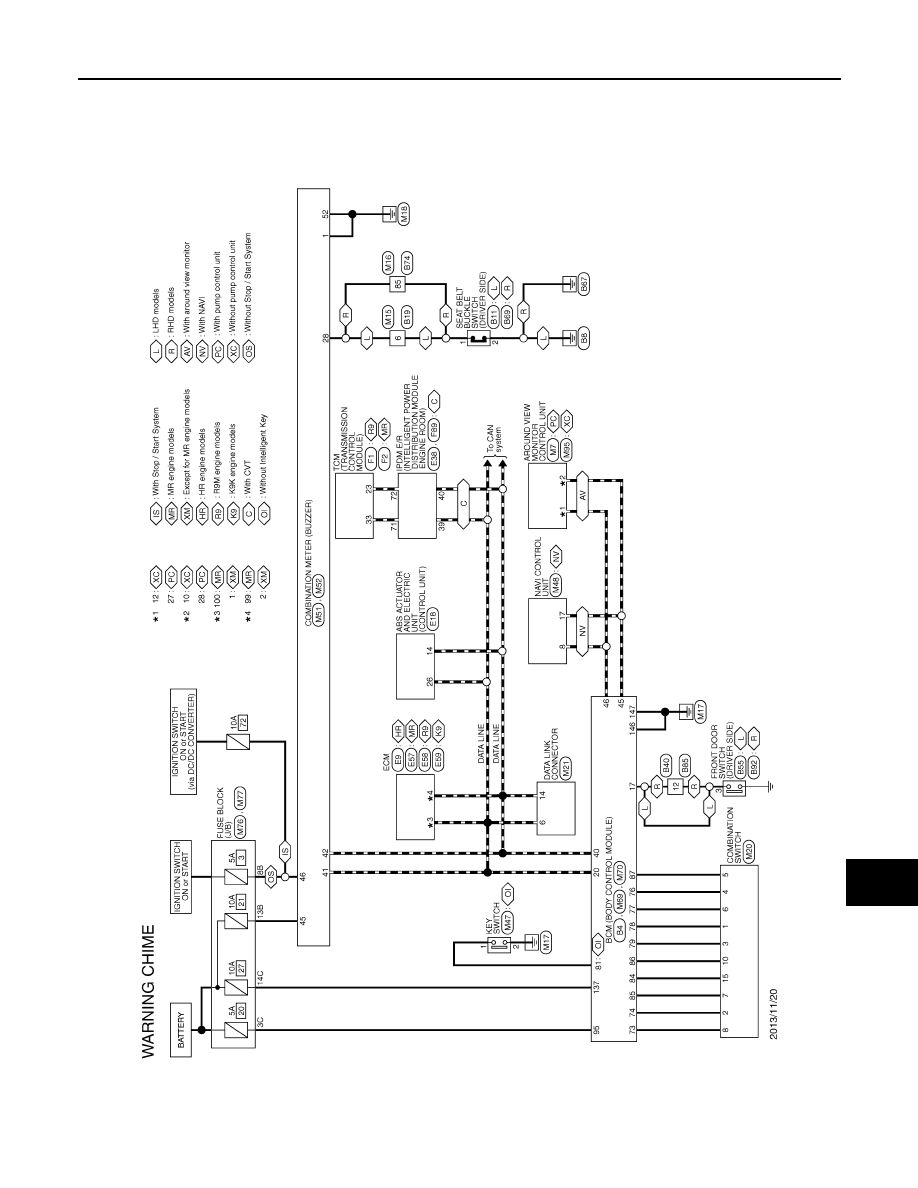

Buzzer
Turned off by suspending communication.
Information dis-
play
Trip computer
Current fuel consumption
• When reception time of an abnormal signal is
2 seconds or less, the last received datum is
used for calculation to indicate the result.
• When reception time of an abnormal signal is
more than 2 seconds, the last result calculat-
ed during normal condition is indicated.
Average fuel consumption
Average vehicle speed
Range (Distance to empty)
Driving distance
An indicated value is maintained at communica-
tions blackout.
Interrupt indication
Door open warning
The indicator turns OFF by suspending commu-
nication.
Low tire pressure warning
Fuel filler cap warning
Odo/trip meter
An indicated value is maintained at communica-
tions blackout.
Shift position indicator
The indicator turns OFF by suspending commu-
nication.
