Nissan Qashqai J11. Manual - part 2030





MWI-56

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

Work flow

INFOID:0000000010329967

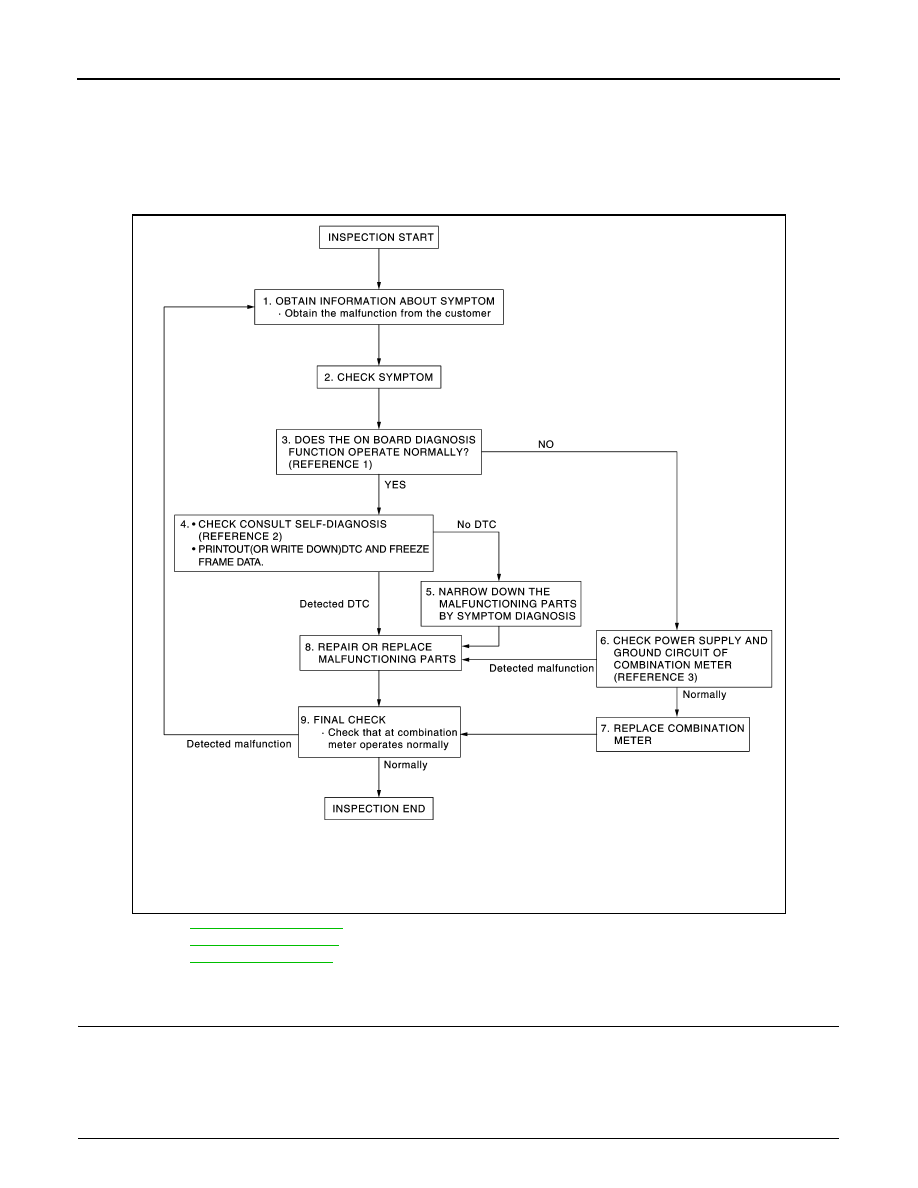

OVERALL SEQUENCE

• Reference 1···

MWI-28, "Description"

.

• Reference 2···

MWI-40, "DTC Index"

.

• Reference 3···

MWI-56, "Work flow"

.

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under
which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

JSNIA4484GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW (METER SYSTEM)

MWI-57

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Check the symptom based on the information obtained from the customer.
• Check that any other malfunctions are present.

>> GO TO 3.

3.

CHECK ON BOARD DIAGNOSIS OPERATION

Check that the on board diagnosis function operates. Refer to

MWI-28, "Description"

Does the on board diagnosis function operate normally?

YES

>> GO TO 4.

NO

>> GO TO 6.

4.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

1.

Connect CONSULT and perform self-diagnosis. Refer to

MWI-40, "DTC Index"

.

2.

When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Are self-diagnosis results normal?

YES

>> GO TO 5.

NO

>> GO TO 8.

5.

NARROW DOWN THE MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 8.

6.

CHECK COMBINATION METER POWER SUPPLY AND GROUND CIRCUITS

Check combination meter power supply and ground circuits. Refer to

MWI-66, "COMBINATION METER :

Diagnosis Procedure"

Is inspection result OK?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

REPLACE COMBINATION METER

Replace combination meter.

>> GO TO 9.

8.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the malfunctioning parts.
NOTE:
If DTC is displayed, erase DTC after repair or replace malfunctioning parts.

>> GO TO 9.

9.

FINAL CHECK

Check that the combination meter operates normally.
Do they operate normally?

YES

>> INSPECTION END

NO

>> GO TO 1.

MWI-58

< DTC/CIRCUIT DIAGNOSIS >

U1000 CAN COMM CIRCUIT

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000010329970

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to

LAN-56, "CAN COMMUNICATION SYSTEM : CAN Communication Signal Chart"

.

DTC Logic

INFOID:0000000010329971

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010329972

1.

PERFORM SELF DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “Self Diagnostic Result” of “METER/M&A”.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-28, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-44, "Intermittent Incident"

.

DTC

Display contents of

CONSULT

Diagnostic item is detected when ...

Probable malfunction location

U1000

CAN COMM CIRCUIT

When combination meter is not transmitting or
receiving CAN communication signal for 2 sec-
onds or more.

CAN communication system

MWI

U1010 CONTROL UNIT (CAN)

MWI-59

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000010329973

Initial diagnosis of combination meter.

DTC Logic

INFOID:0000000010329974

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010329975

1.

REPLACE COMBINATION METER

When DTC “U1010” is detected, replace combination meter.

>> INSPECTION END

DTC

Display contents of CON-

SULT

Diagnostic item is detected when ...

Probable malfunction location

U1010

CONTROL UNIT (CAN)

Any malfunction is detected during initial diagno-
sis of combination meter CAN controller.

Combination meter
