PG-108

< WIRING DIAGRAM >

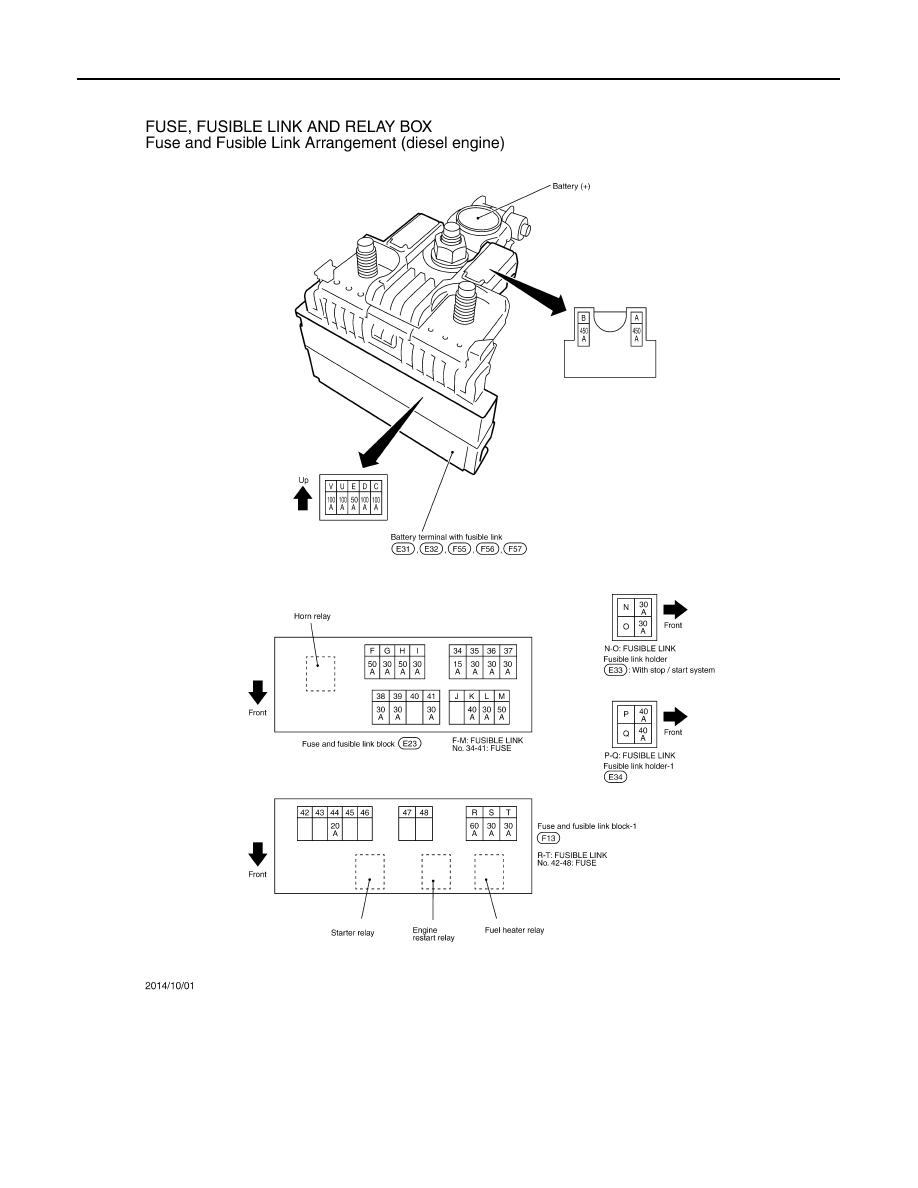

FUSE, FUSIBLE LINK AND RELAY BOX

Fuse and Fusible Link Arrangement (Diesel Engine)

INFOID:0000000010519113

JRMWG7486GB

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-109

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

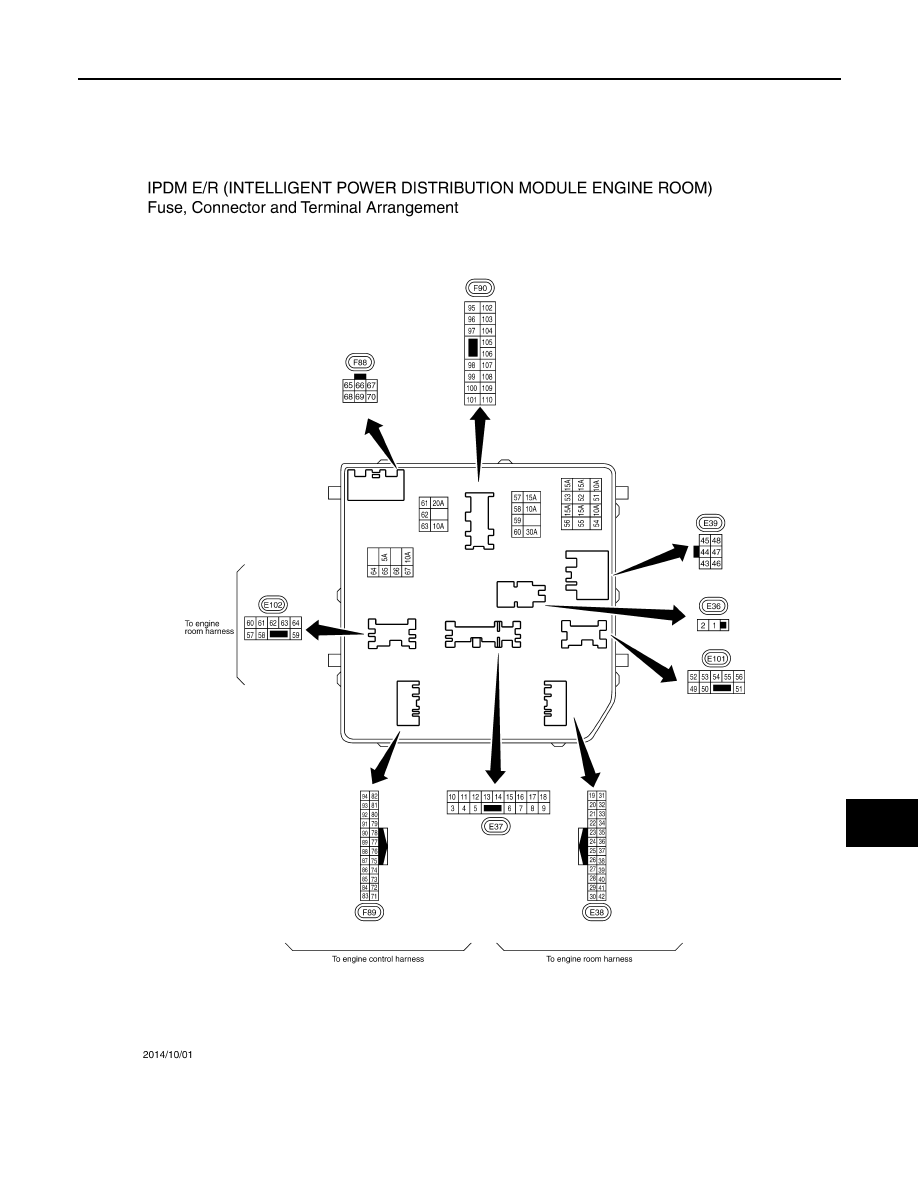

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Fuse, Connector and Terminal Arrangement

INFOID:0000000010464081

JRMWG7487GB

PG-110

< WIRING DIAGRAM >

HARNESS LAYOUT

HARNESS LAYOUT

LHD

LHD : Outline

INFOID:0000000010464082

JRMIC5449GB

PG

HARNESS LAYOUT

PG-111

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

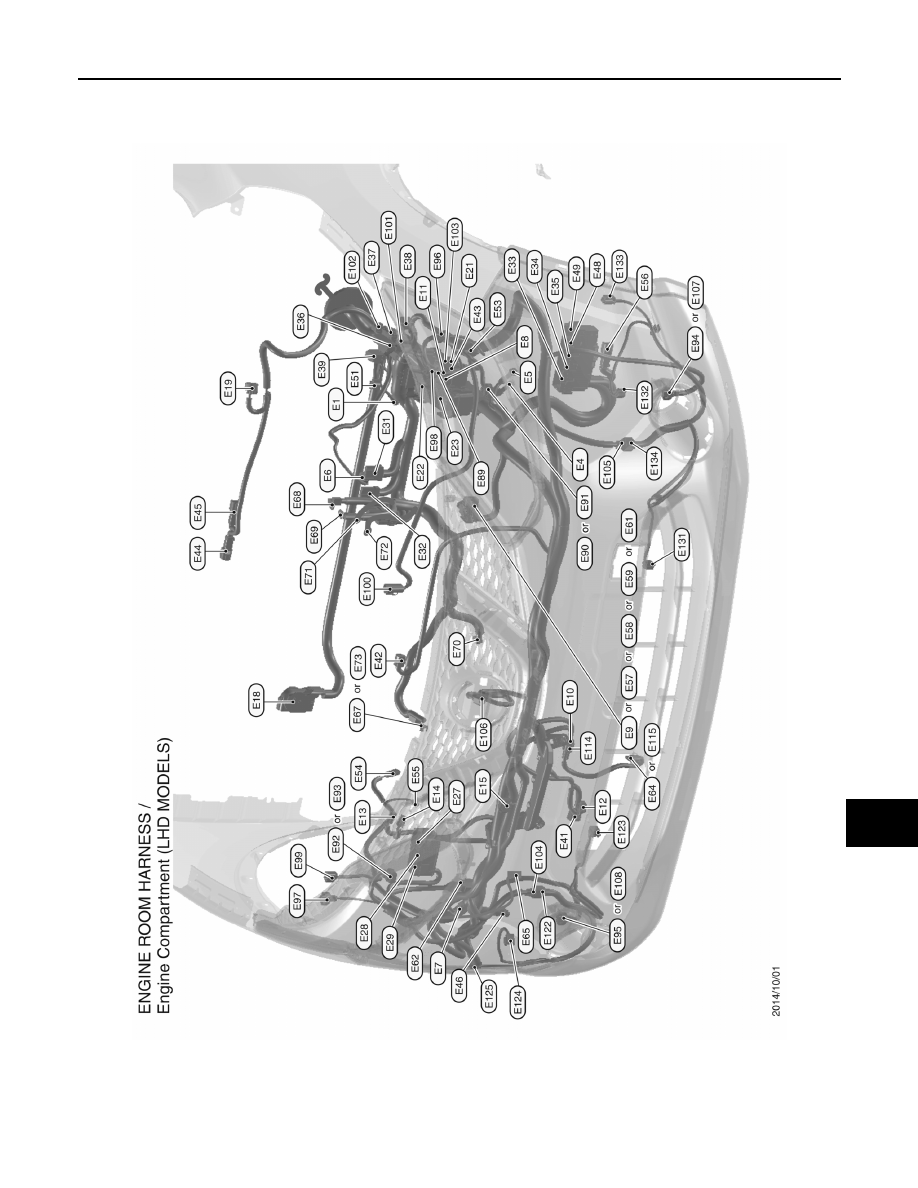

LHD : Engine Room Harness

INFOID:0000000010464083

ENGINE COMPARTMENT

JRMIC5450GB
