Nissan Qashqai J11. Manual - part 1998

PG-84

< WIRING DIAGRAM >

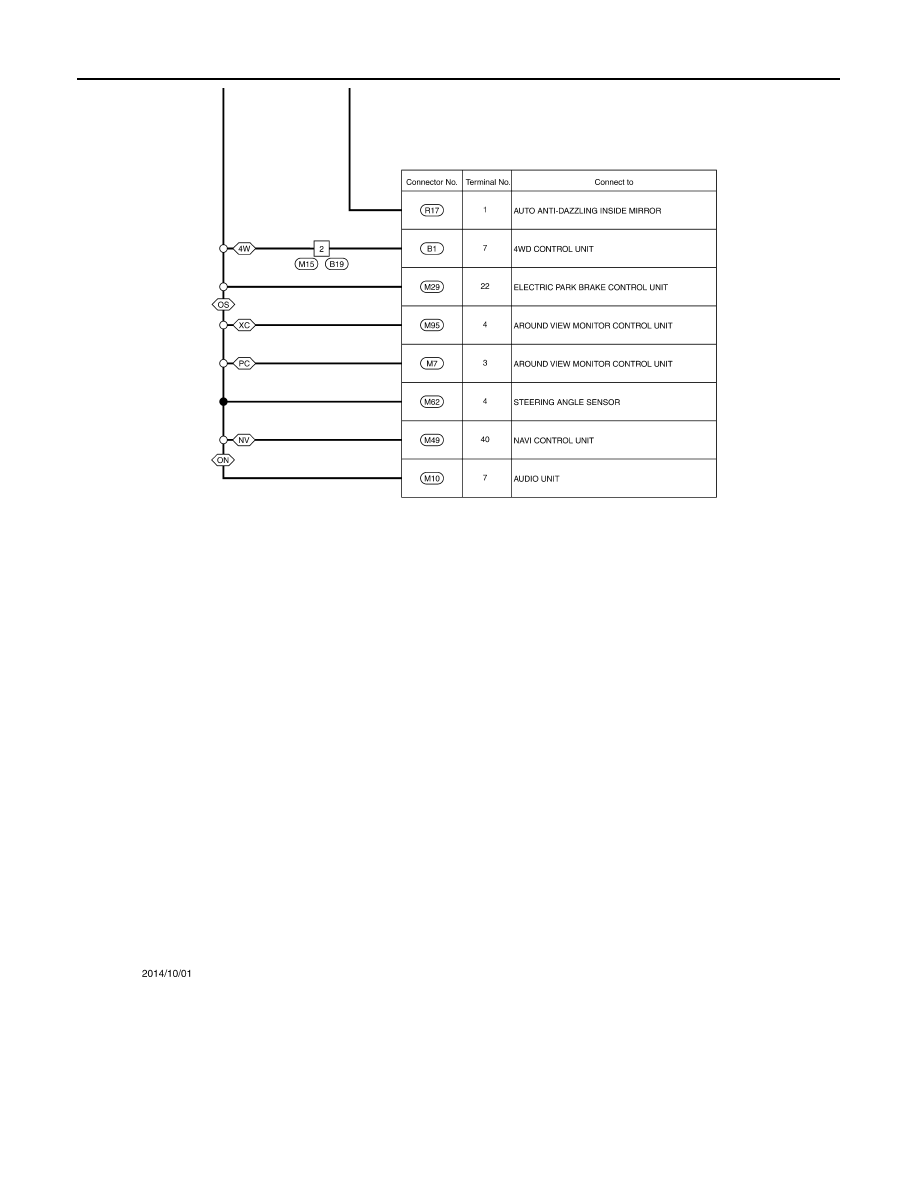

POWER SUPPLY ROUTING CIRCUIT

JRMWG7480GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-85

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

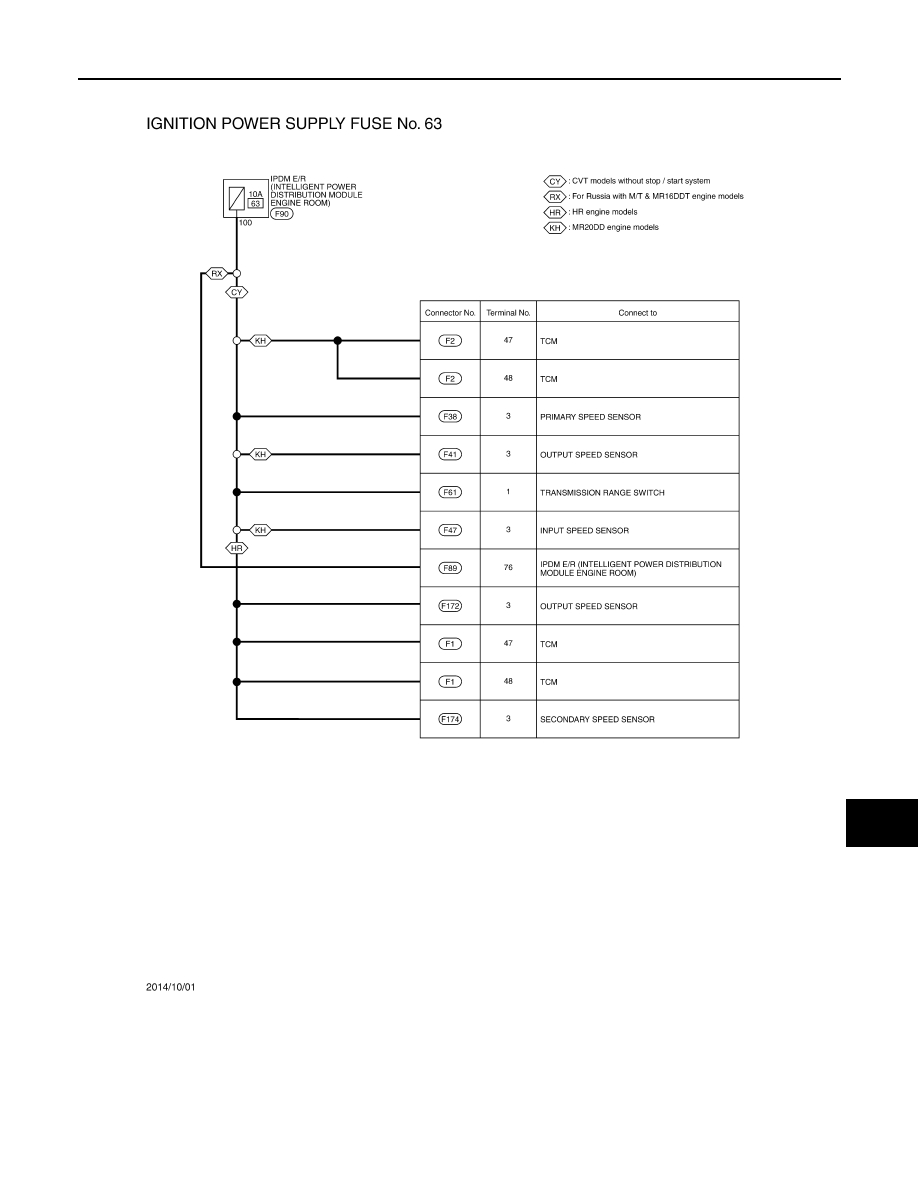

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 63 -

INFOID:0000000010464072

JRMWG7481GB

PG-86

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

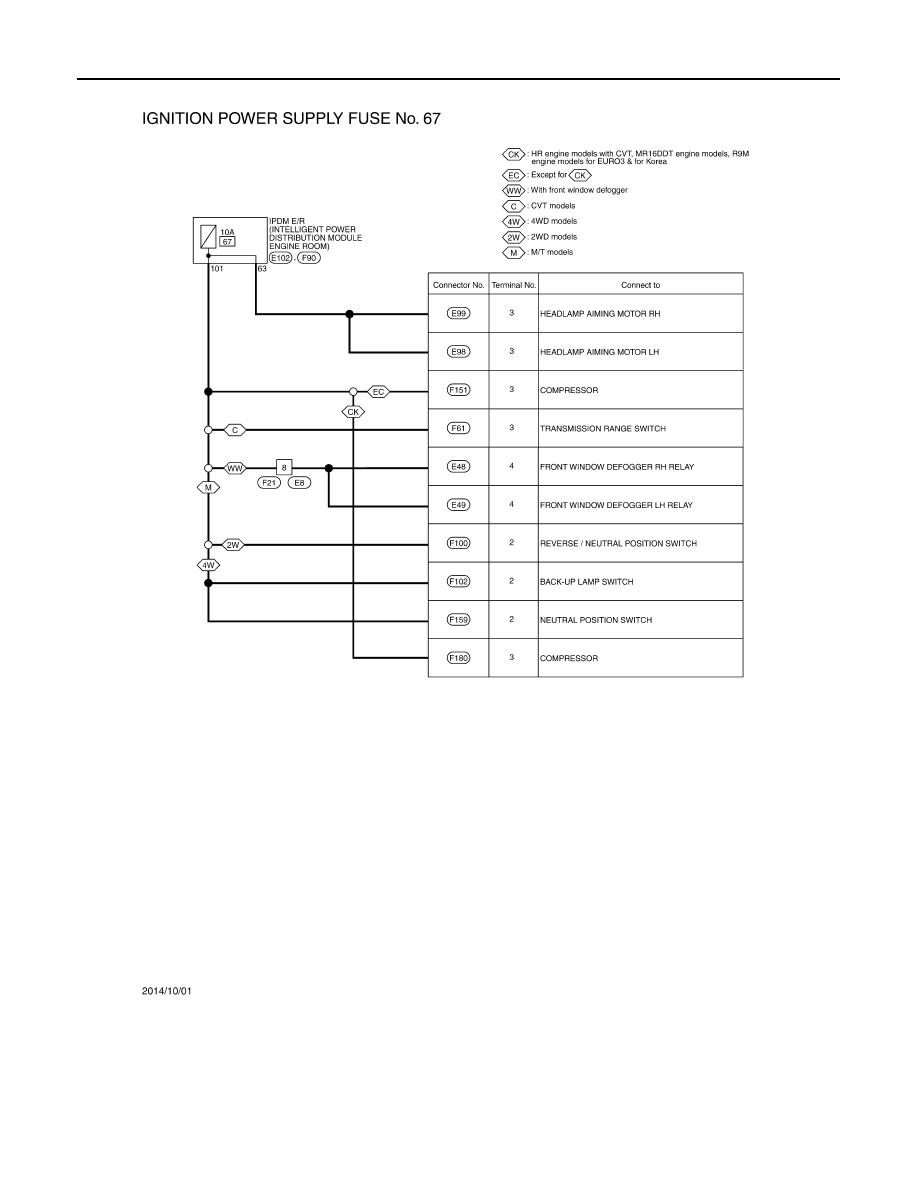

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 67 -

INFOID:0000000010464073

JRMWG7482GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-87

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

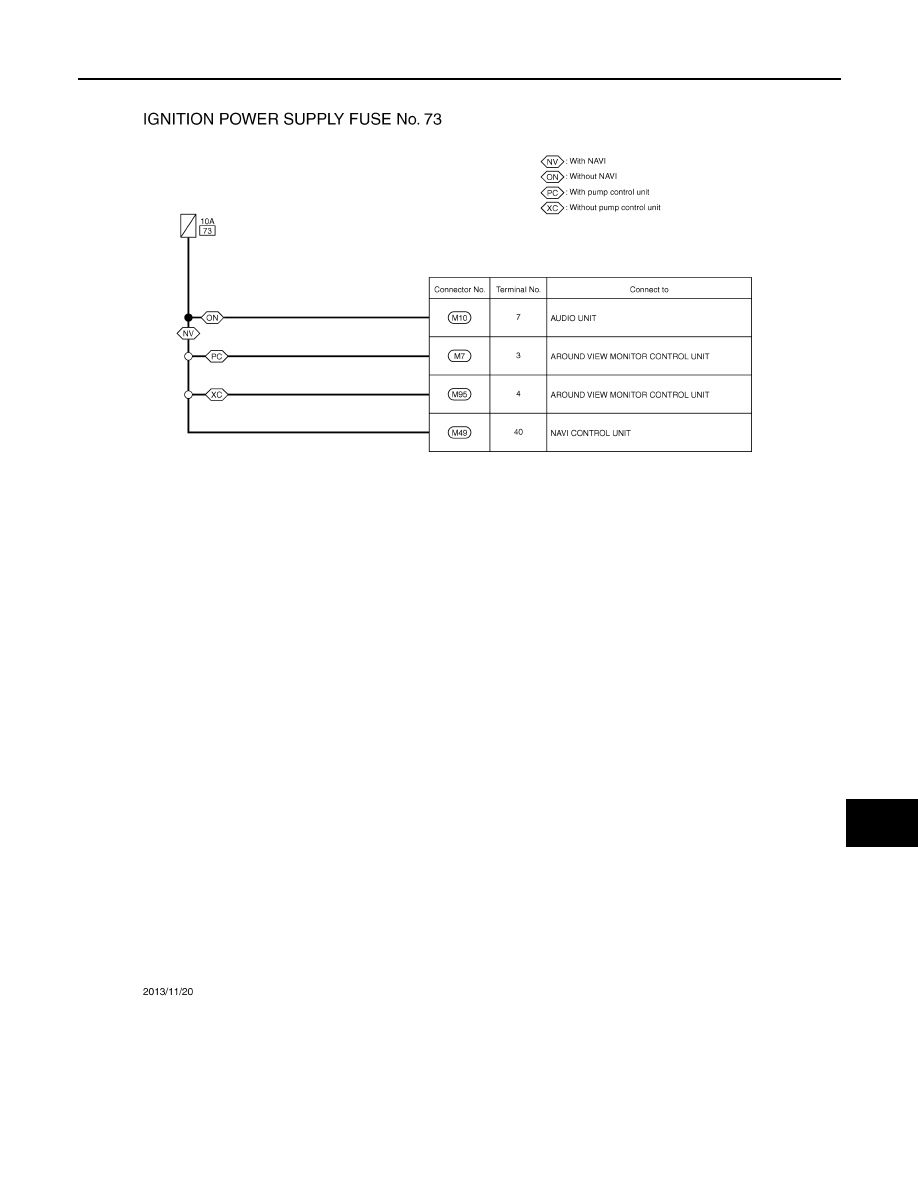

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 73 -

INFOID:0000000010464074

JRMWE9313GB
