< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

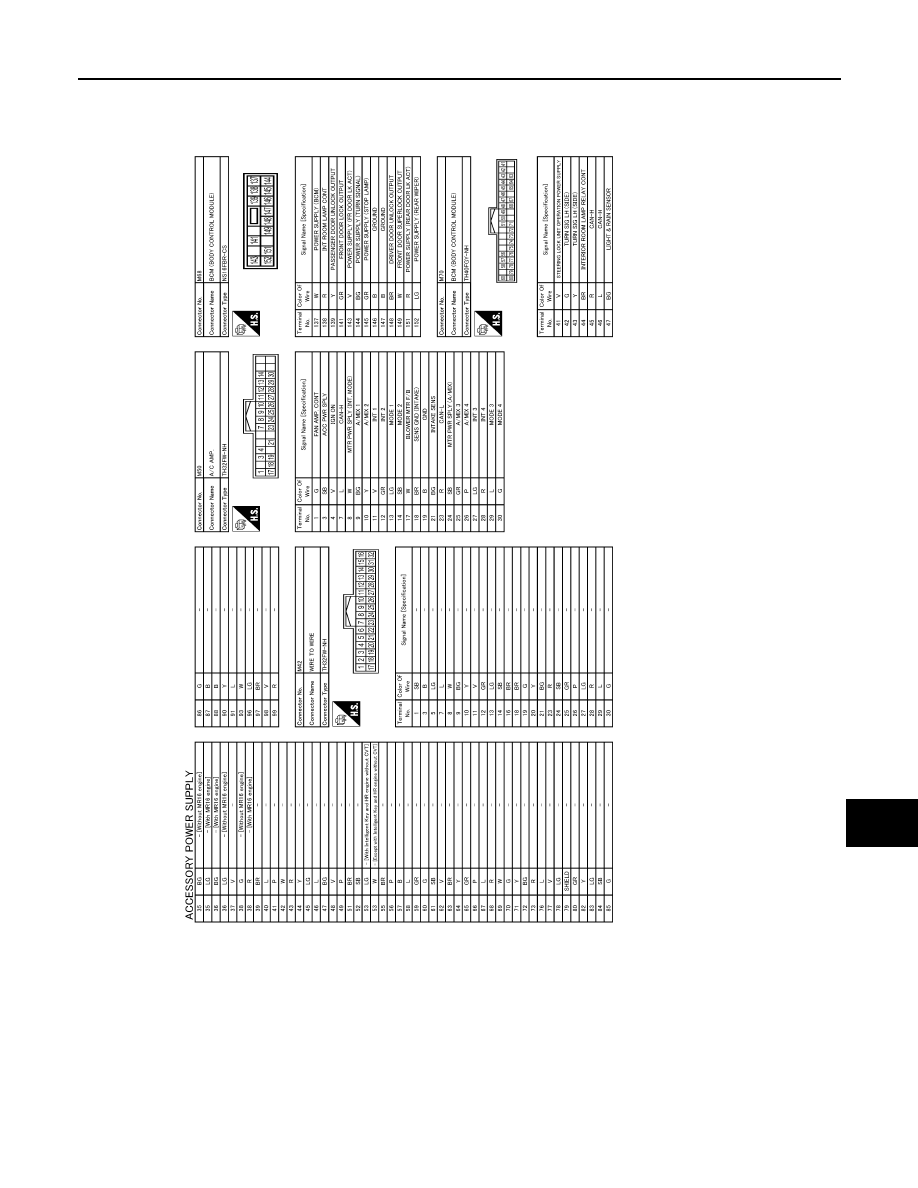

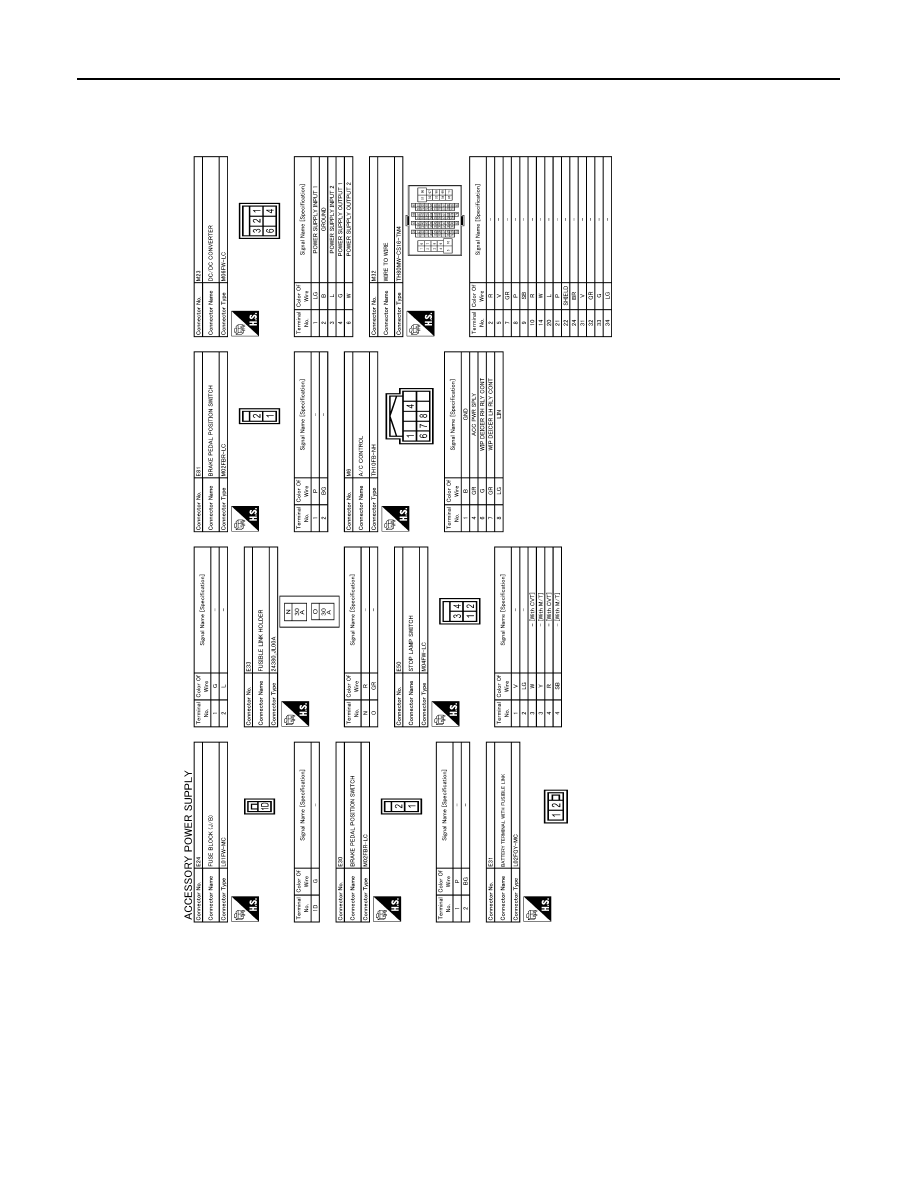

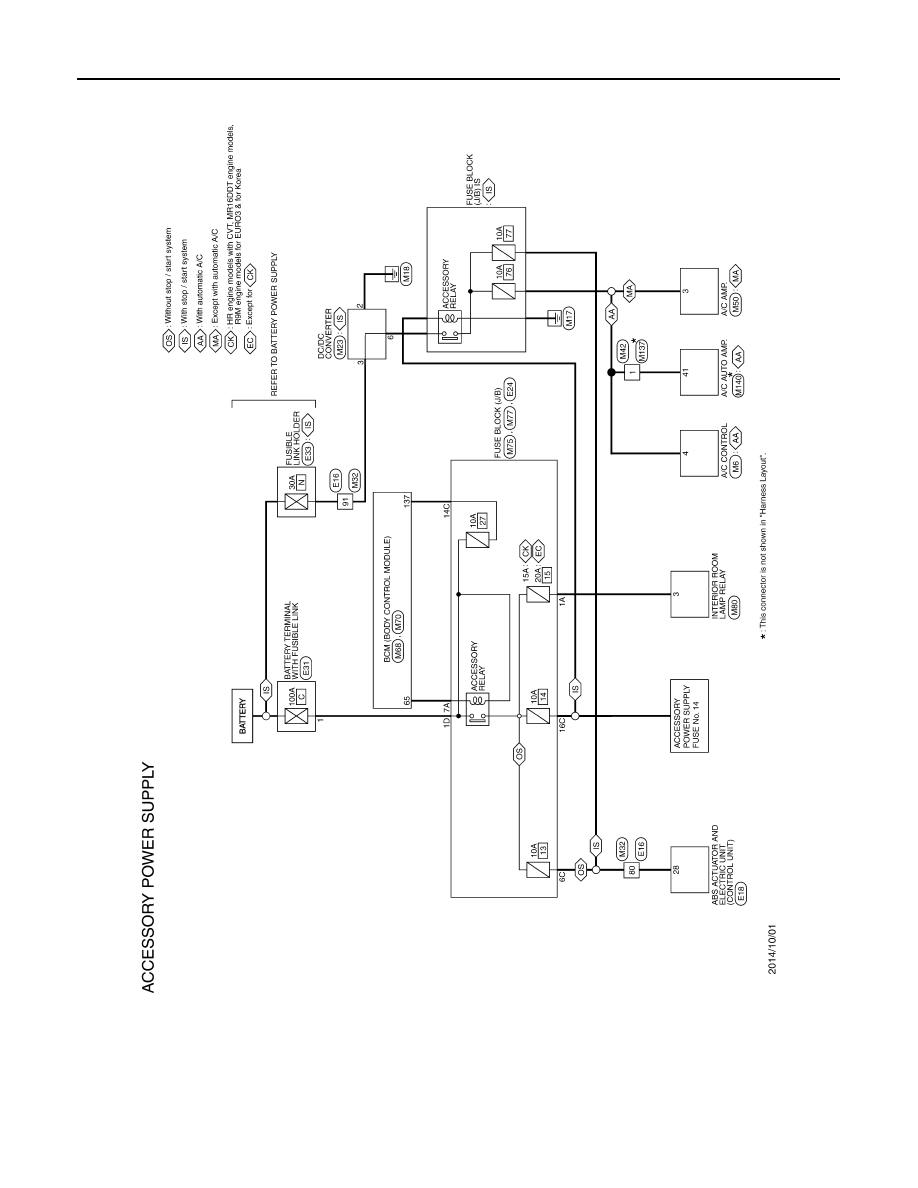

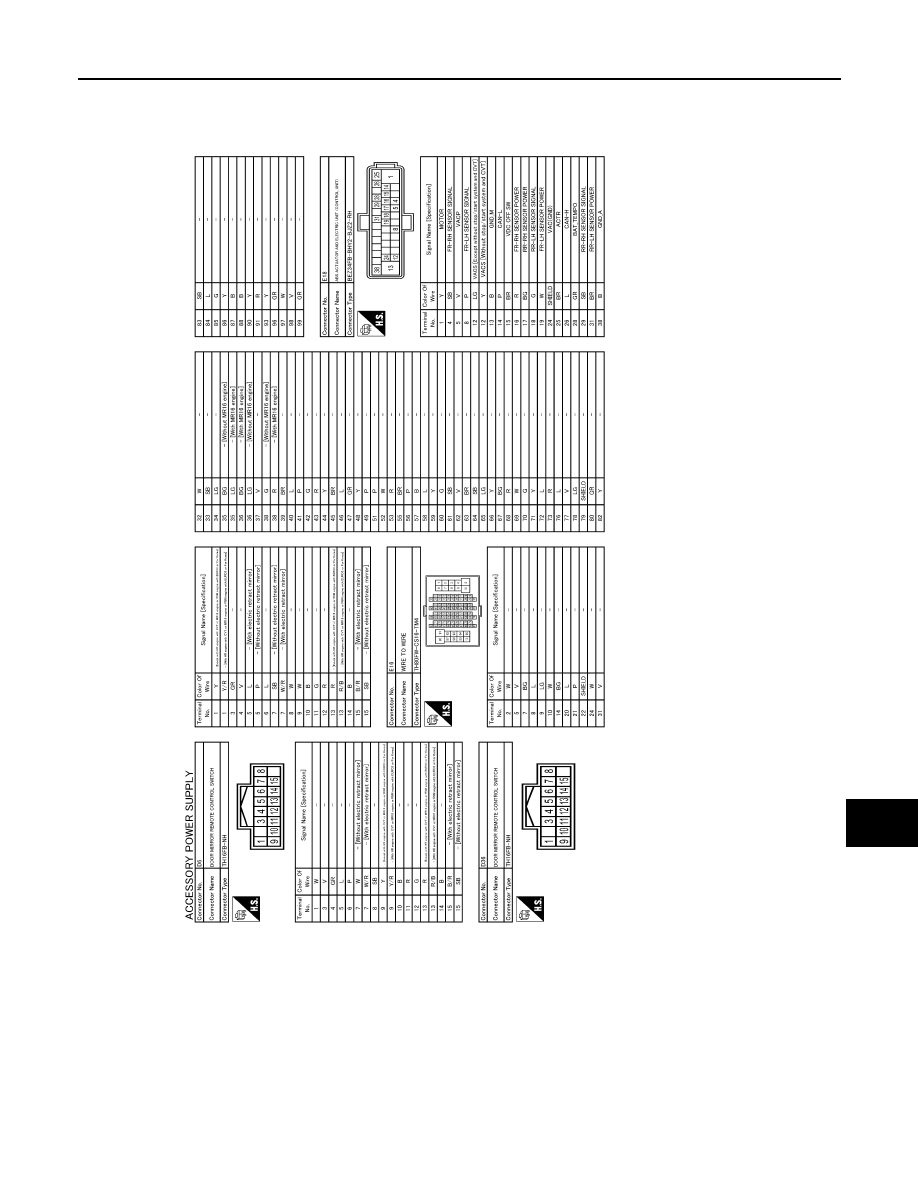

Wiring Diagram - ACCESSORY POWER SUPPLY -

INFOID:0000000010464068

JRMWG7449GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-53

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWG7450GB

PG-54

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

JRMWG7451GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-55

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWG7452GB
