ECH-94

< WIRING DIAGRAM >

[HRA2DDT]

ENGINE CONTROL SYSTEM

JRBWC6091GB

ENGINE CONTROL SYSTEM

ECH-95

< WIRING DIAGRAM >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

JRBWC6092GB

ECH-96

< BASIC INSPECTION >

[HRA2DDT]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010379040

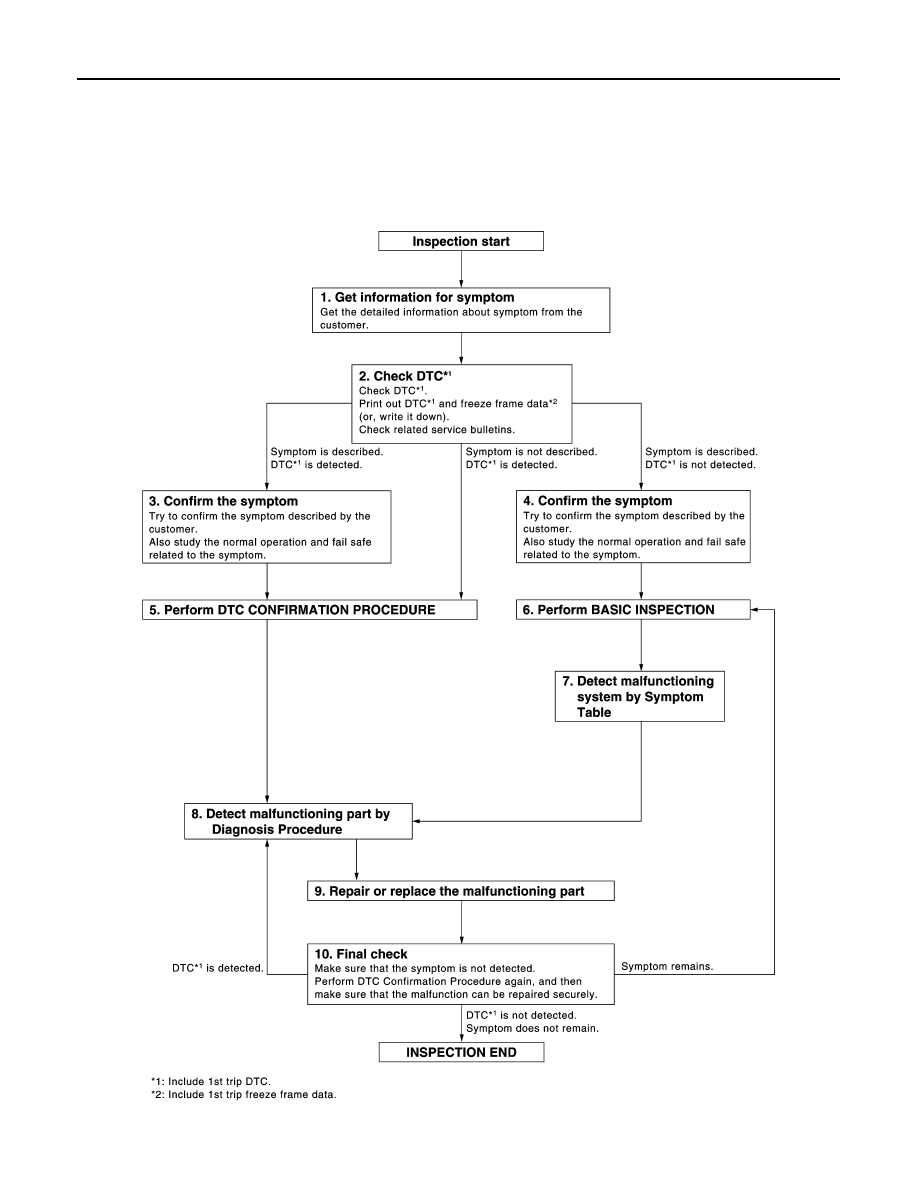

OVERALL SEQUENCE

DETAILED FLOW

JSBIA1953GB

DIAGNOSIS AND REPAIR WORKFLOW

ECH-97

< BASIC INSPECTION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to

ECH-98, "Diagnostic Work

Sheet"

.)

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data. (Print them out with CONSULT or GST.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.
(Symptom Table is useful. Refer to

ECH-303, "Symptom Table"

.)

3.

Check related service bulletins for information.

Is any symptom described and is any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer (except MIL ON).
Diagnostic Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Diagnostic Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then make sure that DTC is
detected again.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 10.

NO

>> Check according to

GI-41, "Intermittent Incident"

.

6.

PERFORM BASIC INSPECTION

Perform basic inspection. Perform

ECH-100, "Work Procedure"

.

>> GO TO 7.

7.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

ECH-303, "Symptom Table"

 based on the confirmed symptom in

step 4, and determine the trouble diagnosis order based on possible causes and symptom.
