CHG

B20BD BATTERY CURRENT SENSOR

CHG-19

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-67, "Removal and Installation"

.

NO

>> Repair or replace harness.

6.

CHECK BATTERY CURRENT INPUT SIGNAL CIRCUIT 1

1.

Disconnect IPDM E/R connector.

2.

Check the continuity between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair or replace harness.

7.

CHECK BATTERY CURRENT INPUT SIGNAL CIRCUIT 2

1.

Turn ignition switch OFF.

2.

Disconnect battery current sensor connector.

3.

Check the voltage between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair or replace harness.

8.

CHECK BATTERY NEGATIVE TERMINAL CONNECTION

Check if battery negative terminal is clean and tight.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair battery negative terminal connection.

9.

CHECK BATTERY CURRENT INPUT SIGNAL CIRCUIT 3

1.

Turn ignition switch OFF.

2.

Disconnect battery current sensor connector and IPDM E/R connector.

3.

Check the continuity between battery current sensor harness connector and IPDM E/R harness connec-
tor.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair or replace harness.

10.

CHECK BATTERY CURRENT SENSOR

Refer to

CHG-20, "Component Inspection"

.

Battery current sensor

—

Continuity

Connector

Terminal

F138

2

Ground

Not existed

Battery current sensor

—

Continuity

Connector

Terminal

F138

1

Ground

Not existed

(+)

(-)

Voltage (V)

Battery current sensor

Connector

Terminal

F138

1

Ground

0

Battery current sensor

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

F138

1

F89

81

Existed

CHG-20

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

B20BD BATTERY CURRENT SENSOR

Is the inspection result normal?

YES

>> Refer to

GI-41, "Intermittent Incident"

. If the inspection result of the connector is normal then

replace IPDM E/R. Refer to

PCS-67, "Removal and Installation"

.

NO

>> Replace battery current sensor.

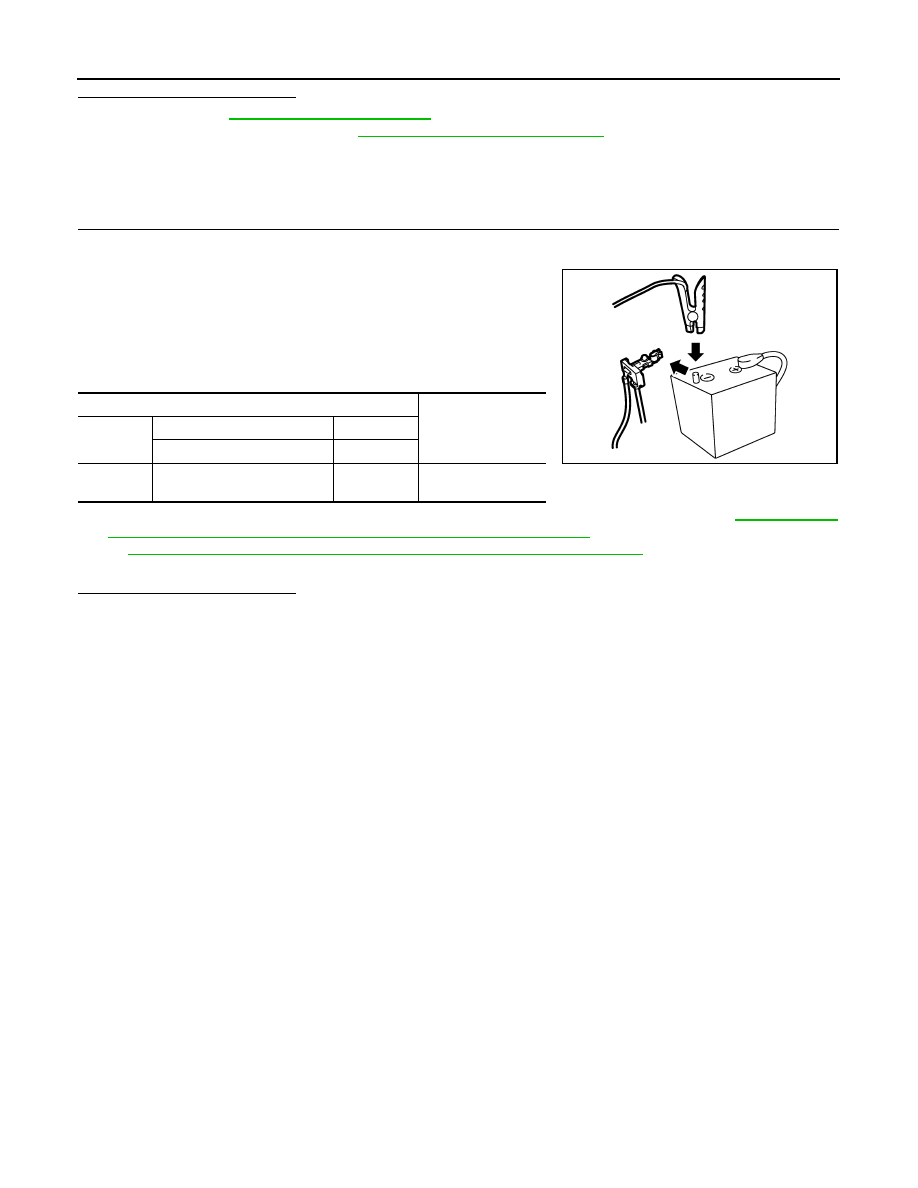

Component Inspection

INFOID:0000000010463836

1.

CHECK BATTERY CURRENT SENSOR

1.

Turn ignition switch OFF.

2.

Reconnect connector which is disconnected

3.

Disconnect battery negative cable.

4.

Install jumper cable between battery negative terminal and body
ground.

5.

Turn ignition switch ON.

6.

Check the voltage between IPDM E/R harness connector termi-
nals as per the following.

Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-138, "FOR

MAINTENANCE REQUIRED BATTERY MODELS : Work Procedure"

 (For maintenance required battery)

or

PG-143, "FOR MAINTENANCE FREE BATTERY MODELS : Work Flow"

 (For maintenance free bat-

tery).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace battery current sensor.

IPDM E/R

Voltage (V)

Connector

+

–

Terminal

Terminal

F89

81

(Battery current sensor signal)

80

Approx. 2.5

JPBIA3287ZZ

CHG

B20BE BATTERY TEMPERATURE SENSOR

CHG-21

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B20BE BATTERY TEMPERATURE SENSOR

DTC Description

INFOID:0000000010468656

DTC DETECTION LOGIC

POSSIBLE CAUSE

[CIRC SHORT TO GRND]

• Harness or connectors
- Battery current sensor input signal (Temperature) circuit is shorted (Ground)
- Battery current sensor power circuit is open
• Battery current sensor

[CIRC SHORT TO BATTERY]

• Harness or connectors
- Battery current sensor input signal (Temperature) circuit is shorted (Power)
- Battery current sensor input signal (Temperature) circuit is open
• Battery current sensor

FAIL-SAFE

—

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK

1.

Turn ignition ON, and wait for 5 seconds or more.

2.

Perform “Self Diagnostic Result” mode of “IPDM E/R” using CONSULT.

Is the inspection result normal?

YES-1 >> To check malfunction symptom before repair: Refer to

GI-41, "Intermittent Incident"

.

YES-2 >> Confirmation after repair: INSPECTION END
NO

>> Proceed to

CHG-21, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000010468657

1.

CHECK DTC

Perform each inspection according to the displayed DTC.
Which DTC is displayed?

[CIRC SHORT TO GRND]>>GO TO 2.
[CIRC SHORT TO BATTERY OR OPEN]>>GO TO 7.

2.

CHECK BATTERY CURRENT SENSOR POWER

1.

Turn ignition switch OFF.

2.

Disconnect battery current sensor connector.

3.

Turn ignition switch ON.

4.

Check the voltage between battery current sensor harness connector and ground.

DTC

No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

B20BE

TEMP SENSOR
(Temperature sensor)

[CIRC SHORT TO GRND]

An excessively low voltage from the sensor is sent to IPDM
E/R.

[CIRC SHORT TO BATTERY
OR OPEN]

An excessively high voltage from the sensor is sent to IPDM
E/R.

(+)

(-)

Voltage (V)

Battery current sensor

Connector

Terminal

F138

4

Ground

Approx. 5

CHG-22

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

B20BE BATTERY TEMPERATURE SENSOR

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK BATTERY CURRENT SENSOR POWER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check the continuity between battery current sensor harness connector and IPDM E/R harness connec-
tor.

4.

Check the continuity between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-67, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK BATTERY CURRENT SENSOR GROUND

1.

Turn ignition switch OFF.

2.

Check the continuity between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check the continuity between battery current sensor harness connector and IPDM E/R harness connec-
tor.

3.

Check the continuity between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-67, "Removal and Installation"

.

NO

>> Repair or replace harness.

6.

CHECK BATTERY TEMPERATURE INPUT SIGNAL CIRCUIT 1

1.

Disconnect IPDM E/R connector.

Battery current sensor

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

F138

4

F89

79

Existed

Battery current sensor

—

Continuity

Connector

Terminal

F138

4

Ground

Not existed

Battery current sensor

—

Continuity

Connector

Terminal

F138

2

Ground

Existed

Battery current sensor

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

F138

2

F89

80

Existed

Battery current sensor

—

Continuity

Connector

Terminal

F138

2

Ground

Not existed
