Nissan Qashqai J11. Manual - part 1943

PCS-44

< WIRING DIAGRAM >

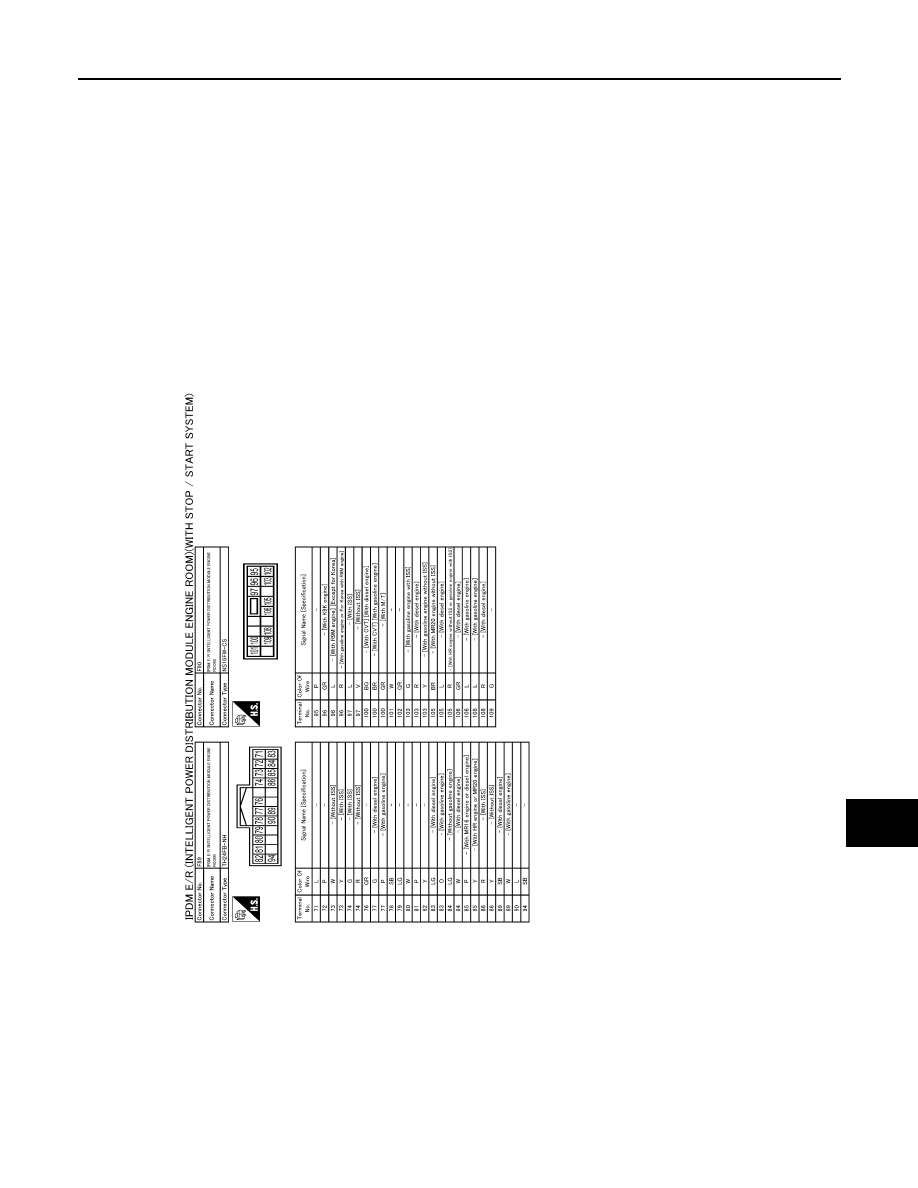

[IPDM E/R]

IPDM E/R

JRMWG7371GB

PCS

IPDM E/R

PCS-45

< WIRING DIAGRAM >

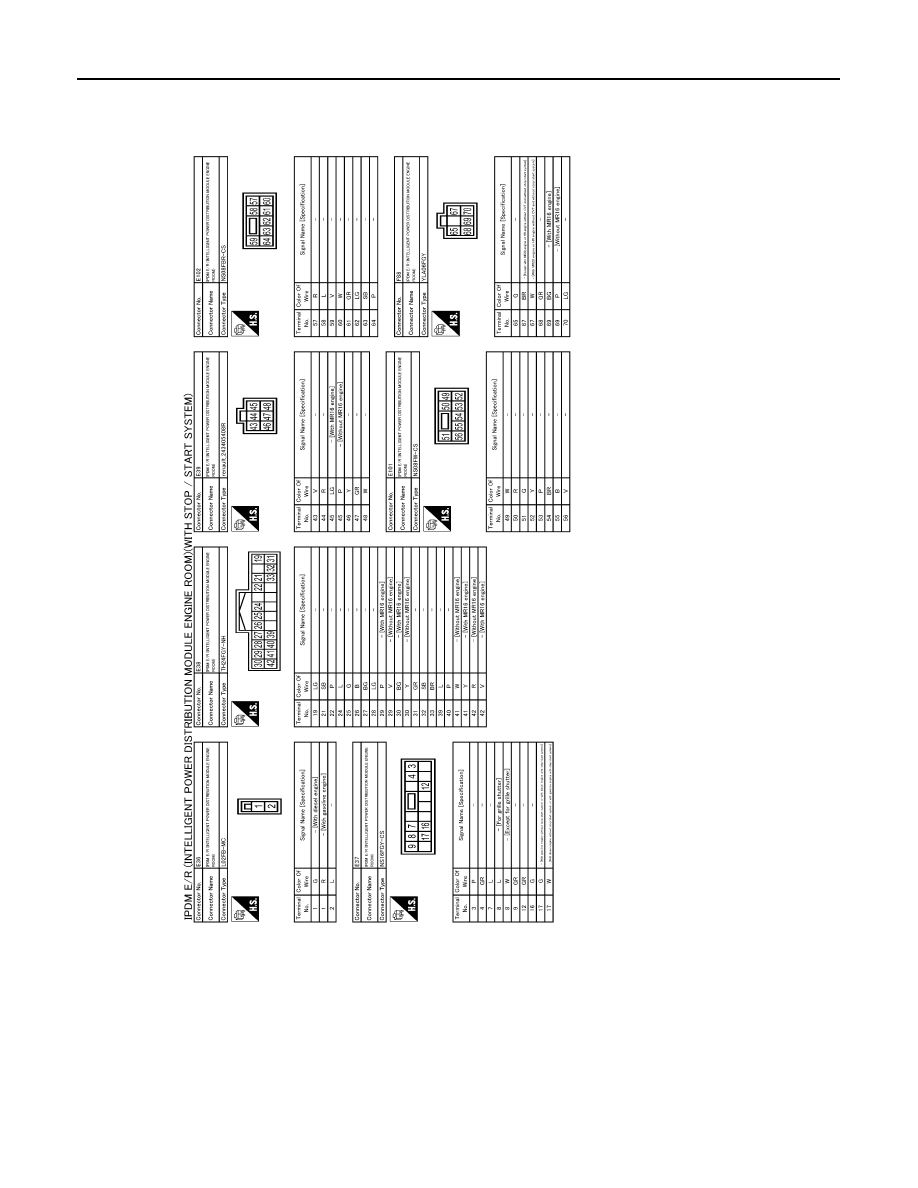

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWG7372GB

PCS-46

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

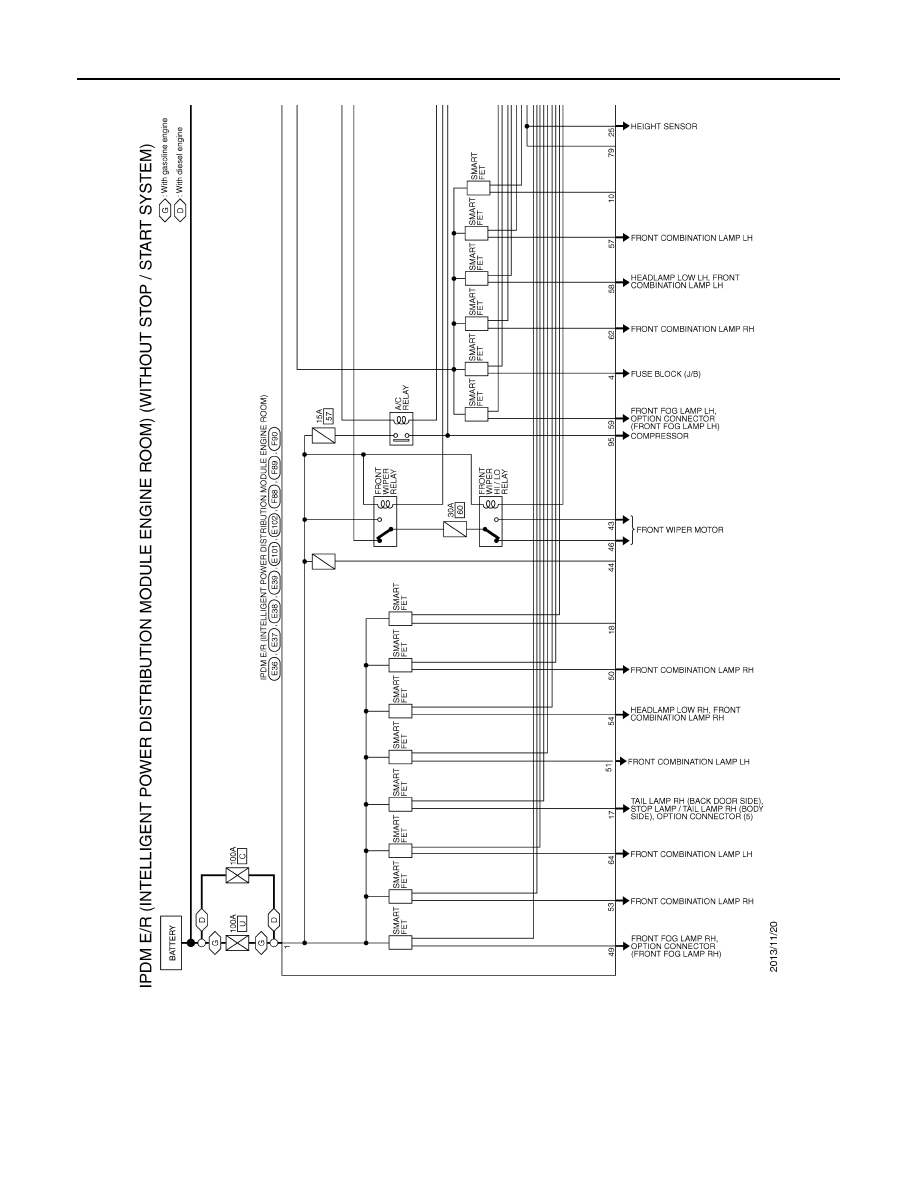

Wiring Diagram (Without Stop/Start System)

INFOID:0000000010502664

JRMWE9277GB

PCS

IPDM E/R

PCS-47

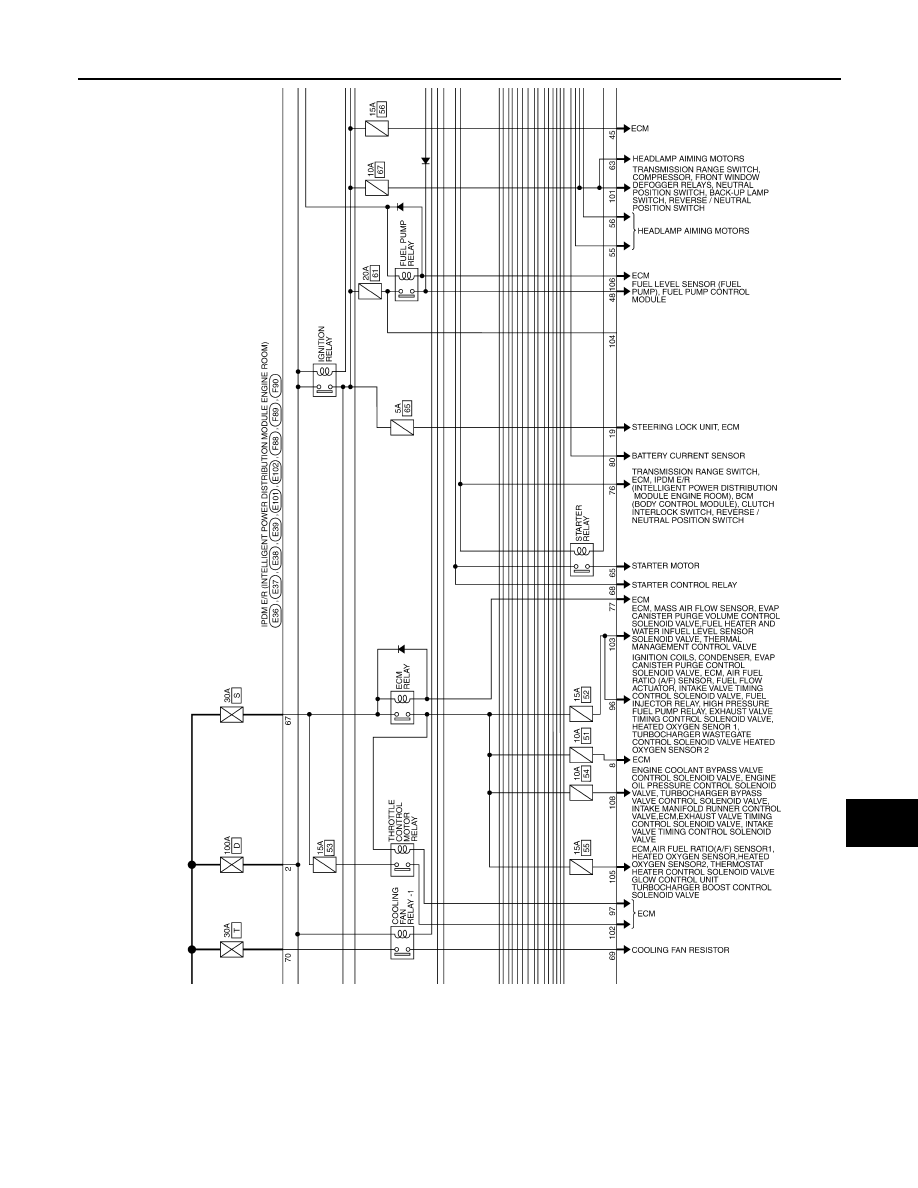

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWG7374GB
