DIAGNOSIS SYSTEM (ECM)

CANISTER DRAIN
VALVE COMMAND
(CONTI)

—

—

—

AUTO STOP START

• Engine: After warming up, run en-

gine at idle.

• Gear position: Neutral
• Stop/Start OFF switch: ON (indi-

cator lamp is ON)

CAUTION:

Be careful so that a hood opera-
tions in the opened state when
carry out the work.
NOTE:
Before performing this test, be sure
to check that OK is displayed on
BATTERY STATUS in DATA MONI-
TOR of IPDM E/R because this func-
tion may not be operate when the
battery condition is not satisfied.

Stop/Start system operates nor-
mally. (Engine stop/Restart)

Stop/Start system component parts

TEST ITEM

CONDITION

JUDGMENT

CHECK ITEM (REMEDY)

ECM

ECH-59

< ECU DIAGNOSIS INFORMATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

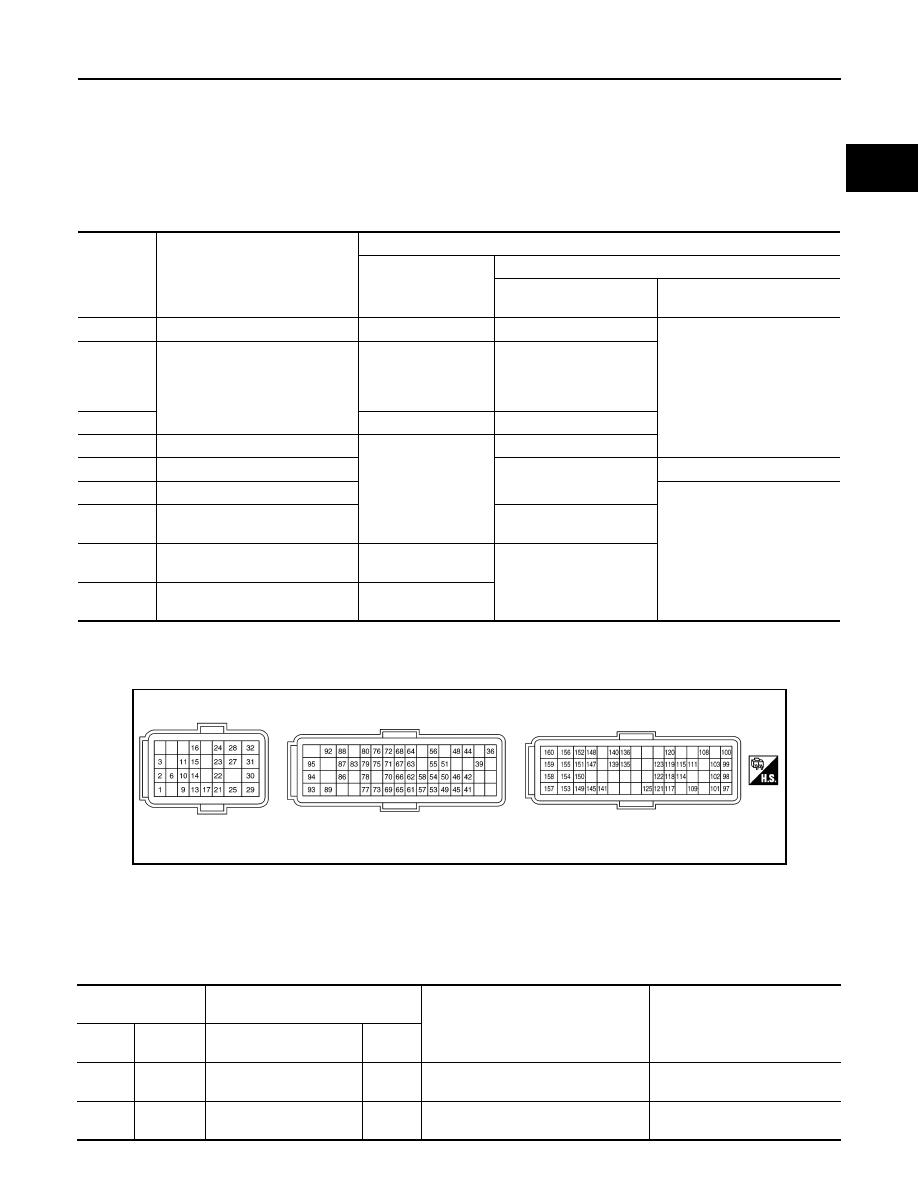

ECU DIAGNOSIS INFORMATION

ECM

Fail-safe

INFOID:0000000010700938

STOP/START SYSTEM

Reference Value

INFOID:0000000010379037

TERMINAL LAYOUT

PHYSICAL VALUES

NOTE:
Pulse signal is measured by CONSULT.

DTC No.

Detected items

Stop/start system operating condition in fail safe mode

Idling or driving the

vehicle

Stop/start system operating

Stop

During cranking

(Restart)

U0298

Engine communication line

—

—

Prohibit the stop/start system
operation from the next time

B1900
B1901
B1902
B1903

DC/DC converter

Prohibit the stop/start
system operation

Restart the engine

B1904

—

—

P0120

TP sensor

Prohibit the stop/start
system operation

Restart the engine

P0833

CPP switch

—

—

P1512

Starter motor

Prohibit the stop/start system
operation from the next time

P1650

Starter motor relay2

Restart the engine or stall
the engine

P1655
P1656

Engine restart bypass relay

—

—

P2100

Electric throttle control function

Prohibit the stop/start
system operation

JSBIA5035GB

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/

Output

1

(L)

—

CAN communication line
(CAN-H)

Input/

Output

—

—

2

(P)

—

CAN communication line
(CAN-L)

Input/

Output

—

—

ECH-60

< ECU DIAGNOSIS INFORMATION >

[HRA2DDT]

ECM

3

(SB)

29

(B)

ASCD MAIN switch

Input

[Ignition switch: ON]
ASCD MAIN switch: OFF

0 V

[Ignition switch: ON]
ASCD MAIN switch: ON

Battery voltage

(11 - 14 V)

6

(V)

29

(B)

Clutch interlock switch

Input

[Ignition switch: ON]
• Engine stopped
• Clutch pedal: Fully released

0 V

[Ignition switch: ON]
• Engine stopped
• Clutch pedal: Fully depressed

11.81 V

9

(R)

29

(B)

Clutch pedal position
switch

Input

[Ignition switch: ON]
• Clutch pedal: Fully released

0 V

[Ignition switch: ON]
• Clutch pedal: Fully depressed

Battery voltage

(11 - 14 V)

10

(V)

29

(B)

Speed limiter MAIN
switch

Input

[Ignition switch: ON]
Speed limiter MAIN switch: OFF

0 V

[Ignition switch: ON]
Speed limiter MAIN switch: ON

Battery voltage

(11 - 14 V)

14

(BR)

—

Sensor ground
(ASCD steering switch)

—

—

—

15

(G)

14

(BR)

ASCD steering switch

Input

[Ignition switch: ON]
• ASCD steering switch: OFF

4 V

[Ignition switch: ON]
• CANCEL switch: Pressed

1 V

[Ignition switch: ON]
• RES/+ switch: Pressed

3 V

[Ignition switch: ON]
• SET/

−

 switch: Pressed

2 V

16

(LG)

29

(B)

Ignition switch

Input

[Ignition switch: ON]

Battery voltage

(11 - 14 V)

17

(BG)

29

(B)

Stop lamp switch

Input

[Ignition switch: OFF]
• Brake pedal: Fully released

0 V

[Ignition switch: OFF]
• Brake pedal: Slightly depressed

Battery voltage

(11 - 14 V)

21

(Y)

—

Sensor ground
(Accelerator pedal posi-
tion sensor 2)

—

—

—

22

(W)

21

(Y)

Accelerator pedal posi-
tion sensor 2

Input

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released

0.38 V

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed

2.28 V

23

(BG)

—

Sensor power supply
(Accelerator pedal posi-
tion sensor 2)

—

[Ignition switch: ON]

5 V

25

(B)

—

ECM ground

—

—

—

27

(V)

—

Sensor power supply
(Accelerator pedal posi-
tion sensor 1)

—

[Ignition switch: ON]

5 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/

Output

ECM

ECH-61

< ECU DIAGNOSIS INFORMATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

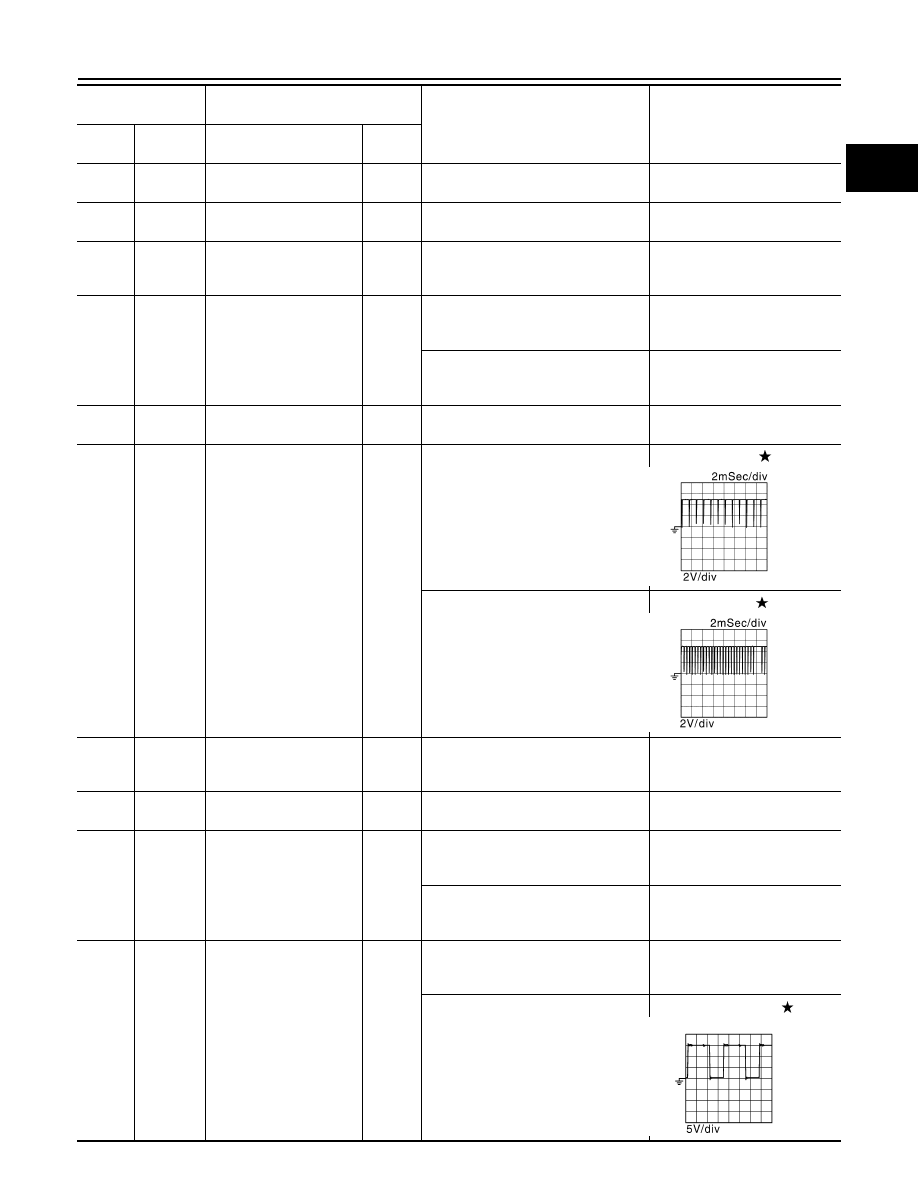

28

(G)

—

Power supply for ECM

Input

[Ignition switch: ON]

Battery voltage

(11 - 14 V)

29

(B)

—

ECM ground

—

—

—

30

(GR)

—

Sensor ground
(Accelerator pedal posi-
tion sensor 1)

—

—

—

31

(R)

30

(GR)

Accelerator pedal posi-
tion sensor 1

Input

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released

0.74 V

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed

4.55 V

32

(B)

—

ECM ground

—

—

—

35

(R)

37

(B)

Crankshaft position sen-
sor (POS)

Input

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes depending
on rpm at idle

4.72 V

[Engine is running]
• Engine speed: 2,000 rpm

4.4 V

37

(B)

—

Sensor ground
(Crankshaft position sen-
sor)

—

—

—

38

(W)

42

(B)

Knock sensor

Input

[Engine is running]
• Idle speed

0 V

39

(Y)

29

(B)

Engine restart relay con-
trol signal

Output

[Stop/start system operate]
• While cranking of restart

11.76 V

(While operating the starter mo-

tor)

[Engine is running]
• Warm-up condition
• Idle speed

14.34 V

40

(GR)

29

(B)

Exhaust valve timing con-
trol solenoid valve

Output

[Engine is running]
• Warm-up condition
• Idle speed

14.34 V

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

(8.7 - 14.34 V)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/

Output

JSBIA4747ZZ

JSBIA4748ZZ
