REAR WIPER MOTOR CIRCUIT

REAR WIPER MOTOR CIRCUIT

Diagnosis Procedure

INFOID:0000000010431003

1.

CHECK REAR WIPER MOTOR OUTPUT VOLTAGE

1.

Turn rear wiper switch OFF, and wait for 1 minute or more.

2.

Turn ignition switch OFF.

3.

Disconnect rear wiper motor connector.

4.

Turn ignition switch ON.

5.

With operating rear wiper switch, check voltage between rear wiper motor harness connector and ground.

*: When rear wiper motor connector is disconnected and rear wiper switch is ON for more than 5 seconds,
BCM stops the power supply according to rear wiper motor protection function. To perform the check again,
turn rear wiper switch OFF, wait for 1 minute or more, and then perform the check.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK REAR WIPER MOTOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between BCM harness connector and rear wiper motor harness connector.

4.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-132, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK REAR WIPER MOTOR GROUND OPEN CIRCUIT

Check continuity between rear wiper motor harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear wiper motor.

NO

>> Repair or replace harness.

(+)

(

)

Condition

Voltage

Rear wiper motor

Connector

Terminal

D84

1

Ground

Rear wiper switch

ON

9 – 16 V

(5 seconds*)

BCM

Rear wiper motor

Continuity

Connector

Terminal

Connector

Terminal

B3

123

D84

1

Existed

BCM

Ground

Continuity

Connector

Terminal

B3

123

Not existed

Rear wiper motor

Ground

Continuity

Connector

Terminal

D84

3

Existed

REAR WIPER STOP POSITION SIGNAL CIRCUIT

WW-59

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER STOP POSITION SIGNAL CIRCUIT

Component Function Check

INFOID:0000000010431004

1.

CHECK REAR WIPER STOP POSITION SIGNAL

CONSULT DATA MONITOR

1.

Select “WIPER” of BCM data monitor item.

2.

Operate the rear wiper.

3.

Check that “RR WIPER STOP” changes to “On” and “Off” linked with the wiper operation.

Is the inspection result normal?

YES

>> Rear wiper stop position signal circuit is normal.

NO

>> Refer to

WW-59, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010431005

1.

CHECK REAR WIPER MOTOR (AUTO STOP) OUTPUT VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect rear wiper motor connector.

3.

Turn ignition switch ON.

4.

Check voltage between rear wiper motor harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear wiper motor.

NO

>> GO TO 2.

2.

CHECK REAR WIPER MOTOR (AUTO STOP) CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between BCM harness connector and rear wiper motor harness connector.

4.

Check continuity between rear wiper motor harness connector and ground.

Is the inspection result normal?

Monitor item

Condition

Monitor status

RR WIPER STOP

Rear wiper motor

Stop position

Off

Except stop position

On

(+)

(

)

Voltage

Rear wiper motor

Connector

Terminal

D84

2

Ground

JMMIA1654GB

BCM

Rear wiper motor

Continuity

Connector

Terminal

Connector

Terminal

B4

15

D84

2

Existed

Rear wiper motor

Ground

Continuity

Connector

Terminal

D84

2

Not existed

WW-60

< DTC/CIRCUIT DIAGNOSIS >

REAR WIPER STOP POSITION SIGNAL CIRCUIT

YES

>> Replace BCM. Refer to

BCS-132, "Removal and Installation"

.

NO

>> Repair or replace harness.

HEADLAMP WASHER SWITCH

WW-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

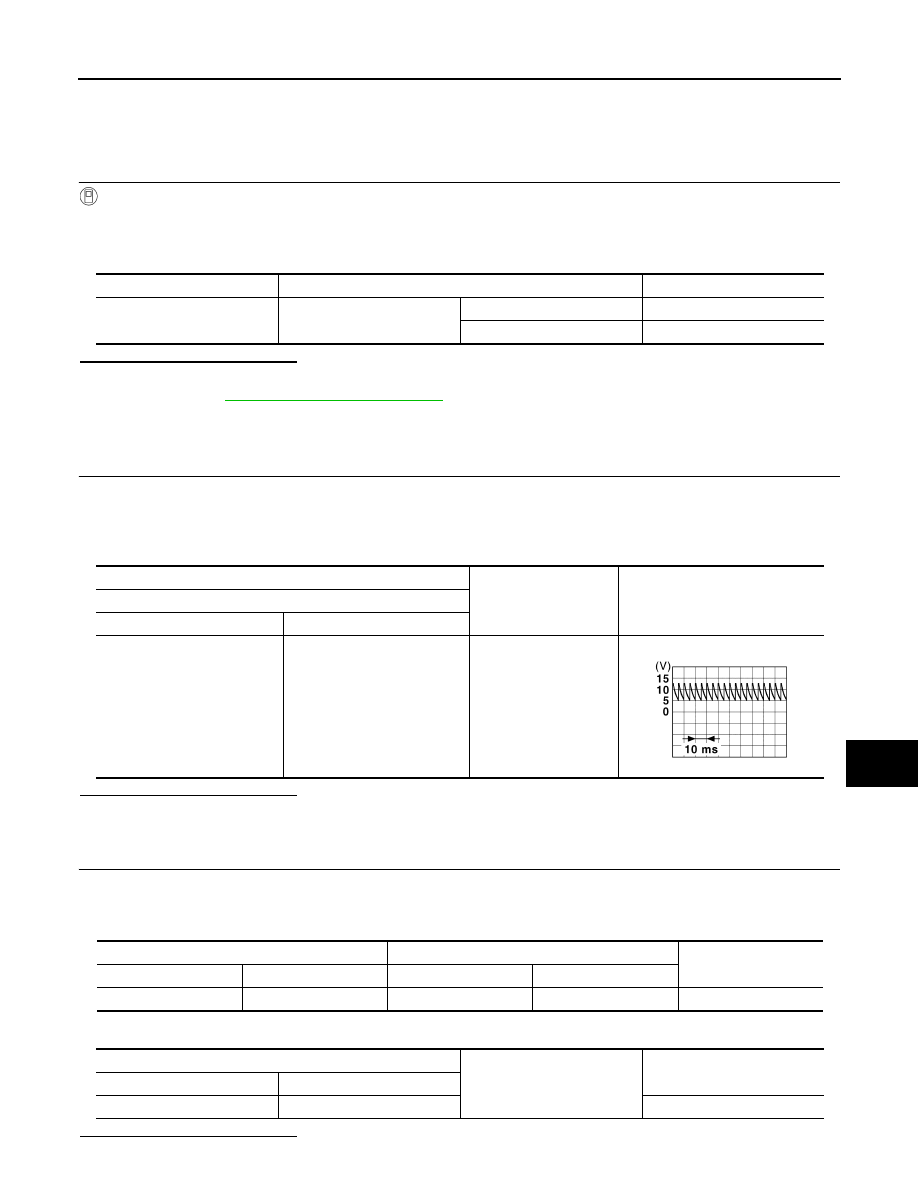

HEADLAMP WASHER SWITCH

Component Function Check

INFOID:0000000010721596

1.

CHECK HEADLAMP WASHER SWITCH SIGNAL

CONSULT DATA MONITOR

1.

Turn ignition switch ON.

2.

Select “H/L WSR SW” of BCM (WIPER) data monitor item.

3.

With operating the headlamp washer switch, check the monitor status.

Is the item status normal?

YES

>> Headlamp washer switch circuit is normal.

NO

>> Refer to

WW-61, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010721597

1.

CHECK HEADLAMP WASHER SWITCH SIGNAL INPUT

1.

Turn ignition switch OFF.

2.

Disconnect headlamp washer switch connector.

3.

Turn ignition switch ON.

4.

Check voltage between headlamp washer switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEADLAMP WASHER SWITCH GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between headlamp washer switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace headlamp washer switch.

NO

>> Repair or replace harnesses.

3.

CHECK HEADLAMP WASHER SWITCH SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between headlamp washer switch harness connector and BCM harness connector.

4.

Check continuity between headlamp washer switch harness connector and ground.

Monitor item

Condition

Monitor status

H/L WSR SW

Headlamp washer switch

While pressing

On

While not pressing

Off

(+)

(

)

Voltage

Headlamp washer switch

Connector

Terminal

M63

1

Ground

9 – 16 V

Headlamp washer switch

Continuity

Connector

Terminal

M63

2

Ground

Existed

Headlamp washer switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M63

1

M70

60

Existed
