SYSTEM

Without Around View Monitor

With Around View Monitor

OUTLINE

The front wiper is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function
• Front wiper control function

Control by IPDM E/R

• Front wiper control function
• Relay control function

FRONT WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front wiper request signal to IPDM E/R via CAN communication depending on each oper-

ating condition of the front wiper.

• IPDM E/R turns ON/OFF the integrated front wiper relay and the front wiper HI/LO relay according to the

front wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.

FRONT WIPER LO OPERATION

• BCM transmits the front wiper request signal (LOW) to IPDM E/R via CAN communication according to the

front wiper LO operating condition.

Front wiper LO operating condition

- Ignition switch ON
- Front wiper switch LO or front wiper switch MIST (while pressing)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LOW).

FRONT WIPER HI OPERATION

JMLIA5154GB

JMLIA5155GB

SYSTEM

WW-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

• BCM transmits the front wiper request signal (HIGH) to IPDM E/R via CAN communication according to the

front wiper HI operating condition.

Front wiper HI operating condition

- Ignition switch ON
- Front wiper switch HI
• IPDM E/R turns ON the integrated front wiper relay and the front wiper HI/LO relay according to the front

wiper request signal (HIGH).

FRONT WIPER INT OPERATION

• BCM transmits the front wiper request signal (LOW) to IPDM E/R via CAN communication depending on the

front wiper INT operating condition and intermittent operation delay interval according to the wiper volume
dial position.

Front wiper INT operating condition

- Ignition switch ON
- Front wiper switch INT
• IPDM E/R turns ON the integrated front wiper relay so that the front wiper is operated only once according to

the front wiper request signal (LOW) and front wiper request signal (RETURN).

• BCM detects stop position/except stop position of the front wiper motor according to the front wiper stop

position signal received from IPDM E/R via CAN communication.

• BCM transmits the front wiper request signal (LOW) again after the intermittent operation delay interval.
NOTE:
Front wiper INT operation can be set to operation linked or not linked with vehicle speed using CONSULT.
Refer to

WW-23, "WIPER : CONSULT Function - WIPER"

.

Front wiper intermittent operation with vehicle speed

• BCM calculates the intermittent operation delay interval from the following
- Vehicle speed signal
- Wiper volume dial position

Intermittent operation delay Interval

Unit: Second

*: When operation setting is not linked with vehicle speed.

FRONT WIPER AUTO STOP OPERATION

• BCM transmits the front wiper request signal (RETURN) to IPDM E/R via CAN communication when the

front wiper switch is turned OFF.

• IPDM E/R detects the front wiper stop position signal from the front wiper motor to find out the front wiper

motor position (stop position/except stop position).

• When IPDM E/R receives the front wiper request signal (RETURN) from BCM and the front wiper motor

position is not in the stop position, IPDM E/R turns ON the front wiper relay until the front wiper motor returns
to the stop position.

• When the front wiper motor returns to the stop position, IPDM E/R transmits front wiper status signal to BCM

via CAN communication.

• When BCM receives front wiper status signal from IPDM, BCM transmits the front wiper request signal

(STOP) to IPDM E/R via CAN communication.

FRONT WIPER OPERATION LINKED WITH WASHER

• BCM transmits the front wiper request signal (LOW) to IPDM E/R via CAN communication according to the

washer linked operating condition of the front wiper.

• BCM transmits the front wiper request signal (LOW) so that the front wiper operates approximately 2 times

when the front washer switch OFF is detected.

Wiper volume dial

position

Intermittent

operation

interval

Vehicle speed

0 – 5 km/h

(0 – 3.1 MPH)

5 – 65 km/h

(3.1 – 40.4 MPH)*

65 km/h

(40.4 MPH) or more

1

Long

↑

↓

Short

62.5

25

15

2

31.25

12.5

7.5

3

18.75

7.5

4.5

4

12.5

5

3

5

6.25

2.5

1.5

WW-16

< SYSTEM DESCRIPTION >

SYSTEM

Washer linked operating condition of front wiper

- Ignition switch ON
- Front washer switch ON (0.4 second or more)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LOW).
• For models without around view monitor: The washer pump is grounded through the combination switch with

the front washer switch ON.

• For models with around view monitor: Pump control unit detects front window washer switch signal from

combination switch and controls the washer pump.

FRONT WIPER DROP WIPE OPERATION

• BCM controls the front wiper to operate once according to the conditions of front wiper drop wipe operation.

Front wiper drop wipe operating condition

- Ignition switch ON
- Front wiper switch OFF
- Front washer switch OFF
• BCM transmits the front wiper request signal (LOW) to IPDM E/R via CAN communication so that the front

wiper operates once at 3 seconds after front wiper operation linked with washer.

NOTE:
Factory setting of the front wiper drop wipe operation is ON. Front wiper drop wipe operation can be set to ON
or OFF using CONSULT. Refer to

WW-23, "WIPER : CONSULT Function - WIPER"

.

FRONT WIPER SERVICE POSITION OPERATION

• Front wiper operates at LO and stops so that front wiper can be locked back without interfere the hood.
• BCM transmits the front wiper request signal (LOW) to IPDM E/R via CAN communication for 0.6 seconds

according to the conditions of front wiper service position operation.

Front wiper service position operation conditions (Within 1 minute after turning ignition switch Off)

- Front wiper switch is OFF
- Front wiper is in stop position
- Front wiper switch MIST is operated 2 times (Within 0.47 second)

Front wiper service position operation conditions (During ignition switch is On)

- Front wiper switch is OFF
- Front wiper is in stop position
- Vehicle speed is less than 4 km/h
- Front wiper switch MIST is operated 2 times (Within 0.47 second)
• After the front wiper LO operation, IPDM receives the front wiper request signal (STOP) from BCM and then

stops the front wiper.

• Front wiper returns to stop position when front wiper switch is operated. (If 1 minute or more is passed after

turning ignition switch OFF, front wiper returns to stop position when ignition switch is turned ON and front
wiper switch is operated.)

FRONT WIPER AND WASHER SYSTEM (WITHOUT LIGHT & RAIN SENSOR)  : Fail-
Safe

INFOID:0000000010430962

IPDM E/R

If No CAN Communication Is Available With BCM

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

Front Wiper Protection Function

IPDM E/R detects front wiper stop position by front wiper stop position signal.
When front wiper stop position signal is in the condition listed below while the front wiper is operating, IPDM E/
activates the fail-safe.

Control part

Fail-safe operation

Front wiper motor

• The status just before activation of fail-safe control is maintained until the ignition switch is turned

OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-safe control is ac-

tivated while the front wiper is set in the AUTO mode and the front wiper motor is operating.

SYSTEM

WW-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER AND WASHER SYSTEM

REAR WIPER AND WASHER SYSTEM : System Description

INFOID:0000000010430999

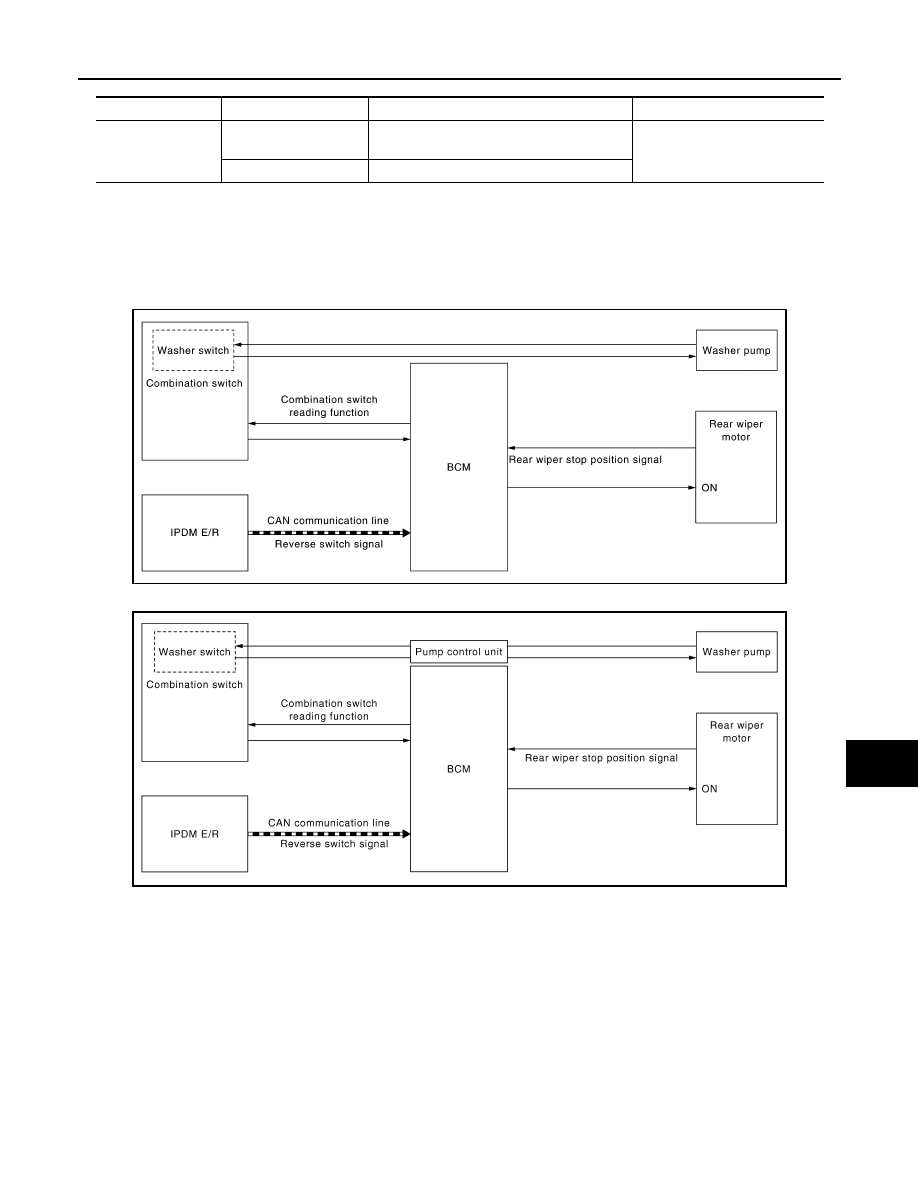

SYSTEM DIAGRAM

Without Around View Monitor

With Around View Monitor

OUTLINE

The rear wiper is controlled by each function of BCM.

Control by BCM

• Combination switch reading function
• Rear wiper control function

REAR WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM controls the rear wiper to start or stop.

REAR WIPER ON OPERATION

• BCM supplies power to the rear wiper motor according to the rear wiper ON operating condition.

Rear wiper ON operating condition

Ignition switch

Front wiper switch

Front wiper stop position signal

Fail-safe

ON

OFF

The signal does not change from the battery
voltage for 10 seconds.

Stops front wiper power supply
for 20 seconds

Except OFF

The signal does not change for 10 seconds.

JMLIA5362GB

JMLIA5394GB
