Nissan Qashqai J11. Manual - part 1781





WW-2

FRONT WIPER STOP POSITION SIGNAL
CIRCUIT .............................................................

51

Component Function Check  ...................................

51

Diagnosis Procedure  ..............................................

51

FRONT WIPER MOTOR GROUND CIRCUIT ...

53

Diagnosis Procedure  ..............................................

53

LIGHT & RAIN SENSOR  ...................................

54

Component Function Check  ...................................

54

Diagnosis Procedure  ..............................................

54

Component Inspection ............................................

56

WASHER SWITCH  ............................................

57

Component Inspection ............................................

57

REAR WIPER MOTOR CIRCUIT  ......................

58

Diagnosis Procedure  ..............................................

58

REAR WIPER STOP POSITION SIGNAL CIR-
CUIT ...................................................................

59

Component Function Check  ...................................

59

Diagnosis Procedure  ..............................................

59

HEADLAMP WASHER SWITCH  .......................

61

Component Function Check  ...................................

61

Diagnosis Procedure  ..............................................

61

HEADLAMP WASHER CIRCUIT  ......................

63

Component Function Check  ...................................

63

Diagnosis Procedure  ..............................................

63

Component Inspection ............................................

65

SYMPTOM DIAGNOSIS  .............................

66

WIPER AND WASHER SYSTEM SYMPTOMS

...

66

WITH LIGHT & RAIN SENSOR  ................................

66

WITH LIGHT & RAIN SENSOR : Symptom Table ...

66

WITHOUT LIGHT & RAIN SENSOR .........................

68

WITHOUT LIGHT & RAIN SENSOR : Symptom
Table ......................................................................
.

68

NORMAL OPERATING CONDITION  ................

72

Description ..............................................................

72

FRONT WIPER DOES NOT OPERATE  ............

73

Description ..............................................................

73

Diagnosis Procedure  ..............................................

73

REMOVAL AND INSTALLATION ...............

75

FRONT WIPER  ..................................................

75

Exploded View  ........................................................

75

WIPER ARM ..............................................................

75

WIPER ARM : Removal and Installation  ................

75

WIPER ARM : Adjustment  ......................................

76

WIPER BLADE ..........................................................

76

WIPER BLADE : Removal and Installation .............

76

WIPER REFILL ..........................................................

77

WIPER REFILL : Removal and Installation .............

77

WIPER DRIVE ASSEMBLY  ......................................

78

WIPER DRIVE ASSEMBLY : Removal and Instal-
lation .......................................................................

78

REAR WIPER  ....................................................

79

Exploded View  ........................................................

79

WIPER ARM  ..............................................................

79

WIPER ARM : Removal and Installation  .................

79

WIPER ARM : Adjustment  ......................................

80

WIPER BLADE  ..........................................................

80

WIPER BLADE : Removal and Installation  .............

80

WIPER MOTOR  .........................................................

80

WIPER MOTOR : Removal and Installation  ...........

81

FRONT WASHER ..............................................

82

Exploded View  ........................................................

82

Hydraulic Layout  .....................................................

83

WASHER NOZZLE ....................................................

83

WASHER NOZZLE : Removal and Installation .......

83

WASHER NOZZLE : Inspection ..............................

84

WASHER TUBE  ........................................................

84

WASHER TUBE : Removal and Installation  ...........

84

WASHER TUBE : Inspection  ..................................

84

WASHER TANK  ........................................................

84

WASHER TANK : Removal and Installation  ...........

85

WASHER PUMP ........................................................

85

WASHER PUMP : Removal and Installation  ..........

85

REAR WASHER  ................................................

86

Exploded View  ........................................................

86

Hydraulic Layout  .....................................................

87

WASHER NOZZLE ....................................................

87

WASHER NOZZLE : Removal and Installation .......

87

WASHER TUBE  ........................................................

87

WASHER TUBE : Removal and Installation  ...........

87

WASHER TUBE : Inspection  ..................................

88

HEADLAMP WASHER ......................................

89

Exploded View  ........................................................

89

Hydraulic Layout  .....................................................

90

WASHER NOZZLE ....................................................

90

WASHER NOZZLE : Removal and Installation .......

90

WASHER NOZZLE : Inspection ..............................

90

WASHER TUBE  ........................................................

91

WASHER TUBE : Removal and Installation  ...........

91

WASHER PUMP ........................................................

91

WASHER PUMP : Removal and Installation  ..........

91

RAIN SENSOR  ..................................................

92

WW-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010503202

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

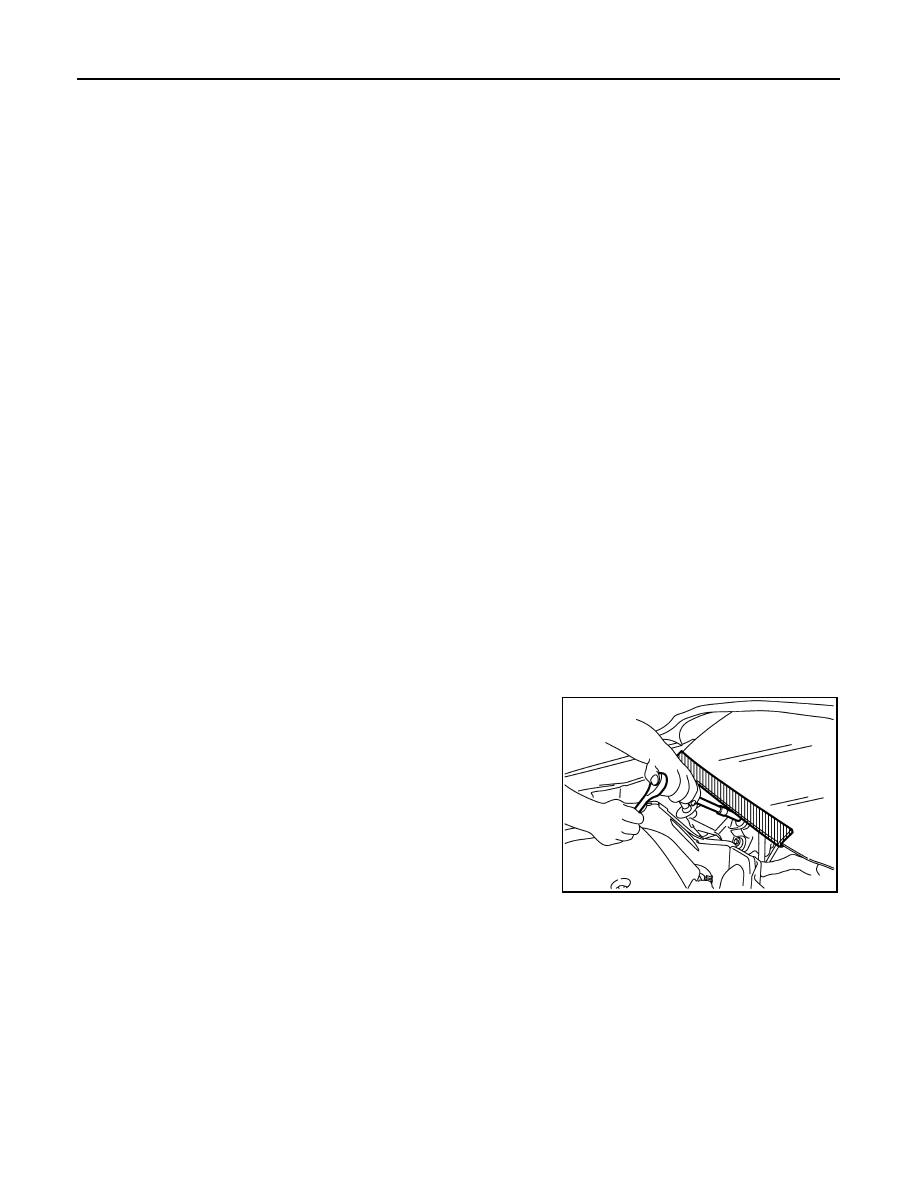

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010430947

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000010503203

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

PIIB3706J

PRECAUTIONS

WW-5

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

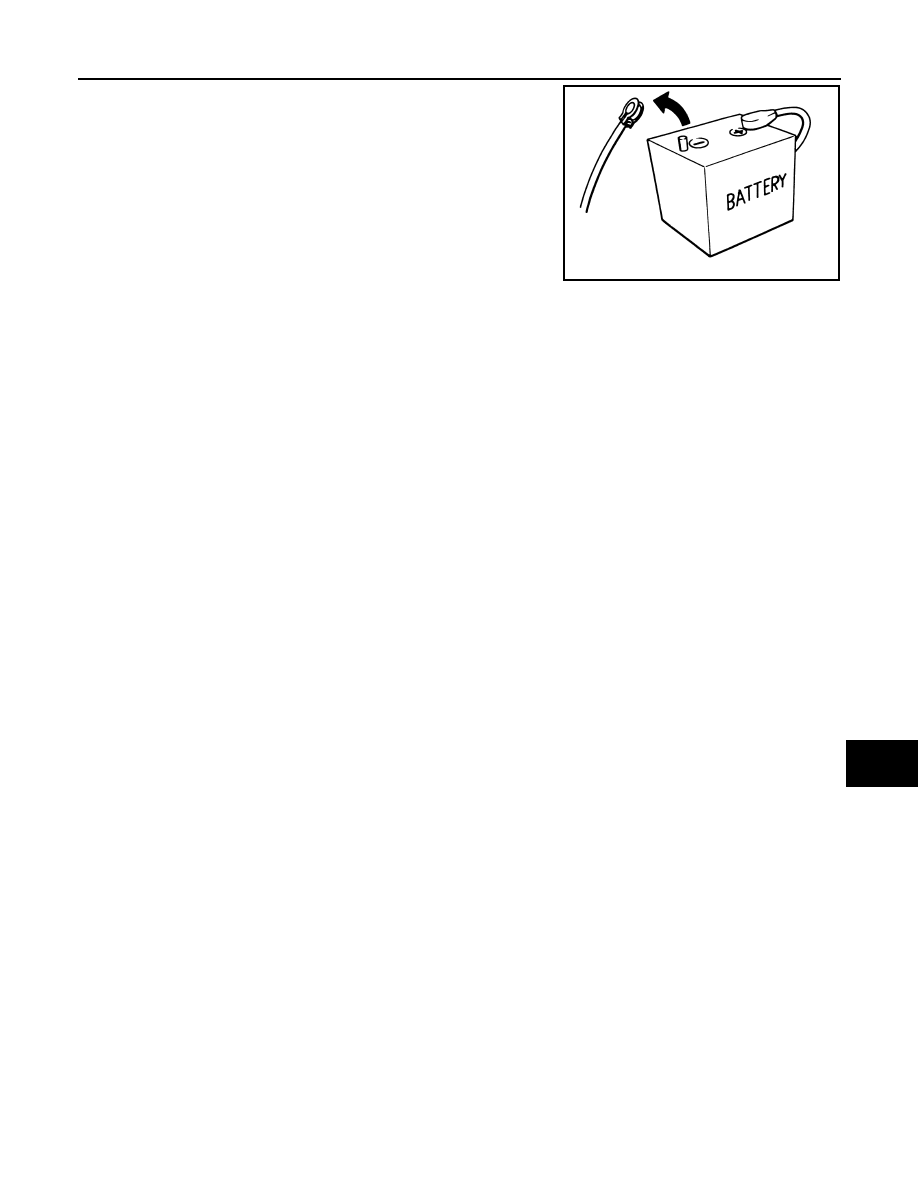

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes
