Nissan Qashqai J11. Manual - part 178





ECH-10

< PRECAUTION >

[HRA2DDT]

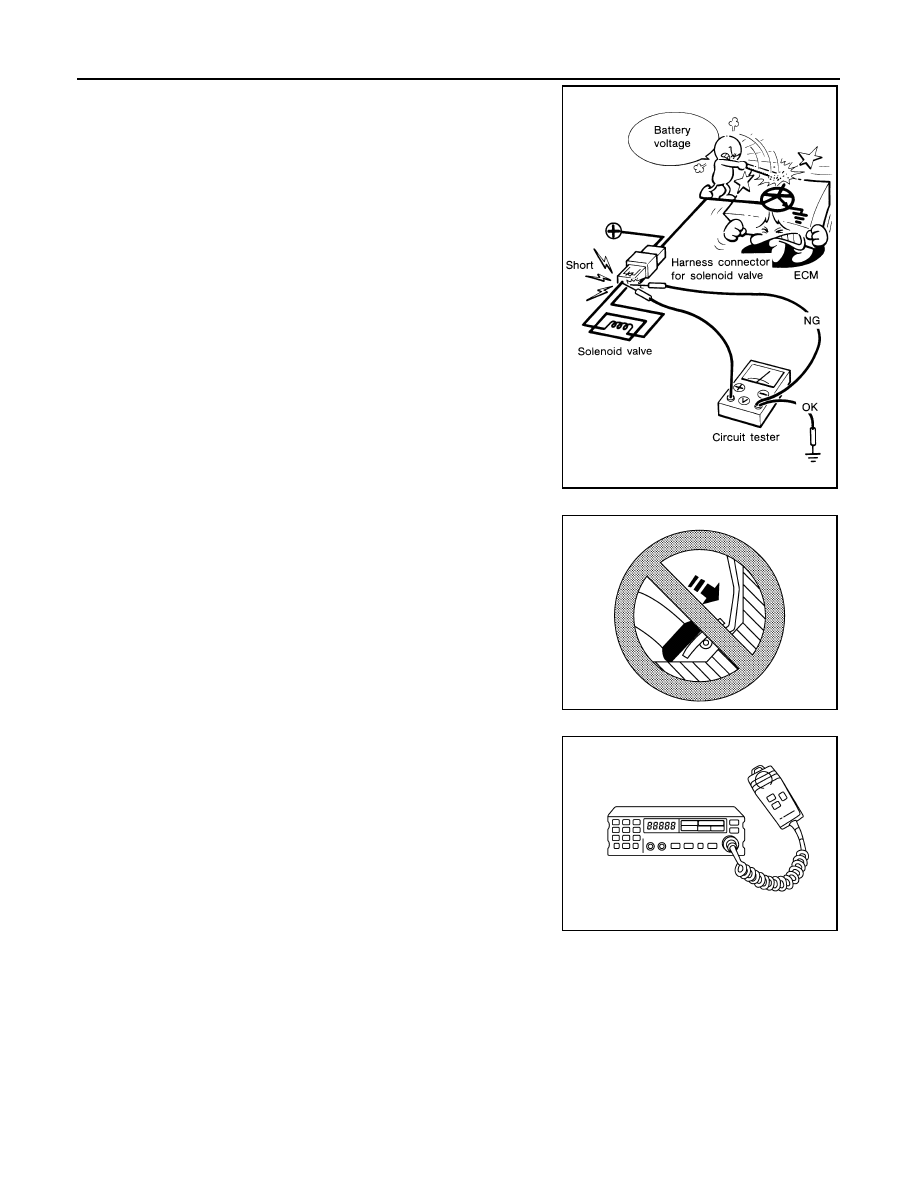

PRECAUTIONS

• When measuring ECM signals with a circuit tester, never allow

the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

• Do not use ECM ground terminals when measuring input/out-

put voltage. Doing so may result in damage to the ECM's tran-
sistor. Use a ground other than ECM terminals, such as the
ground.

• Do not disassemble fuel pump.

If NG, take proper action.

• Do not disassemble fuel injector.

If NG, replace fuel injector.

• Do not depress accelerator pedal when staring.
• Immediately after staring, do not rev up engine unnecessarily.
• Do not rev up engine just prior to shutdown.

• When installing C.B. ham radio or a mobile phone, be sure to

observe the following as it may adversely affect electronic
control systems depending on installation location.

- Keep the antenna as far as possible from the electronic con-

trol units.

- Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.
Do not let them run parallel for a long distance.

- Adjust the antenna and feeder line so that the standingwave

radio can be kept smaller.

- Be sure to ground the radio to vehicle body.

SEF348N

SEF709Y

SEF708Y

PREPARATION

ECH-11

< PREPARATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000010379003

Tool number
Tool name

Description

KV10120000
Fuel tube adapter

Measuring fuel pressure

JSBIA0410ZZ

ECH-12

< SYSTEM DESCRIPTION >

[HRA2DDT]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

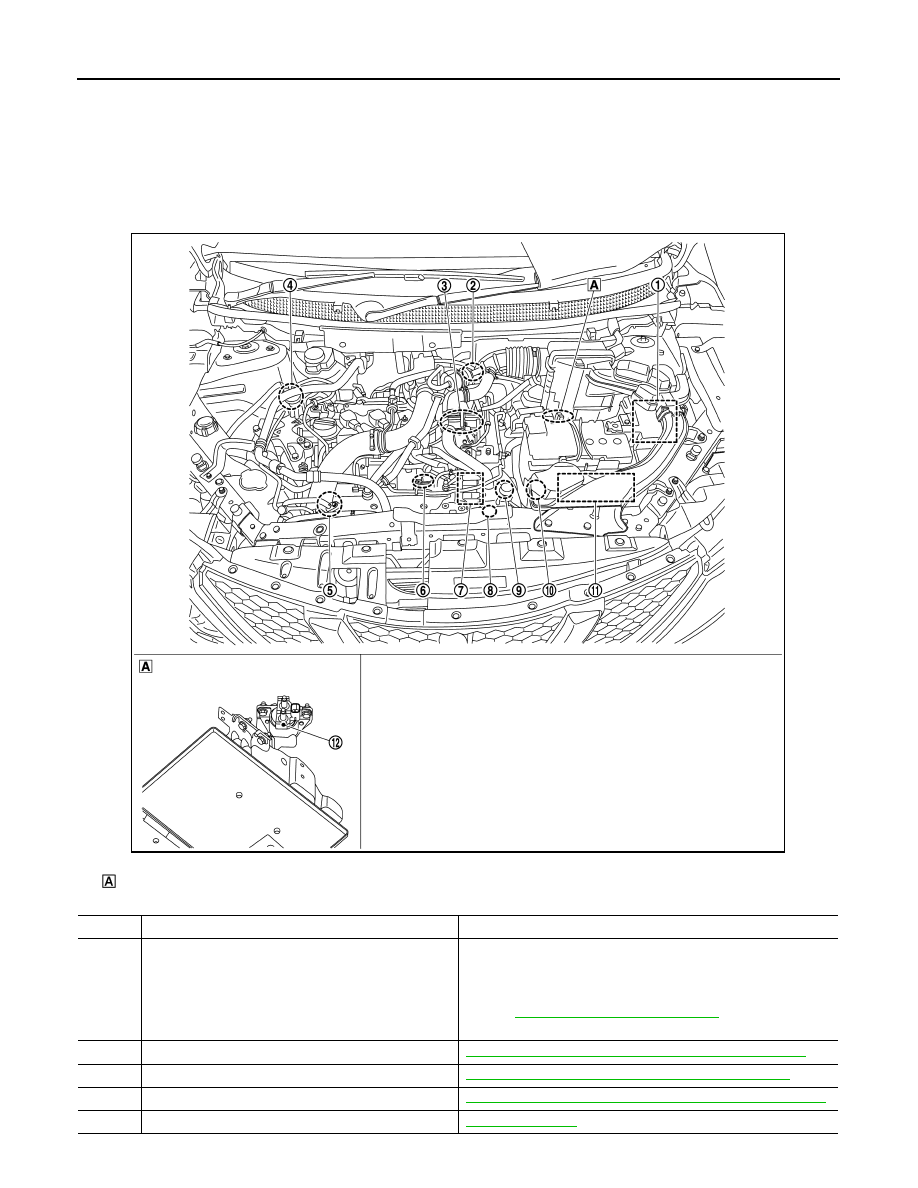

Component Parts Location

INFOID:0000000010379004

ENGINE ROOM COMPARTMENT

Battery mounting bracket assembly

No.

Component

Reference

1

IPDM E/R

IPDM E/R activates the internal control circuit to perform the relay
ON-OFF control according to the input signals from various sen-
sors and the request signals received from control units via CAN
communication.
Refer to

PCS-5, "Component Parts Location"

 for detailed installa-

tion location.

2

Turbocharger bypass valve control solenoid valve

ECH-20, "Turbocharger bypass valve control solenoid valve"

3

Turbocharger wastegate control solenoid valve

ECH-20, "Turbocharger wastegate control solenoid valve"

4

EVAP canister purge volume control solenoid valve

ECH-18, "EVAP Canister Purge Volume Control Solenoid Valve"

5

Alternator

CHG-6, "Alternator"

JSBIA4853ZZ

COMPONENT PARTS

ECH-13

< SYSTEM DESCRIPTION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

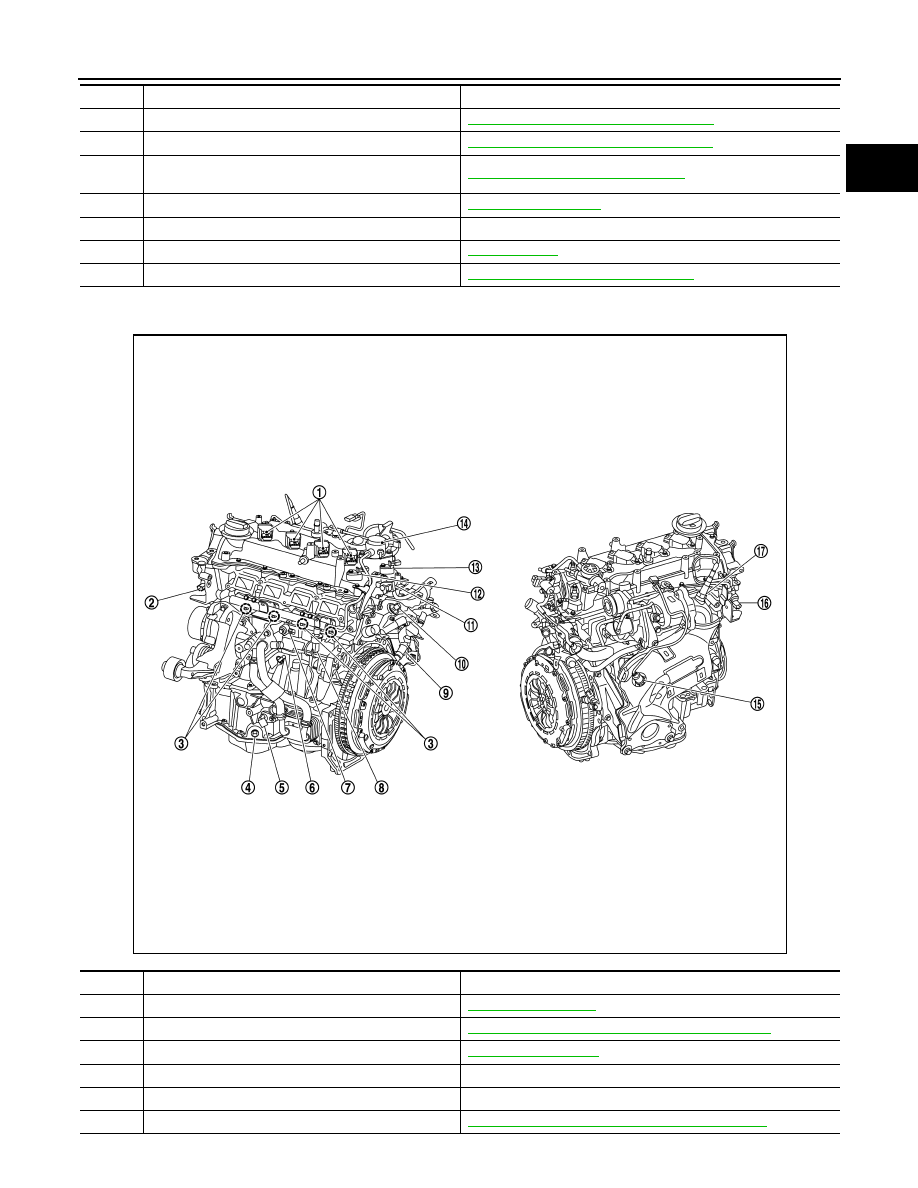

ENGINE COMPARTMENT

6

Intake manifold pressure sensor

ECH-19, "Intake Manifold Pressure Sensor"

7

Electric throttle control actuator

ECH-16, "Electric Throttle Control Actuator"

8

Turbocharger boost sensor (with intake air temperature
sensor)

ECH-20, "Turbocharger Boost Sensor"

9

Hood switch

ECH-18, "Hood Switch"

10

Reverse / neutral position switch

It detects that the transmission is in reverse and neutral.

11

ECM

ECH-16, "ECM"

12

Engine restart bypass relay

ECH-17, "Engine Restart Bypass Relay"

No.

Component

Reference

No.

Component

Reference

1

Ignition coil

ECH-18, "Ignition Coil"

2

Intake valve timing control solenoid valve

ECH-19, "Intake Valve Timing Control Solenoid Valve"

3

Fuel injector

ECH-18, "Fuel Injector"

4

Engine oil pressure control solenoid valve

—

5

Engine oil pressure sensor

—

6

Thermostat heater control solenoid valve

ECH-20, "Thermostat Heater Control Solenoid Valve"

JSBIA4854ZZ
