FLASHER

This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT screen is touched

HORN

NOTE:
This item is displayed, but cannot be used

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR +5

NOTE:
This item is displayed, but cannot be used

ENGINE SW ILLUMI

This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT screen is touched

PUSH SWITCH INDICATOR

This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT screen is touched

ENGINE START REQUEST

This test is able to check BCM sends starter request signal to IPDM E/R via CAN communi-
cation
• MODE 1: IGN ON, START request OFF
• MODE 2: IGN OFF, START request ON
• MODE 3: IGN ON, START request ON
• Off: Non-operation

IGNITION RELAY

NOTE:
This item is displayed, but cannot be used

STARTER CUT RELAY

This test is able to operate the starter control relay
• On: Operates
• Off: Non-operation

ENGINE START

NOTE:
This item is displayed, but cannot be used

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is displayed, but cannot be used

REVERSE LAMP TEST

NOTE:
This item is displayed, but cannot be used

KEYFOB P/W TEST

NOTE:
This item is displayed, but cannot be used

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTOMATIC BACK DOOR

NOTE:
This item is displayed, but cannot be used

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

INL-26

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010430905

ECU

Reference

BCM

BCS-64, "Reference Value"

BCS-88, "Fail-safe"

BCS-89, "DTC Inspection Priority Chart"

BCS-90, "DTC Index"

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-27

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

WIRING DIAGRAM

INTERIOR ROOM LAMP CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010430906

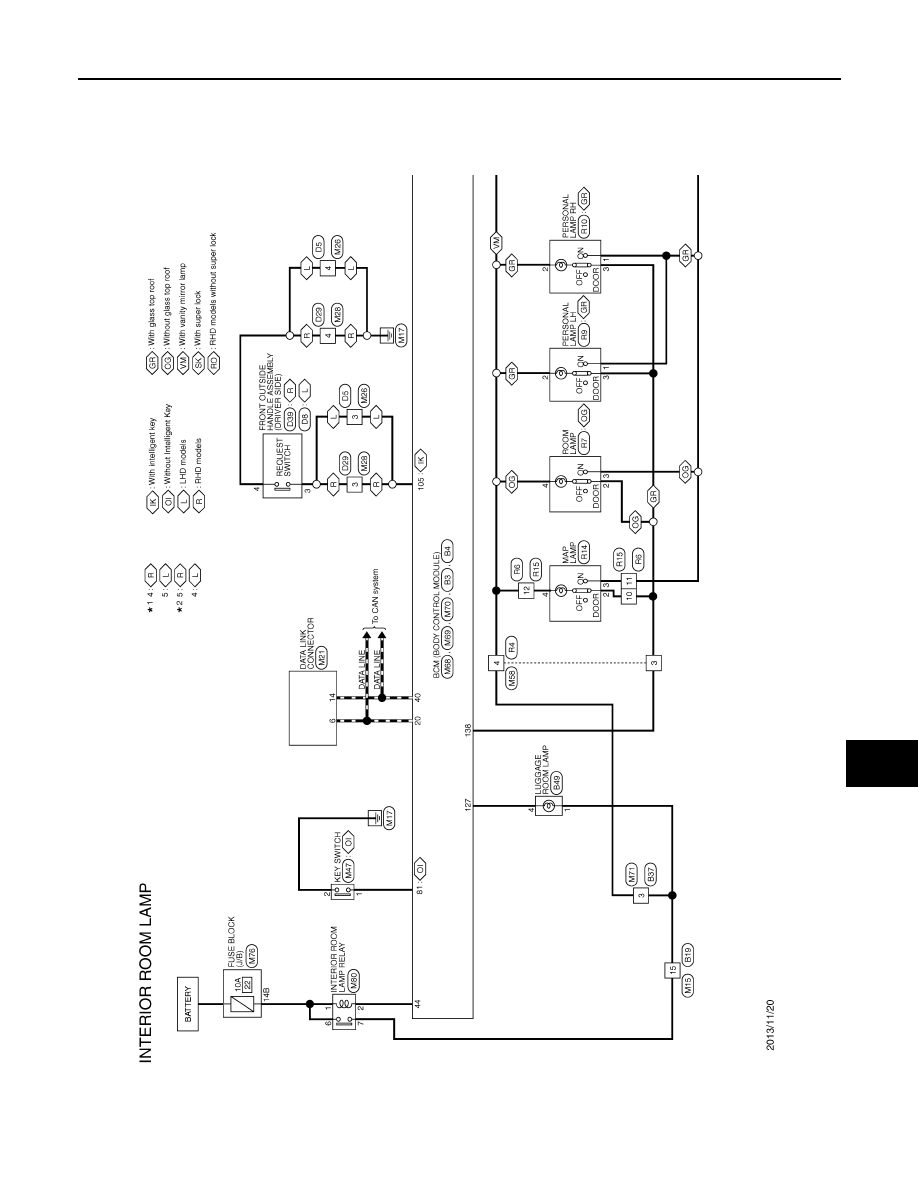

JRLWD2035GB

INL-28

< WIRING DIAGRAM >

INTERIOR ROOM LAMP CONTROL SYSTEM

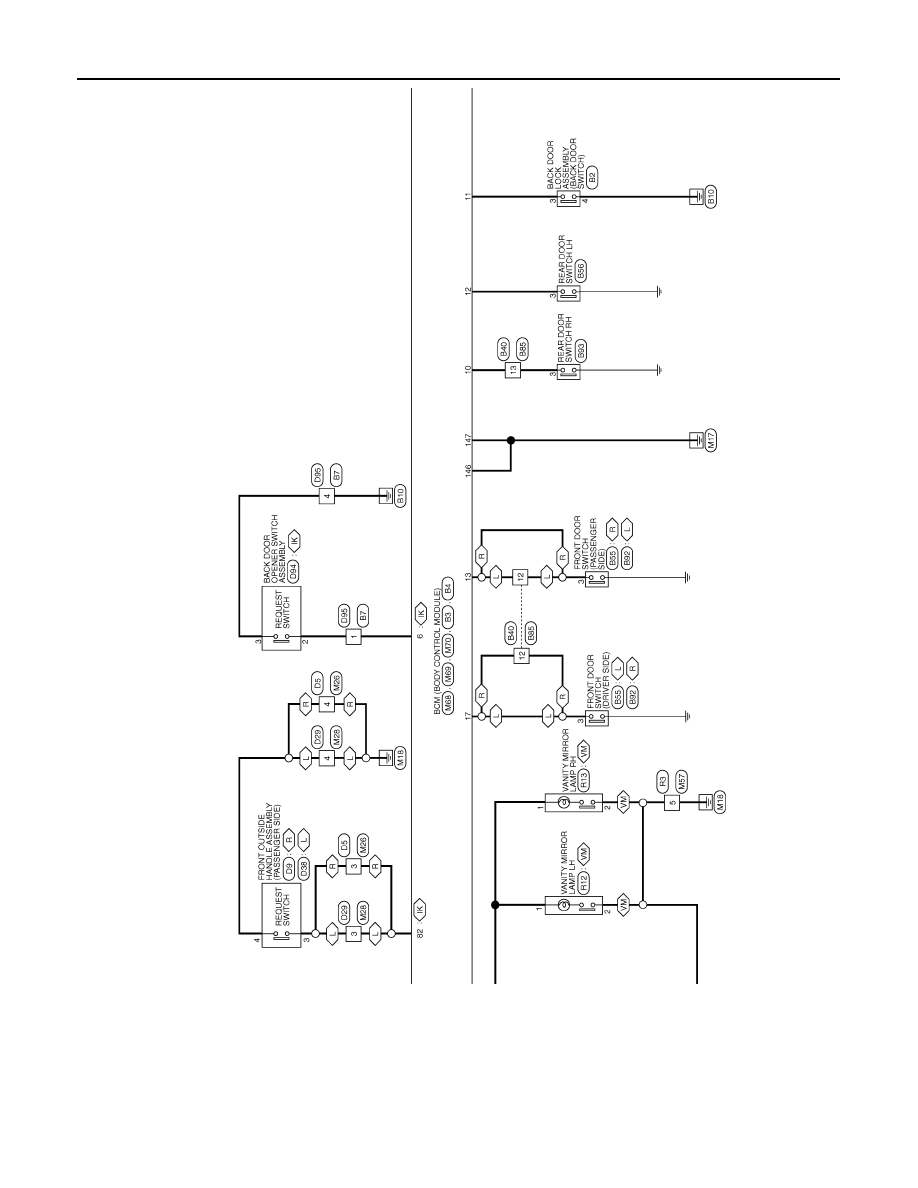

JRLWD2036GB
