Nissan Qashqai J11. Manual - part 169





CO-80

< REMOVAL AND INSTALLATION >

[K9K]

WATER OUTLET

WATER OUTLET

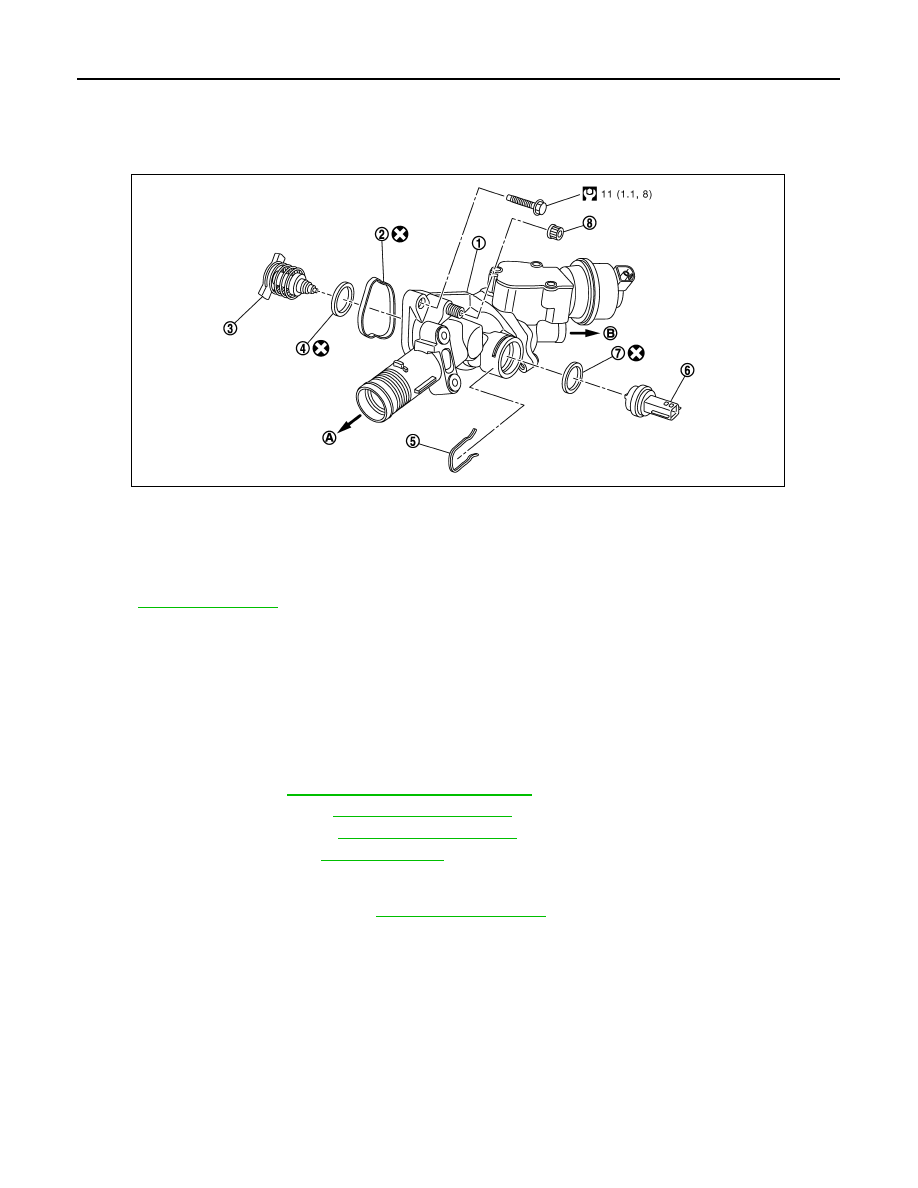

Exploded View

INFOID:0000000010416389

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010416390

REMOVAL

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Remove battery. Refer to

PG-155, "Removal and Installation"

.

2.

Remove vacuum hose. Refer to

EM-292, "Exploded View"

.

3.

Remove vacuum pump. Refer to

EM-292, "Exploded View"

.

4.

Drain engine coolant. Refer to

CO-11, "Draining"

.

CAUTION:

Perform when engine is cold.

5.

Remove radiator upper hose. Refer to

CO-70, "Exploded View"

.

6.

Remove water hose.

7.

Remove water outlet.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never reuse gasket and o-ring

1.

Water outlet

2.

Gasket

3.

Thermostat

4.

O-ring

5.

Lock plate

6.

 Engine coolant temperature sensor

7.

O-ring

8.

Water hose Air relief plug

A.

To radiator hose upper

B.

To heater core

E1BIA0903GB

SERVICE DATA AND SPECIFICATIONS (SDS)

CO-81

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000010416391

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (Imp qt)

Radiator

INFOID:0000000010416392

Unit: kPa (bar, kg/cm

2

, psi)

Thermostat

INFOID:0000000010416393

Standard

Engine coolant capacity (With reservoir tank at “MAX” level)

6.3 (5-1/2)

Reservoir tank engine coolant capacity (At “MAX” level)

0.8 (3/4)

Reservoir tank cap relief pressure

140 (1.4, 1.4, 20)

Leakage testing pressure

140 (1.4, 1.4, 20)

Item

Temperature

°

C (

°

F)

Start of opening

83 (181)
