COMPONENT PARTS

MIR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Door mirror open relay

• Power supply is supplied to motor when door mirror is opening.
• This is the ground circuit when auto retractable door mirror is operating.

Door mirror close relay

• Power supply is supplied to motor when door mirror is closed.
• Power supply is supplied to motor when auto retractable door mirror is operating.

Door mirror remote control switch (mir-
ror switch)

It supplies power to mirror motor through mirror switch and changeover switch.

Door mirror remote control switch
(changeover switch)

It transmits the LH/RH control of door mirror that supplies power supply.

Door mirror motor

It makes mirror face operate from side to side and up and down via integrated motor.

Steering switch

Transmits steering switch signal to combination meter.

Combination meter

Displays the system status according to signal received.
Transmits auto retractable door mirror setting signal to the BCM via CAN communication.

Item

Function

MIR-8

< WIRING DIAGRAM >

DOOR MIRROR SYSTEM

LHD MODELS : Wiring Diagram - DOOR MIRROR (WITHOUT ELECTRIC FOLD-

JRLWD2212GB

OPERATION

MIR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

OPERATION

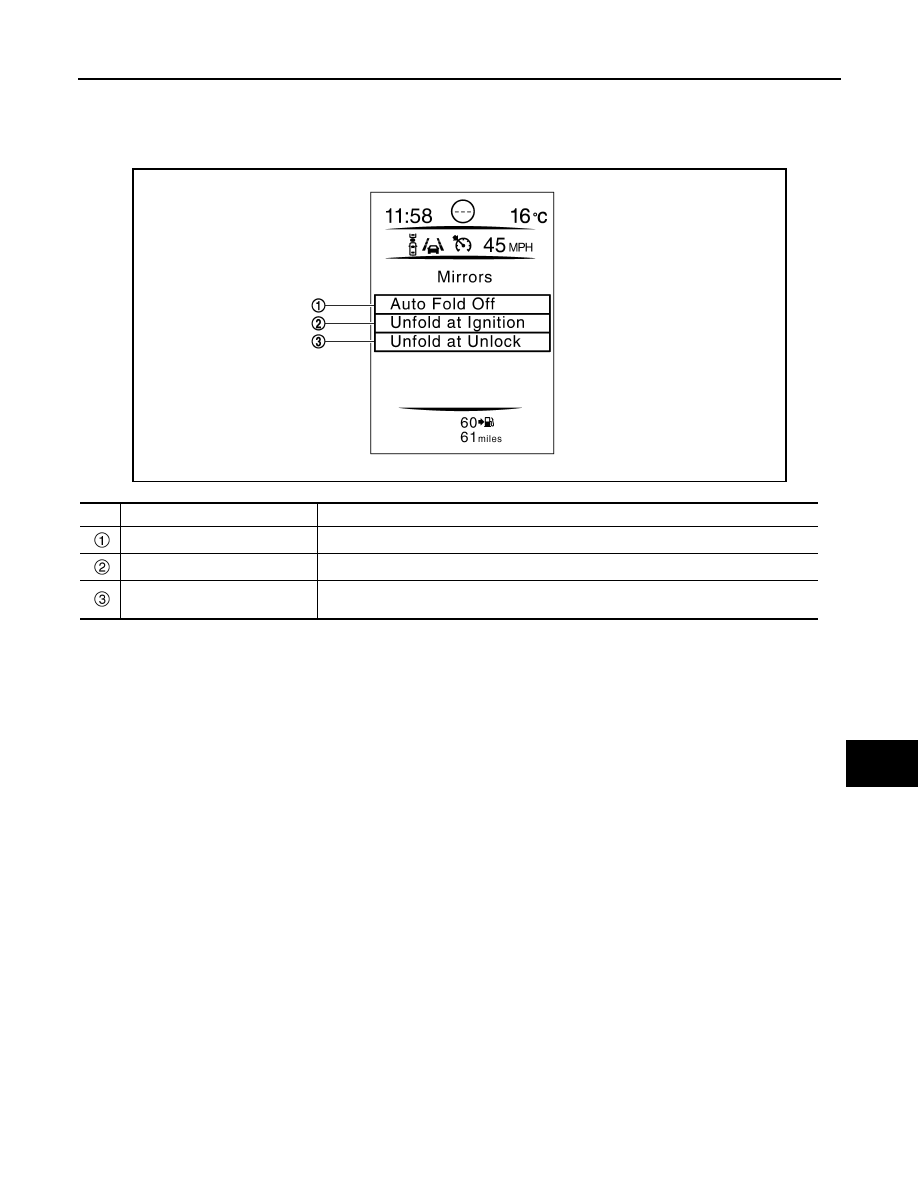

Menu Displayed by Pressing Each Switch

INFOID:0000000011733526

JMLIA6154ZZ

No.

Function name

Description

Auto fold Off

Non

−

operating auto retractable door mirror.

Unfold at Ignition

Door mirror open when ignition switch ON.

Unfold at Unlock

Door mirror open when door lock signal is received from intelligent Key or door request
switch.

MIR-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011405203

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

PTC heater control

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×
