Nissan Qashqai J11. Manual - part 1650

BRM-428

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

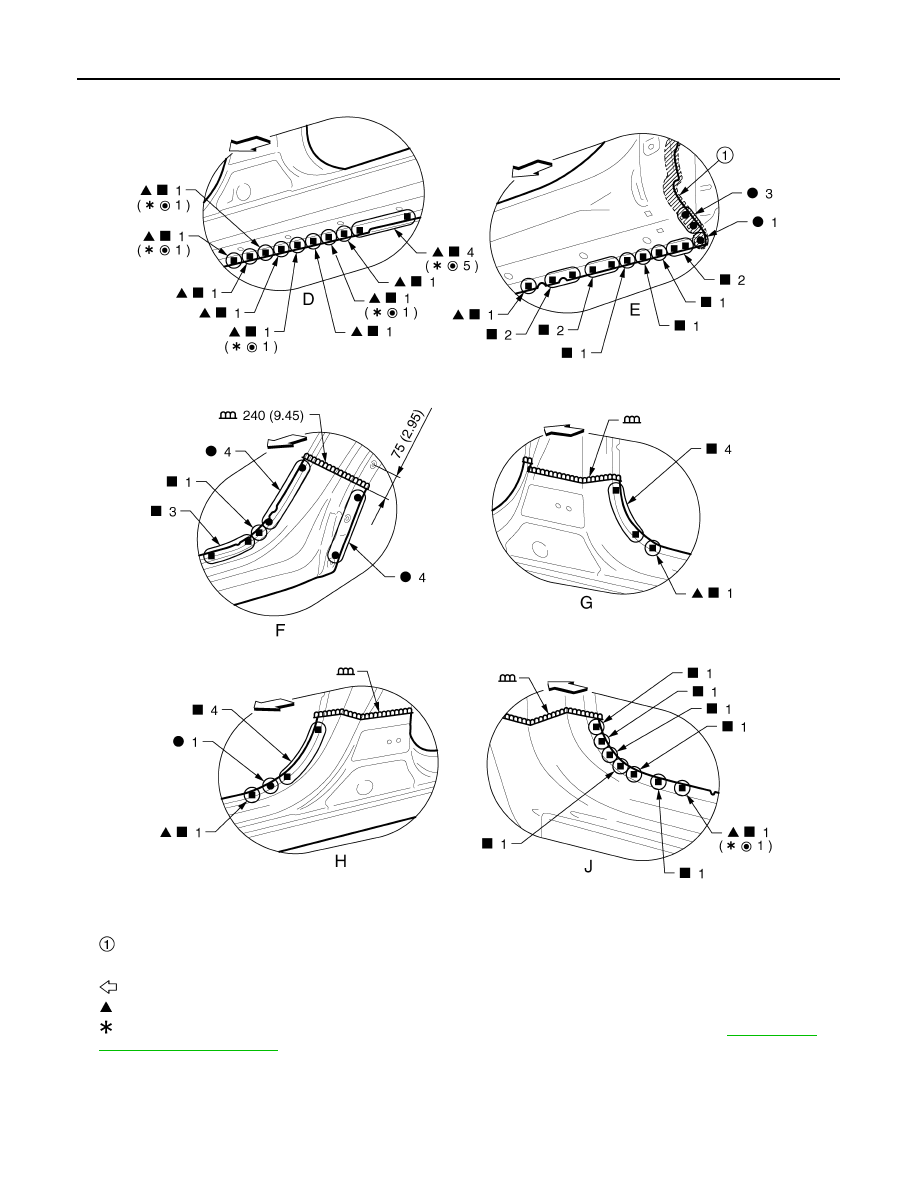

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4016GB

REPLACEMENT OPERATIONS

BRM-429

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

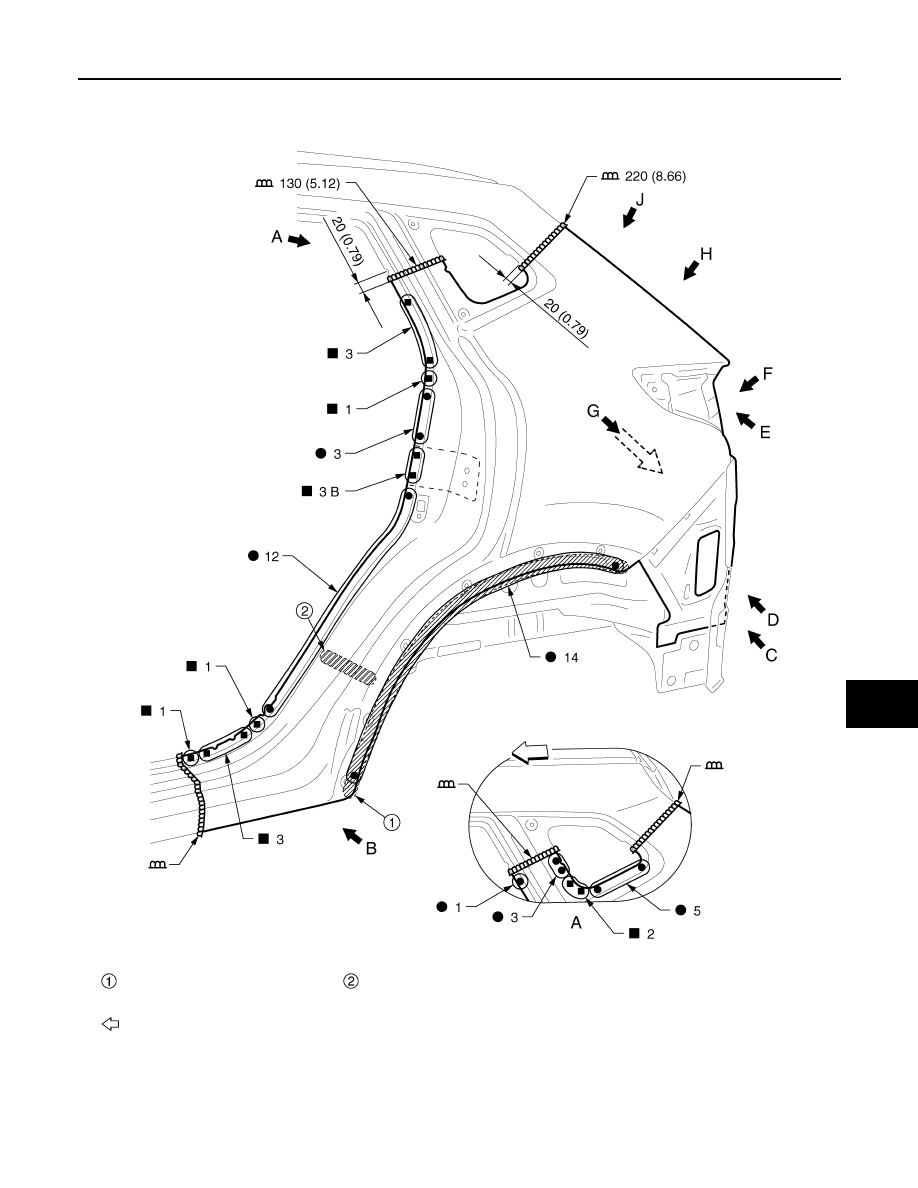

Rear Fender

INFOID:0000000010313759

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement part

z

Rear fender assembly

z

Rear fender extension complete

z

Striker retainer assembly

JSKIA4020GB

BRM-430

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

Body sealing

Unit: mm (in)

: Vehicle front

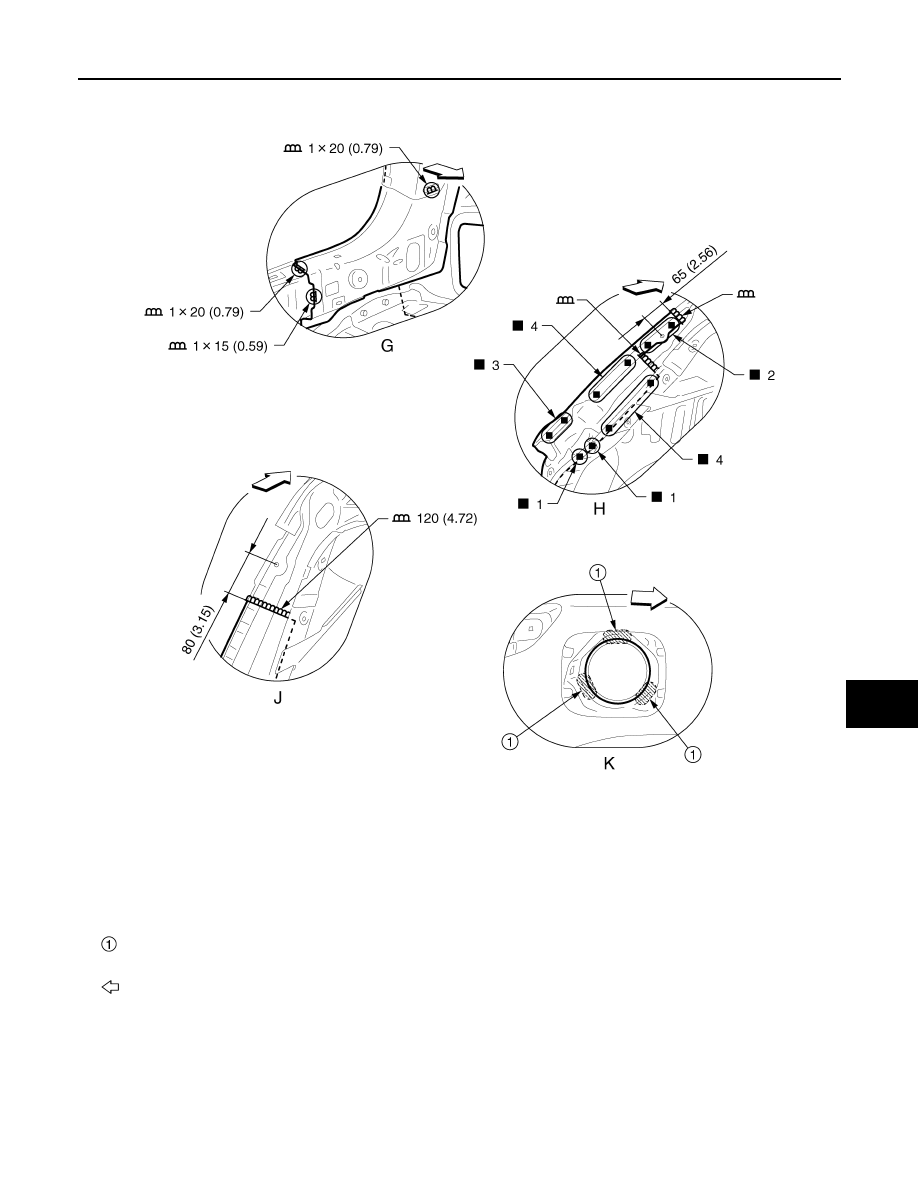

: Weld the parts onto the back of the component part.

JSKIA4021GB

REPLACEMENT OPERATIONS

BRM-431

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

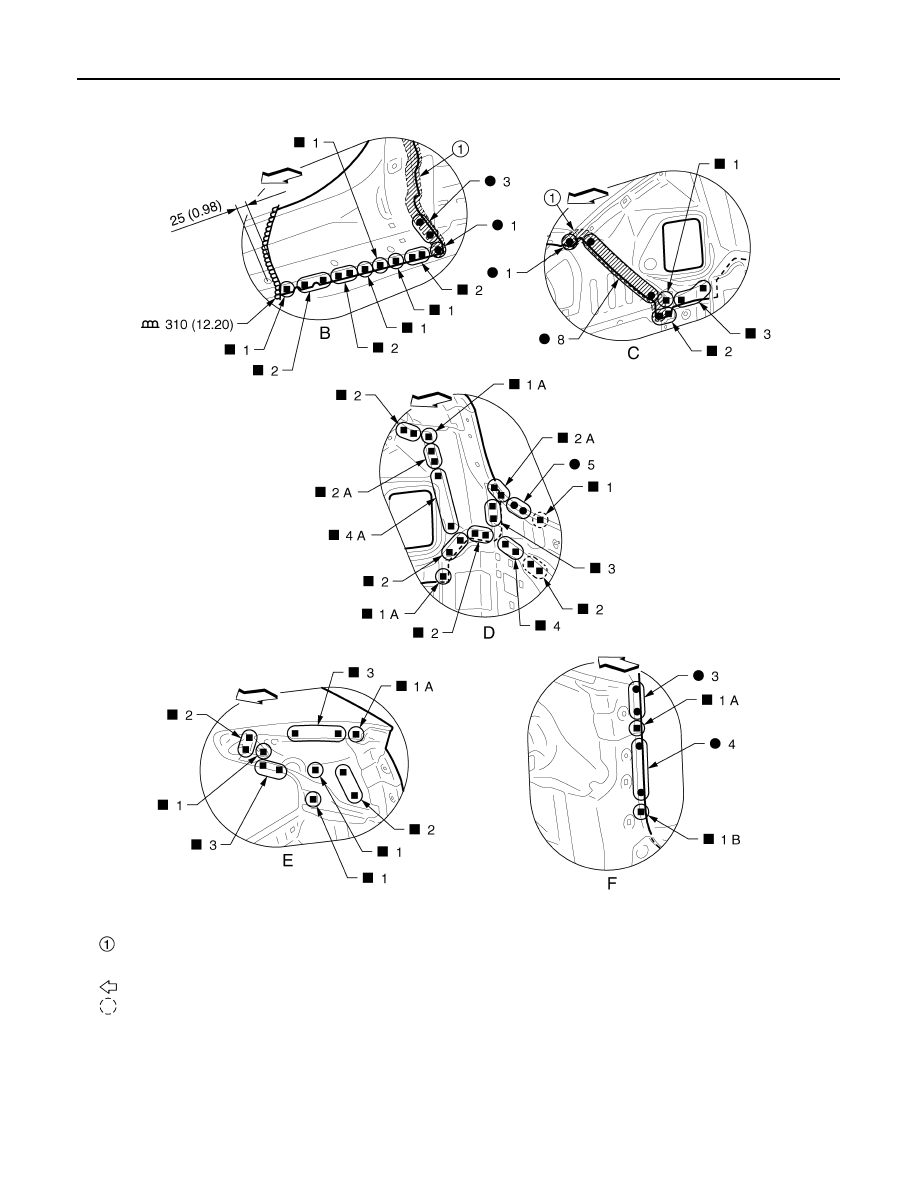

View J: Before installing rear fender assembly
View G: Right side rear fender

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA4022GB
