< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

LOCATION OF PLASTIC PARTS

Location of Plastic Parts

INFOID:0000000010498855

Component

Material

Component

Material

Door mirror

Case

ASA

Rear spoiler

Upper

PC + PET

Lower case

ASA

Lower

ASA

Base

Aluminum

Side

PMMA

Base cover

ASA

High mount stop lamp

Lens

PMMA

Cover

ABS

Housing

ABS

Side roof molding

PVC + Stainless

Back door finisher

ABS

Wind shield molding

PVC

License plate lamp

Lens

PC

Front combination lamp

Lens

PC

Housing

PC

Housing

PP

Reflex reflector

Lens

PMMA

Front grille

ABS

Housing

ABS

Bumper fascia

PP + EPM

Rear combination lamp

Lens

PMMA

Front fog lamp

Lens

Glass

Housing

ABS

Housing

PBT + ASA +

Glass fiber

Door outside lower molding

PP + EPDM

Fillet molding

PP + EPDM

Door outside handle

Grip body

PA + Glass fiber

Front fender protector

PP

Grip cover

PA + Glass fiber

Door outside molding

PVC + Stainless

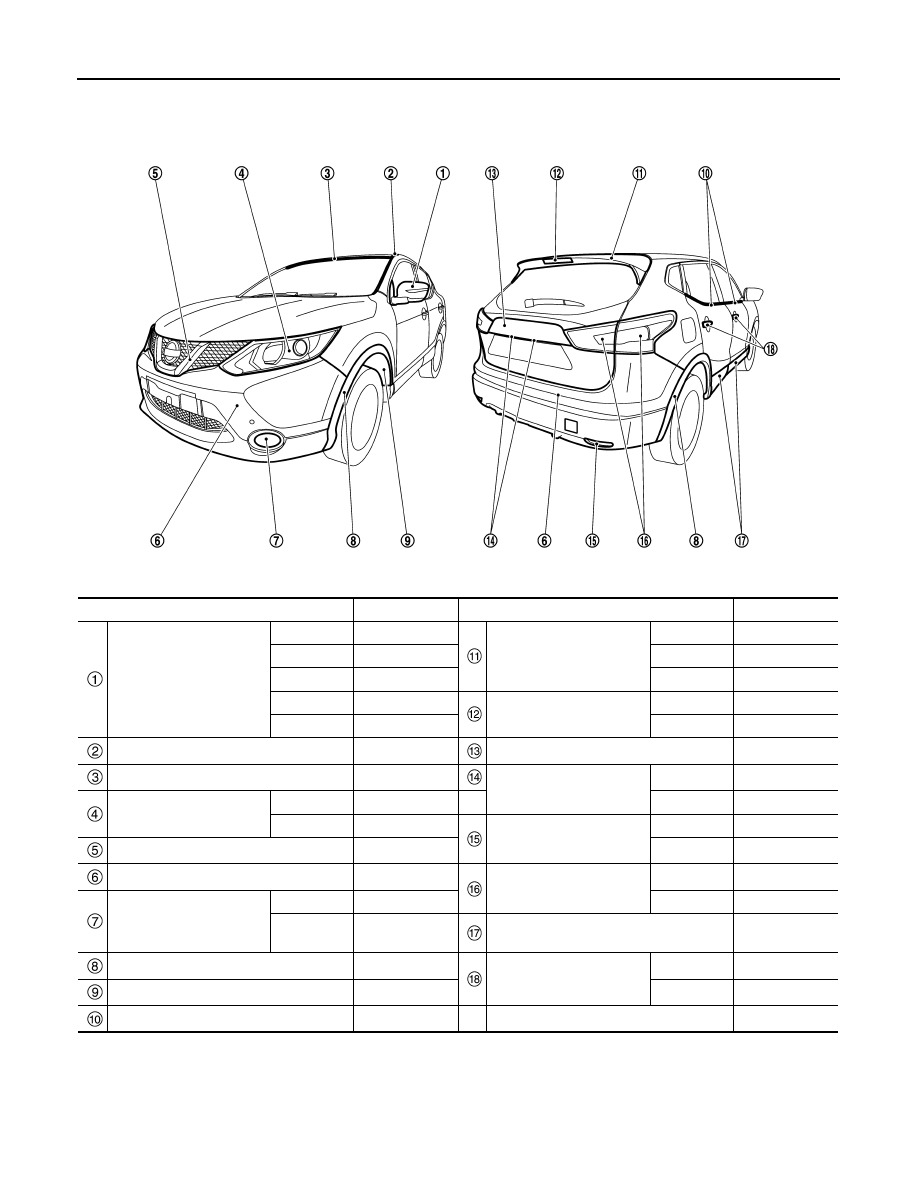

JSKIA3931ZZ

LOCATION OF PLASTIC PARTS

BRM-241

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Component

Material

Component

Material

Rear pillar finisher

PP

Instrument lower cover

PP + EPDM

Center pillar garnish

PP

A/C Control

Manual A/C

Finisher

PC + ABS

Map lamp

Lens

PC

Switch

PC

Housing

PP

Case

ABS

Finisher

PP

Auto A/C

Finisher

PC + ABS

Front pillar garnish

PP

Switch

PC

Cluster lid A

PP

Case

PC + ABS

Center ventilator finisher

PC + ABS

Lens

PC

Instrument panel

Skin

TPO

Center console

Body

PP + EPDM

Pad

PUR

Console box

PP

Core

PP + EPDM

Inner lid

PP + EPDM

Cluster lid C

PC + ABS

Insert lid

PC + ABS

Glove box

PP

Cup holder

PP + EPDM

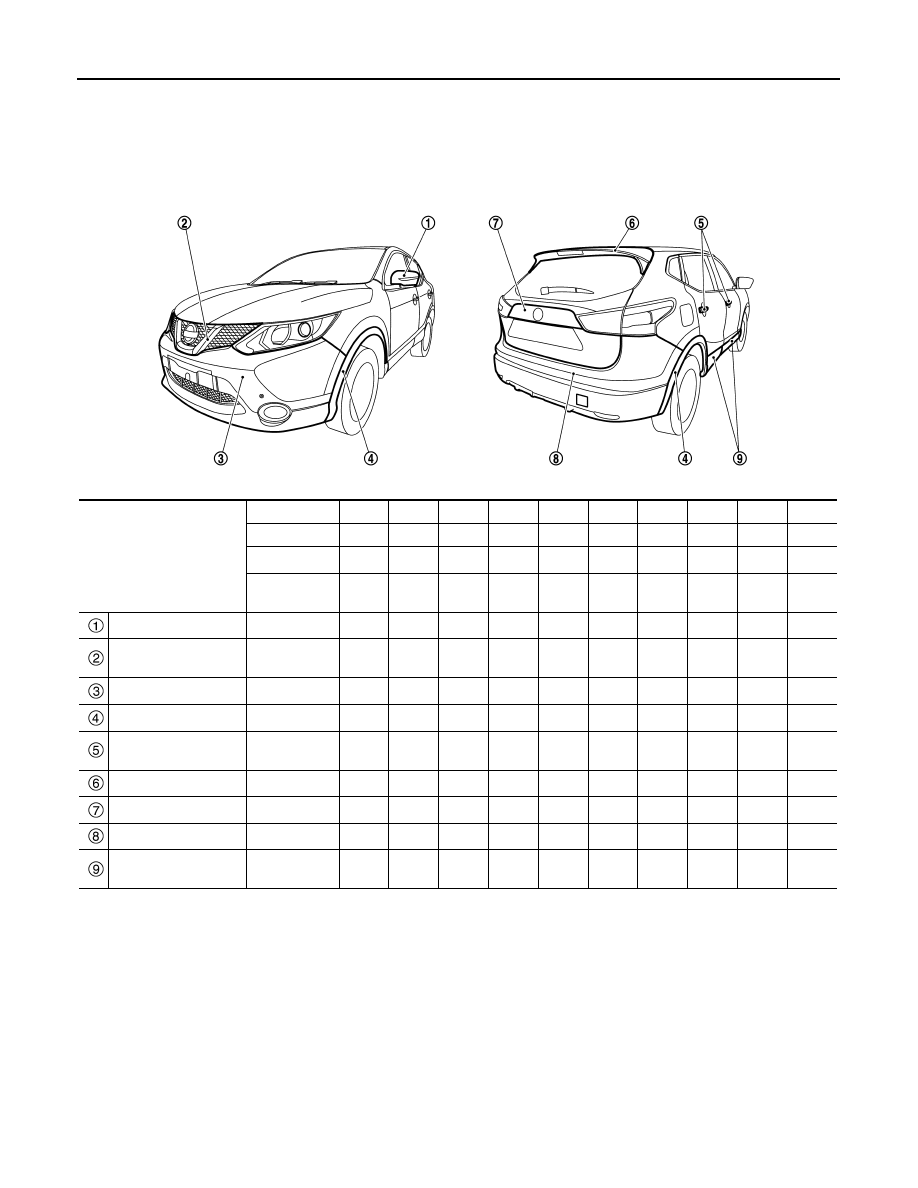

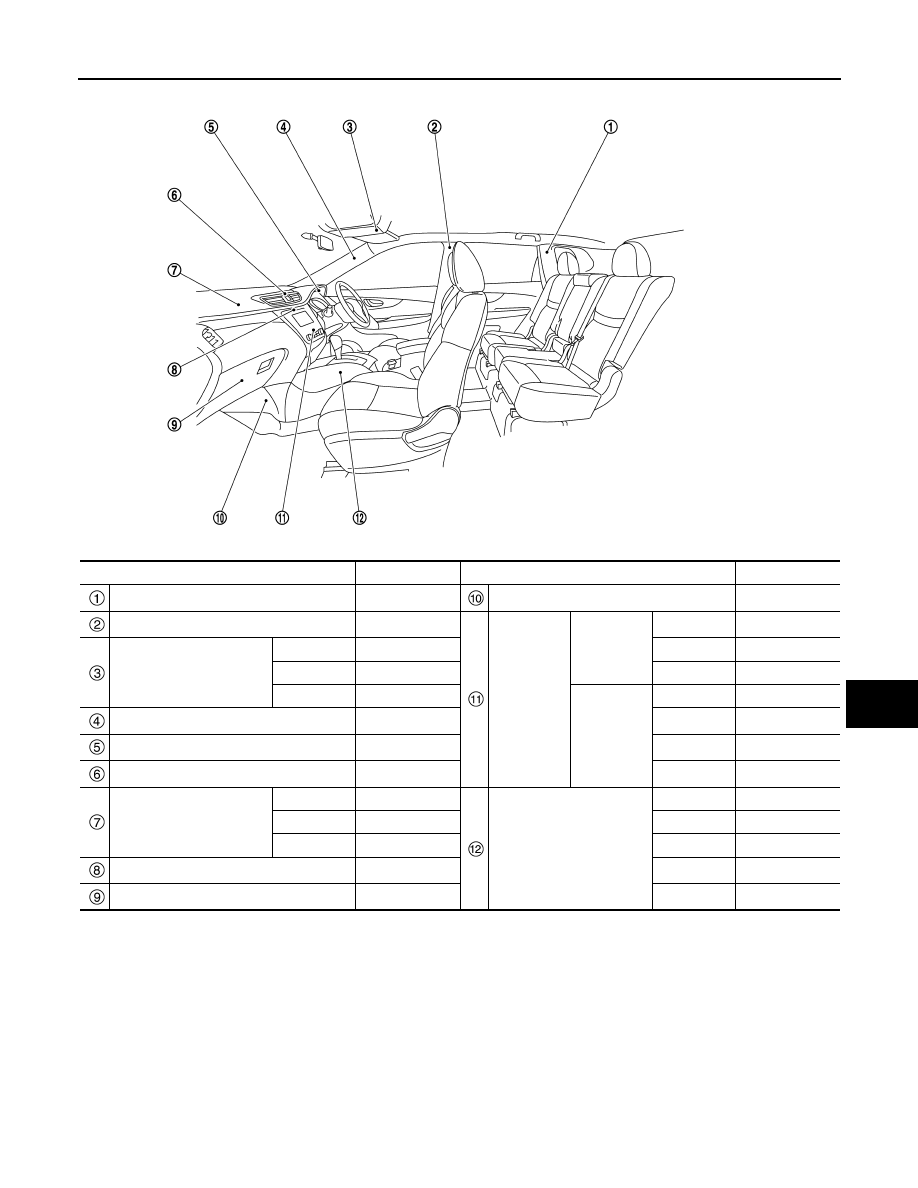

JSKIA3978ZZ

BRM-242

< VEHICLE INFORMATION >

[FOR RUSSIA]

BODY EXTERIOR PAINT COLOR

VEHICLE INFORMATION

BODY EXTERIOR PAINT COLOR

Body Exterior Paint Color

INFOID:0000000010498954

NOTE:

• S: 1-Coat solid

• 2M: 2-Coat Metallic

• 2S: 2-Coat solid

• 3P: 3-Coat pearl

• 2PM: 2-Coat Pearl metallic

Component

Color code

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Description

White

Black

Silver

Black

Gray

Red

Brown

Blue

Red

White

Paint type

 note

S

2M

2M

2M

2M

2PM

2M

2M

2S

3P

Standard
clear coat

–

×

×

×

×

×

×

×

×

×

Door mirror cover

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Front grille molding

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Front bumper fascia

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Fillet  molding

Material  color

–

–

–

–

–

–

–

–

–

–

Door outside handle

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Rear spoiler

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Back door finisher

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Rear bumper fascia

Body color

B326

BZ11

BKY0

BGAB

BKAD

BNAJ

BCAP

BRBN

BZ10

BQAB

Door outside lower
molding

Material  color

–

–

–

–

–

–

–

–

–

–

JSKIA3881ZZ

PRECAUTIONS

BRM-243

< PRECAUTION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PRECAUTION

PRECAUTIONS

Precautions for Removing Battery Terminal

INFOID:0000000010503255

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

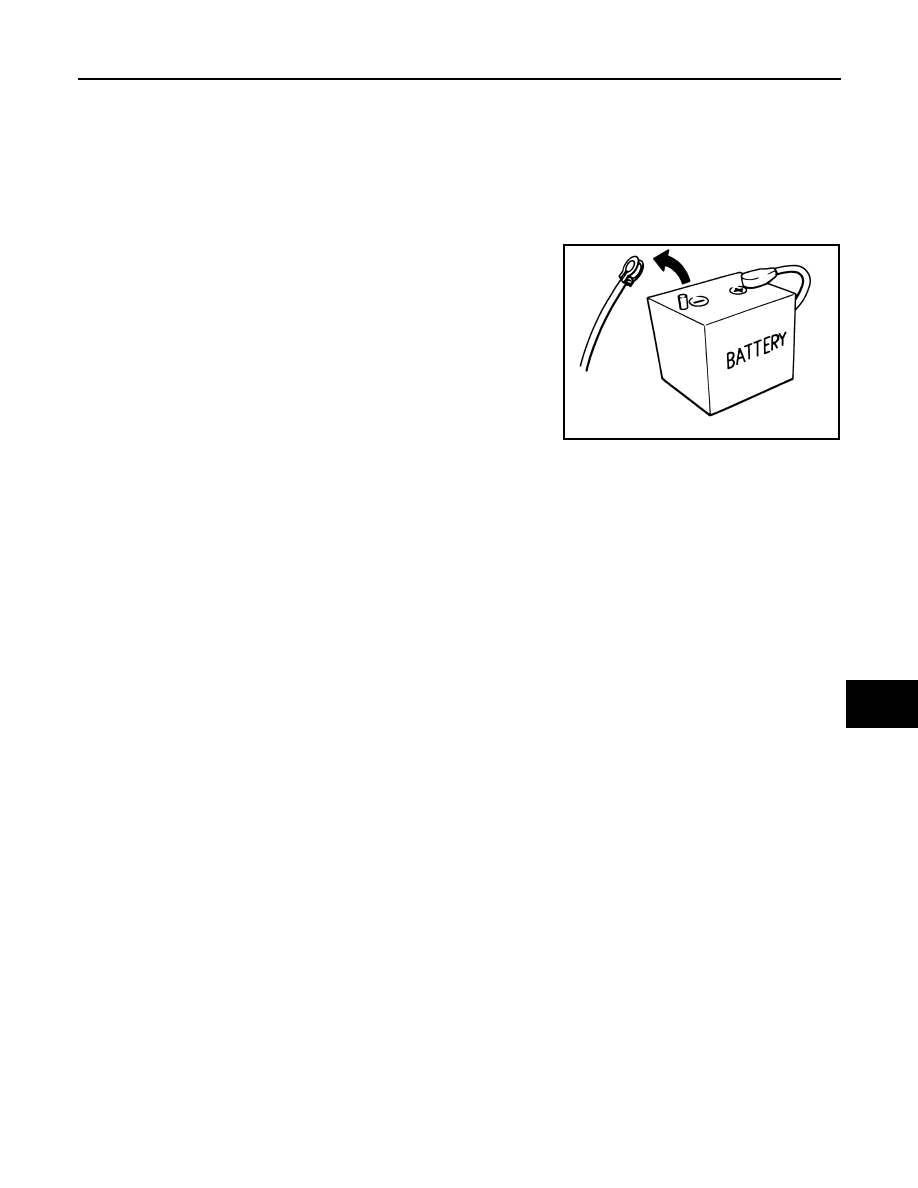

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes
