BRM-212

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

BODY ALIGNMENT

Unit: mm (in)

: Vehicle front

JSKIA3961ZZ

Point

Material

Point

Material

Cowl top hole center of center positioning mark

φ

8 (0.31)



Front side member hole center

φ

14 (0.55)



Hood hinge installing hole center

φ

12 (0.47)



Engine mounting bracket hole center

:

φ

14 (0.55)

:

φ

11 (0.43)



Front strut installing hole center 16

×

10

(0.63

×

0.39)



Hoodledge connector hole center

φ

12 (0.47)







Front fender installing hole center

φ

7 (0.28)







Front bumper stay installing hole center

φ

14

(0.55)







Upper radiator core support hole center

 :

φ

7 (0.28)

 :

φ

13 (0.51)

BODY ALIGNMENT

BRM-213

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

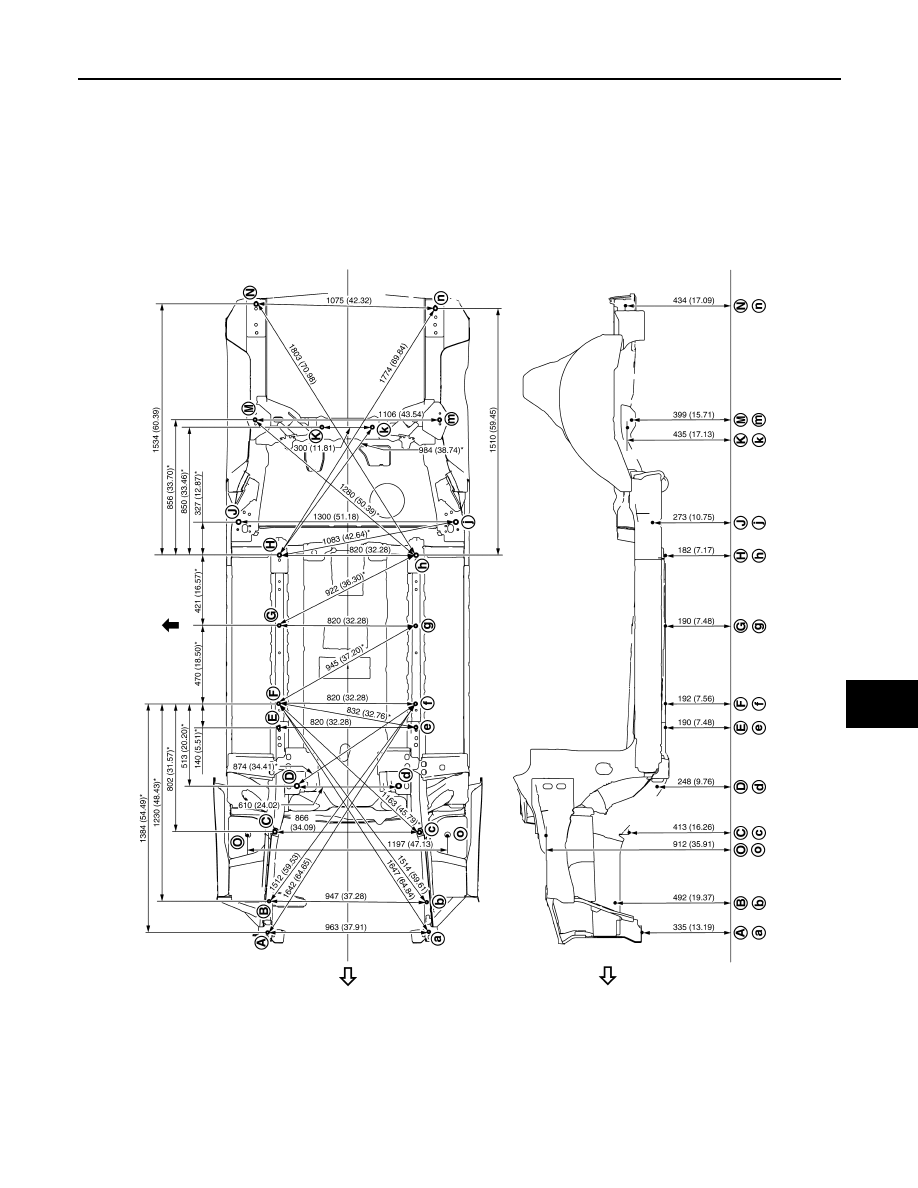

2WD : Underbody

INFOID:0000000010498841

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

JSKIA3909GB

BRM-214

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

BODY ALIGNMENT

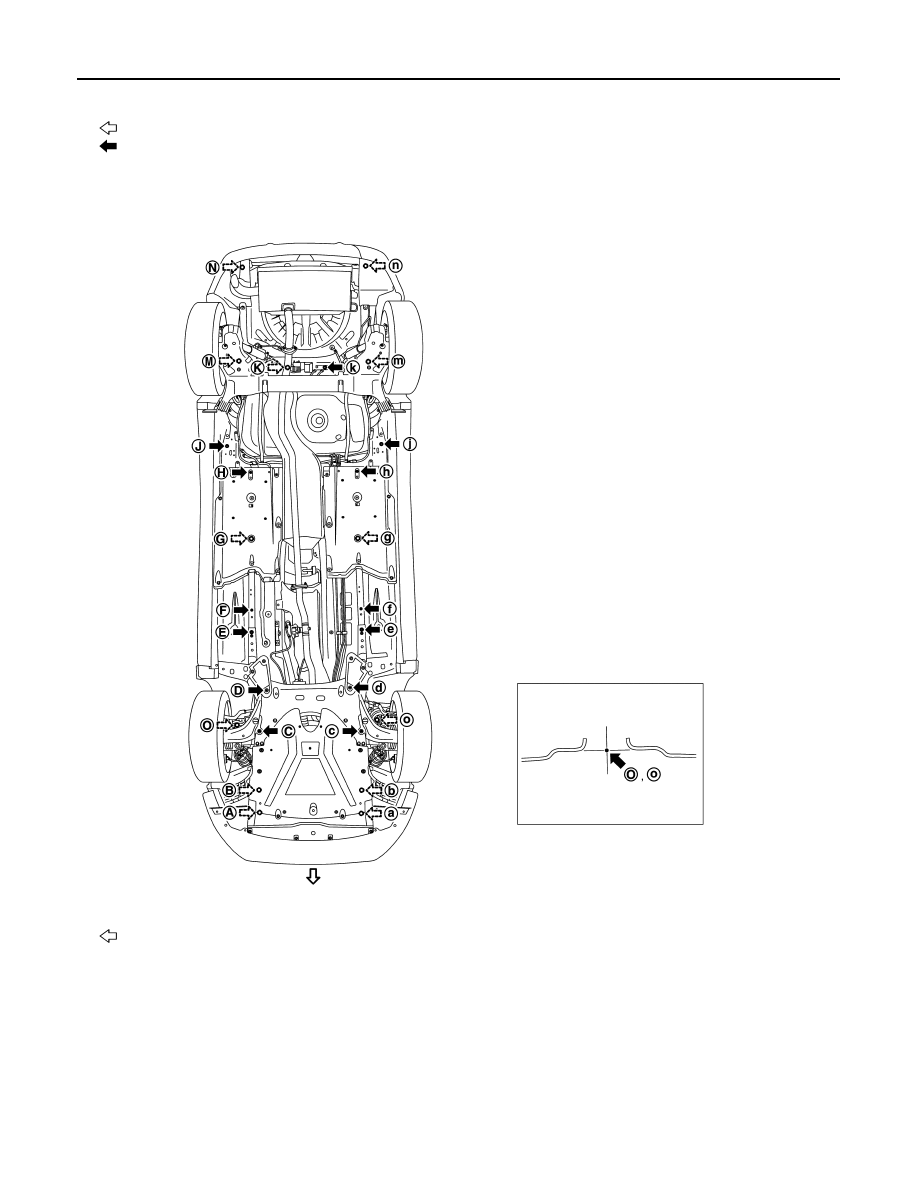

MEASUREMENT POINTS

Unit: mm (in)

: Vehicle front

: Vehicle left side

: Vehicle front

JSKIA3910ZZ

BODY ALIGNMENT

BRM-215

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

2WD : Passenger Compartment (Without sunroof models)

INFOID:0000000010498842

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

Points

Coordinates

Remarks

Points

Coordinates

Remarks

X

Y

Z

X

Y

Z

477.0

(18.779)

−

575.0

(

−

22.638)

335.0

(13.189)

Hole

φ

16 (0.63)



±

410.0

(

±

16.142)

1270.0

(50.000)

190.2

(7.487)

Hole

φ

12 (0.47)

−

486.0

(

−

19.134)

−

575.0

(

−

22.638)

335.0

(13.189)

Hole

φ

16 (0.63)



±

410.0

(

±

16.142)

1691.0

(66.575)

182.0

(7.164)

Hole

φ

11 (0.43)

472.0

(18.583)

−

391.0

(

−

15.394)

492.2

(19.378)

Hole

φ

16 (0.63)



±

650.0

(

±

25.591)

1894.0

(74.567)

272.9

(10.744)

Hole

φ

16 (0.63)

−

475.0

(

−

18.701)

−

391.0

(

−

15.394)

492.2

(19.378)

Hole

φ

16 (0.63)



±

150.0

(

±

5.906)

2460.0

(96.850)

434.6

(17.110)

: Hole

φ

16 (0.63)

: Hole 18

×

16

(0.71

×

0.63)



±

433.0

(

±

17.047)

29.0

(1.142)

412.5

(16.240)

Hole

φ

12 (0.47)



±

553.0

(

±

21.772)

2506.4

(98.677)

399.4

(15.724)

Hole

φ

16 (0.63)



±

305.0

(

±

12.008)

301.0

(11.850)

247.8

(9.756)

: Hole

φ

27 (1.06)

: Hole 31

×

27

(1.22

×

1.06)

546.5

(21.516)

3198.0

(125.905)

433.8

(17.079)

Hole 16

×

14

(0.63

×

0.55)



±

410.0

(

±

16.142)

660.0

(25.984)

189.8

(7.472)

Hole

φ

14 (0.55)

−

528.5

(

−

20.807)

3175.0

(125.000)

433.8

(17.079)

Hole 20

×

16

(0.79

×

0.63)



±

410.0

(

±

16.142)

800.0

(31.496)

192.4

(7.573)

Hole

φ

12 (0.47)



±

598.6

(

±

23.566)

7.4

(0.291)

911.9

(35.902)

Hole

φ

33 (1.30)

JSKIA3911GB
