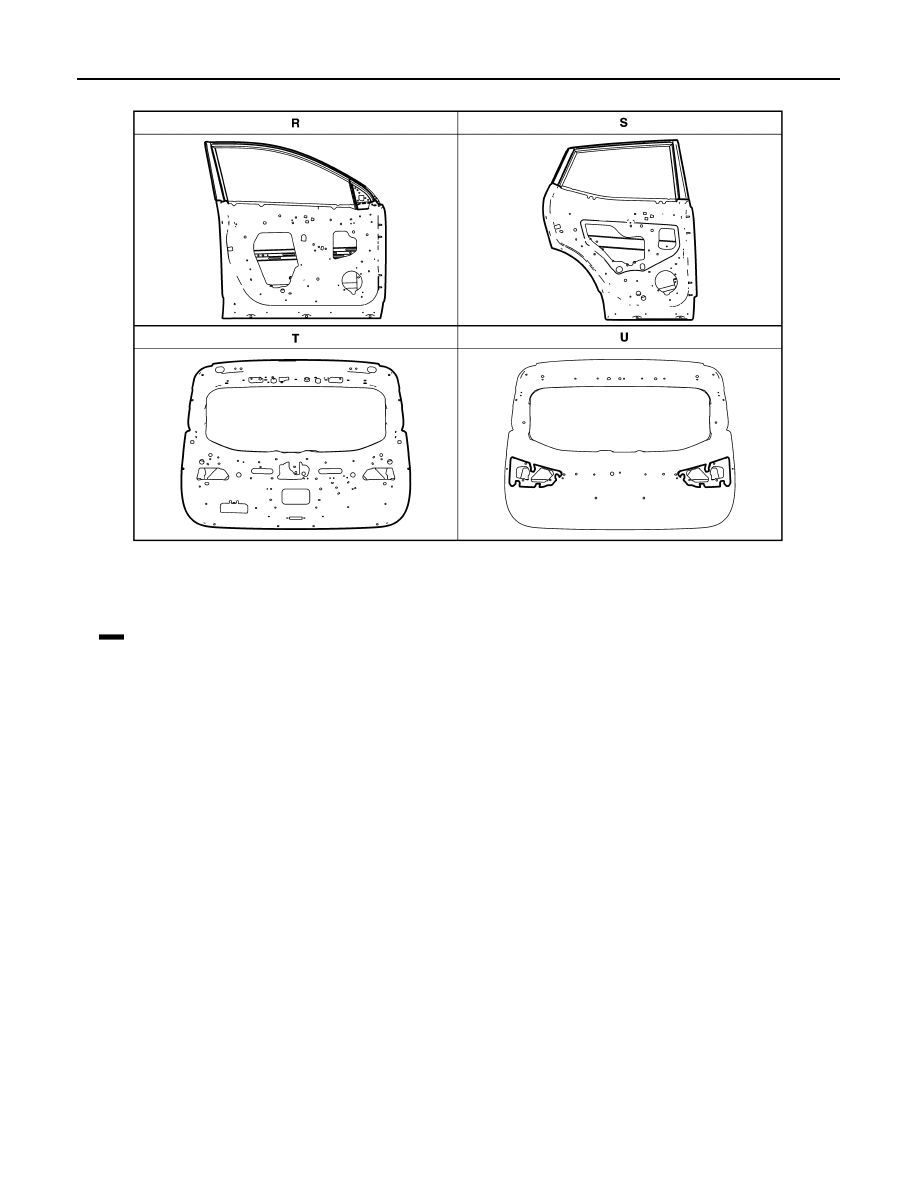

CORROSION PROTECTION

: Sealed portions

JSKIA3893ZZ

BODY CONSTRUCTION

BRM-161

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY CONSTRUCTION

2WD

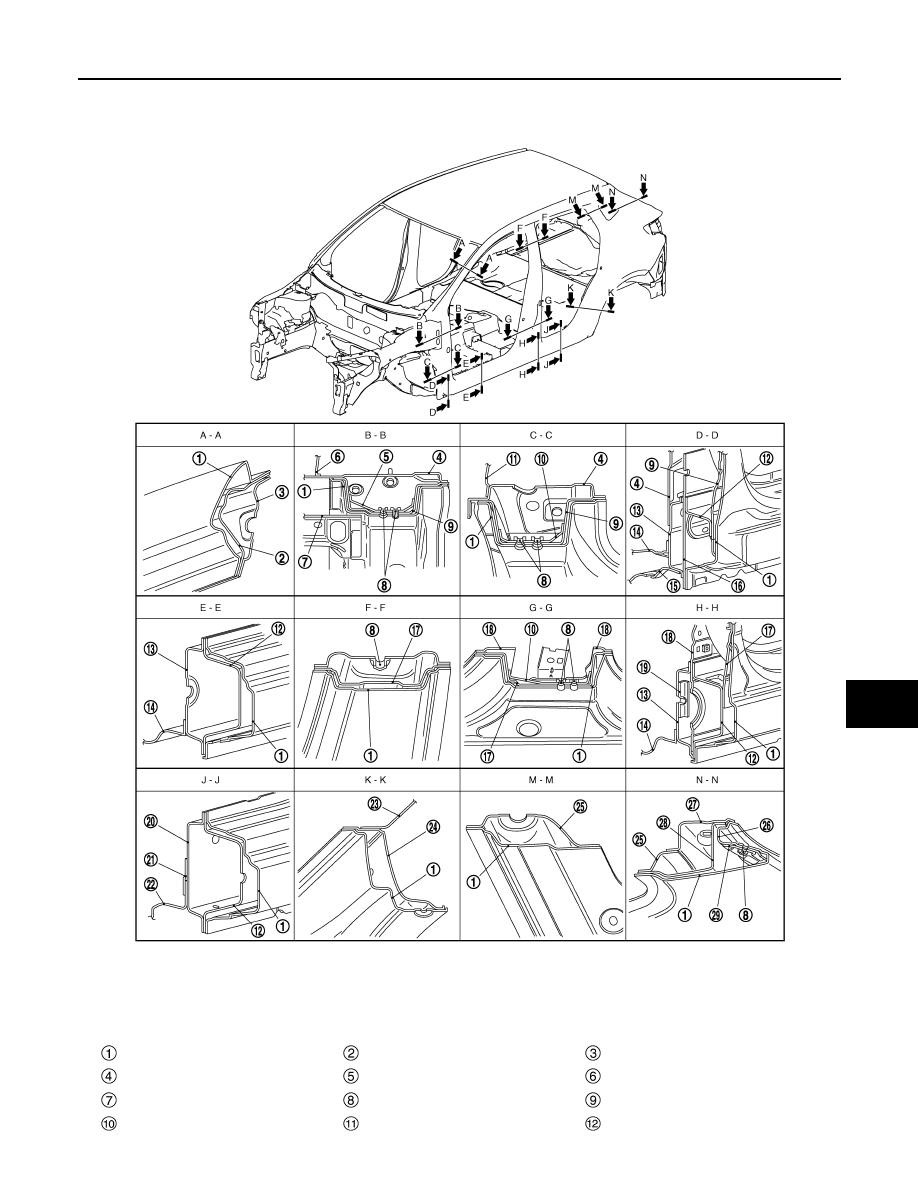

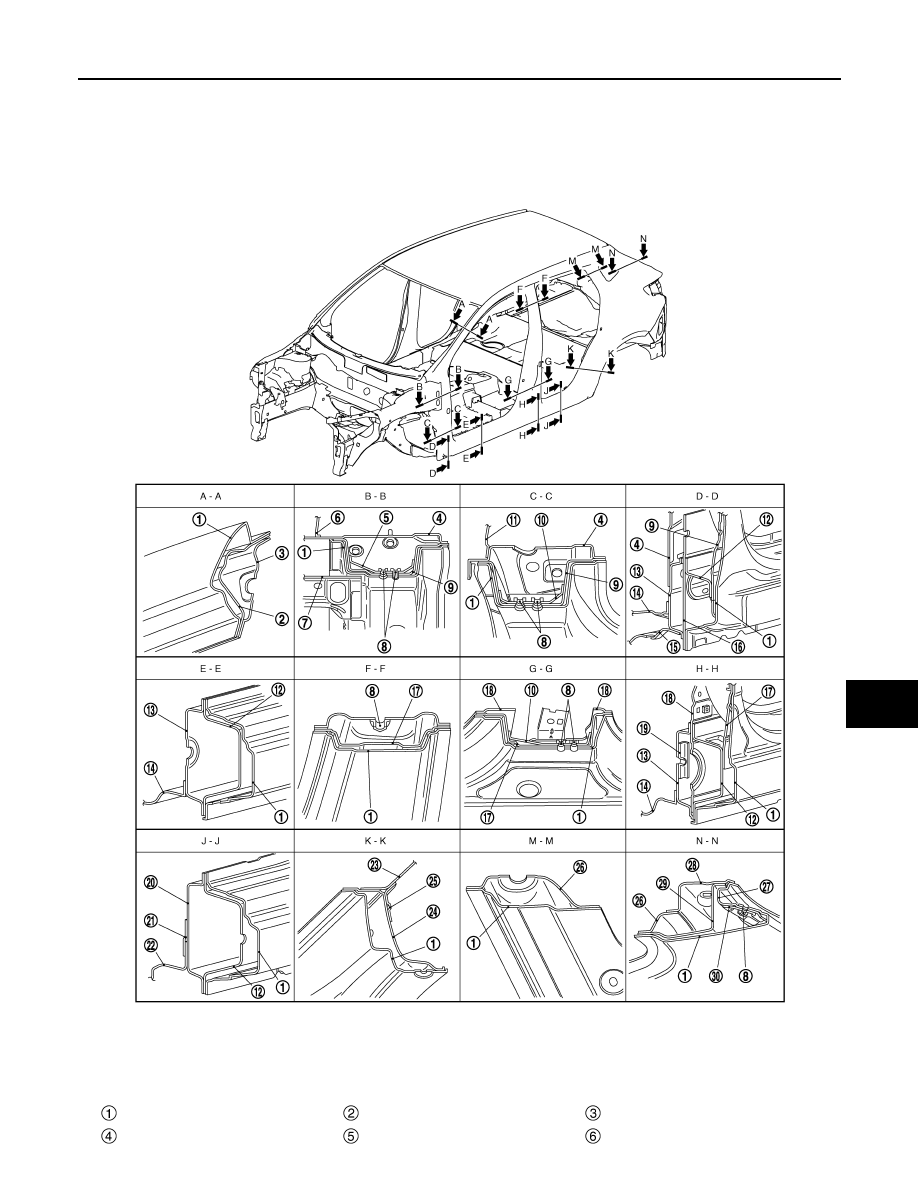

2WD : Body Construction

INFOID:0000000010498767

JSKIA3954ZZ

Outer side body

Outer front pillar reinforcement

Upper inner front pillar

Side dash

Upper hinge plate

Upper dash

BRM-162

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

BODY CONSTRUCTION

4WD

Hoodledge reinforcement

Weld nut

Lower front pillar hinge brace

Lower hinge plate

Lower dash

Outer sill reinforcement

Inner sill

Front floor

Front side member outrigger

Lower front pillar reinforcement

Center pillar hinge brace

Inner center pillar

Weld plate

Inner sill extension

Rear seat crossmember

Rear floor front extension

Inner rear wheelhouse

Outer rear wheelhouse

Inner rear wheelhouse reinforce-
ment

Inner rear pillar

Rear fender extension

Rear roof rail brace

Upper back pillar reinforcement

Back door stay reinforcement

BODY CONSTRUCTION

BRM-163

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

4WD : Body Construction

INFOID:0000000010354866

Outer side body

Outer front pillar reinforcement

Upper inner front pillar

Side dash

Upper hinge plate

Upper dash

Hoodledge reinforcement

Weld nut

Lower front pillar hinge brace

Lower hinge plate

Lower dash

Outer sill reinforcement

JSKIA3955ZZ
